Introduction
Although both are Heat Exchangers in the same refrigeration loop, a condenser and an evaporator do opposite jobs. The evaporator absorbs heat from indoor air or the cooled space, causing refrigerant to boil into vapor, while the condenser releases that captured heat to the outside as the refrigerant returns to liquid. This distinction affects system temperature, pressure, placement, and overall performance. In the sections that follow, you’ll see how each component works, how refrigerant changes state inside them, and why understanding their different roles makes HVAC and refrigeration systems much easier to read and troubleshoot.
Condenser vs Evaporator: Core Functions
The vapor-compression refrigeration cycle relies on a continuous thermodynamic loop to transfer thermal energy from one environment to another. At the heart of this process are two highly specialized heat exchangers: the condenser and the evaporator. While they are constructed using similar principles of fluid dynamics and thermal conductivity, their operational objectives are diametrically opposed.
Understanding the distinction between these two components requires examining their specific roles in heat absorption and heat rejection. Together, they manipulate the state and temperature of a refrigerant to achieve precise climate control or commercial cooling.
How the Evaporator Absorbs Heat
The evaporator functions as the thermal intake of the refrigeration cycle. Operating as a low-pressure heat exchanger, it facilitates the phase change of refrigerant from a subcooled liquid-vapor mixture to a superheated gas. By maintaining a saturation temperature significantly lower than the ambient medium—typically around 40°F (4.4°C) in standard residential air conditioning applications—the evaporator absorbs sensible and latent heat from the conditioned space.
As warm indoor air is forced across the chilled Evaporator Coils by a blower motor, the thermal energy is transferred into the refrigerant. This addition of heat causes the low-pressure liquid to boil rapidly. The refrigerant exits the evaporator as a low-pressure vapor, carrying the absorbed thermal energy away from the building envelope.
How the Condenser Rejects Heat
In direct opposition to the evaporator, the condenser acts as the thermal exhaust. It receives high-pressure, high-temperature superheated vapor directly from the compressor. As ambient air or water passes over the condenser coils, the refrigerant rejects its absorbed heat into the external environment, undergoing an exothermic phase change back into a liquid state.
To ensure an adequate temperature delta for efficient heat transfer, condensing temperatures generally operate 15°F to 30°F (8°C to 17°C) above the outdoor ambient temperature. Once the heat is successfully dissipated, the refrigerant leaves the condenser as a high-pressure subcooled liquid, ready to be forced through the expansion valve to restart the cycle.
Pressure, Temperature, and Phase Change
The fundamental boundary between the condenser and evaporator is defined by pressure differentials managed by the compressor and the metering device. These pressure zones dictate the boiling and condensing points of the refrigerant according to its specific pressure-enthalpy (P-h) curve.
In a typical R-410A system, the evaporator operates in the low-side pressure range of roughly 118 to 130 psig, enabling low-temperature boiling. Conversely, the condenser operates on the high side at pressures frequently exceeding 350 to 400 psig. This mechanical pressure manipulation is the essential mechanism that forces the phase changes required to move thermal energy against its natural gradient.

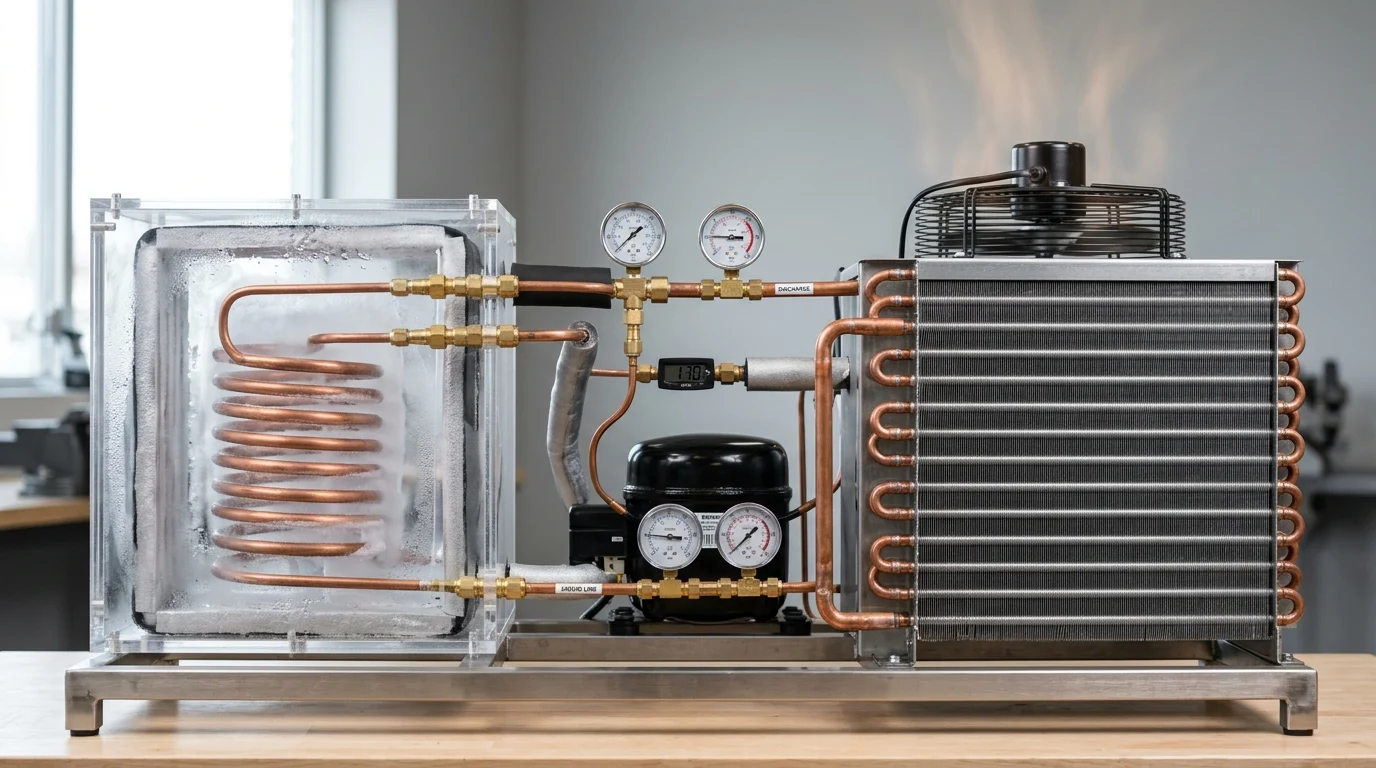

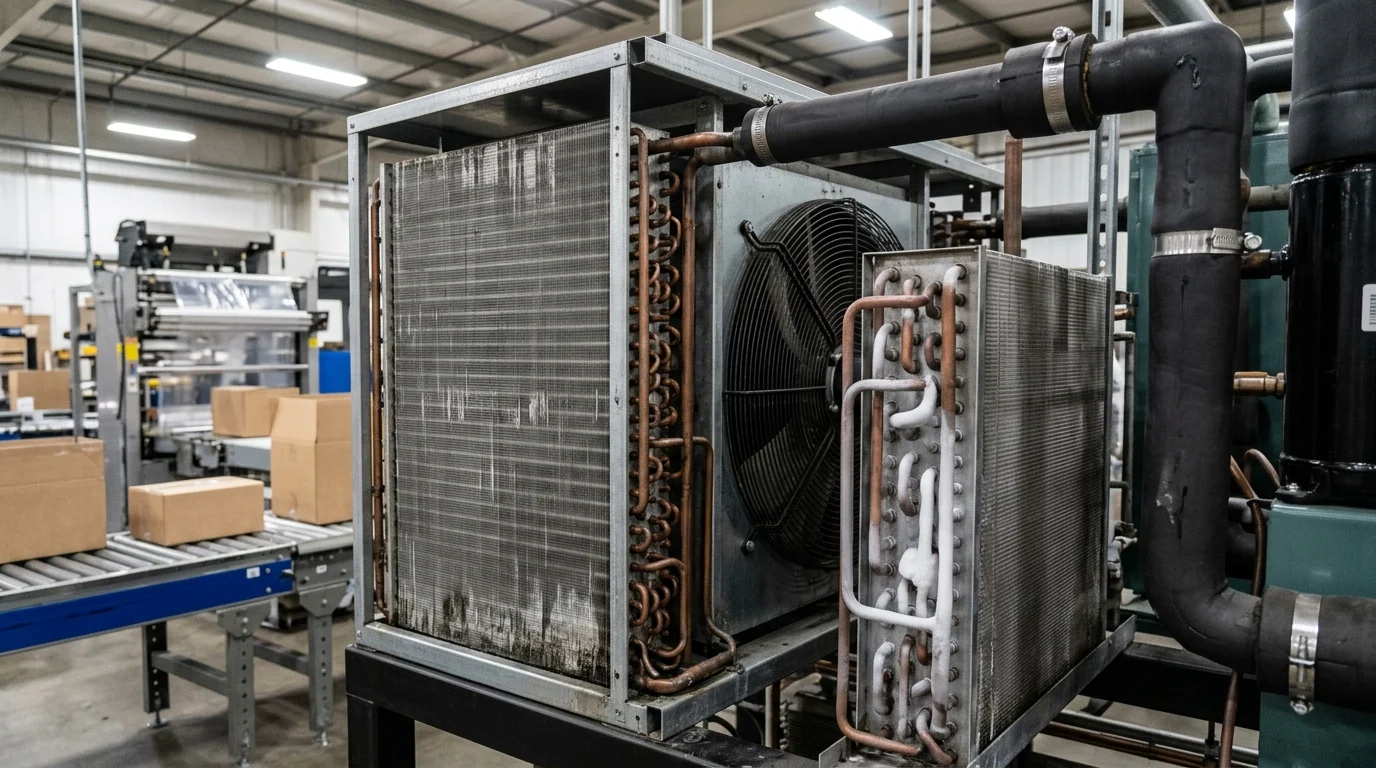

Key Differences in Design and Operation
Because the condenser and evaporator operate in vastly different environments and handle different thermodynamic duties, their physical designs, material compositions, and installation requirements diverge significantly. Engineers optimize each coil to survive its specific operating conditions while maximizing thermal efficiency.
Component Roles and System Location
The physical placement of these components is strictly dictated by their thermal roles. Evaporators are installed within the air handler or ductwork of the conditioned space, or within a dedicated chiller barrel in hydronic systems. Their primary job is to interact directly with the indoor air or process fluid.
Condensers are situated externally—either as outdoor packaged units, split-system condensing units, or connected to external cooling towers. This placement ensures they can safely dissipate waste heat into the atmosphere without allowing the thermal energy to re-enter the building envelope.
Coil Design, Airflow, and Materials
Coil geometry and material selection vary significantly between the two heat exchangers to accommodate their distinct operational environments. Evaporator coils frequently utilize hydrophilic aluminum fins spaced at 14 to 15 fins per inch (FPI) to optimize wicking and moisture removal without restricting airflow.
Condenser coils, subjected to harsh outdoor environments, increasingly rely on all-aluminum microchannel designs. These advanced geometries can reduce the required refrigerant charge by up to 40% while resisting galvanic corrosion caused by environmental pollutants.
| Feature | Evaporator | Condenser |
|---|---|---|
| Primary Function | Heat absorption (cooling) | Heat rejection (exhaust) |
| Phase Change | Liquid to Vapor (Boiling) | Vapor to Liquid (Condensing) |
| Operating Pressure | Low (Low-side) | High (High-side) |
| Typical Location | Indoors / Air Handler | Outdoors / Rooftop |
| Moisture Handling | Generates heavy condensate | Generally dry (except in heat pumps) |
Drainage and Installation Requirements
Because the evaporator operates below the dew point of the return air, it actively dehumidifies the space. A standard 3-ton commercial evaporator can produce 5 to 20 gallons of condensate daily. This high volume of moisture necessitates sloped drain pans, P-traps to overcome negative static pressure from the blower, and primary and secondary drain lines to prevent flooding.
Condensers do not typically handle condensate during standard cooling operations. However, they require strict spatial clearances to function efficiently. Manufacturers typically specify a minimum of 24 inches of unobstructed perimeter radius and up to 60 inches of vertical clearance to prevent the recirculation of discharged hot air, which would severely degrade heat rejection efficiency.
Selection Criteria for HVAC and Refrigeration
Specifying the correct condenser and evaporator combination is not a matter of simply matching nominal tonnages. System sizing requires a precise balancing of heat transfer capabilities, load profiles, and environmental constraints to ensure stable, efficient operation under peak demand.
Capacity, Efficiency, and Heat Transfer
A critical selection metric in HVAC design is the Total Heat of Rejection (THR). The condenser must be sized to reject not only the thermal load absorbed by the evaporator but also the heat of compression introduced by the compressor. Consequently, a condenser's thermal capacity must be mathematically greater than the evaporator's cooling capacity.
In standard applications, condenser capacity is typically sized 20% to 30% larger than the evaporator's nominal rating. For example, a 120,000 BTU/h (10-ton) evaporator requires a condenser capable of handling roughly 144,000 to 156,000 BTU/h. Failing to account for the heat of compression results in elevated head pressures and diminished system efficiency.
Ambient Conditions, Load Profiles, and Refrigerant Choice
Environmental variables heavily influence component specification. Condensers must be selected based on peak outdoor ambient design temperatures. A unit rated for a 95°F (35°C) ambient environment will suffer significant capacity derating and elevated head pressures if operated in a 115°F (46°C) desert climate unless an oversized coil surface is specified.
Additionally, the industry transition toward lower Global Warming Potential (GWP) refrigerants, such as R-32 and R-454B, imposes new constraints. Because these are classified as A2L (mildly flammable), evaporator design and placement are now strictly governed by maximum allowable charge limits per cubic foot of conditioned space. These compliance thresholds directly impact evaporator selection and zoning strategies for high-load commercial profiles.
Maintenance and Troubleshooting
The long-term reliability of any refrigeration or air conditioning system is heavily dependent on the condition of its heat exchangers. Because both the condenser and the evaporator rely on optimal airflow to facilitate phase changes, routine maintenance is critical to preventing catastrophic compressor failure.
Cleaning, Inspection, and Airflow Checks
The performance of both heat exchangers degrades exponentially when airflow is restricted. Routine maintenance protocols must include measuring the static pressure drop across the coils. A modest 20% reduction in optimal airflow due to particulate accumulation can reduce overall system efficiency by 10% to 15%.
Evaporators require periodic treatment with EPA-registered biocides to prevent microbial growth in the dark, damp environment of the air handler. Condensers, exposed to the elements, require chemical foaming agents or high-volume water flushing to dislodge embedded environmental debris such as cottonwood, leaves, and urban smog particulates.
Signs of Condenser Problems
Condenser fouling manifests mechanically as restricted heat rejection, which immediately drives up the system's high-side pressure. Technicians diagnosing a dirty condenser will observe elevated subcooling and a corresponding spike in compressor amperage as the motor works harder to pump refrigerant against high resistance.
Operating a system with a severely restricted condenser coil can increase the compressor's energy consumption by up to 30%. If left unaddressed, this condition frequently triggers safety lockouts via the high-pressure switch, which typically trips when R-410A head pressures exceed the critical threshold of 600 psig.
Signs of Evaporator Problems
Conversely, evaporator issues generally present on the low side of the system. Restricted airflow—often caused by a severely clogged MERV filter or a dirty coil—prevents the liquid refrigerant from fully boiling off. This causes the suction pressure and saturation temperature to plummet dramatically.
In an R-410A system, if the suction pressure drops below approximately 100 psig, the coil temperature falls below 32°F (0°C), leading to aggressive ice formation across the fins. Other common evaporator failures include biological blockages in the condensate trap, which result in localized water damage and elevated indoor humidity levels.

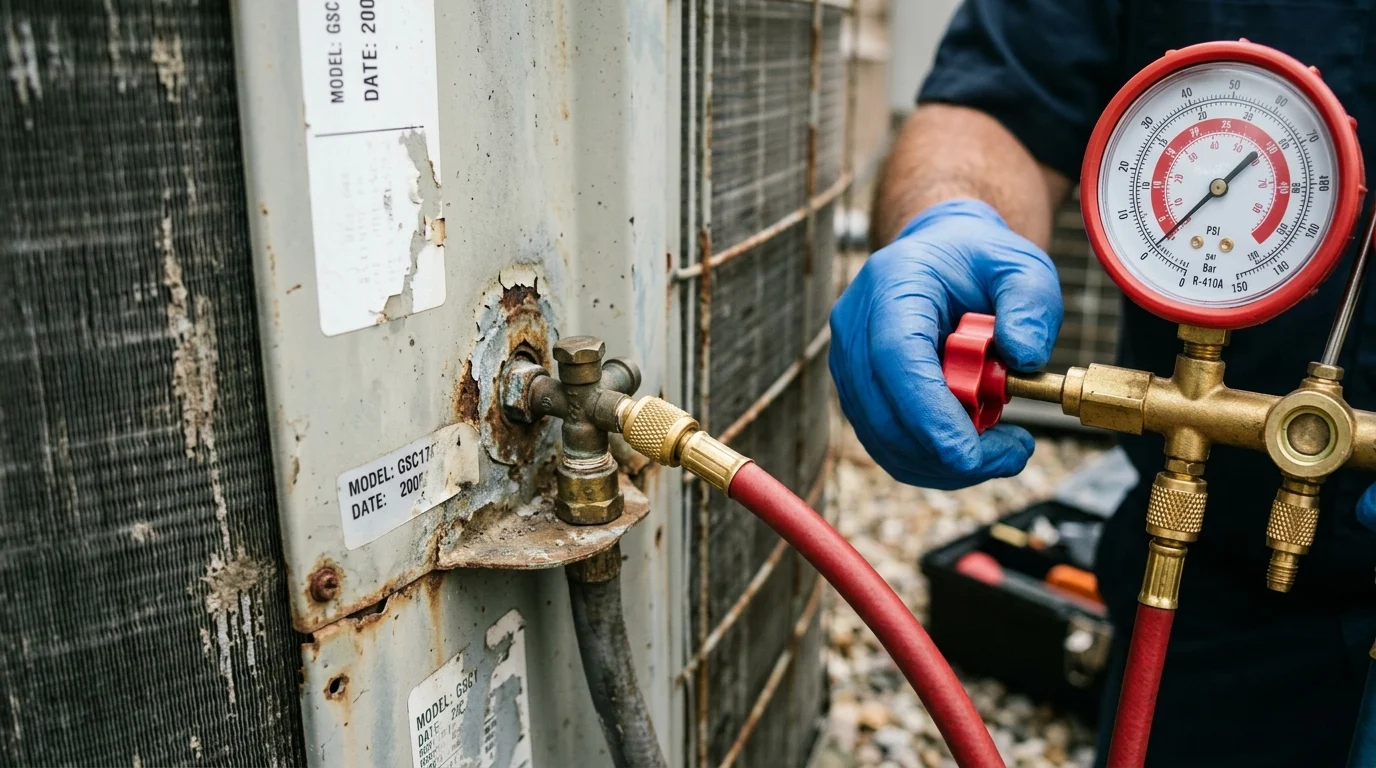

Repair or Replace Decision Factors
As HVAC systems age, facility managers and property owners inevitably face the decision of whether to repair a failing heat exchanger or replace the system entirely. This decision must be guided by lifecycle cost analysis, regulatory compliance, and system compatibility.
When Replacement Is More Cost-Effective Than Repair
Heat exchangers are highly susceptible to chemical degradation over time. Formicary corrosion in evaporators (caused by volatile organic compounds in indoor air) or galvanic corrosion in condensers often results in microscopic pinhole leaks. If a heat exchanger is older than 10 years and requires a refrigerant recharge exceeding 20% of its total volume, replacement is almost always the more economical choice.
This threshold is especially critical for legacy systems utilizing phased-out refrigerants like R-22. Because production of R-22 has ceased, the market price per pound can easily exceed the labor and materials cost of a standard coil repair, making replacement the only financially viable long-term strategy.
Final Criteria for Choosing the Right Component
When replacement is mandated, regulatory compliance and system compatibility are paramount. Under modern Department of Energy (DOE) regulations, an evaporator or condenser cannot be replaced arbitrarily; the new component must be an Air-Conditioning, Heating, and Refrigeration Institute (AHRI) certified match to the existing hardware.
| Decision Factor | Favor Repair | Favor Replacement |
|---|---|---|
| Component Age | Under 8 years | Over 10-12 years |
| Leak Severity | Single accessible leak | Multiple pinhole leaks (corrosion) |
| Refrigerant Type | Current standard (e.g., R-410A) | Phased out (e.g., R-22) |
| Repair Cost Ratio | < 30% of new unit cost | > 50% of new unit cost |
Mismatching components carries severe operational penalties. Pairing a high-efficiency 18 SEER2 condenser with an older, low-volume evaporator will not only fail to achieve the rated efficiency but will also disrupt critical oil return to the compressor. This imbalance virtually guarantees premature mechanical failure, emphasizing the need for holistic system replacement when major heat exchanger faults occur.
Key Takeaways
- The most important conclusions and rationale for Condenser and Evaporator
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What does an evaporator do in a cooling system?
The evaporator absorbs heat from indoor air or process fluid. Refrigerant boils inside the coil at low pressure, turning from liquid to vapor and carrying heat away from the cooled space.
What does a condenser do compared with an evaporator?
The condenser releases absorbed heat outdoors. It receives hot, high-pressure refrigerant vapor from the compressor and cools it back into a liquid for the next cycle.
Where are the evaporator and condenser usually installed?
The evaporator is typically inside the air handler, ductwork, or chiller section. The condenser is usually outside so it can reject heat without warming the indoor space again.
How do pressure levels differ between condenser and evaporator?
The evaporator runs on the low-pressure side so refrigerant can boil at a low temperature. The condenser runs on the high-pressure side so refrigerant can condense and discharge heat efficiently.
Why do condenser coil materials matter for HVAC performance?
Outdoor condensers face weather, dirt, and corrosion. Durable designs like all-aluminum or microchannel coils, such as those used by Senjun Cooler, can improve heat transfer and reduce refrigerant charge.
