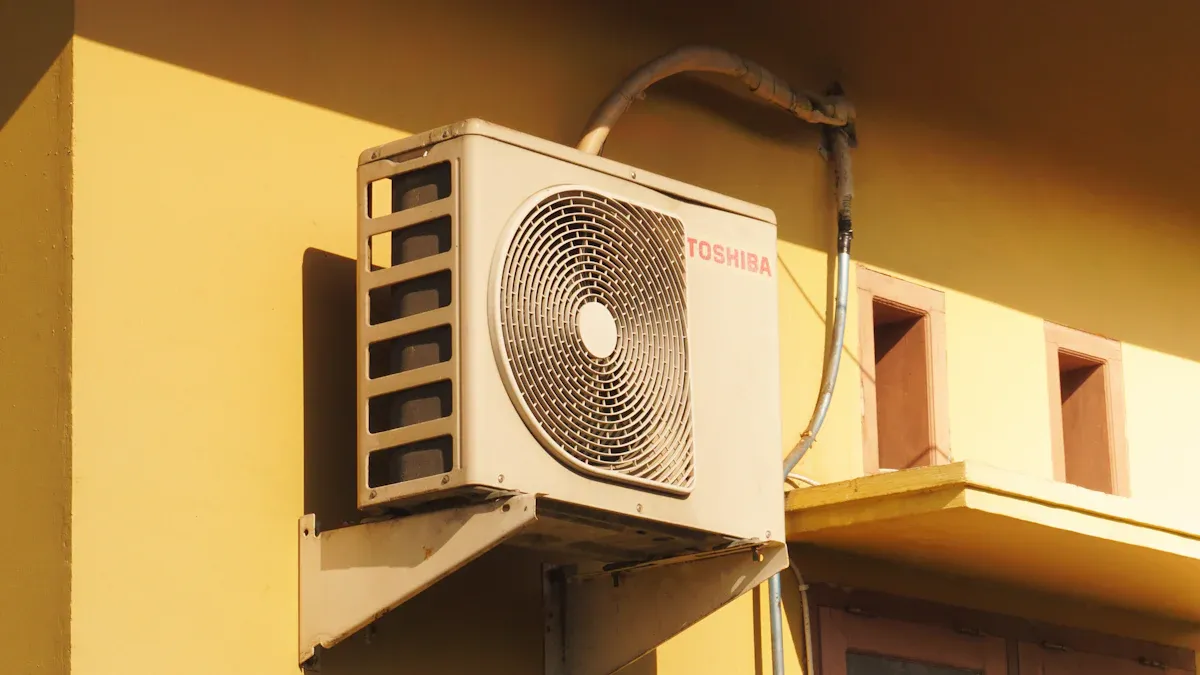

What Is a Refrigeration Condenser? A Key Component in Cooling Systems

A Refrigeration Condenser is a crucial heat exchanger in any Cooling System. This component expels heat from the refrigerant into the environment, ensuring efficient cooling. AnIndustrial Refrigeration Condenser or a Walk-in Cooler Condenser relies on this process. Each Refrigeration Condenser Unit, like a Water Cooled Refrigeration Condenser or an Ammonia Refrigeration Condenser, performs this critical heat rejection.

Key Takeaways

• A refrigeration condenser removes heat from a cooling system. It changes hot gas into a liquid to make cooling work well.
• There are different types of condensers, like air-cooled and water-cooled. Each type works best for different cooling needs.
• Regular care for your condenser keeps it working well. This saves energy and makes your cooling system last longer.

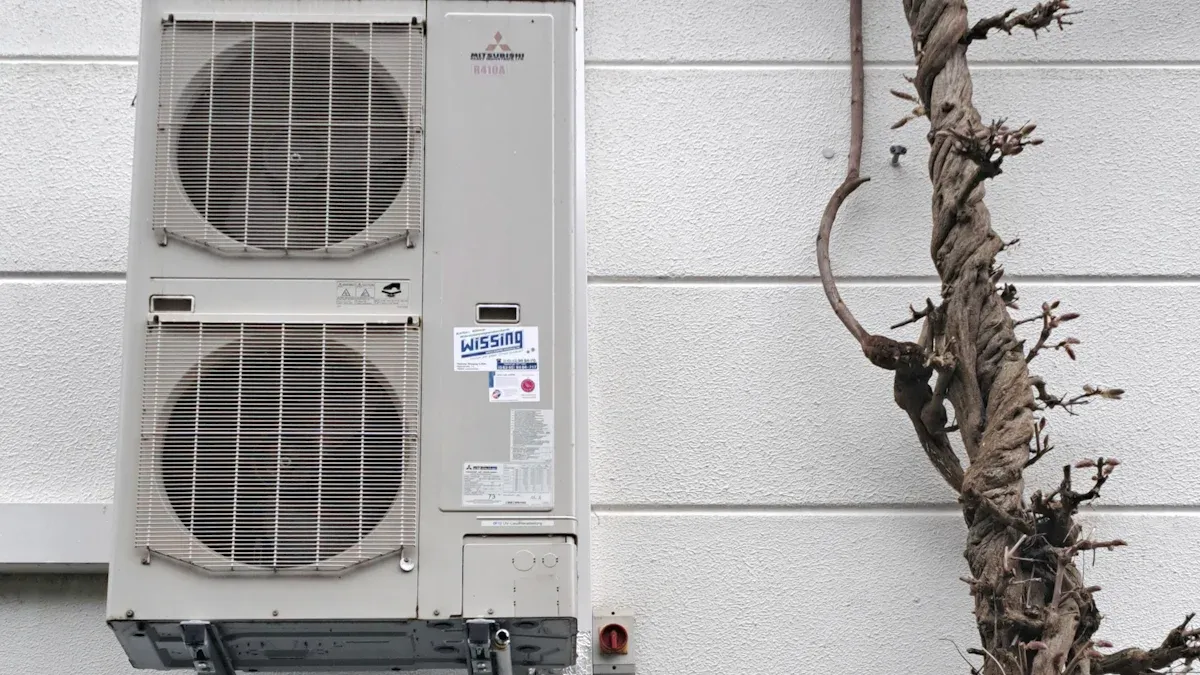

How a Refrigeration Condenser Works in Cooling Systems

The Refrigeration Cycle and Heat Transfer

A refrigeration system operates on a continuous cycle to move heat from one area to another. This process involves four main components: the evaporator, the compressor, the Refrigeration Condenser, and the expansion valve. The cycle begins when the evaporator absorbs heat from the space needing cooling. This heat turns the liquid refrigerant into a low-pressure gas. The compressor then draws in this low-pressure gas and increases its pressure and temperature significantly. This hot, high-pressure gas then moves to the condenser. The entire system works to transfer heat from inside a refrigerated space to the outside environment.

Refrigerant Phase Change in the Condenser

The condenser's primary role involves a critical phase change for the refrigerant. The hot, high-pressure refrigerant gas enters the condenser coils. As this gas flows through the coils, it encounters a cooler environment. The temperature difference causes the gas to cool down. As the gas cools, it releases its latent heat. This heat release causes the refrigerant to change its state from a gas back into a high-pressure liquid. This transformation is called condensation. The condenser effectively removes the heat the refrigerant picked up in the evaporator and the heat added by the compressor.

Heat Rejection Process of the Refrigeration Condenser

After the refrigerant condenses into a liquid, the condenser must expel the heat it removed from the refrigerant. This heat rejection typically occurs in one of two ways: through air or through water. In air-cooled condensers, fans blow ambient air over the hot condenser coils. The air absorbs the heat from the coils and then dissipates it into the atmosphere. In water-cooled condensers, a continuous flow of water passes over or through the condenser coils. The water absorbs the heat from the refrigerant. This heated water then often goes to a cooling tower, which removes the heat from the water before it returns to the condenser. This process ensures the system efficiently removes heat from the cooled space.

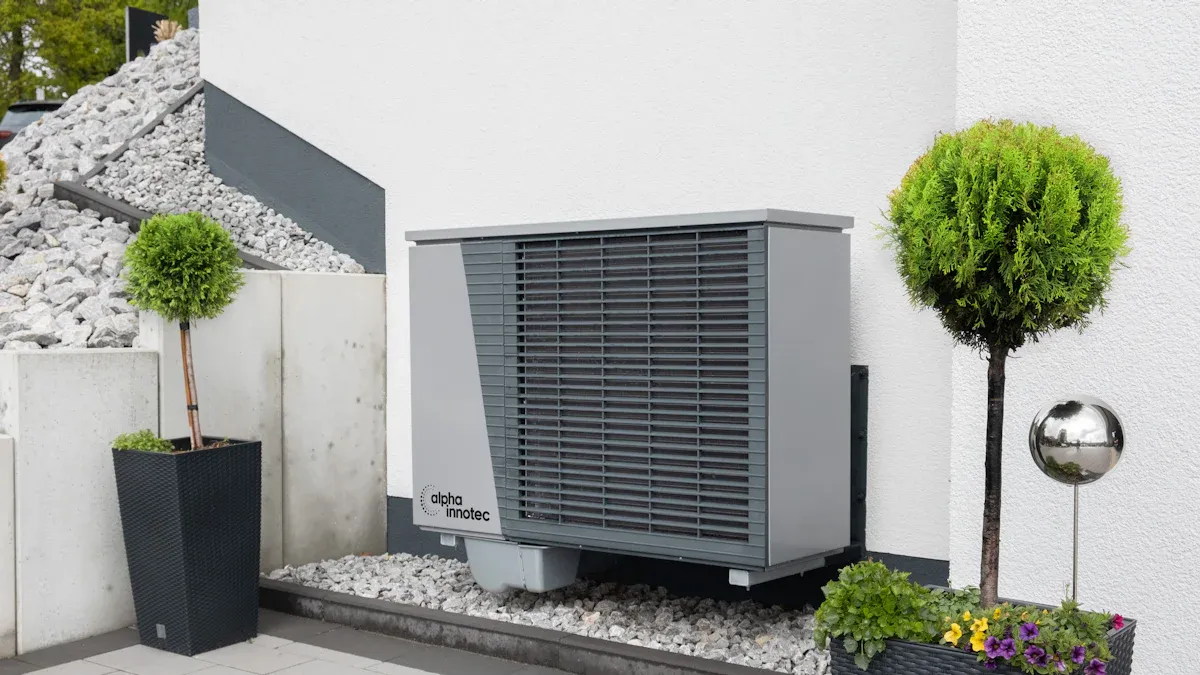

Types of Refrigeration Condensers and Their Applications

Cooling systems use different types of condensers. Each type suits specific needs and environments. Engineers design these condensers to efficiently reject heat from the refrigerant.

Air-Cooled Refrigeration Condensers

Air-cooled condensers are common in many cooling systems. They use ambient air to remove heat from the refrigerant. Fans blow air over the condenser coils. This air absorbs heat from the hot refrigerant gas inside the coils. The refrigerant then cools and changes back into a liquid.

Manufacturers build these condensers with specific materials for optimal performance. For example, condenser coils often use copper, aluminum, or stainless steel. Copper is excellent for tubes, fins, and headers because it conducts heat well and resists corrosion. Aluminum is lightweight and also conducts heat efficiently. Steel provides strength for the support structure, such as the frame and columns. Fins, which increase the surface area for heat exchange, can be aluminum, epoxy-coated aluminum, copper, cupronickel, or stainless steel.

Air-cooled condensers are ideal for many applications. They work well in smaller HVAC systems, especially those with outdoor condensing units. People often choose them for residential and light commercial buildings. They are also popular in places where water is scarce or difficult to manage. This makes them suitable for small cold rooms, supermarkets, and food retail outlets. Their simple installation and low water requirements also make them a good choice for remote locations.

Water-Cooled Refrigeration Condensers

Water-cooled condensers use water to remove heat from the refrigerant. These systems circulate water through a heat exchanger. The water absorbs heat from the hot refrigerant gas. This process cools the refrigerant, causing it to condense into a liquid. The heated water then typically goes to a cooling tower. The cooling tower removes heat from the water before it returns to the condenser.

Water-cooled condensers offer significant advantages, especially in large-scale industrial refrigeration systems. They are generally more energy-efficient. Water transfers heat better than air. This allows these systems to maintain lower condensing temperatures. It also reduces the compressor's workload. This efficiency is very helpful in warm climates or during high-load industrial processes. These units are also ideal for indoor installations or areas where ambient air conditions are not suitable for air cooling.

These condensers are suitable for large manufacturing plants. They handle continuous high cooling loads in industries like plastics production, chemical processing, and food manufacturing. Water-cooled systems provide precise temperature control. This makes them well-suited for industrial thermoregulation. They also save energy and reduce operational costs. Water has a higher heat absorption capacity, which means lower electricity consumption. These systems are often more compact than air-cooled units. This allows for installation in confined spaces. They also operate more quietly because they do not use large, high-powered fans. This makes them good for places like office buildings or hospitals.

Evaporative Refrigeration Condensers

Evaporative condensers combine elements of both air-cooled and water-cooled systems. They use the natural process of evaporation to cool the refrigerant. Hot, high-pressure refrigerant gas flows through coils. Water cascades over these coils. At the same time, fans draw air across the coils. As the water evaporates, it absorbs a large amount of heat from the refrigerant. This cools the refrigerant and causes it to condense.

Evaporative condensers are highly energy-efficient. They consume less energy than traditional methods. This leads to lower operational costs and a smaller carbon footprint. They efficiently cool gas and convert it back to liquid by using evaporation. The system does not have to work as hard to maintain optimal temperatures. This results in significant energy savings. Their higher condensing capacity allows them to handle larger refrigeration loads with minimal energy consumption. This makes them an economical choice.

These condensers improve system efficiency. They significantly lower energy consumption compared to air-cooled alternatives. They can decrease compressor power draw by 25-30%. When combined with potential demand charge savings, operational costs can drop by over 40% in some cases. By using the natural process of evaporation, these condensers use less energy. This reduces operational costs and lessens the environmental footprint. They help businesses cut energy expenses while maintaining cooling performance. This also contributes to a smaller carbon footprint by reducing reliance on electrical power and associated emissions.

Maintaining Your Refrigeration Condenser for Optimal Efficiency

Impact of Condenser Health on System Performance

A healthy condenser is vital for any cooling system. Its condition directly affects efficiency and operational costs. When a condenser becomes fouled or damaged, it struggles to reject heat effectively. This forces the compressor to work harder. Experimental analysis shows that condenser fouling can increase compressor power consumption in refrigeration systems by 23.5%. This increased workload leads to higher energy bills and can shorten the lifespan of the entire system.

Common Issues Affecting Refrigeration Condensers

Several problems can impact a condenser's performance. Coil fouling is a frequent issue. This includes debris like dust, biological materials such as plants or birds, and process byproducts like fibers. Microorganisms can also cause biological fouling, especially on cooling coils with moisture. Chemical reactions between airborne materials and the coil surface can lead to corrosion. Freezing or frosting is another common problem, particularly in outdoor installations during winter. Refrigerant leaks also occur. Signs of a leak include warm air from vents, ice on coils, hissing or bubbling sounds, and unexpectedly high energy bills. You might also notice oil on the ground around the condenser or visible cracks.

Essential Maintenance Practices for Condensers

Regular maintenance prevents many common issues. For air-cooled condensers, technicians should inspect coils monthly for buildup. Cleaning coils at least once per year is a minimum requirement for commercial systems. For optimal efficiency, cleaning them two or more times annually, such as in spring and fall, is often recommended. For water-cooled condensers, visual inspections of coil surfaces should occur annually. Technicians can use borescopes for hard-to-see areas and infrared cameras to detect thermal degradation from scale. Regular water quality testing helps prevent scale and corrosion. A comprehensive preventive maintenance program, including routine inspections and scheduled cleanings, ensures the longevity and efficiency of the Refrigeration Condenser.

The Refrigeration Condenser plays an indispensable role in all cooling systems. It efficiently rejects heat, ensuring the entire refrigeration cycle functions correctly. Proper condenser operation is crucial for effective cooling and maintaining system efficiency. This component directly impacts energy consumption and overall system longevity.

FAQ

What is the primary function of a refrigeration condenser?

A refrigeration condenser expels heat from the refrigerant. It changes the refrigerant from a hot gas back into a liquid. This process ensures efficient cooling for the system.

How do air-cooled and water-cooled condensers differ?

Air-cooled condensers use ambient air to remove heat. Water-cooled condensers use circulating water. Water-cooled systems often offer greater efficiency for larger applications.

Why does a refrigeration condenser need regular maintenance?

Regular maintenance prevents fouling and damage. It ensures optimal heat rejection and reduces energy consumption. This extends the entire system's lifespan.
