Introduction
In a refrigeration system, the condenser is the component that removes heat from the refrigerant after compression so the cooling cycle can continue. Its condition directly affects pressure levels, compressor workload, energy use, and overall reliability. Understanding what the condenser does makes it easier to see why poor airflow, dirty coils, or high condensing temperatures can quickly reduce efficiency and increase wear. This article explains the condenser’s role in heat rejection, how it fits into the Refrigeration Cycle, and why its performance is central to stable, cost-effective cooling.
Why the Condenser Matters in Refrigeration
The condenser serves as the primary heat rejection mechanism in any refrigeration system. By transferring the thermal energy absorbed from the refrigerated space—along with the heat generated by the compression process—out to the environment, it maintains the critical thermal balance required for continuous operation. Without an effectively functioning condenser, the system would rapidly accumulate heat, leading to catastrophic pressure increases and inevitable mechanical failure.
How condenser performance affects system efficiency
Condenser performance exerts a direct and proportional influence on the overall Coefficient of Performance (COP) of the refrigeration system. The primary metric of concern is the condensing temperature, which dictates the discharge pressure the compressor must overcome. Industry engineering standards indicate that for every 1°C increase in condensing temperature, the compressor's energy consumption rises by approximately 2% to 3%, while cooling capacity simultaneously drops by about 1%.
Consequently, optimizing heat rejection efficiency is paramount for operational cost control. A condenser operating with restricted airflow or impaired Heat Transfer surfaces forces the compressor to work harder, dramatically increasing the electrical draw and accelerating mechanical wear on internal components.
Where the condenser fits in the refrigeration cycle
Within the standard vapor-compression refrigeration cycle, the condenser is situated immediately downstream of the compressor and upstream of the metering device, or expansion valve. It receives high-pressure, high-temperature superheated vapor directly from the compressor discharge line.
As this vapor travels through the condenser coil, it releases its thermal energy to a cooler ambient medium, typically air or water. This heat transfer causes the refrigerant to undergo a phase change, condensing back into a high-pressure liquid before it is fed into the liquid line, ready to be expanded and routed into the evaporator to absorb more heat.

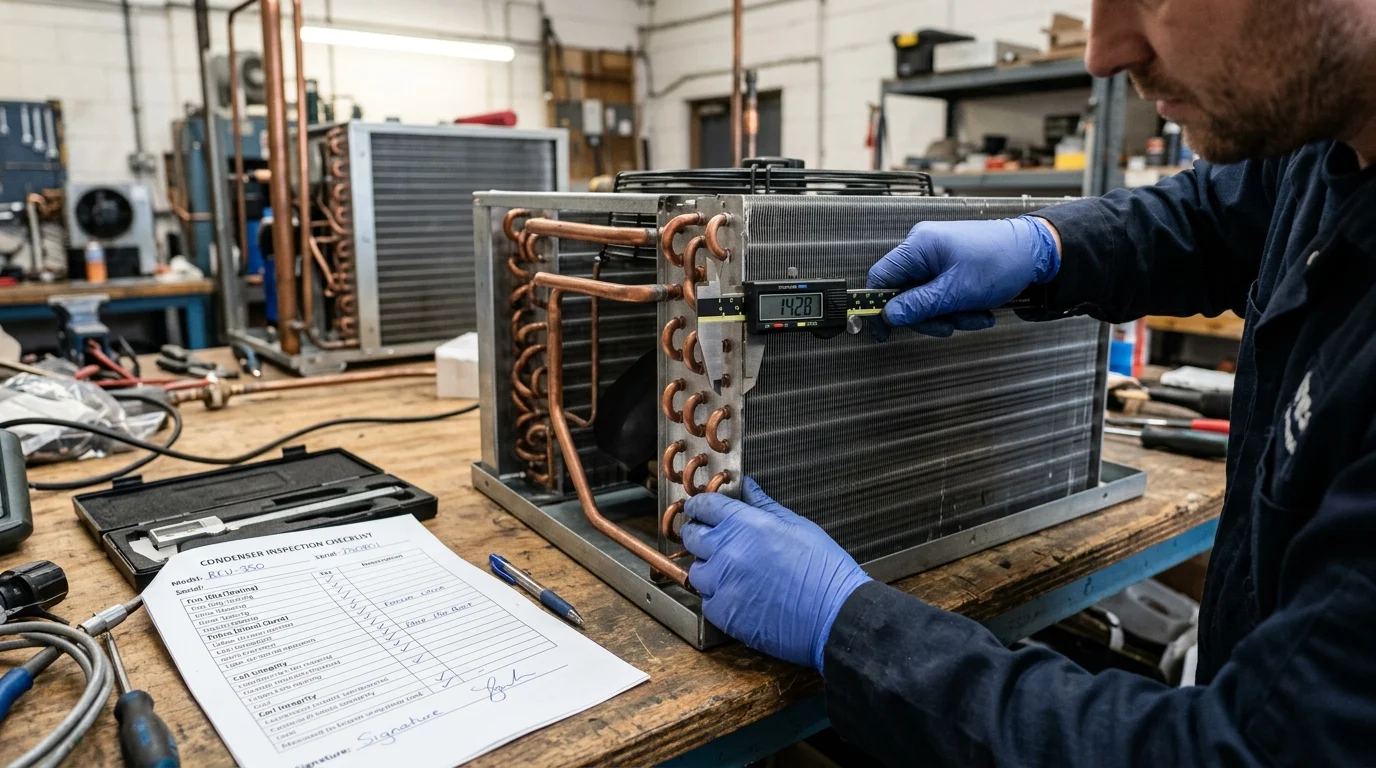

What a Condenser Does in a Refrigeration System
The fundamental objective of the condenser is to execute a phase change in the refrigerant, transforming it from a gas back into a liquid state so it can be continuously reused. This process involves precise thermodynamic transitions that must be tightly controlled to ensure the liquid reaching the expansion valve is thermodynamically stable.
How refrigerant moves through desuperheating and condensation
The phase change within the condenser occurs in three distinct thermodynamic stages. First is desuperheating, where the sensible heat of the high-temperature vapor (often entering at 75°C to 90°C depending on the refrigerant) is removed until it reaches its saturation temperature. The second and most significant stage is condensation, where the refrigerant rejects latent heat at a constant temperature, transforming from a vapor to a liquid.
The final stage is subcooling. Once the refrigerant is entirely liquid, the condenser continues to remove sensible heat, lowering the liquid's temperature by typically 3K to 5K below its saturation point. This subcooling margin is critical, as it prevents the premature formation of flash gas in the liquid line, ensuring the expansion valve receives a solid column of liquid refrigerant.
What conditions affect condenser capacity and head pressure
The capacity of a condenser is governed by the Total Heat of Rejection (THR), which is the sum of the heat absorbed by the evaporator and the heat of compression. Ambient conditions play a dominant role in this capacity. For air-cooled units, a standard design might assume a Temperature Difference (TD) of 10K to 15K between the ambient dry-bulb temperature and the condensing temperature.
If the ambient temperature spikes beyond design parameters—for instance, reaching 40°C in a system designed for 32°C—the condenser's ability to reject heat diminishes rapidly. This reduction in capacity causes the head pressure to spike as the refrigerant requires a higher saturation pressure to force the heat transfer against the warmer ambient medium.
Which condenser specifications to compare
When evaluating condensers for a specific refrigeration system, engineers must analyze several critical specifications to ensure thermodynamic compatibility. These specifications dictate not only the physical footprint but also the operational limits of the heat exchanger.
| Specification | Description | Typical Range / Unit |
|---|---|---|
| Total Heat Rejection (THR) | Total thermal energy the unit can dissipate. | 5 kW to 2000+ kW |
| Temperature Difference (TD) | Delta between condensing and ambient temperatures. | 10K to 15K (Air-cooled) |
| Subcooling Capacity | Degrees below saturation the liquid is cooled. | 3K to 6K |
| Air/Water Flow Rate | Volume of the cooling medium passing through. | m³/h or L/s |
| Maximum Working Pressure | Highest internal pressure the coil can withstand. | 30 bar to 45 bar |
Condenser Types Compared
Industrial and commercial refrigeration systems utilize different heat rejection mediums depending on the availability of resources, climatic conditions, and total cooling load. Selecting the correct condenser type fundamentally dictates the infrastructure requirements and long-term operating costs of the facility.
Air-cooled vs water-cooled vs evaporative condensers

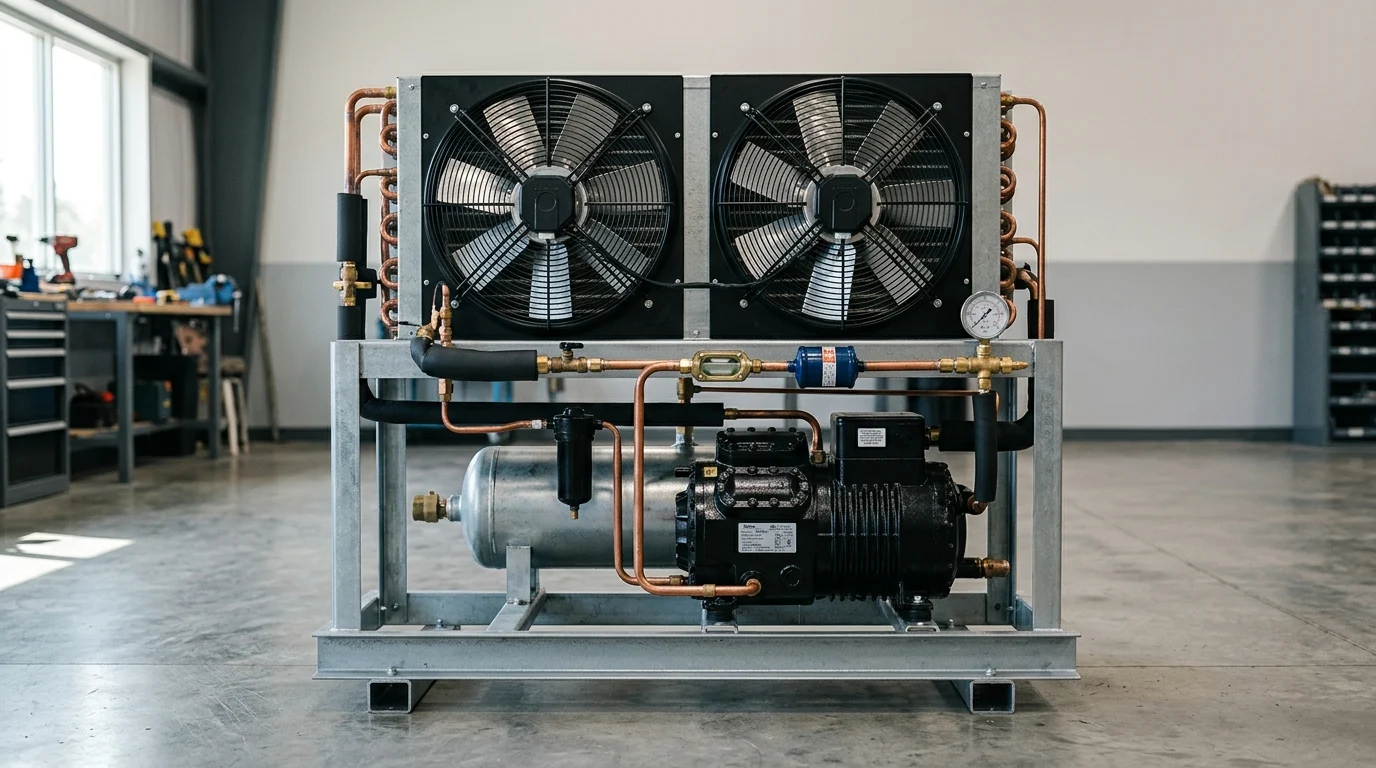

Air-cooled condensers are the most common in commercial applications, utilizing motorized fans to force ambient air across finned-tube coils. They are highly versatile but are limited by high ambient dry-bulb temperatures. Water-cooled condensers, typically shell-and-tube heat exchangers, use water from a cooling tower or a municipal source. They operate at lower condensing temperatures because they rely on the ambient wet-bulb temperature, making them highly efficient for heavy industrial loads.
Evaporative condensers combine elements of both. Refrigerant flows through a bare-tube coil while water is sprayed over it and air is simultaneously blown upward. The evaporation of the water absorbs latent heat from the refrigerant, offering exceptional efficiency. These units can operate with condensing temperatures just 3°C to 5°C above the ambient wet-bulb temperature, outperforming standard air-cooled systems in hot, dry climates.
How to compare performance, maintenance, and installation
Comparing these technologies requires evaluating the trade-offs between initial capital expenditure, ongoing utility costs, and maintenance complexity. While water-cooled and evaporative systems offer superior thermodynamic efficiency, they introduce the necessity of water treatment and freeze protection.
| Condenser Type | Energy Efficiency | Water Consumption | Maintenance Intensity | Typical Application |
|---|---|---|---|---|
| Air-Cooled | Moderate | Zero | Low (Coil cleaning) | Supermarkets, small cold rooms |
| Water-Cooled | High | High (if open loop) | High (Water treatment, scaling) | Large chillers, marine systems |
| Evaporative | Very High | Moderate (Evaporation loss) | High (Basin cleaning, biocides) | Industrial food processing, breweries |
Common Condenser Problems and Maintenance
Even a perfectly specified condenser will fail to maintain system efficiency if it is not properly maintained. The condenser's location—often outdoors or in mechanical rooms exposed to the elements—makes it highly susceptible to environmental degradation, which directly impacts thermodynamic performance.
How fouling, scaling, and airflow issues reduce performance
For water-cooled systems, scaling and micro-fouling are the primary threats. The accumulation of mineral deposits inside the water tubes creates an insulating barrier. Engineering data shows that a scale thickness of just 0.6 mm can increase compressor energy usage by up to 20% due to the elevated head pressure required to overcome the loss in heat transfer efficiency.
In air-cooled systems, the equivalent issue is the fouling of the external finned surfaces by dust, pollen, and industrial debris. This not only insulates the tubes but also restricts the volumetric airflow. A 15% reduction in airflow due to a fouled coil can elevate the condensing temperature by 3°C to 5°C, cascading into significant efficiency losses.
Warning signs of oversized or undersized condensers
Operating a refrigeration system with an improperly sized condenser introduces distinct mechanical stress signatures. An undersized condenser struggles to reject the required THR, leading to chronically high head pressures. This frequently triggers high-pressure safety cutouts—often set around 25 to 28 bar for R410A systems—resulting in disruptive short-cycling and potential compressor motor burnout.
Conversely, an oversized condenser can cause issues during low ambient conditions, such as winter operation. It may reject heat too rapidly, dropping the head pressure below the minimum threshold required to push liquid refrigerant through the expansion valve. This starves the evaporator, reducing cooling capacity unless active head pressure controls, such as variable frequency drives (VFDs) on the fans or liquid receiver pressure valves, are implemented.
Inspection, cleaning, and control best practices
Routine maintenance protocols must be rigorously scheduled to preserve the heat transfer coefficient. For air-cooled units, this involves regular visual inspections, fin combing to repair bent aluminum fins, and chemical washing using non-acidic foaming cleaners to remove deep-seated debris without corroding the metal.
Water-cooled and evaporative condensers require stringent water quality management. This includes daily automated blowdowns to control dissolved solids, the application of biocides to prevent legionella and algae growth, and annual mechanical tube brushing or chemical descaling to remove calcium carbonate deposits.
How to Select the Right Condenser
Specifying the correct condenser is a complex engineering task that requires balancing the thermodynamic demands of the refrigeration cycle with the physical and environmental realities of the installation site. A holistic approach ensures the system operates reliably within its intended design envelope.
Application factors that guide condenser selection
The foremost application factor is the ambient design temperature. Engineers must consult historical meteorological data to determine the peak summer dry-bulb or wet-bulb temperatures for the specific geographic location. Selecting a condenser based on a 35°C ambient design for a location that frequently experiences 42°C will result in catastrophic capacity shortfalls during peak heat loads.
Secondary factors include spatial and acoustic constraints. Urban installations often enforce strict noise ordinances, requiring the selection of condensers with low-speed, swept-blade fans or acoustic attenuation baffles to keep sound pressure levels below 50 dB(A) at the property line. Additionally, coastal environments necessitate protective coil coatings, such as epoxy or e-coating, to prevent rapid galvanic corrosion from salt-laden air, which can destroy a standard copper-aluminum coil in under three years.
How to balance cost, energy performance, and maintenance
The final selection must weigh the Total Cost of Ownership (TCO) over the equipment's expected 15 to 20-year lifespan. While an air-cooled condenser presents the lowest initial capital expenditure and simplest maintenance profile, its higher energy consumption during peak summer months can result in a higher TCO for large-scale operations.
For heavy industrial applications requiring more than 500 kW of heat rejection, the higher initial cost and water treatment expenses of an evaporative condenser are quickly offset by the massive reductions in compressor electrical consumption. Balancing these variables requires detailed energy modeling, lifecycle cost analysis, and a clear understanding of local utility rates for both electricity and water.
Key Takeaways
- The most important conclusions and rationale for refrigeration system
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What does a condenser do in a refrigeration system?
It removes heat from high-pressure refrigerant vapor and turns it into a high-pressure liquid before the expansion valve.
Why is condenser performance important for efficiency?
A weak condenser raises condensing temperature and head pressure, making the compressor use more power and reducing cooling capacity.
Where is the condenser located in the refrigeration cycle?
It sits after the compressor and before the expansion valve, receiving hot discharge gas and rejecting heat to air or water.
What common conditions reduce condenser capacity?
Dirty condenser coils, blocked airflow, high outdoor temperature, fouled tubes, and failing fans can all reduce heat rejection.
How can I choose the right condenser for my refrigeration system?
Match total heat rejection, refrigerant type, ambient design temperature, airflow or water flow, pressure rating, and installation space; Senjun Cooler product specs can help compare options.
