What Does a Condenser Do in a Refrigeration System?

Introduction

In a refrigeration system, the condenser is the component that releases unwanted heat and turns high-pressure refrigerant vapor back into a liquid so the cycle can continue. Its performance affects more than basic cooling: condensing temperature, compressor workload, energy use, and liquid refrigerant quality all depend on how effectively heat is rejected. Understanding what the condenser does helps explain why poor airflow, fouling, or improper sizing can reduce system capacity and raise operating costs. The sections that follow break down the condenser’s function, its role in overall efficiency, and why it matters so much in commercial and industrial refrigeration.

Why the Condenser Matters in Refrigeration

The condenser serves as the critical heat rejection hub in any vapor-compression refrigeration system. While evaporators absorb thermal loads from the conditioned space, the condenser must discharge both the absorbed heat and the heat of compression generated by the compressor into a secondary medium, typically ambient air or water. This total heat of rejection (THR) dictates the ultimate thermodynamic boundary of the cycle.

Impact on system efficiency

System efficiency is intrinsically linked to the condenser's ability to maintain optimal condensing pressures. Operating at elevated condensing temperatures forces the compressor to work against a higher discharge pressure, thereby increasing electrical consumption. As a standard engineering rule, reducing the condensing temperature by just 1°C (1.8°F) can yield an energy efficiency ratio (EER) improvement of 1.5% to 2.0%. Furthermore, effective heat rejection ensures adequate liquid subcooling, which prevents flash gas formation in the liquid line and maximizes the enthalpy difference across the evaporator.

Business importance in commercial systems

In commercial and industrial refrigeration applications, the financial implications of condenser performance are substantial. For a typical 500-ton centralized chiller plant, operating with an inefficient or undersized condenser can drive up annual operational expenditures (OPEX) by 15% to 25% due to excessive compressor power draw. Beyond direct energy costs, inadequate heat rejection compromises product integrity in cold storage facilities and accelerates wear on compressor bearings and valves, leading to premature capital replacement and costly operational downtime.

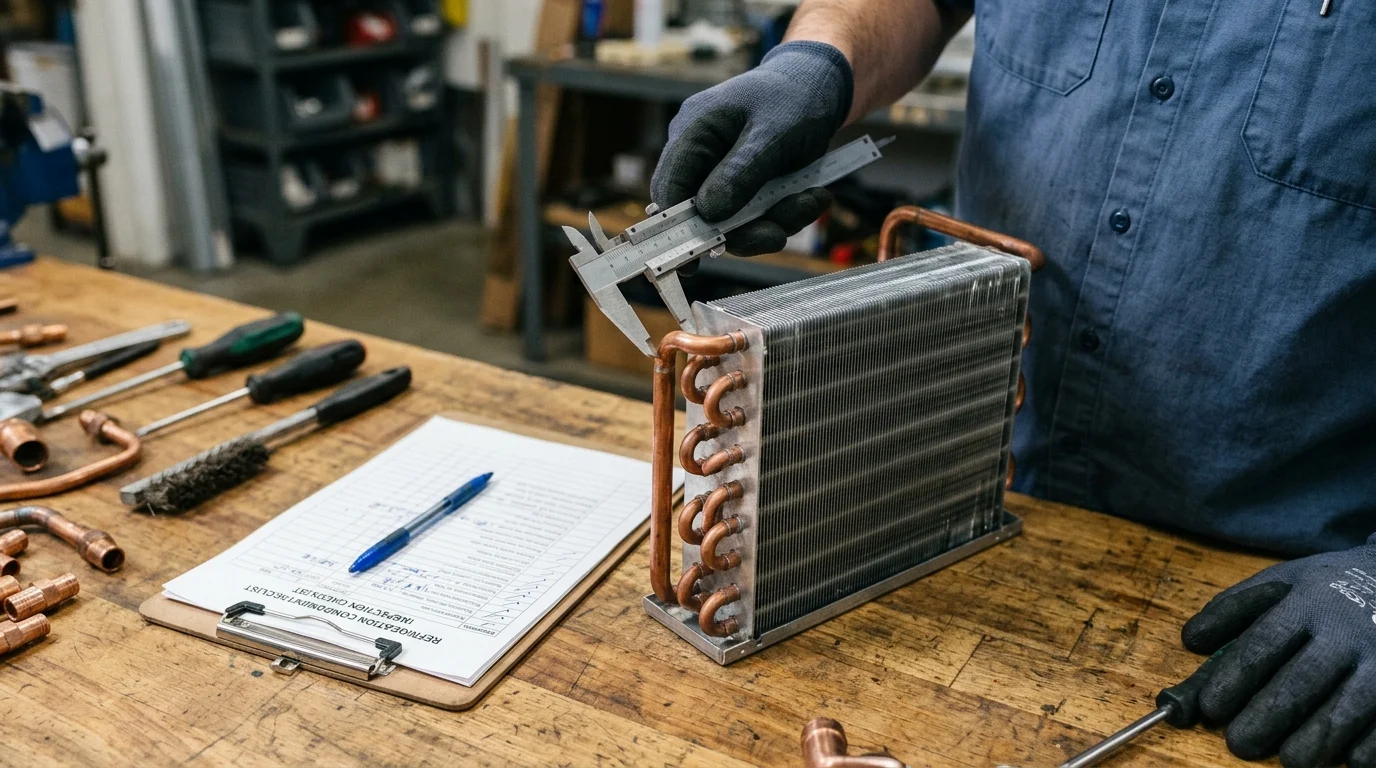

What a Condenser Does in a Refrigeration System

At a fundamental level, the condenser facilitates a phase change in the refrigerant, transforming it from a high-energy gaseous state back into a dense liquid. This transformation is driven by a temperature differential between the hot refrigerant gas and the cooler external cooling medium, allowing thermal energy to migrate outward.

Refrigerant flow from discharge gas to liquid

Refrigerant enters The Condenser Coil directly from the compressor discharge line as a high-pressure, high-temperature superheated vapor. As it traverses theheat exchanger tubing, thermal energy transfers through the tube walls to the cooling medium. Once the sensible heat is removed and the saturation temperature is reached, the refrigerant undergoes an isothermal phase change. The flow exits the condenser as a high-pressure subcooled liquid, ready to be metered through the expansion valve.

Main heat transfer stages

The heat transfer process within the condenser is strictly divided into three distinct thermodynamic stages. First, desuperheating removes the sensible heat of compression, typically requiring only 5% to 10% of the total condenser surface area. Second, the condensation phase removes the latent heat of vaporization; this is where the bulk of the thermal transfer occurs, demanding 80% to 85% of the heat exchange surface. Finally, subcooling lowers the liquid temperature below its saturation point, utilizing the remaining 5% to 10% of the coil to ensure a solid column of liquid reaches the metering device.

Effects of pressure, condensing temperature, and ambient conditions

Condenser performance is heavily dictated by the temperature difference (TD) between the condensing refrigerant and the ambient environment. In standard air-cooled refrigeration systems, a design TD of 10°F to 15°F (5.5°C to 8.3°C) is typically targeted. If ambient temperatures soar, the condensing pressure must rise proportionally to maintain this critical delta, which in turn elevates the compressor's discharge pressure. Conversely, during low ambient conditions, head pressure controls—such as fan cycling or variable speed drives—must be employed to prevent condensing pressures from falling below the minimum 100 to 150 PSIG threshold required for proper expansion valve operation.

Condenser Types and Trade-Offs

Industrial and commercial refrigeration systems rely on three primary condenser architectures, each distinguished by the medium utilized to absorb rejected heat. Selecting the appropriate classification requires a rigorous evaluation of site conditions, resource availability, and thermal load requirements.

Air-cooled vs water-cooled vs evaporative condensers

Air-cooled condensers utilize motor-driven axial or centrifugal fans to force ambient air across finned-tube or microchannel coils. They are highly prevalent due to their simple infrastructure and zero water consumption. Water-cooled condensers, conversely, use a secondary water loop—often connected to a cooling tower—to extract heat via shell-and-tube, shell-and-coil, or brazed plate heat exchangers. Evaporative condensers merge these methodologies by spraying water directly over the refrigerant coils while inducing airflow, utilizing the latent heat of water vaporization to achieve highly efficient heat rejection.

Key specifications for comparison

Comparing these technologies requires analyzing several key specifications, particularly approach temperatures and resource consumption. Evaporative units can approach the ambient wet-bulb temperature, whereas air-cooled units are limited to the higher dry-bulb temperature.

Fouling, airflow, water quality, noise, and footprint

Each design presents unique operational trade-offs. Air-cooled units require a massive physical footprint to achieve the necessary heat transfer surface area and can generate noise levels exceeding 75 to 85 dBA, necessitating acoustic attenuation in urban environments. They are also susceptible to severe airflow restrictions from airborne debris. Water-cooled and evaporative systems offer a highly compact footprint and superior thermodynamic efficiency but introduce complex water quality challenges. High concentrations of calcium carbonate or biological growth can cause severe tube fouling; a scale buildup of just 0.03 inches (0.8 mm) can increase energy consumption by up to 25% due to the degradation of the thermal heat transfer coefficient.

Common Condenser Problems and Maintenance

Because the condenser is exposed to external environmental elements or continuous water circulation, it is highly susceptible to degradation. Proactive maintenance is not merely a best practice; it is a thermodynamic necessity to preserve the design capacity of the refrigeration system.

Typical failure modes

The most prevalent failure modes in condensers stem from heat transfer impedance and mechanical fatigue. In air-cooled units, galvanic corrosion or vibrational stress frequently causes micro-leaks at the U-bends or header manifolds. Fan motor bearing failures or degraded drive belts lead to immediate airflow reduction, spiking discharge pressures. For water-cooled shell-and-tube heat exchangers, localized pitting corrosion or flow-accelerated erosion can breach the tube walls, potentially allowing water to infiltrate the refrigerant circuit—a catastrophic failure that can destroy the compressor.

Inspection, cleaning, and performance checks

Rigorous performance tracking is required to detect early signs of condenser degradation. Technicians must routinely log the temperature approach (the difference between the liquid refrigerant leaving the condenser and the entering cooling medium). A widening approach temperature—for instance, increasing from a baseline of 5°F to 10°F (2.7°C to 5.5°C) in a water-cooled unit—indicates severe fouling. Maintenance protocols should dictate the chemical descaling of water-cooled tubes annually, while air-cooled microchannel coils require low-pressure water flushing (under 100 PSI) every three to six months to clear particulate matter without bending the fragile aluminum fins.

Compliance, refrigerants, and energy standards

Maintenance practices are increasingly governed by stringent environmental compliance frameworks. Regulatory bodies mandate strict leak detection and repair protocols due to the high global warming potential (GWP) of many synthetic refrigerants. Under the U.S. EPA Section 608 regulations, systems containing 50 pounds or more of ozone-depleting or substitute refrigerants must be repaired if the annualized leak rate exceeds 20% for commercial refrigeration or 30% for industrial process refrigeration. Neglecting condenser vibration issues that lead to such leaks can result in substantial regulatory fines and forced system retrofits.

How to Choose the Right Condenser

Specifying a condenser requires synthesizing thermodynamic load calculations with site-specific logistical and financial constraints. An undersized unit will perpetually operate at elevated head pressures, while an oversized unit introduces unnecessary capital expenditure and complex low-ambient control challenges.

Sizing, materials, and application needs

Condenser sizing is dictated by the Total Heat of Rejection (THR), which typically equals the net cooling capacity plus 20% to 30% to account for the heat of compression. Once the capacity is determined, material selection becomes the paramount engineering decision, heavily influenced by the installation environment.

Balancing efficiency, resilience, and cost

The final selection must balance immediate capital constraints against long-term operational resilience. While an evaporative condenser may carry a 30% higher initial procurement and installation cost compared to a standard air-cooled unit, the resulting 15% reduction in compressor energy consumption often yields a return on investment (ROI) within 36 to 48 months. For facilities projecting a standard 15- to 20-year equipment lifecycle, factoring in localized water rates, peak electrical demand charges, and anticipated maintenance labor is essential to identify the lowest Total Cost of Ownership (TCO).

Key Takeaways

• The most important conclusions and rationale for Refrigeration System
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What does a condenser do in a refrigeration system?

It removes heat from high-pressure refrigerant vapor and turns it into a high-pressure liquid, so the expansion device and evaporator can work properly.

Why does condenser performance affect energy use?

A weak condenser raises condensing pressure, making the compressor work harder. Even a 1°C drop in condensing temperature can improve efficiency by about 1.5% to 2%.

What are the main stages inside a condenser?

The refrigerant is first desuperheated, then condensed from vapor to liquid, and finally subcooled. These three stages help deliver a stable liquid supply to the system.

Which condenser type is best for my equipment?

Air-cooled suits most refrigerators, freezers, and display cabinets. Water-cooled or evaporative options fit larger industrial loads where water supply, space, and efficiency targets justify them.
