Versatile Performer: Applications of Copper Fin Heat Exchangers
I recognize copper Fin Heat Exchangers are critical for efficient thermal management. Their exceptional thermal conductivity and robust durability drive widespread adoption across many industries. Understanding their diverse applications reveals their indispensable role in modern systems.
Key Takeaways
- Copper fin heat exchangers move heat very well. They use copper's high thermal conductivity. This makes systems like air conditioners work better and save energy.
- These heat exchangers last a long time. Copper resists rust and wear. This means less need for repairs and replacements.
- Copper fin heat exchangers are used in many places. They help cool engines, keep food cold, and manage heat in computers. This makes them important for many industries.
The Unmatched Advantages of Copper Fin Heat Exchangers
Superior Thermal Conductivity for Efficient Heat Transfer
I find copper's thermal conductivity truly remarkable. It stands out among common heat exchanger materials. This property allows for incredibly efficient Heat Transfer, which is crucial for optimal performance in many systems.

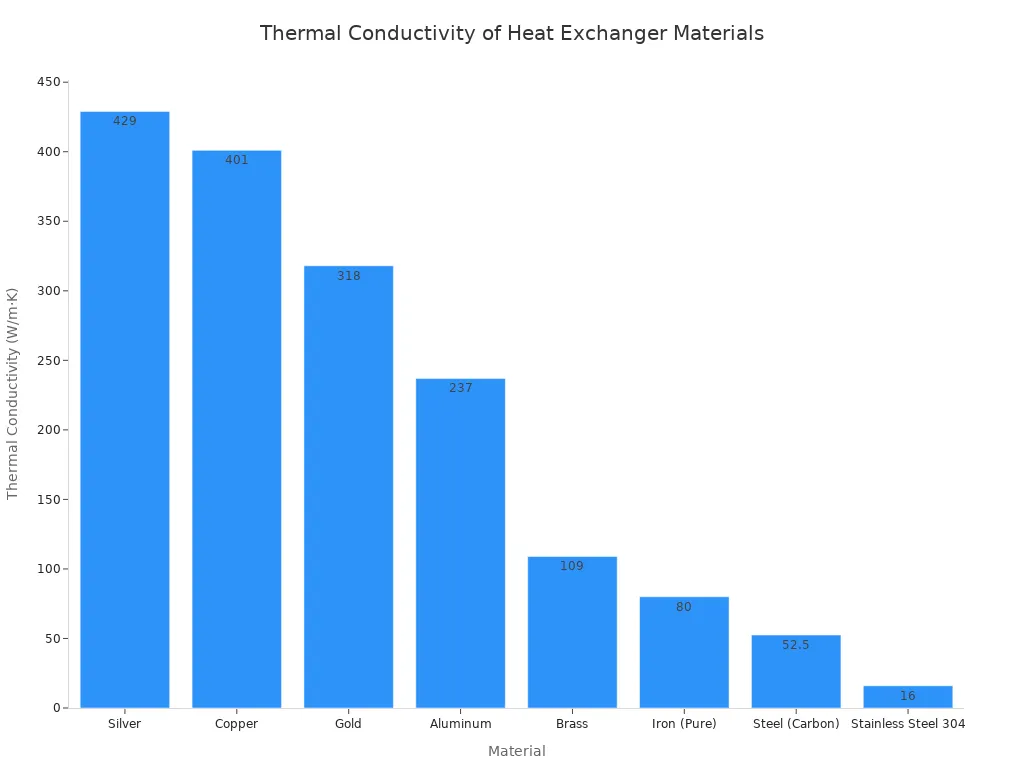

| Material | Thermal Conductivity (W/m·K) |
|---|---|
| Silver | ~429 |
| Copper | ~401 |
| Gold | ~318 |
| Aluminum | ~237 |
| Brass | ~109 |
| Iron (Pure) | ~80 |
| Steel (Carbon) | ~45–60 |
| Stainless Steel 304 | ~16 |
As you can see, copper, with approximately 401 W/m·K, significantly surpasses aluminum (~237 W/m·K) and stainless steel (~16 W/m·K). This superior conductivity means a Copper Fin Heat Exchanger can achieve desired temperature changes with less energy input.
Robust Corrosion Resistance and Extended Durability
Beyond its thermal prowess, I appreciate copper's inherent resistance to corrosion. When exposed to oxygen and moisture, copper naturally forms a thin, protective oxide layer, known as a patina. This patina acts as a robust barrier, preventing further corrosion and ensuring the metal's longevity. I have seen copper roofs last for centuries, and copper pipes resist mineral buildup for decades. This self-protecting mechanism makes copper highly durable, even in challenging environments like marine settings or polluted urban areas. Copper fin heat exchangers typically offer a lifespan of 10 to 15 years, a testament to their enduring quality.
Cost-Effectiveness and Environmental Sustainability
I also recognize the long-term cost savings and environmental benefits of copper. Copper's superior thermal conductivity directly translates to energy efficiency. This means less energy is needed to achieve desired heating or cooling, leading to lower operating costs over time.
| Material | Thermal Conductivity (W/mK) |
|---|---|
| ETP (Copper) | 394 |
| 6061 alloy (Aluminum) | 150 |
| Martensitic stainless steel | 24 |
| Austenitic stainless steel | 20 |
| PH stainless steel | 18 |
Furthermore, copper is an incredibly sustainable material. It is 100% recyclable without any loss of quality or performance. Recycling copper requires up to 85% less energy than producing new copper from ore. This significantly reduces greenhouse gas emissions and preserves natural resources. I believe this commitment to a circular economy makes copper an excellent choice for modern thermal management solutions.
Copper Fin Heat Exchanger in HVAC Systems
Residential and Commercial Air Conditioning
I see copper fin heat exchangers as essential components in modern HVAC systems. They play a vital role in both residential and commercial air conditioning units. I know these exchangers efficiently transfer heat, which directly impacts cooling performance. For example, I find that copper's superior thermal conductivity makes a significant difference.
| Material | Thermal Conductivity (W/m·K) | Efficiency Gain over Aluminum |
|---|---|---|
| Copper | 400 | 60% more efficient |
| Aluminum | 237 | - |
| Stainless Steel | 16 | - |

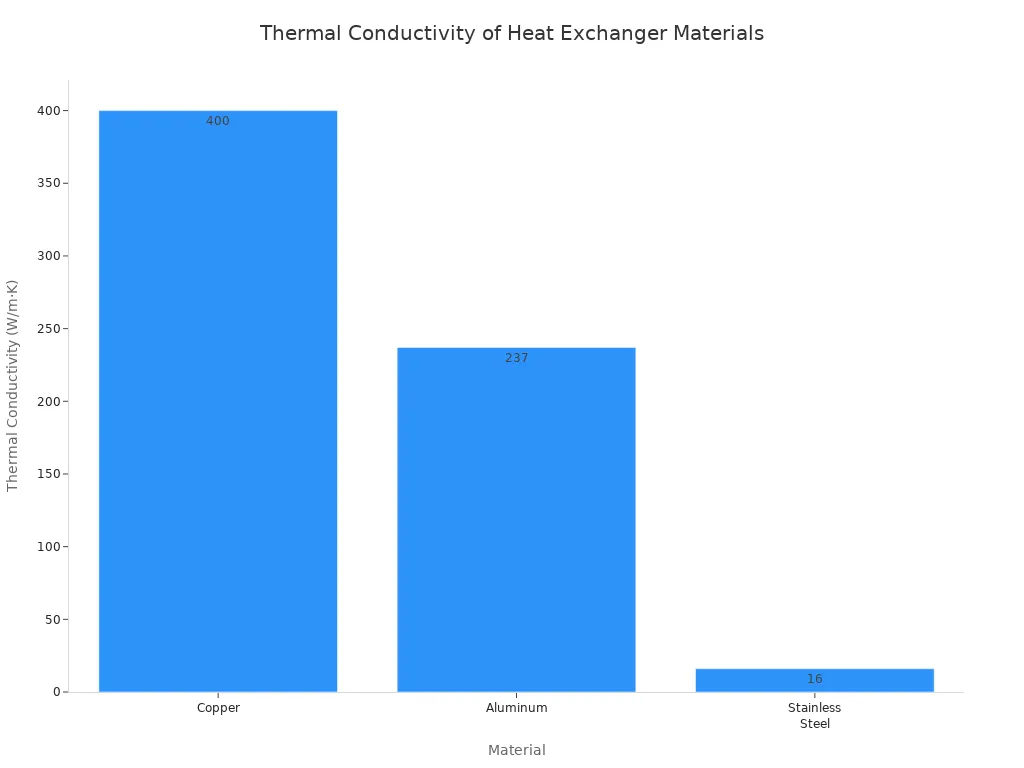

This table clearly shows copper's advantage. I also find this visual representation helpful:
Scientific studies confirm copper fins can enhance heat transfer efficiency by approximately 20% compared to aluminum fins. This means AC systems cool spaces faster and use less energy. I also note that copper tube designs outperform aluminum by 4%-12% in heat transfer. This makes them a top choice for reliable and energy-saving cooling solutions in homes, offices, and retail spaces. Their efficiency helps reduce electricity bills and maintain comfortable indoor climates.
Industrial Heating and Ventilation Solutions
In industrial settings, I observe these heat exchangers handle demanding heating and ventilation tasks. They are critical for maintaining precise temperatures in large facilities. I see them used in various applications, from process heating to air handling units in factories and warehouses. Their robust construction ensures long-term operation in harsh industrial environments. A scientific study revealed that copper-coated heat exchangers increased heat transfer by 1.59 times compared to plain plate units. This efficiency is crucial for industrial processes where consistent temperature control is paramount. I also recognize their role in heat recovery systems. They capture waste heat from exhaust air or industrial processes and reuse it to preheat incoming air or water. This significantly reduces energy consumption and operating costs. This contributes to both operational savings and environmental sustainability in complex industrial operations.
Refrigeration and Cold Storage Applications for Copper Fin Heat Exchanger
I see copper fin heat exchangers as vital components in the refrigeration and cold storage industry. They ensure precise temperature control. This is crucial for preserving perishable goods and maintaining product quality. Their efficiency makes them a preferred choice for various cooling needs.
Commercial Refrigerators and Display Units
I recognize the importance of these heat exchangers in commercial settings. They are essential for refrigerators and display units in supermarkets, restaurants, and convenience stores. A Copper Fin Heat Exchanger efficiently removes heat from the cooling space. This keeps food and beverages at optimal temperatures. I find this directly translates to extended shelf life for products. It also reduces energy consumption for businesses. Their robust design handles continuous operation. This ensures reliable performance in busy commercial environments. I believe this reliability is key for businesses that depend on consistent cooling.
Industrial Freezing and Preservation Systems
In larger industrial applications, I observe these heat exchangers play a critical role. They are fundamental to industrial freezing and preservation systems. These systems handle vast quantities of food, pharmaceuticals, and other temperature-sensitive materials. Copper's high thermal conductivity allows for rapid and uniform freezing. This minimizes ice crystal formation. It also preserves the quality of frozen goods. I have seen these systems maintain stable, ultra-low temperatures for extended periods. This is vital for long-term storage and transportation. Their durability also withstands the harsh conditions often found in industrial cold storage facilities. This ensures operational continuity and product safety.

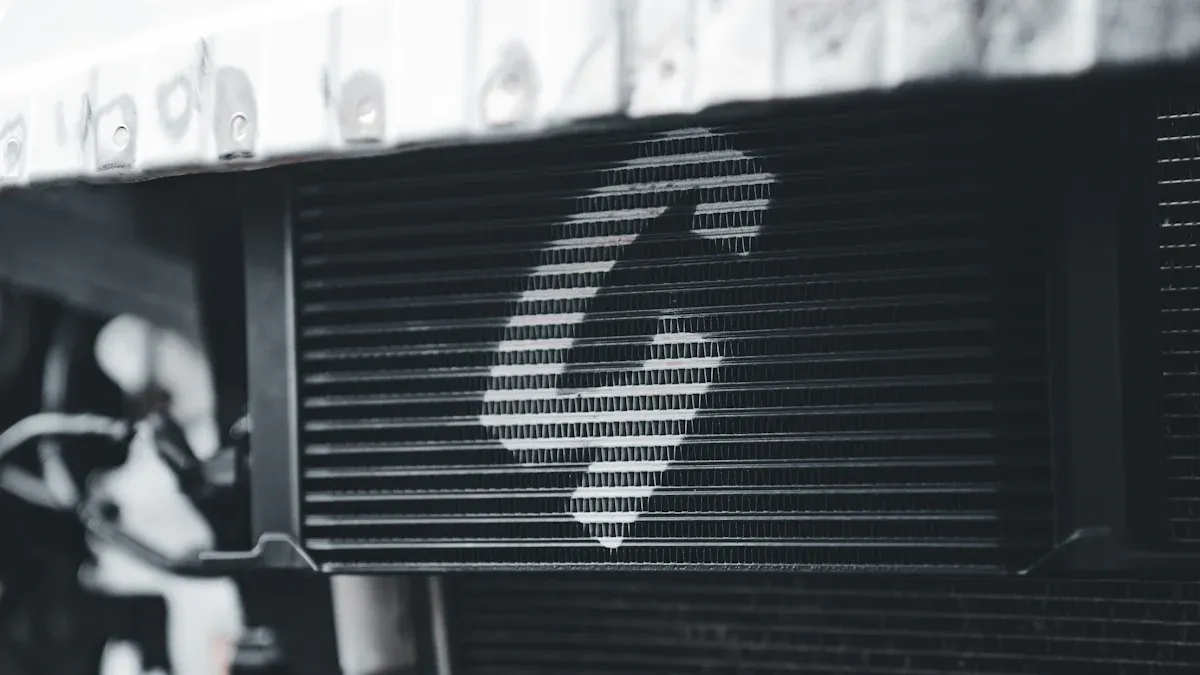

Automotive Industry: Engine Cooling with Copper Fin Heat Exchanger
I recognize the automotive industry relies heavily on efficient thermal management. Engines generate significant heat. This heat requires effective dissipation to prevent damage and ensure optimal performance. Copper fin heat exchangers play a crucial role in keeping vehicles running smoothly.
Radiators for Optimal Engine Temperature
I see radiators as the heart of an engine's cooling system. They are essential for maintaining optimal engine temperature. Copper fin radiators excel in this application. Their superior thermal conductivity allows for rapid heat transfer from the engine coolant to the ambient air. This efficiency prevents engine overheating. It also ensures consistent performance, even under demanding driving conditions. I find this reliability critical for both passenger vehicles and heavy-duty trucks. The durability of copper also means these radiators withstand vibrations and temperature fluctuations common in automotive environments.
Oil Coolers for Transmission Fluid Regulation
I also observe copper fin heat exchangers in oil coolers. These components are vital for regulating transmission fluid temperature. Transmission fluid can get very hot during operation. Excessive heat degrades the fluid. This leads to reduced transmission efficiency and premature wear. An effective oil cooler prevents this. A Copper Fin Heat Exchanger efficiently dissipates heat from the transmission fluid. This maintains its optimal operating temperature. It extends the lifespan of the transmission. This ensures smoother gear shifts and overall vehicle longevity. I believe this contributes significantly to vehicle reliability and performance.
Power Generation: Enhancing Efficiency with Copper Fin Heat Exchanger
Cooling Turbines and Generators
I recognize the critical role of efficient cooling in power generation. Turbines and generators produce immense heat during operation. This heat requires effective management to prevent equipment damage and ensure continuous power output. I find that robust heat exchangers are essential for maintaining optimal operating temperatures. They efficiently dissipate excess heat from these vital components. This ensures their longevity and reliable performance.
Waste Heat Recovery in Power Plants
I also see significant potential for efficiency gains in power plants through waste heat recovery. Tube-fin heat exchangers are particularly effective here. They enhance heat transfer by using longitudinal tubes and fin structures. These structures significantly increase the surface area for heat exchange. The fins dramatically expand the thermal contact area between hot exhaust gases and the cooler fluid. This allows for efficient heat recovery and redistribution with minimal loss. This design is especially effective with large temperature differences. It maximizes surface area while remaining compact. This improves the overall performance of heat recovery systems.
I have seen impressive results from these systems:
| Dimension | Industry Benchmark | Factory Performance |
|---|---|---|
| Thermal Efficiency (%) | 85 | 92 |
| Heat Recovery Rate (%) | 70 | 85 |
These systems offer substantial energy savings:
- Energy consumption can be cut by up to 30% in some systems.
- Air-to-Air Heat Pipe Heat Exchangers, often using copper fins, can save over 40% on energy costs.
- New fin designs in copper heat exchangers have shown up to 50% cost savings.
- Senjun's air handling unit heat exchangers show notably higher efficiency at 95% compared to the industry benchmark of 85%.
Copper's superior thermal conductivity (around 400 W/m·K) ensures rapid heat transfer. This significantly outperforms aluminum (237 W/m·K) and stainless steel (16 W/m·K). Its malleability allows for complex fin designs. These include micro-fin and nano-fin geometries, corrugated, and louvered structures. These designs increase surface area and promote turbulence. This further enhances heat exchange. These design innovations optimize heat transfer and improve energy efficiency. They maximize the contact area between fluids and fins.
Industrial Processes: Diverse Uses of Copper Fin Heat Exchanger
Chemical Processing and Manufacturing Temperature Control
I observe copper fin heat exchangers playing a crucial role in chemical processing and manufacturing. These industries often require precise temperature control for reactions and material handling. I find that copper's excellent thermal conductivity ensures rapid and accurate temperature regulation. This is vital for maintaining product quality and process efficiency. For instance, I see them used in reactors to cool exothermic reactions or to heat viscous fluids. Their robust construction also withstands corrosive environments common in chemical plants. This durability ensures long-term, reliable operation, which is essential for continuous production lines.
Process Cooling and Heat Recovery
I also recognize the significant impact of copper fin technology in process cooling and heat recovery. Many industrial operations generate substantial waste heat. Capturing and reusing this heat offers considerable benefits. I have seen these heat exchangers efficiently cool industrial fluids and gases. They then recover the heat for other applications, like preheating incoming process streams or generating steam. This approach leads to significant energy savings. Energy cost reductions can exceed 40% in some applications. I have also noted a decrease in energy consumption by up to 30% in various systems. This efficiency comes from copper's superior thermal conductivity and optimized fin designs. These factors result in lower operational energy costs and reduced electricity or fuel usage.
Electronics Cooling: Critical Role of Copper Fin Heat Exchanger
I recognize the critical need for effective thermal management in modern electronics. As devices become more powerful, they generate more heat. This heat requires efficient dissipation to ensure optimal performance and longevity.
Data Centers and Server Cooling
I see data centers as environments demanding constant, efficient cooling. Servers generate significant heat, and managing this heat is crucial for preventing downtime and maintaining operational efficiency. Traditional air-cooling systems often rely on heat sinks with copper fins. These fins efficiently transfer heat from components to the air. This helps maintain stable operating temperatures for servers and other networking equipment. I find this essential for the continuous operation of digital infrastructure.
High-Performance Computing Thermal Management
I observe high-performance computing (HPC) components, especially AI chips, present extreme thermal challenges. Their thermal design power (TDP) has rapidly increased. For instance, GPUs went from 150 watts to over 700 watts in two decades. The Nvidia Blackwell B200 chip has a projected power draw of 1200 watts, and the combined GB200 system can reach up to 2700 watts. These figures highlight the immense heat thermal management solutions must address.
I find that thermal management solutions for HPC must handle high heat flux. Microchannel cooling designs can dissipate over 1kW/cm². They also need to reduce temperature gradients by directing coolant to hot spots. Solutions must offer larger thermal capacities to absorb temperature spikes. This ensures high heat dissipation at low flow rates. Increased system reliability is a key requirement. This is achieved by significantly lowering junction temperatures.
The intense cooling requirements of AI workloads necessitate a move from traditional air-cooling to liquid cooling solutions. Liquid cooling can be up to 3,000 times more efficient. Rack densities are increasing, with AI-capable GPU chipsets exceeding 1,000 watts and approaching 2,000 watts or more. This leads to rack densities reaching 100 kilowatts per rack. This demands thorough planning for high-density cooling. Liquid cooling solutions are essential for high-power AI chips. Methods like direct-to-chip cooling circulate coolant directly over heat-generating components. Immersion cooling, submerging entire servers in non-conductive liquid, offers highly efficient heat absorption. For less power-consuming components (up to 75 watts) in IoT and Edge applications, traditional air cooling with heat sinks is still utilized. I also see the need for Phase Change Materials (PCMs) to absorb and release heat, maintaining constant temperatures. Hybrid Gels are needed for high thermal conductivity and conformability. Heat Spreaders efficiently distribute heat over larger areas.
Senjun: A Leader in Copper Fin Heat Exchanger Manufacturing
Specializing in Wire Tube Condensers and Copper Aluminum Fin Heat Exchangers
I recognize Senjun as a prominent manufacturer in the thermal management industry. They specialize in wire tube condensers and copper aluminum fin heat exchangers. I find their wire tube condensers offer superior performance.
| Feature | Senjun Wire Tube Condenser | Traditional Condenser |
|---|---|---|
| Heat Transfer Coefficient | 50% higher than plate condensers | Standard levels |
| Energy Consumption | Reduced due to higher efficiency | Higher due to lower efficiency |
Senjun's wire tube condensers use copper and aluminum for optimal performance. Copper provides exceptional thermal conductivity for rapid heat transfer. Aluminum is lightweight and highly resistant to corrosion. This makes it ideal for durability and easy installation. Manufacturers often combine these materials. They use copper alloys for enhanced thermal conductivity and corrosion resistance. Aluminum fins improve heat dissipation. Advanced materials like stainless steel and copper alloys, along with eco-friendly corrosion-resistant coatings, protect against harsh environments. They also extend lifespan. Structural reinforcements, such as steel wires and lightweight alloys, further enhance durability. They also reduce overall system weight.
Senjun designs their wire tube condensers with optimized tube dimensions. These include a 1-inch outer diameter, 0.049-inch wall thickness, and an effective length of 42.2 feet. This balances durability and heat dissipation. Tube arrangements like coil or serpentine patterns increase the surface area for heat exchange. They also improve airflow. This enhances overall heat transfer efficiency. Precise wire spacing ensures uniform heat dissipation. It also prevents hotspots. Multi-layer configurations further enhance heat transfer by increasing surface area. This makes them suitable for rapid cooling and high-temperature differentials. They also save space and reduce maintenance.
| Innovation | Description |
|---|---|
| Copper Alloys | Improved corrosion resistance and thermal conductivity. |
| Aluminum Fins | Enhanced heat dissipation with optimized design. |
| Laser Welding | Precise joints that reduce leaks and boost efficiency. |
| Computer-Aided Design | Ensures optimal geometries for better heat transfer. |
Applications in Refrigeration, Medical, and Dehumidification Products
I see Senjun's products applied across various critical sectors. They are essential in refrigeration, medical, and dehumidification products. In refrigeration, their condensers ensure efficient cooling for household appliances and commercial units.
Their copper aluminum fin heat exchangers are crucial in medical applications. I note their use in:
- Medical ultra-low temperature freezers.
- Medical ultra-low temperature refrigerators, which maintain precise temperature control for sensitive materials like vaccines.
- Specialized medical equipment, where their antimicrobial properties, high thermal conductivity, and corrosion resistance are beneficial.
- Cryoablation devices and cryogenic coolers, which depend on copper's efficiency for precise temperature maintenance.
I also find their components vital in dehumidifiers. They efficiently remove moisture from the air. This improves air quality and prevents mold growth. Senjun's commitment to advanced materials and precise engineering ensures high performance and reliability in these diverse applications.
I find copper fin heat exchangers fundamental to efficient thermal management across industries. Their superior performance, durability, and versatility ensure continued technological advancement. Investing in this technology provides long-term operational benefits and reliability. I see copper's high thermal conductivity (400 W/m·K) ensures rapid heat dissipation, crucial for peak performance. This leads to lower energy consumption and reduced operating costs over time.
I also recognize copper's exceptional corrosion resistance and durability. This minimizes the need for frequent replacements and repairs. I believe this ensures sustained performance throughout a long operational life.
FAQ
What makes copper fin heat exchangers so efficient?
I find copper's superior thermal conductivity, around 400 W/m·K, makes them highly efficient. This property allows for rapid heat transfer.
Where do copper fin heat exchangers find their primary use?
I see them widely used in HVAC, refrigeration, and automotive industries. They are crucial for efficient thermal management in these sectors.
How do copper fin heat exchangers contribute to sustainability?
I believe copper is 100% recyclable. This reduces energy consumption and preserves natural resources. It makes them an environmentally friendly choice.
