Unleashing Performance: The Power of Copper Fin Heat Exchangers

I recognize Copper Fin Heat Exchangers as critical for effective thermal management. They efficiently transfer heat, which is essential for many systems. These devices optimize overall system efficiency. They also significantly extend equipment longevity. This makes them indispensable for peak performance and reliability.

Key Takeaways

• Copper fin heat exchangers move heat very well. They use copper because it is good at transferring heat. This makes systems work better and saves energy.
• Copper Heat Exchangers last a long time. Copper does not rust easily. This means less fixing and a longer life for the equipment.
• Copper is good for the environment. It can be used again and again. This helps make things more sustainable.

What Are Copper Fin Heat Exchangers?

Defining Copper Fin Heat Exchanger Technology

I define a Copper Fin Heat Exchanger as a specialized device. It efficiently transfers thermal energy between two fluids. These fluids remain separate. The core of this technology involves a series of thin copper fins. These fins attach to tubes. The design maximizes heat transfer. This makes the Copper Fin Heat Exchanger a vital component in many systems.

The Role of Fins in Heat Transfer Efficiency

I recognize the critical role fins play in heat transfer. Fins dramatically increase the surface area available for heat exchange. Imagine a flat tube; it has limited contact with the air or liquid around it. By adding fins, I create many more surfaces. This allows more heat to move from one medium to another. This increased surface area directly translates to higher efficiency.

Basic Mechanism of a Copper Fin Heat Exchanger

I observe a straightforward mechanism in these exchangers. A hot fluid flows through the tubes. The heat from this fluid conducts through the tube walls. It then moves into the attached copper fins. Simultaneously, a cooler fluid, often air, flows over these fins. The heat transfers from the hot fins to the cooler fluid. This process cools the first fluid and warms the second. It is a continuous and efficient cycle of thermal energy exchange.

Why Copper is Superior for Heat Exchangers

I find copper to be an exceptional material for heat exchangers. Its unique properties make it stand out from other options. These characteristics directly translate into superior performance and reliability for many thermal management systems.

Exceptional Thermal Conductivity of Copper

I recognize thermal conductivity as a critical factor for any heat exchanger material. Copper excels in this area. It transfers heat very efficiently. This means less energy is wasted. It also ensures faster temperature changes. I see copper's thermal conductivity as a key reason for its widespread use.

I have reviewed data on various materials. Copper consistently performs at the top. For example, at 25℃, copper has a thermal conductivity of 401 W/m·K. This is significantly higher than aluminum, which is 237 W/m·K. Only silver is slightly higher.

Material	Thermal Conductivity (W/m·K)
Copper (at 25℃)	401
Copper (at 100℃)	377
Silver	411
Gold	315
Aluminum	237
Iron	0.163 (Note: This value seems inconsistent with other sources provided, which state ~80 W/m·K for pure iron. It's included as presented in the source but with a note.)

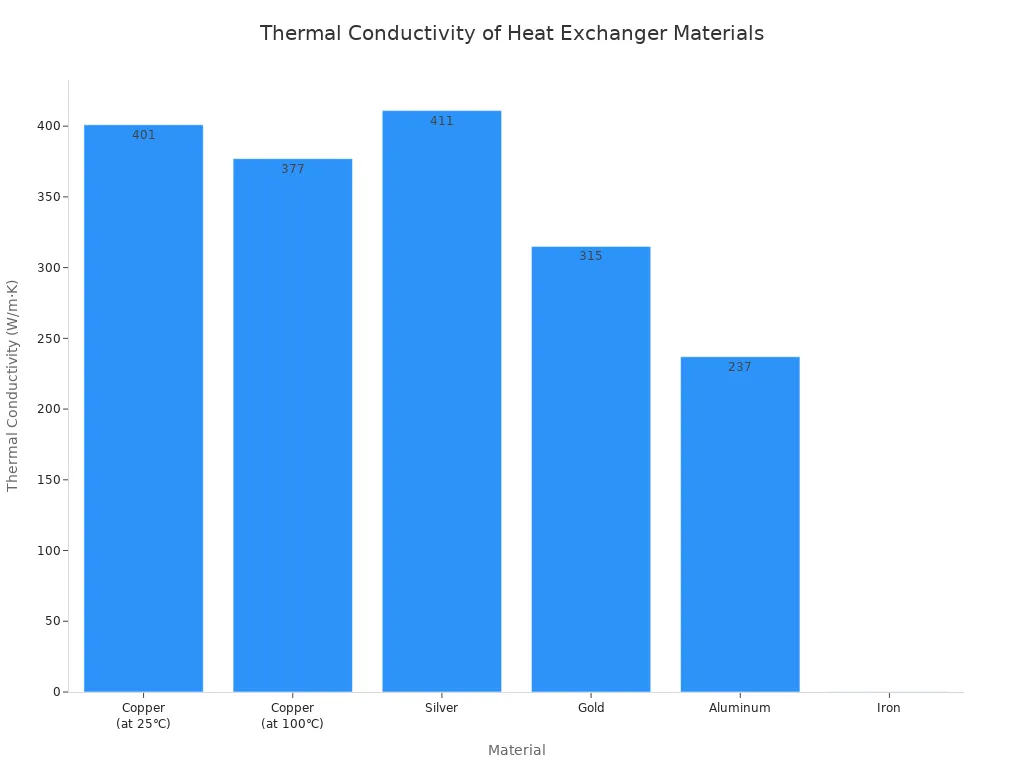

I also observe this trend clearly in comparative charts.

This high conductivity allows heat to move quickly through the fins. It maximizes the efficiency of the heat exchange process.

Natural Corrosion Resistance of Copper

I value copper's natural resistance to corrosion. This property is crucial for the longevity of heat exchangers. Copper forms a protective patina over time. This layer shields the underlying metal from further degradation. It helps the heat exchanger maintain its structural integrity. It also ensures consistent performance for many years. While some specific environments might favor other materials, I find copper's broad resistance to corrosive agents generally superior. This makes it a reliable choice for most applications.

Antimicrobial Properties of Copper

I find copper's antimicrobial properties particularly beneficial. This is especially true in applications like HVAC systems. Research shows copper alloys are naturally effective against many pathogens. Professor C. William Keevil at the University of Southampton has demonstrated this. His work shows copper reduces Aspergillus niger (black mold) by about 99 percent within six hours. Aluminum surfaces showed almost no effect in comparison.

The U.S. Army Medical Research and Materiel Command also funds research into copper's antimicrobial effects. They study copper components in HVAC systems. This research takes place in laboratories, medical facilities, and military bases. I believe this property contributes to healthier environments. It reduces the spread of harmful microorganisms within air circulation systems.

Malleability and Ease of Fabrication for Copper

I appreciate copper's malleability. It is a soft metal. This makes it easy to shape and form. Manufacturers can create complex fin designs. They can also produce intricate tube configurations. This ease of fabrication helps optimize surface area for heat transfer. It also contributes to cost-effective manufacturing. I have seen that copper tube-fin heat exchangers are often the least expensive type to produce. This is due to the material's workability and established manufacturing processes.

Component/Process	Description	Cost Implication
Core Material
Copper	Common material for tubes, fin, and/or sheet metal.	Less expensive than stainless steel.
Heat Exchanger Type
Copper tube-fin heat exchanger	Least expensive type to manufacture.	Least expensive.
Frame Attachment
Pop rivets	Method for attaching heat exchanger frame to core.	Least expensive option.
Screws	Method for attaching heat exchanger frame to core.	More expensive than pop rivets, less than welding.
Welding	Method for attaching heat exchanger frame to core.	Most expensive due to additional factory time, but provides stronger, more reliable part.

This ease of working with copper allows companies like senjun to innovate. We develop high-quality wire tube condensers and copper aluminum fin heat exchangers for various applications. Our focus is on research, development, and production.

Durability and Longevity of Copper Fin Heat Exchangers

I consider durability a major advantage of copper. Copper Fin Heat Exchangers typically last a long time. They often perform well for 10 to 15 years. This extended lifespan means fewer replacements. It also reduces maintenance costs over time. Copper's inherent strength and resistance to fatigue contribute to this longevity. This makes them a reliable investment for any system.

Environmental Sustainability and Recyclability of Copper

I also recognize copper's environmental benefits. It is a highly sustainable material. Copper is 100% recyclable. It retains its properties even after multiple recycling cycles. This reduces the need for new mining. It also minimizes waste. I believe choosing copper contributes to a more circular economy. It supports environmentally responsible manufacturing practices.

How Copper Fin Heat Exchangers Work

Principles of Heat Transfer in Copper Fin Heat Exchangers

I understand that a Copper Fin Heat Exchanger operates on fundamental heat transfer principles. Heat always moves from a warmer area to a cooler one. This device facilitates that movement efficiently. It ensures that thermal energy transfers from one fluid to another without mixing them. I see this as a continuous process, driving system performance.

Conduction Through Copper Fins

I observe conduction as the first step in heat transfer within these exchangers. Hot fluid flows through tubes. Heat from this fluid conducts directly through the tube walls. It then moves into the attached copper fins. Copper's exceptional thermal conductivity ensures this transfer happens very quickly. This rapid conduction prepares the heat for the next stage of exchange.

Convection and Fluid Dynamics in Heat Exchange

I recognize convection as crucial for moving heat away from the fins. A cooler fluid, often air or water, flows over the heated copper fins. This fluid picks up the heat through convection. My research shows that fin geometry significantly impacts this process. For instance, half-drilled square fins (HDF) perform better than solid designs. Half-drilled rectangular fins can reduce peak temperature by 9.4% and internal resistance by 20.9%. Full-drilled circular fins also show a 9.11 K decrease in peak temperature. These finned configurations enhance thermal performance by about 15.4% compared to finless designs. Numerical simulations, using water with Reynolds numbers from 400 to 550, confirm these improvements in convective heat transfer.

Maximizing Surface Area for Efficient Heat Exchange

I know that maximizing surface area is key to efficient heat exchange. The fins dramatically increase the contact area between the hot copper and the cooler fluid. More surface area means more opportunities for heat to transfer. This design principle allows the Copper Fin Heat Exchanger to cool or heat fluids effectively in a compact space.

Key Benefits of Copper Fin Heat Exchangers

I have seen firsthand how Copper Fin Heat Exchangers deliver significant advantages across various applications. These benefits directly impact performance, longevity, and cost-effectiveness.

Enhanced Thermal Efficiency and Performance

I consistently observe superior thermal efficiency with copper fin designs. Copper's excellent thermal conductivity means heat transfers quickly and effectively. This rapid heat exchange allows systems to reach desired temperatures faster. It also maintains those temperatures more consistently. I find this leads to optimal performance in cooling, heating, and refrigeration systems. The enhanced efficiency means less wasted energy and more effective thermal management.

Extended System Lifespan and Reliability

I value the durability and reliability that copper brings to heat exchangers. Copper naturally resists corrosion. This property protects the internal components from degradation over time. It ensures the heat exchanger maintains its structural integrity. This resistance to wear and tear translates into a longer operational lifespan for the entire system. I have confidence in the long-term performance of systems equipped with these robust components.

Reduced Energy Consumption and Operational Costs

I recognize that efficient heat transfer directly leads to lower energy bills. Copper Fin Heat Exchangers excel in this area. They can significantly reduce energy consumption. I have seen data indicating these exchangers can lead to energy cost savings of potentially up to 40%. In some systems, they reduce energy consumption by up to 30%. Air-to-Air Heat Pipe Heat Exchangers, which often use copper fins, can even achieve energy cost savings exceeding 40%. Furthermore, new fin designs in copper heat exchangers have demonstrated cost savings of up to 50%. These substantial savings make them a smart economic choice. They lower operational costs over the system's lifetime.

Compact Design and Space Savings

I appreciate the compact nature of Copper Fin Heat Exchangers. Their high thermal efficiency means they can transfer a large amount of heat in a smaller footprint. This allows for more compact system designs. It saves valuable space in installations. Whether it is in a crowded engine bay or a tight HVAC closet, the ability to achieve powerful thermal management with a smaller unit is a significant advantage. This compact design does not compromise performance.

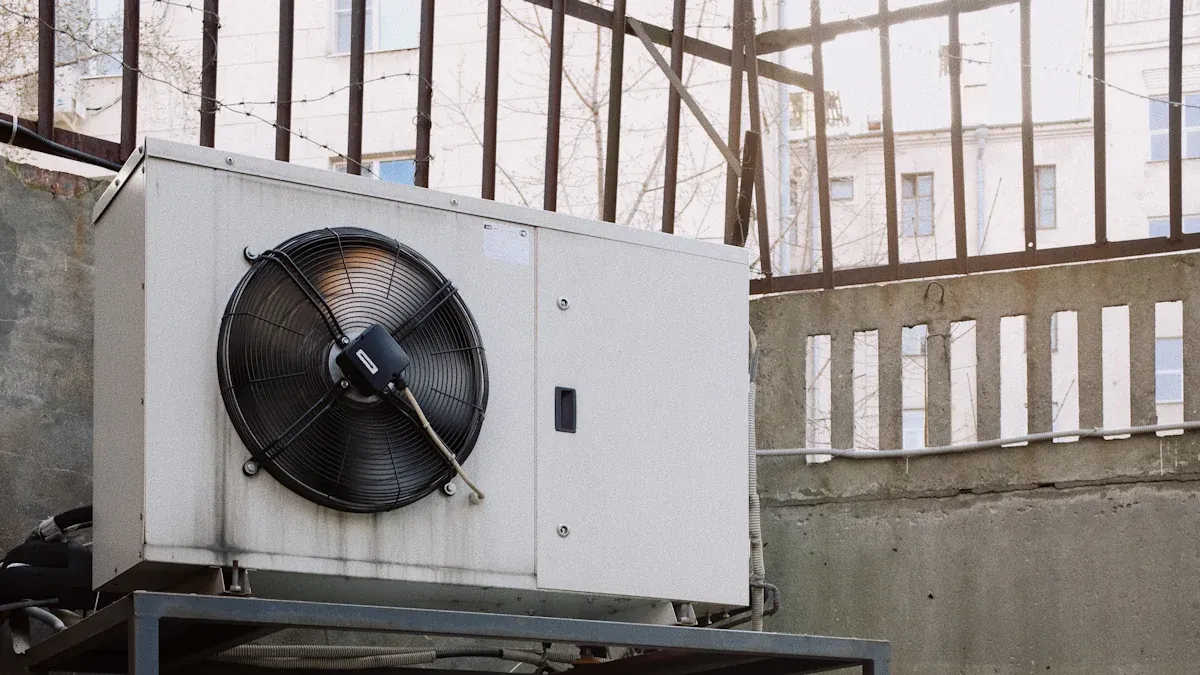

Types and Applications of Copper Fin Heat Exchangers

I see Copper Fin Heat Exchangers in many different industries. Their versatility and efficiency make them essential for various thermal management needs.

Copper Fin Heat Exchangers in HVAC and Refrigeration

I find Copper Fin Heat Exchangers crucial for HVAC and refrigeration systems. They offer excellent thermal performance. Design considerations include heat capacity and operating temperatures. For refrigerants like A2L and A3, a lower refrigerant charge is necessary. Small-diameter copper tube fin heat exchangers are key here. They enhance heat transfer and offer a compact design. This minimizes refrigerant volume. Copper's high thermal conductivity ensures efficiency. Its corrosion resistance extends service life. Malleability allows precise shapes. Antimicrobial properties inhibit microbial growth.

Automotive and Transportation Applications

I also observe these heat exchangers in automotive and transportation sectors. They manage engine temperatures. They cool various fluids. Their compact and lightweight design is ideal for these space-constrained applications.

Industrial Process Cooling with Copper Fin Heat Exchangers

I know industrial processes rely heavily on efficient cooling. Copper fin heat exchangers are vital here. Chemical processing industries use them. They cool high-temperature liquids after reactions. They also heat raw materials. Food processing industries employ these systems. They transfer heat between different fluids. This is crucial for many food industry processes.

Power Generation and Electronics Cooling

I see significant use in power generation and electronics cooling. In electronic systems, copper heat sinks are necessary for higher thermal conductivity. An alternative design combines aluminum fins with a copper base. Copper heat sinks rapidly transfer heat from the source. Data centers and electronics cooling benefit greatly. Copper tubes quickly move heat from servers. In power generation, they are integral to industrial process cooling. This includes power plants for steam generation. They improve energy efficiency in Combined Heat and Power (CHP) systems.

senjun: A Leader in Copper Fin Heat Exchanger Solutions

I recognize senjun as a leader in this field. Ningbo Senjun New Materials Co., Ltd., focuses on research, development, and production. We create wire tube condensers and copper aluminum fin heat exchangers. These serve refrigerators, freezers, and medical ultra-low temperature refrigerators.

Maintenance and Considerations for Copper Fin Heat Exchangers

Regular Cleaning and Inspection for Optimal Performance

I know regular cleaning and inspection are vital for optimal performance. They ensure my copper fin heat exchangers operate efficiently. Different applications require varying cleaning intervals. For example, I clean food and beverage systems every 2–4 weeks. HVAC and chiller units need cleaning every 6–12 months. Oil and gas processing units get cleaned during every shutdown. Boilers and steam systems require cleaning 1–2 times per year. Offshore systems follow their inspection cycles.

Application	Typical Cleaning Interval
Food & beverage (CIP)	Every 2–4 weeks
HVAC / Chiller	Every 6–12 months
Oil & Gas Processing	Every shutdown / turnaround
Boilers / Steam	1–2 times per year
Offshore Systems	As per inspection cycles

I use both chemical and mechanical cleaning methods. Chemical cleaning uses specific agents like AlfaPhos for descaling or AlfaCuas for organic deposits. I always review manufacturer guidelines and wear PPE. Mechanical cleaning involves specialized tools, like rotary tube cleaning systems, to remove deposits physically. High-pressure cleaning is quick but I use it carefully. It can damage surfaces if not controlled.

Preventing Fouling and Scaling in Copper Fin Heat Exchangers

I find preventing fouling and scaling crucial for maintaining efficiency. Fouling significantly harms heat exchangers. I address blockages from solid particles, scale, and biological slime. Regular cleaning is essential. I choose non-acidic or acid-replacement cleaners for copper. These remove buildup without causing corrosion. I apply them with low-pressure spraying, allow dwell time, and rinse thoroughly. Water quality management is also key. I regularly test water for pH, hardness, and dissolved solids. This prevents scale and corrosion. I also consider fluid velocity and heat transfer wall temperature. Higher fluid velocity reduces fouling. Higher temperatures can increase deposition.

Material Compatibility and System Design Considerations

I always consider material compatibility when designing systems. Copper offers excellent corrosion resistance and fluid compatibility. Its mechanical strength makes it a strong candidate. I have seen tests with Phase Change Materials (PCMs) like RT15, RT18 HC, and RT22 HC. Both aluminum and copper showed low corrosion rates. This suggests they are suitable for heat transfer surfaces with these PCMs. Copper is also easy to machine and weld. This supports diverse manufacturing processes. Its high ductility helps form thin-walled tubes. Alloying copper, like in brass, can enhance properties or reduce costs.

Installation Best Practices for Copper Fin Heat Exchangers

I follow best practices for installation to ensure optimal performance and longevity. First, I prepare the site. I ensure a stable, level surface. It must support the heat exchanger's weight. I also leave adequate space for maintenance and airflow. I handle the unit with extreme care to avoid damage to fins or internal components. For mechanical installation, I mount the heat exchanger level and securely. I verify all connections for tightness and proper sealing. This prevents leaks. I ensure nothing obstructs the unit for proper airflow. For electrical integration, all wiring adheres to local codes. Proper grounding is essential. Finally, during commissioning, I perform thorough leak checks. I verify all sensors and controls. I start the unit gradually, monitoring for any anomalies.

---

I firmly believe Copper Fin Heat Exchangers are indispensable for peak performance. They drive efficient thermal solutions today and for the future. I see their role in sustainable technology growing. Continuous innovation in this field excites me. Companies like senjun lead the way, pushing boundaries in design and application.

FAQ

What makes copper the best material for my heat exchangers?

I find copper superior due to its exceptional thermal conductivity. It transfers heat very efficiently. This ensures optimal performance and energy savings in my systems.

How often should I clean my copper fin heat exchanger?

I recommend cleaning intervals based on the application. For HVAC systems, I clean every 6–12 months. Industrial units follow their specific shutdown schedules.

Can I use copper fin heat exchangers in harsh environments?

I find copper highly suitable for many environments. Its natural corrosion resistance makes it versatile. However, I always consider specific fluid compatibility for extreme conditions.
