The Ultimate Checklist for Sourcing Your Copper Fin Heat Exchanger

Precise sourcing of a Copper Fin Heat Exchangeris critical for overall system success. I find that the right Heat Exchanger directly boosts operational efficiency and significantly cuts costs; optimizing efficiency can even lead toenergy savings of up to 40%. Conversely, an ill-suited unit introduces substantial risks, including poor performance and increased maintenance.

Key Takeaways

• Define your needs. Know your application's specific needs. This prevents problems like overheating or wrong sizing.
• Choose materials and design carefully. The right materials and design stop corrosion and fouling. This ensures long-lasting performance.
• Check suppliers well. Look for quality, good support, and fair prices. A good supplier helps you get the best heat exchanger.

Key Takeaways for Sourcing Your Copper Fin Heat Exchanger

Prioritize Application-Specific Needs

I always begin by prioritizing my application's specific needs. This step is non-negotiable. If I fail to define these needs precisely, I risk significant operational challenges. For instance, I might face system "overheating" because the chosen unit cannot efficiently transfer heat. This leads to potential damage and system failure. I also encounter "wrong sizing," where the Heat Exchanger Is either too small, causing underperformance, or too large, leading to inefficiency and higher costs. Sometimes, I find "insufficient capacity," meaning the unit cannot handle the maximum volume or processing demand. I must accurately calculate heat load, flow rates, and temperature differences to avoid these pitfalls.

Understand Material and Design Impact

I know material and design choices significantly impact a Copper Fin Heat Exchanger's performance. A "wrong material choice" can lead to increased cleaning needs or even catastrophic unit failure. For example, using a material vulnerable to corrosion will cause problems. Poor design can also result in "excessive fouling," which reduces operational efficiency and increases energy consumption. I also consider the risk of "incorrect pressure drop." This happens when the pressure drop exceeds design limits, potentially causing leaks or failure. I understand that the right material and design prevent these issues, ensuring long-term reliability.

Evaluate Suppliers Thoroughly

I always evaluate suppliers thoroughly. This involves more than just comparing prices. I look for quality certifications and adherence to industry standards. I also assess their customization capabilities and the engineering support they offer. A reliable supplier provides strong warranty and after-sales support. I also consider lead times and delivery logistics. My goal is to partner with a supplier who understands my specific requirements and can deliver a high-quality product consistently.

Understanding Your Application Requirements for a Copper Fin Heat Exchanger

I always begin the sourcing process by deeply understanding my application's specific needs. This foundational step ensures I select A Heat Exchanger that performs optimally. It prevents costly mistakes and guarantees long-term system reliability.

Defining the Heat Exchanger Type

I first determine the exact type of heat exchanger my application demands. This choice is fundamental. Different applications require different configurations for efficient heat transfer. For instance, I might need an air-to-air unit for ventilation systems. A liquid-to-air unit often suits cooling electronic components or industrial processes. If I am transferring heat between two liquids, a liquid-to-liquid design becomes necessary. I also consider the flow configuration. Counter-flow designs typically offer the highest thermal efficiency. Cross-flow designs provide a good balance of performance and compactness. My decision here directly impacts the overall system design and its operational effectiveness.

Specifying Operating Conditions and Environment

I meticulously specify all operating conditions and environmental factors. These details are crucial for selecting the right materials and design features. I record the temperature ranges for both the primary and secondary fluids. This includes inlet and outlet temperatures. Pressure is another critical parameter. I note both the normal operating pressure and the maximum design pressure. This ensures the unit can withstand system demands without failure.

Environmental factors also play a significant role. I assess ambient temperature, humidity levels, and altitude. For example, a high-humidity environment might require specific coatings to prevent corrosion. The presence of airborne contaminants, like dust or corrosive chemicals, also influences material selection and fin spacing. I consider the potential for vibration or shock. These conditions directly impact the heat exchanger's durability and longevity.

Determining Physical Size and Constraints

I carefully determine the physical size and any spatial constraints for the heat exchanger. Available space often dictates the unit's dimensions. I measure the installation area precisely. This includes length, width, and height. Weight limitations are also important, especially for mobile applications or structures with specific load-bearing capacities. I consider the mounting options. Does it need to be wall-mounted, floor-mounted, or integrated into a larger assembly?

I also define the connection types and their locations. This includes fluid inlets and outlets, as well as any electrical connections. Accurate measurements and clear specifications for these physical constraints prevent installation problems. They also ensure seamless integration into the existing system. A well-fitted Copper Fin Heat Exchanger avoids costly modifications during installation.

Evaluating Fluid Compatibility and Characteristics for Your Copper Fin Heat Exchanger

I always delve into fluid compatibility and characteristics. This step is crucial. It ensures the heat exchanger operates safely and efficiently. Ignoring these details leads to corrosion, fouling, and premature failure.

Identifying Primary and Secondary Fluids

I begin by clearly identifying both the primary and secondary fluids. This is fundamental. I need to know their chemical compositions. For example, water, refrigerants, oils, or process chemicals each behave differently. I consider their pH levels. I also look at any corrosive properties. This information guides my material selection. It prevents chemical reactions that could degrade the heat exchanger. Understanding these fluids ensures long-term operational integrity.

Assessing Potential Fluid Contaminants

I meticulously assess potential fluid contaminants. Contaminants pose significant risks. They can include particulates, dissolved solids, or biological growth. These substances cause fouling on heat transfer surfaces. Fouling reduces efficiency. It also increases pressure drop. I consider the need for filtration systems. I also evaluate materials that resist contaminant buildup. This proactive approach minimizes maintenance and extends the unit's lifespan.

Understanding Fluid Viscosity and Flow Rates

I carefully analyze fluid viscosity and flow rates. Viscosity directly impacts heat transfer efficiency. High-viscosity fluids require more pumping power. They also create higher pressure drops. I determine the required flow rates for both fluids. These rates dictate the heat exchanger's size and design. Incorrect flow rates lead to inefficient heat transfer. They can also cause erosion or vibration. I ensure these parameters align with the system's operational demands.

Assessing Thermal Performance and Efficiency of a Copper Fin Heat Exchanger

I always carefully assess the thermal performance and efficiency of a heat exchanger. This step ensures the unit meets my system's heat transfer demands. It directly impacts operational costs and overall system effectiveness.

Key Thermal Performance Metrics

I rely on several key metrics to quantify thermal performance. These numbers tell me how well a heat exchanger works.

• Heat Transfer Rate (Q): This shows the total heat transferred per unit time, indicating capacity.
• Effectiveness (ε): This ratio compares actual to maximum possible heat transfer, showing operational closeness to theoretical limits.
• Overall Heat Transfer Coefficient (U): This measures the overall ability to transfer heat, considering fluid and material resistances.
• Log Mean Temperature Difference (LMTD): I use this logarithmic average of temperature differences to calculate the heat transfer driving force.
• Pressure Drop (ΔP): This pressure difference between inlet and outlet affects operational efficiency and pumping power.
• Fouling Factor (R_f): This accounts for heat transfer reduction due to deposits.
• Thermal Efficiency (η): This ratio shows heat transferred to the cold fluid versus heat removed from the hot fluid, indicating energy transfer efficiency.

Impact of Fin Design on Efficiency

Fin design significantly impacts efficiency. I know that a smaller fin pitch often leads to better overall performance. This design increases heat transfer rates and pressure drops. It also improves turbulence intensity. For example, bent fins with a small fin pitch can show 15-17% higher performance than traditional designs. Studies on spiral finned tubes also show that the Nusselt number (Nu), which indicates heat transfer, increases with the Reynolds number (Re) and transverse tube pitch. Fin pitch strongly links to airside performance.

Role of Copper Material Properties

Copper's properties make it an ideal material for heat exchanger fins. I value its high thermal conductivity. Copper has approximately 400 W/m·K. This is much higher than aluminum or stainless steel. This property ensures efficient and rapid heat transfer.

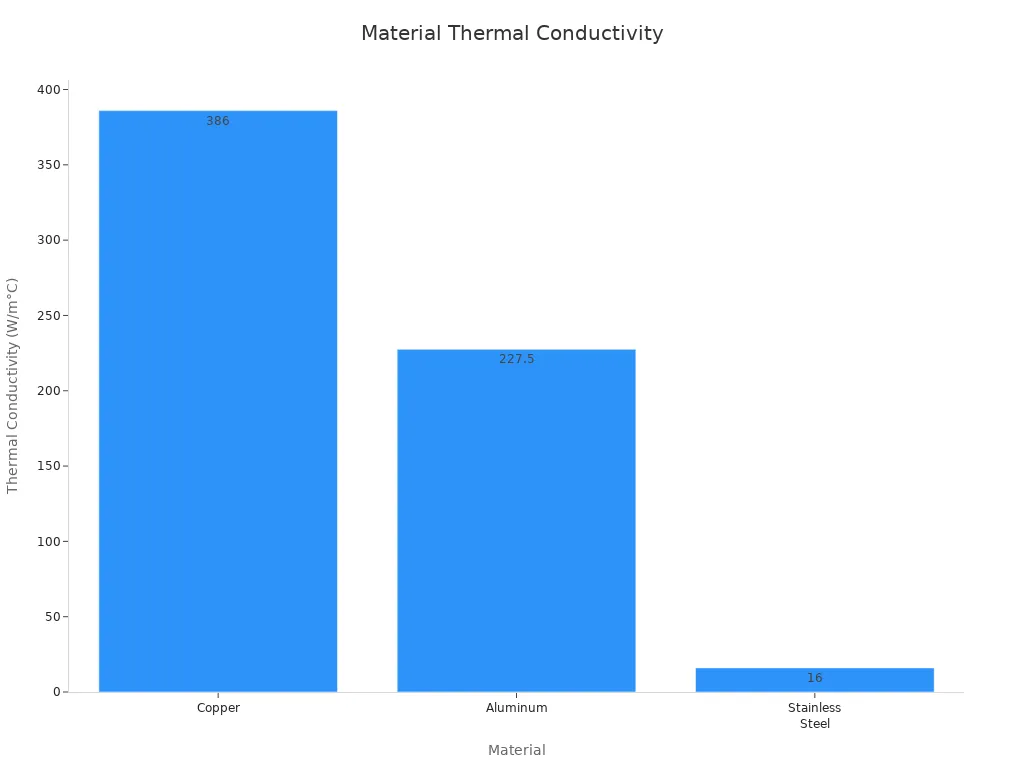

Material	Thermal Conductivity (W/m°C)
Copper	386
Aluminum	205 - 250
Stainless Steel	16

Copper also offers excellent durability and corrosion resistance. It forms a protective oxide layer, preventing corrosion and biofouling. Its predictable temper allows for precise manufacturing. Copper's strength allows for thinner walls in small-diameter tubes, creating more compact designs. These features contribute to overall cost reduction through efficiency and longevity.

Comparative Analysis: Copper Fin Heat Exchanger vs. Alternatives

Advantages of Copper for Heat Exchangers

I find copper offers significant advantages for heat exchangers. Its thermal conductivity is exceptionally high. This property allows for rapid and efficient heat transfer. Copper also boasts excellent corrosion resistance. It forms a protective oxide layer. This layer prevents degradation and biofouling.

Property	Copper	Aluminum
Thermal Conductivity	401 W/mK	~167 W/mK
Corrosion Resistance	Excellent (protective oxide layer)	Excellent (protective oxide layer)

When to Consider Other Fin Materials

Despite copper's benefits, I recognize situations where other materials excel. Titanium, for example, is often preferred in specialized applications.

• Aerospace: I see titanium used for airframes and turbines. Its high strength-to-weight ratio and heat resistance are crucial.
• Marine: For underwater fasteners and piping, titanium's outstanding corrosion resistance makes it ideal.
• Automotive: When lightweight strength is a priority, I find titanium in exhausts.
• Harsh Environments: Titanium is indispensable for heat exchangers in aggressive settings. This includes seawater and chloride-rich conditions. It resists corrosion where stainless steel struggles. Titanium shows no signs of corrosion even after 16 years in polluted seawater. It also performs reliably at high temperatures and velocities.
• Pharmaceutical Plants: I observe titanium-steel composite reactors for strong acids. Titanium-copper composites are used in heat exchangers for ultrapure water. This ensures both thermal efficiency and corrosion resistance from cleaning agents.

Cost-Effectiveness Over Lifetime

I always consider the long-term cost-effectiveness. While copper might have a higher initial cost, its superior performance and durability often lead to significant savings. Its high efficiency reduces energy consumption. Its resistance to corrosion and fouling minimizes maintenance needs. This extends the operational lifespan of the unit. A well-chosen Copper Fin Heat Exchanger provides excellent value over its entire service life.

Maintenance and Longevity Considerations for Your Copper Fin Heat Exchanger

I understand that proper maintenance is crucial for extending the lifespan and ensuring the efficiency of any heat exchanger. Neglecting this aspect leads to reduced performance and costly repairs.

Expected Maintenance Intervals and Challenges

I plan maintenance intervals based on operating conditions. For external visual inspections, I schedule them at least every five years. This aligns with internal or on-stream inspections, whichever comes sooner. Internal and on-stream inspections should not exceed half the estimated remaining life or ten years, depending on corrosion rates. I find general inspections are necessary every three to six months. A thorough cleaning is typically an annual task, or when I notice efficiency drops by more than 10%. In commercial settings, monthly cleaning may be necessary. I also clean condenser coils every three months. Heat exchangers generally require servicing every six months to four years. The specific interval depends heavily on the operating environment. For example, units in dusty conditions may need cleaning as frequently as every six months.

Effective Cleaning Methods and Design for Serviceability

I prioritize effective cleaning methods to combat fouling. Before any cleaning, I always review the manufacturer’s guidelines for specific instructions. I wear personal protective equipment (PPE), including safety goggles, gloves, and a respirator mask. I shut off and isolate the heat exchanger by securing inlet valves and closing supply and return water valves. After releasing pressure and draining fluids, I perform a visual inspection to assess damage and fouling. This helps me determine the optimal cleaning method. I attach hoses using a descaling system to ensure the cleaning agent reaches all surfaces.

For chemical cleaning, I use specific agents. AlfaPhos is an acidic agent for descaling metallic oxides, rust, and calcium carbonate. I use AlfaNeutra to neutralize acidic cleaning fluid. AlfaCuas and alkaline detergents remove organic deposits and biological matter. Acidic detergents tackle metallic oxides, rust, and calcium carbonate. After cleaning, I apply synthetic or mineral oils for lubrication and corrosion protection. I give the cleaning agent sufficient time to work effectively. Then, I rinse thoroughly with clean water. Finally, I inspect and reassemble, installing new gaskets to prevent leaks. I test and restart the system after necessary checks and always adhere to local regulations for discharge.

Visual Inspection Checklist for Copper Fin Heat Exchangers

I use a simple visual inspection checklist to identify potential issues early.

• Fin Condition: I check for bent, damaged, or corroded fins. Damaged fins impede airflow and reduce efficiency.
• Fouling: I look for any buildup of dirt, dust, or other contaminants on the fin surfaces.
• Leaks: I inspect all connections, welds, and tube sheets for signs of fluid leakage.
• Corrosion: I examine the entire unit for any visible signs of corrosion, especially in areas exposed to moisture or harsh chemicals.
• Structural Integrity: I check for any physical damage, cracks, or loose components.
• Mounting: I ensure the heat exchanger is securely mounted and free from excessive vibration.

The Step-by-Step Sourcing Process for a Copper Fin Heat Exchanger

I follow a systematic process when sourcing a heat exchanger. This approach helps me make informed decisions. It ensures I get the best unit for my specific needs.

Defining Your Detailed Specifications

I always start by defining my detailed specifications. This is the most crucial step. It ensures the heat exchanger meets my exact requirements. I consider several key parameters for a custom unit:

• Material Composition: I specify nearly pure copper (99.90% by weight) with 0.015-0.040% phosphorus (Cu-DHP, UNS C12200). For high-strength applications, like R744 systems, I look for a copper alloy with 2.4% iron (CuFe2P, UNS C19400).
• Thermal Conductivity: I note the required thermal conductivity. C12200 has 330 W/m K. C19400 has 270 W/m K.
• Mechanical Properties: I define the necessary tensile strength and yield strength. These vary by temper. Annealed C12200 has a yield strength greater than 120 MPa. C19400 has a yield strength of 275-435 MPa.
• Tube Wall Thickness: This is critical for HVACR applications. I specify thicknesses like 0.20 mm to 0.23 mm for a 5 mm diameter smooth tube. I also include specific tolerances, for example, 0.215 mm +/- 0.015 mm.
• Outer Diameters: I list commonly available sizes. These include 5 mm, 6.35 mm (1/4 in.), 7 mm, 8 mm, 9.52 mm (3/8 in.), 12.7 mm (1/2 in.), and 15.9 mm (5/8 in.).
• Inner Groove Geometry: I detail parameters like inside diameter, outside diameter, height of microfins, spacing between microfins, helical angle, groove depth (e.g., 0.12 mm to 0.15 mm for a 5 mm tube), top apex angle, lead helix angle, and the number of grooves.
• General Specifications: I include chemical composition, alloy type, size, mechanical properties, tolerances, cleanness, and testing requirements. This includes eddy current testing.

Researching Potential Suppliers and Manufacturers

Once I have my specifications, I research potential suppliers and manufacturers. I look for companies specializing in heat exchangers. I search online databases and industry directories. I also ask for recommendations from colleagues. I consider both local and international options. Senjun, for example, is a company I would consider. They focus on research, development, and production of wire tube condensers and copper aluminum fin heat exchangers. They serve various applications like refrigerators, freezers, and medical ultra-low temperature refrigerators. I aim to create a shortlist of reputable companies.

Requesting and Comparing Quotes

I send my detailed specifications to my shortlisted suppliers. I request comprehensive quotes. When comparing these quotes, I look beyond just the price. I consider several critical factors:

• Thermal efficiency
• Cost
• Availability
• Corrosion resistance
• Cleanability
• Durability

For copper fin heat exchangers, I know their superior heat transfer properties and excellent corrosion resistance are significant advantages. However, I also factor in their higher cost compared to alternatives like aluminum. I consider the potential for increased maintenance and cleaning requirements to prevent corrosion. I ensure the quote includes all costs. This covers manufacturing, shipping, and any potential customization fees.

Evaluating Supplier Reputation and Support

I thoroughly evaluate each supplier's reputation and support. This step is vital for a successful partnership. I look for specific indicators:

• Certifications and Standards: I check for certifications like ASME, UL Listing, CE Certification, RoHS Compliance, and AHRI Performance Certification. These show adherence to industry standards. They also indicate rigorous testing. This ensures product quality and performance.
• Industry Experience: Suppliers with a long-standing presence often have greater technical knowledge. They understand customer needs better. A proven track record leads to more dependable service. They can handle complex requirements effectively.
• Reputation and Customer Feedback: I assess the supplier's reputation through customer reviews, surveys, and ratings. Positive feedback and a strong reputation indicate consistent quality and trustworthiness.

I also consider their engineering support. Do they offer assistance with design or troubleshooting? What kind of warranty do they provide? How responsive are they to inquiries?

Finalizing Your Selection

After careful consideration, I finalize my selection. I choose the supplier who best meets my technical requirements. They must also offer competitive pricing and excellent support. I review the contract terms carefully. I ensure everything aligns with my expectations. This systematic approach helps me secure a high-quality heat exchanger. It also ensures a reliable partnership.

Key Factors for Evaluating Copper Fin Heat Exchanger Suppliers

Quality Certifications and Industry Standards

I always check for robust quality certifications. A manufacturer should be ISO-certified. They must follow strict quality control, including raw material inspections and final product testing. For corrosion protection, I look for ISO Standard 12944 – C5 Classification. This is a top certification for harsh industrial areas. For military uses, ITAR Registered status is essential. I also seek suppliers with certifications like ASME BPVC and ISO 9001.

Customization Capabilities and Engineering Support

I look for suppliers offering flexible customization. They should provide various fin patterns, bend densities, and mounting structures. I need options for pipe connections and material choices like copper, stainless steel, and aluminum. Suppliers must offer both standard and fully customized solutions. Their designs should match specific operating conditions for reliable performance. I expect tailored engineering solutions and rapid prototyping. Expert support from inquiry to installation is crucial. They should help me select the ideal finned tube solution, offering design customization and maintenance guides.

Warranty and After-Sales Support

Effective after-sales support is non-negotiable for me. This includes the ability to rebuild units, often with same-day service. They should use materials like cupronickel for longer life. I expect them to build new heat exchangers to factory specifications. Companies should stock additional parts. I value 24-hour emergency service for parts and support. They should offer systematic troubleshooting and repair strategies, including cleaning and replacing parts. I also need operation and maintenance manuals.

Lead Times and Delivery Logistics

I consider lead times and delivery logistics carefully. For most custom finned tube orders, the standard lead time is 4 to 5 weeks. This can be faster if needed. The exact time depends on complexity and quantity. I need a vendor with a robust logistics network. This ensures timely delivery. Consistency reduces project delays.

Manufacturer Spotlight: Senjun's Expertise in Copper Fin Heat Exchangers

I recognize Senjun as a leader in this field. They focus on precision engineering for durability. They use advanced manufacturing for intricate fin designs, maximizing heat transfer. Senjun maintains tight tolerances to prevent weak points. They commit to research and development for various applications, including refrigerators and medical ultra-low temperature units. They perform rigorous testing for reliability. Senjun leads the industry in China with a 35% market share. They drive innovation with advanced corrosion-resistant alloys and digital tools. Senjun's commitment ensures efficient and reliable systems. They strive to understand customer needs and propose innovative solutions.

---

I emphasize the critical importance of a meticulous sourcing process for your system. A perfectly matched Copper Fin Heat Exchanger brings long-term operational and financial benefits. I encourage a systematic, informed approach. This avoids common pitfalls and ensures optimal performance.

FAQ

What makes copper ideal for heat exchanger fins?

I find copper ideal due to its superior thermal conductivity. It transfers heat very efficiently. Copper also offers excellent corrosion resistance, ensuring long-term system reliability.

How often should I perform maintenance on my copper fin heat exchanger?

I typically schedule general inspections every three to six months. A thorough cleaning is usually an annual task. However, I adjust this based on operating conditions, like dusty environments.

What are the most important factors when evaluating a supplier?

I always prioritize quality certifications and strong customization capabilities. Excellent warranty and after-sales support are also critical. I also carefully consider lead times and delivery logistics.
