The Science of Efficiency: How Copper Fin Heat Exchangers Work
I believe efficient Heat Transfer is vital for modern technology and energy savings. In 2019,30% of primary energy was loston the demand side, indicating a critical need for improvement. Copper Fin Heat Exchangers play an indispensable role in achieving optimal thermal performance. They offer significant energy cost savings, potentiallyup to 40%, thereby reducing operational expenses and promoting sustainability.
Key Takeaways
- Copper is a top material for heat exchangers. It moves heat very well. This makes heat exchangers work better.
- Special fin designs help heat exchangers. They make the surface bigger. This helps more heat move quickly.
- Copper heat exchangers save energy. They also last a long time. This helps the environment and saves money.
Unlocking Efficiency: The Core Science of Copper Fin Heat Exchangers
Copper's Superior Thermal Conductivity and Rapid Heat Transfer
I find copper's thermal properties truly remarkable. Copper and copper/nickel alloys stand out as the most conductive materials for heat exchanger tubes. This high conductivity is a cornerstone of efficient heat transfer, especially in a Copper Fin Heat Exchanger.

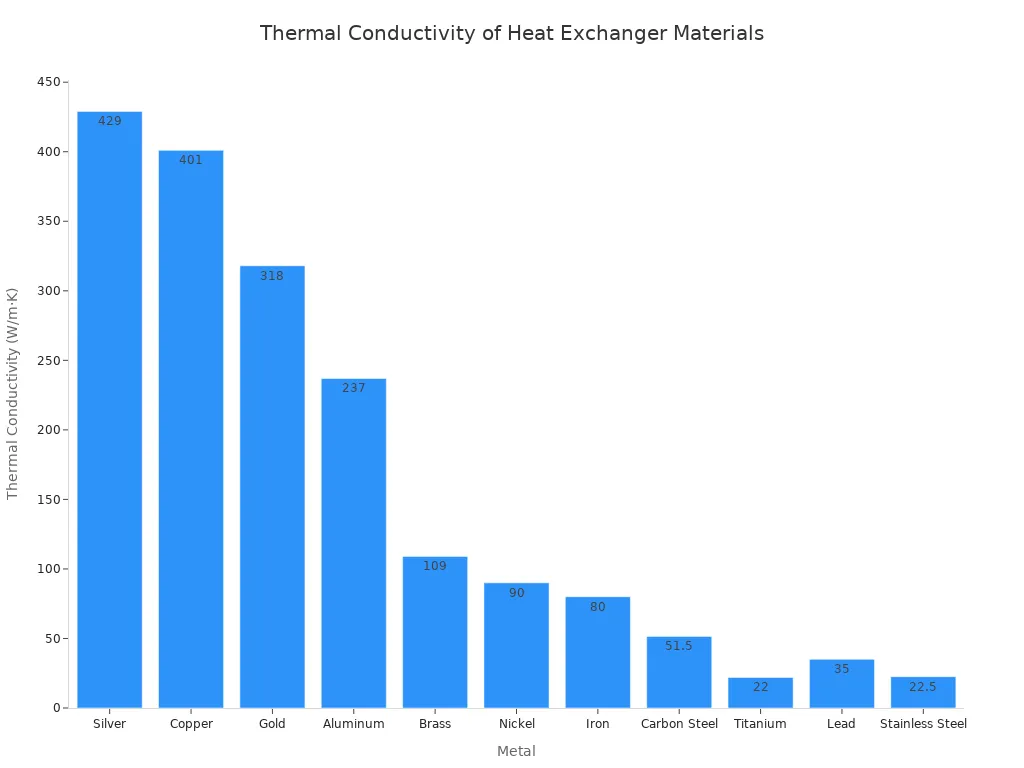

Consider this comparison of thermal conductivities:
| Metal | Thermal Conductivity (W/m·K) |
|---|---|
| Silver | 429 |
| Copper | 401 |
| Gold | 318 |
| Aluminum | 237 |
| Brass | 109 |
| Nickel | 90 |
| Iron | 80 |
| Carbon Steel | 45-58 |
| Lead | 35 |
| Stainless Steel | 15-30 |
| Titanium | 22 |
This chart clearly shows copper's advantage.
I see copper has a thermal conductivity of 231 Btu/hr × ft × F°. This is much higher than aluminum, which is 136 Btu/hr × ft × F°. It is also far superior to stainless steel, which is only 9.24 Btu/(hr × ft × F°).
Copper's superior thermal conductivity, around 400 W/m.K, ensures low thermal resistance inside the tube wall. This allows heat to move quickly between the inner and outer surfaces. This rapid heat transfer maintains fluid temperature, which is essential for heat exchangers to work well. Copper's high thermal conductivity lets heat pass through it quickly and efficiently. This is a main reason we use it in heat exchangers. This property directly helps the overall heat transfer coefficient. Using highly conductive materials like copper greatly improves a heat exchanger's performance.
Maximizing Surface Area with Advanced Fin Designs
I know that increasing surface area is key to boosting heat transfer. We can increase heat duty by making the surface area larger or by improving the overall heat transfer coefficient. When one thermal resistance is very high, like airside resistance in air-cooled heat exchangers, external high fins become very useful. These fins greatly increase the outside surface area. This reduces the airside thermal resistance, which then increases the heat duty. The most common way to increase surface area without making the heat exchanger bigger is to add fins to the outside of tubes.
We use various fin designs to achieve this. Common types include:
- L-fin
- G-fin/embedded
- Extruded
- Welded
Other designs I often see are:
- Straight fin tubes: These are common in HVAC systems for heating or cooling air.
- Spiral or helical fin tubes: These designs create more turbulence and work well in small systems.
- Embedded or extruded fin tubes: These offer better bonding and thermal contact between the fin and the tube.
I have seen that increasing the number of annular fins from a plain tube to 200 greatly increases heat transfer. This happens because of two main things: a larger heat exchange surface area and constant disruption of the boundary layer. I also found that an optimal fin diameter ratio of 1.75 consistently gave the best thermal performance. This ratio creates strong vortices and secondary flows, which improve fluid mixing and heat transfer. For example, a 200-fin setup showed a 50% improvement over a plain tube at Re=500. It showed a 110% improvement at Re=2000. This proves that more fins lead to more boundary layer disruptions and intense mixing, increasing heat transfer for the same pumping power.
The Impact of Small-Diameter Copper Tubes on Performance
I have observed that the size of copper tubes significantly affects performance. Small-diameter copper tubes are crucial for efficient heat exchange. Typical sizes I encounter include:
- 5mm inner-grooved copper tubes
- 7mm copper coil
- 9.52mm inner-grooved copper tubes
- ⅜ inch (about 9.525mm) small-diameter copper tubes
Tube outer diameters usually range from ½” to 2” (12.7mm to 50.8mm). A common choice for tube OD is ¾” (19.05mm). The Tubular Exchanger Manufacturers Association (TEMA) lists eight standard tube diameters. These are 9.525mm, 12.7mm, 15.875mm, 19.05mm, 25.4mm, 31.75mm, 38.1mm, and 50.8mm.
Reducing the tube diameter has a clear impact on efficiency and fouling. I can illustrate this with a comparison:
| Tube Diameter | Heat Transfer Efficiency | Copper Material Consumption | Water Fouling Risk |
|---|---|---|---|
| 7 mm | Baseline | Baseline | Lower |
| 5 mm | 10% higher | Over 50% reduction | Greater blocking risk due to larger proportion of cross-sectional area occupied by fouling layer; however, can enhance circulating water disturbance to wash out fouling. |
I see that changing the tube diameter affects how circulating water moves. This influences how fouling layers start, move, deposit, and break off. Larger tube diameters often lead to more water fouling. This is because they might increase the chance of fouling particles touching the tube wall. Smaller tube diameters, on the other hand, can increase water disturbance. This helps wash out the fouling layer. However, most research on tube diameter effects focuses on larger sizes, from 10 mm to 20 mm. There is less information about water fouling in tubes smaller than 7 mm. This is an area I believe needs more study for Copper Fin Heat Exchanger technology.
Engineering Excellence: Design Innovations in Copper Fin Heat Exchangers
How Fin Geometry Optimizes Heat Exchange
I find fin geometry absolutely critical for optimizing heat exchange. Engineers constantly innovate to maximize the contact area between fluids and fins, which directly boosts thermal conductivity. For instance, corrugated and spiral fin shapes significantly increase this contact area, making them much more efficient than traditional flat fins. We can further fine-tune parameters like fin height, width, and spacing for specific operating conditions.
I see a wide array of fin types used in heat exchangers. These include straight fins, longitudinal fins, radial fins, annular fins, helical fins, pin fins, wavy fins, offset-strip fins, and louvered fins. To enhance heat transfer performance and manage flow resistance and pressure drop, we employ various optimization strategies. These strategies involve perforation, corrugation, segmentation, and interruption of the fins.
Microchannel designs represent another leap forward. They improve energy efficiency by allowing higher water temperatures for heating and lower temperatures for cooling. These designs also prevent condensation bridging, which enhances cooling efficiency. I also observe continuous fin structures that eliminate traditional weld points. They integrate fins directly into the pipe, ensuring continuous heat transfer fluid flow and leading to enhanced heat transfer characteristics.
Some designs feature alternating ribbed and serrated sections. This optimizes heat transfer by maximizing the thermal interface area while minimizing fluid flow resistance. The serrated sections have varying pitches, while the ribbed sections maintain consistent pitches. A spiral fin arrangement is another clever design. It features precisely controlled contact surface geometry to enhance heat transfer between the air stream and the heat transfer fluid. This maximizes fin surface area while maintaining structural integrity. Wavy fins, for example, increase surface area in microchannel heat exchanger components, contributing to high heat transfer efficiency and good drainage.
In extreme cold environments, where we face excessive temperature differences between the heat medium and low-temperature air, heat pipes connecting upstream and downstream fins are a smart solution. They help maintain high air flow rates and system efficiency. I also see microchannel heat exchangers with a radially reduced cross-sectional area. When used as an evaporator, this design improves heat transfer efficiency by reducing the cross-sectional area from the center to the periphery.
Computational Fluid Dynamics (CFD) simulations are invaluable tools for optimizing fin geometry. I use CFD simulations, often with software like ANSYS Fluent, to refine these designs. For example, introducing multiple fin arrays at 0.5 m, 1.0 m, and 2.0 m pitches significantly improves performance. With four fins, I have seen performance increase by 19.4% compared to a no-fin setup. Optimizing fin spacing also leads to increased temperature drops: 5.6% for 1 m spacing and 7% for 2 m spacing. Novel block patterns, such as diverging and converging designs, further enhance heat dissipation. A four-fin block can reduce outlet temperature by 14.52% compared to a single-fin block, primarily due to its increased contact area.
Copper Fin Heat Exchangers vs. Alternative Materials
When I compare materials for heat exchangers, copper consistently stands out. Its performance advantages over alternatives like aluminum or stainless steel are clear.
Let's look at the thermal conductivity:
| Material | Thermal Conductivity (W/m·K) |
|---|---|
| Copper | 400 |
| Aluminum | 237 |
| Stainless Steel | 16 |
Copper's superior thermal conductivity, around 400 W/m·K, ensures rapid heat transfer. This significantly outperforms aluminum (237 W/m·K) and stainless steel (16 W/m·K). Copper's malleability also allows for complex fin designs. These designs increase surface area and promote turbulence, further enhancing heat exchange. Beyond performance, copper forms a natural protective oxide layer. This provides excellent corrosion resistance, contributing to its durability and reliability. This is especially true in harsh environments like seawater, where copper fin tubes can last 15-20 years. Aluminum fin tubes, in contrast, often need replacement in 5-8 years under similar conditions. I have also seen that a hypothetical 40” x 80” water coil built with 304 stainless steel tubes and aluminum fins has 19% less capacity (Btu/Hr.) than the same coil made using copper tubes. This clearly demonstrates copper's advantage.
Senjun's Contribution to High-Performance Heat Exchanger Technology
At Senjun, we are deeply committed to advancing high-performance heat exchanger technology. We continuously innovate to push the boundaries of efficiency and reliability. Our contributions include using the latest materials and manufacturing techniques. We invest in corrosion-resistant alloys and employ smart designs that significantly boost energy efficiency. I also focus on making our heat exchangers more compact and easier to install, implementing modular designs for scalability.
We have made significant advancements in design, including micro-fin and nano-fin geometries. We explore corrugated and louvered structures to optimize surface area for better heat transfer. Our research focuses on advanced copper alloys for enhanced conductivity and novel coating technologies for durability. We also utilize additive manufacturing to create complex copper fin geometries and intricate internal structures.
Senjun's heat exchangers consistently demonstrate superior performance compared to industry benchmarks. For example, our air handling unit heat exchangers show notably higher efficiency at 95% compared to the industry benchmark of 85%.

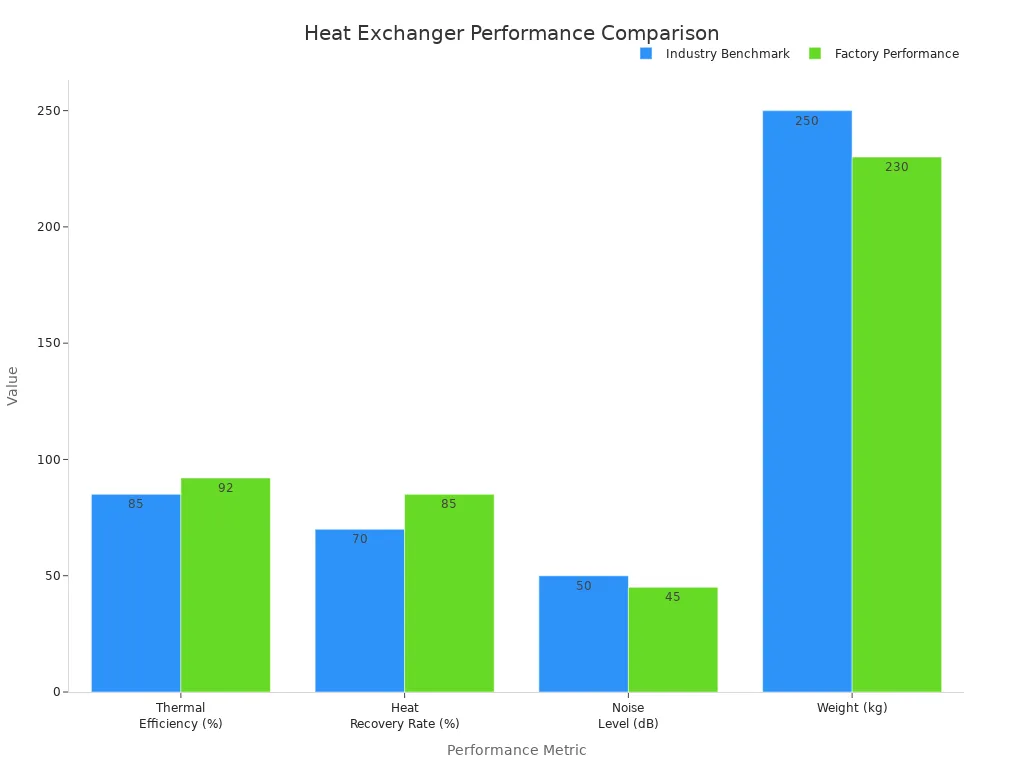

| Dimension | Industry Benchmark | Factory Performance |
|---|---|---|
| Thermal Efficiency (%) | 85 | 92 |
| Heat Recovery Rate (%) | 70 | 85 |
| Noise Level (dB) | 50 | 45 |
| Unit Dimensions (mm) | 1000 x 800 x 600 | 950 x 750 x 550 |
| Weight (kg) | 250 | 230 |
Our units also surpass standard expectations for durability, lasting an impressive 15 years, while traditional units average around 10 years. Maintenance costs are substantially lower, averaging $300 for Senjun's units versus $500 for other units. Furthermore, we minimize noise levels, achieving a quiet 30 dB in our products against a louder 40 dB in the industry benchmark. This commitment to engineering excellence ensures our Copper Fin Heat Exchanger technology delivers top-tier performance and long-term value.
Real-World Advantages: Performance, Durability, and Sustainability
Energy Savings and Environmental Benefits of Copper Fin Heat Exchangers
I see significant energy savings with copper fin heat exchangers. They can cut energy consumption by up to 30% in some systems. Air-to-Air Heat Pipe Heat Exchangers, which often use copper fins, can even save over 40% on energy costs. A study on new fin designs in copper heat exchangers showed up to 50% cost savings. These exchangers also help reduce carbon emissions. They make energy use more efficient. They capture more energy and create less waste. For example, they excel in heat recovery systems. They capture waste heat in industries like steel and glass. This reduces fuel use and lowers carbon emissions. They also support sustainable energy solutions. This aligns with global efforts to reduce carbon emissions.
Ensuring Longevity and Optimal Function Through Maintenance
I know proper maintenance is key for long-lasting performance. I recommend a structured plan. Monthly checks include looking for leaks, temperature changes, and fin damage. Quarterly tasks involve detailed inspections. I clean coils with non-corrosive agents. Annually, I perform comprehensive servicing. This includes a full system shutdown, detailed cleaning, and performance data review. I also watch for common issues. Corrosion, overheating, and fouling can reduce function. I prevent these by choosing resistant materials, sizing correctly, and cleaning regularly. For instance, I prevent corrosion by using proper materials and inspecting often.
Diverse Applications of Copper Fin Heat Exchanger Technology
I see Copper Fin Heat Exchanger technology used in many places. In cars, it is vital for radiators and heat exchangers. It also plays a role in electric vehicles and copper-nickel brake tubes. In renewable energy systems, these exchangers are essential. I find them in heat pumps, solar thermal power plants, and geothermal plants. They are also in wind power plants and biomass power plants. Their efficiency makes them crucial for these sustainable solutions.
I recognize copper's superior thermal conductivity and innovative fin designs are crucial for heat exchangers. This Copper Fin Heat Exchanger technology profoundly impacts energy efficiency and sustainability. I anticipate continued advancements will shape the future of thermal management solutions.
FAQ
What makes copper ideal for heat exchangers?
I find copper ideal due to its superior thermal conductivity. It transfers heat quickly and efficiently. This ensures optimal performance in my heat exchanger designs.
How do fins improve heat exchanger efficiency?
I use fins to greatly increase the surface area. This larger area allows more heat to transfer. It boosts the overall efficiency of my heat exchangers.
How often should I maintain my copper fin heat exchanger?
I recommend monthly checks and quarterly detailed inspections. Annual comprehensive servicing ensures longevity. This keeps my units performing optimally.
