Introduction
In medical ultra-low temperature freezers, reliable heat rejection is what allows sensitive vaccines, biologics, and laboratory samples to stay safely stored at temperatures as low as -86°C. Wire tube condensers are a key part of that process, shaping how efficiently the system removes heat, how hard the compressor must work, and how well the freezer maintains stable internal conditions over time. Understanding their role helps explain important differences in energy use, noise, maintenance demands, and equipment lifespan. The sections that follow examine how wire tube condenser design affects overall freezer performance in demanding medical and laboratory environments.
Why Wire Tube Condensers Matter in Medical Ultra-Low Temperature Freezer
Medical ultra-low temperature (ULT) freezers are critical infrastructure for the global healthcare and biotechnology sectors. Designed to maintain internal environments as cold as -86°C, these specialized refrigeration units rely on highly efficient cascade or dual-compressor systems. The primary bottleneck in any such system is the rejection of heat to the ambient environment.
Wire tube condensers play a foundational role in this thermal management process. Unlike traditional fin-and-tube variants, wire tube configurations utilize a matrix of steel wires welded to serpentine steel tubing. This structural approach directly influences the thermodynamic efficiency, acoustic profile, and long-term reliability of medical cold-chain equipment.
Impact on freezer uptime and temperature stability
The operational viability of a medical ULT freezer is measured by its ability to maintain uninterrupted cooling. Temperature fluctuations must typically be kept within a strict tolerance of ±1°C to ±2°C to prevent the degradation of sensitive biological samples. Wire tube condensers contribute to this stability by providing consistent heat dissipation without the rapid dust accumulation that plagues denser condenser geometries.
When a condenser clogs with ambient dust, the compressor must work harder to reject heat, leading to elevated discharge temperatures and increased wear on internal mechanical components. By maintaining a more open aerodynamic profile, wire tube condensers ensure that the refrigeration cycle operates within its designed pressure and temperature thresholds, thereby extending compressor lifespan and maximizing overall freezer uptime.
Why condenser design matters for vaccines and biobanks
The storage of high-value biologicals, such as mRNA vaccines stored at -70°C, demands absolute equipment reliability. A single mechanical failure can result in the loss of millions of dollars in biobank inventory or compromise critical immunization campaigns. Condenser design is a major factor in mitigating single points of failure.
Because wire tube condensers facilitate superior natural convection, they can often operate effectively with lower fan speeds or, in some smaller medical units, rely entirely on passive cooling. This reduces the dependency on high-RPM fan motors, which are common failure points in continuous-use environments. Furthermore, adherence to strict international quality management standards, such as those outlined by the ISO, ensures that these condensers meet the rigorous durability requirements demanded by modern biobanking facilities.

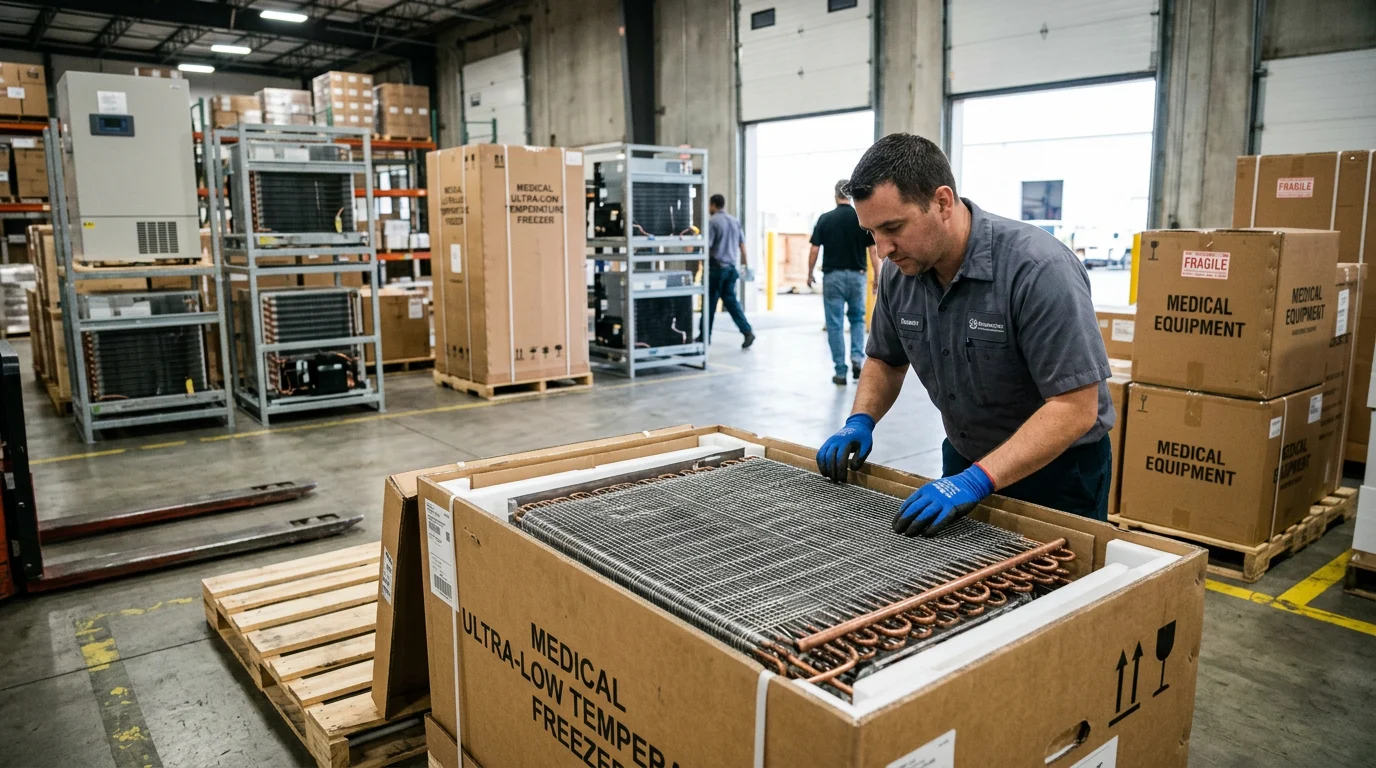

What Defines Wire Tube Condensers for Medical Ultra-Low Temperature Free
The effectiveness of a wire tube condenser in a medical ULT freezer is dictated by its precise engineering specifications. These components are not off-the-shelf commodities; they are tailored to handle the high pressures and specific thermodynamic properties of advanced cryogenic refrigeration cycles.
Key design features, materials, and specifications
A standard wire tube condenser consists of a continuous serpentine steel tube, typically ranging from 4.76mm to 8.0mm in outer diameter, bonded to a series of parallel steel wires with diameters between 1.2mm and 2.0mm. The pitch, or spacing, between these wires is carefully calculated to optimize the surface area for heat transfer while preventing airflow restriction.
To combat corrosion in potentially humid laboratory environments (which can reach up to 85% relative humidity), these condensers undergo a cathodic electrophoretic coating (e-coating) process. This applies a uniform protective layer, typically 15 to 20 micrometers thick, ensuring long-term structural integrity against moisture and chemical exposure.
| Specification | Typical Medical Freezer Range | Impact on Performance |
|---|---|---|
| Tube Outer Diameter | 4.76mm - 8.0mm | Dictates refrigerant volume and flow resistance |
| Wire Diameter | 1.2mm - 2.0mm | Balances structural rigidity with heat dissipation |
| Wire Pitch | 4.0mm - 6.0mm | Optimizes airflow and reduces dust trapping |
| E-Coating Thickness | 15μm - 20μm | Prevents rust and extends component lifespan |
Heat rejection, airflow, and refrigerant considerations
Heat rejection in a cascade ULT system requires the condenser to handle high thermal loads, particularly from the high-stage cooling loop. Operating pressures in these stages can reach up to 300 PSI. The steel construction of wire tube condensers provides the necessary burst strength to safely contain these pressures.
Modern medical freezers are increasingly transitioning to natural refrigerants, such as R290 (propane) and R170 (ethane), due to environmental regulations. Wire tube condensers are highly compatible with these low-global-warming-potential (GWP) gases, offering the internal volume and flow characteristics needed to maximize phase-change efficiency under forced convection from auxiliary fans.
Failure modes and maintenance demands
The most common failure mode for heat exchangers in medical refrigeration is thermal bottlenecking due to external fouling. Fin-and-tube condensers often require physical cleaning every 3 to 6 months in dusty environments. In contrast, the wire tube design extends this maintenance interval to 12 months or more, significantly reducing the labor burden on facility management.
When failures do occur in wire tube condensers, they are typically traced to micro-leaks at the weld joints or corrosion due to compromised e-coating. However, advanced automated welding techniques have drastically reduced these occurrences, making catastrophic pressure loss a rare event in modern medical units.
How Wire Tube Condensers Compare with Other Condenser Types
When engineering a medical ULT freezer, manufacturers must select between wire tube, fin-and-tube, and microchannel aluminum condensers. Each architecture presents a distinct set of operational and financial trade-offs that influence the final product's market positioning.
Performance, cost, noise, footprint, and serviceability
Fin-and-tube condensers offer the highest heat transfer coefficient per square inch of surface area, allowing for a highly compact footprint. However, their dense fin spacing (often 10 to 14 fins per inch) acts as a filter, trapping airborne particulates. Microchannel condensers are exceptionally lightweight and efficient but are highly susceptible to galvanic corrosion and internal fouling if refrigerant purity is not perfectly maintained.
Wire tube condensers strike a practical balance. They typically cost 15% to 20% less to manufacture than complex microchannel alternatives. Furthermore, their aerodynamic profile reduces air turbulence, which can lower the overall acoustic output of the freezer by 3 to 5 decibels (dB)—a crucial advantage in clinical settings and quiet laboratories where continuous compressor and fan noise causes operator fatigue.
Comparison criteria for evaluating options
Evaluating these options requires procurement and engineering teams to look beyond basic thermodynamic output and consider total lifecycle performance.
| Comparison Criteria | Wire Tube | Fin-and-Tube | Microchannel |
|---|---|---|---|
| Cost per Watt Rejection | Low | Medium | High |
| Dust Tolerance | Excellent | Poor | Fair |
| Acoustic Profile (Noise) | Low (Quiet) | Medium | Medium |
| Physical Footprint | Large | Compact | Very Compact |
| Maintenance Frequency | Low | High | Medium |
For medical ULT freezers, where reliability and low maintenance supersede the need for extreme miniaturization, the wire tube condenser consistently emerges as the most pragmatic choice, provided the freezer chassis can accommodate its slightly larger physical footprint.
What Procurement, Compliance, and Manufacturing Factors Matter
Sourcing wire tube condensers for critical medical devices involves navigating a complex matrix of quality assurance, regulatory compliance, and global logistics. Original Equipment Manufacturers (OEMs) cannot afford supply chain vulnerabilities when building life-saving cold chain infrastructure.
Supplier quality and OEM evaluation
Evaluating a supplier requires strict auditing of their quality control methodologies. For medical applications, the acceptable defect rate is extraordinarily low; top-tier manufacturers aim for less than 50 Parts Per Million (PPM).
A critical evaluation metric is the supplier's leak detection protocol. High-quality wire tube condensers must undergo helium mass spectrometry testing at pressures ranging from 2.0 MPa to 3.0 MPa. This ensures that even microscopic fissures in the welded joints are identified and eliminated before the component is integrated into a cascade refrigeration system.
Regulatory, safety, and environmental requirements
Compliance with international environmental and safety standards is non-negotiable. The coatings applied to the steel must adhere to RoHS (Restriction of Hazardous Substances) and REACH directives, ensuring no toxic heavy metals are utilized in the manufacturing process.
Furthermore, global healthcare infrastructure initiatives, often supported by organizations like the World Bank, heavily favor medical equipment that demonstrates energy efficiency and utilizes low-GWP refrigerants. Wire tube condensers support these regulatory shifts by providing reliable performance with eco-friendly hydrocarbon refrigerants, aiding OEMs in meeting stringent international energy certifications.
Sourcing, lead times, packaging, and logistics
Logistical planning is a major factor in procurement. Standard lead times for custom-tooled wire tube condensers typically range from 30 to 45 days, depending on the supplier's capacity and raw steel availability. Minimum Order Quantities (MOQs) usually sit between 500 and 1,000 units for custom geometries.
Packaging is equally critical. To prevent oxidation during transoceanic shipping, condensers must be sealed in Volatile Corrosion Inhibitor (VCI) bags. Additionally, because the wire structures can be bent under heavy compression, shipments require reinforced wooden crates with internal compartmentalization, ensuring the dimensional tolerances remain exact upon arrival at the OEM assembly plant.
How Buyers Should Choose the Right Wire Tube Condenser
Selecting the appropriate wire tube condenser requires buyers to synthesize technical specifications with commercial realities. The goal is to align the component's capabilities with the specific operational environment of the medical freezer, balancing upfront procurement costs against the total cost of ownership (TCO).
Practical selection steps
The first practical step is to request and review standardized testing certificates from potential suppliers. Buyers should demand salt spray test reports conforming to ASTM B117 standards, looking for a minimum endurance of 500 hours without red rust formation. This validates the durability of the e-coating.
Next, procurement teams should analyze global export flows to identify competitive manufacturing hubs that balance cost and quality. Utilizing trade databases like TradeMap can help buyers pinpoint regions with mature refrigeration supply chains, ensuring a stable flow of components even during macroeconomic disruptions.
Decision criteria and trade-offs
Ultimately, the decision centers on a fundamental trade-off: spatial efficiency versus maintenance reduction. Wire tube condensers require a roughly 20% larger physical footprint to achieve the same heat rejection capacity as a densely packed fin-and-tube design.
However, this spatial compromise yields substantial operational dividends. By virtually eliminating the need for quarterly condenser cleanings, facilities can realize up to a 60% reduction in lifetime maintenance labor hours for the cooling system. For hospitals, biobanks, and pharmaceutical distributors, minimizing human intervention while maximizing the thermal stability of -86°C storage environments makes the wire tube condenser a highly strategic investment.
Key Takeaways
- The most important conclusions and rationale for Wire Tube Condensers
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
Why are wire tube condensers preferred in medical ultra-low temperature freezers?
They provide stable heat rejection, resist dust buildup better than denser designs, and help keep ULT freezers within tight temperature tolerances for samples and vaccines.
How do wire tube condensers improve freezer uptime?
Their open wire layout supports steady airflow, reducing compressor strain and discharge temperature. This lowers wear and helps maintain reliable continuous operation.
What specifications matter most for a medical wire tube condenser?
Key factors include tube OD 4.76–8.0 mm, wire diameter 1.2–2.0 mm, wire pitch 4.0–6.0 mm, and e-coating thickness 15–20 μm for corrosion protection.
Are wire tube condensers suitable for humid laboratory environments?
Yes. With cathodic e-coating, they resist corrosion in lab conditions up to about 85% relative humidity, helping extend service life.
Can Senjun Cooler provide wire tube condensers for medical ULT freezer applications?
Yes. Based on the site context, Senjun Cooler focuses on wire tube condenser solutions that can be tailored for medical freezer heat rejection, durability, and airflow needs.
