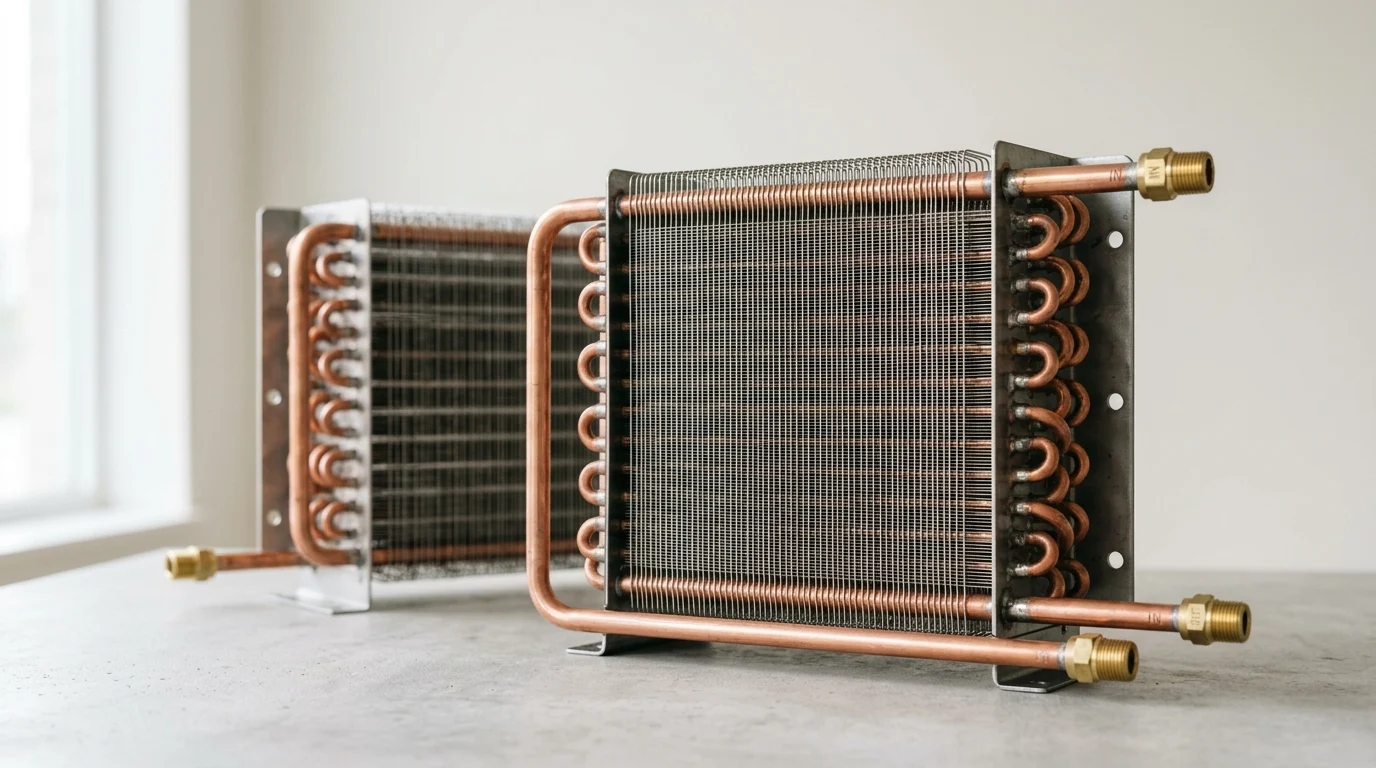

The Role of Wire Tube Condensers in Medical Ultra-Low Temperature Freezers

In medical cold storage, a small loss of heat-rejection efficiency can become a high-value risk. Ultra-low temperature freezers running continuously at -80°C to -86°C must protect vaccines, biologics, tissue samples, and genomic materials while resisting dust, airflow restriction, and compressor overload. This is whereWire Tube Condensers play a decisive engineering role. Their open structure, typically built with wider wire spacing, helps maintain airflow and stable condensing performance over long service cycles. For OEMs and refrigeration buyers, the condenser choice affects uptime, energy use, maintenance demand, and the life of the cascade system. This article explains why wire tube designs are widely used in medical ULT freezers and what to consider when specifying them.

Strategic Importance of Wire Tube Condensers

Ultra-low temperature (ULT) medical freezers are highly specialized thermal management systems engineered to maintain internal environments between -80°C and -86°C. At these extreme temperature bands, the thermodynamic demands placed on the refrigeration circuit are immense, requiring highly efficient and rigorously reliable heat rejection mechanisms. The condenser serves as the primary boundary where extracted thermal energy is expelled into the ambient environment, making its design a critical determinant of overall system efficacy.

Among the various heat exchanger topologies available to original equipment manufacturers (OEMs), the wire tube condenser has emerged as the preferred standard for medical ULT applications. Unlike conventional residential or light-commercial refrigeration units, medical freezers operate under continuous, heavy-duty thermodynamic loads. The strategic selection of a wire tube condenser directly influences the fundamental operational parameters of the freezer, dictating everything from baseline energy consumption to the longevity of the cascade compressor system.

Impact on freezer uptime

The most immediate operational advantage of a wire tube condenser in a medical setting is its direct contribution to sustained freezer uptime. In clinical laboratories and biorepositories, freezers operate 24 hours a day, 365 days a year. Continuous fan-forced airflow over a condenser inevitably draws in ambient particulate matter, dust, and lint. Traditional finned condensers act much like electrostatic filters, rapidly accumulating debris between tightly spaced fins, which severely restricts airflow and drastically reduces the heat transfer coefficient.

Wire tube condensers bypass this failure mode through their inherent geometric design. Featuring a much wider pitch—typically utilizing a 4mm to 6mm wire spacing—these condensers are virtually immune to catastrophic dust clogging. This self-cleaning or low-fouling characteristic ensures that the condensing temperature remains stable over years of operation. Engineering field data indicates that replacing a tightly spaced finned condenser with a properly sized wire tube variant can reduce compressor thermal overload events by up to 30%, virtually eliminating downtime caused by high-pressure cutouts in neglected maintenance environments.

Role in laboratory reliability

In the medical and pharmaceutical sectors, the value of the inventory stored within a single ULT freezer—such as irreplaceable tissue samples, advanced biologics, mRNA vaccines, and genomic libraries—can easily exceed millions of dollars. Consequently, laboratory reliability is not merely a metric of convenience; it is a strict regulatory and financial imperative. The condenser must perform flawlessly to prevent temperature excursions that could compromise sample viability.

By maintaining consistent heat rejection capabilities without relying on end-user maintenance protocols, wire tube condensers significantly elevate the Mean Time Between Failures (MTBF) of the entire refrigeration circuit. Systems utilizing optimized wire tube condensers routinely demonstrate MTBF ratings exceeding 50,000 hours for the high-stage compressor circuit. This passive reliability ensures that laboratories can meet stringent internal quality control standards and regulatory compliance mandates without dedicating excessive man-hours to equipment maintenance.

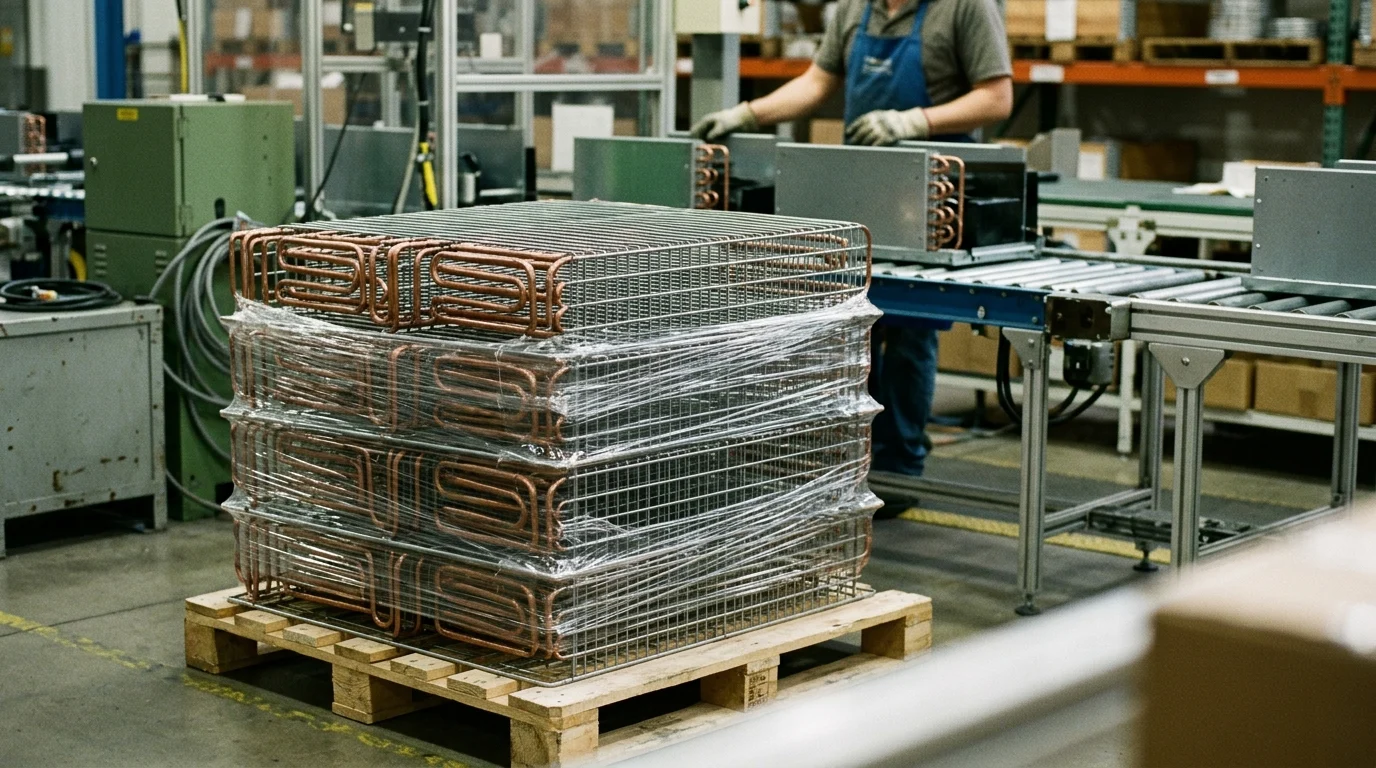

How Wire Tube Condensers Work

To appreciate the utility of wire tube condensers in medical ULT freezers, one must examine the specific thermodynamic mechanics of the design. A wire tube condenser is constructed by continuously welding thin steel wires to both sides of a serpentine steel tube (often referred to as a Bundy tube). The tube carries the high-pressure, high-temperature superheated refrigerant vapor discharged by the compressor, while the welded wires act as extended secondary surface areas to conduct heat away from the tube and dissipate it into the ambient air via natural or forced convection.

Heat rejection in ultra-low temperature freezers

Medical ULT freezers almost universally rely on cascade refrigeration systems, which utilize two distinct cooling circuits (a high stage and a low stage) operating in tandem. The low-stage circuit absorbs heat from the internal freezer cabinet at -86°C and rejects it into an intermediate heat exchanger. The high-stage circuit then absorbs this heat, along with the heat of compression from the low-stage compressor, and must reject the entirety of this combined thermal load into the ambient room.

The wire tube condenser is deployed in this high-stage circuit. It must be capable of handling substantial heat rejection loads, frequently ranging from 1.5 kW to 3.0 kW depending on the volumetric capacity of the freezer cabinet. The design must ensure that the high-stage refrigerant condenses efficiently, dropping the pressure and temperature sufficiently before the refrigerant enters the expansion device, thereby maintaining the delicate thermodynamic balance required to keep the intermediate heat exchanger cold enough for the low stage to function.

Key construction variables

The thermal performance and physical footprint of a wire tube condenser are dictated by several tightly controlled construction variables. Modifying any of these parameters alters the heat transfer coefficient, the internal pressure drop, and the physical durability of the unit. Medical OEMs must carefully balance these variables to match the specific volumetric flow rates of their chosen compressors.

The integration of cathodic electrophoretic coating (e-coating) is particularly vital. Unlike standard spray paints, e-coating provides a uniform, highly bonded layer that covers every micro-crevice of the wire-to-tube weld points. A standard medical-grade specification requires a coating thickness of 15 to 20 microns, which provides exceptional corrosion resistance without acting as a thermal insulator that might impede heat dissipation.

Interaction with compressors and refrigerant circuits

The internal geometry of the wire tube condenser has a profound interaction with the high-stage compressor and the selected refrigerant. Modern medical freezers increasingly utilize environmentally friendly hydrocarbon refrigerants, such as R290 (propane) in the high stage, to comply with global Global Warming Potential (GWP) regulations. Because R290 is highly flammable, safety standards strictly limit the maximum allowable charge to 150 grams per circuit.

This stringent charge limit requires the condenser's internal volume to be minimized without creating excessive pressure drops that would force the compressor to work harder. The 4.76mm outer diameter tube is frequently selected precisely for this reason; it offers a low internal volume that accommodates the 150g R290 limit while maintaining high refrigerant velocity to ensure proper oil return to the compressor. By keeping the condensing temperature within 10°C to 15°C of the ambient room temperature, the wire tube design optimizes the volumetric efficiency of the compressor and extends its operational lifespan.

Comparison with Alternative Condenser Designs

While wire tube condensers dominate the medical ULT sector, OEMs frequently evaluate alternative heat exchanger designs—most notably finned-tube (aluminum fin and copper tube) and aluminum microchannel condensers. Understanding the comparative advantages and limitations of these alternatives is crucial for validating the continued reliance on wire tube architectures in mission-critical biomedical applications.

Wire tube vs finned-tube condensers

Finned-tube condensers are the standard in residential air conditioning and commercial refrigeration due to their exceptionally high ratio of surface area to physical volume. They utilize tightly packed aluminum fins mechanically bonded to copper tubes, typically featuring a fin spacing of 1.5mm to 2.0mm. In a pristine, dust-free environment, a finned-tube condenser will yield a higher total heat rejection capacity per cubic inch than a wire tube condenser.

However, the operational reality of a hospital or research laboratory drastically alters this dynamic. The 1.5mm fin spacing acts as a highly efficient trap for airborne particulates. As the leading edge of the fins clogs, airflow is choked, and the high surface area becomes a thermal liability rather than an asset. Conversely, the wire tube condenser, with its 5.0mm wire spacing, offers less theoretical surface area but maintains a near-constant effective heat transfer rate over years of continuous operation, rendering the theoretical superiority of the finned-tube design moot in real-world medical applications.

Core performance metrics

When comparing these heat exchanger topologies, engineering teams evaluate several core performance metrics beyond simple heat rejection. These include air-side pressure drop, internal internal refrigerant pressure drop, and the fouling factor over time.

The air-side pressure drop is a critical metric because it dictates the size, power consumption, and noise level of the condenser fan. The low air-side pressure drop of a wire tube condenser allows OEMs to utilize lower-RPM, high-efficiency axial fans. This not only reduces the overall energy consumption of the freezer but also significantly lowers the acoustic output of the unit—a major ergonomic consideration for laboratory personnel working in close proximity to banks of ULT freezers.

Trade-offs in high ambient conditions

The true test of a condenser's viability in a medical freezer occurs during high ambient temperature conditions. While laboratories are typically climate-controlled, HVAC failures or placement in unconditioned storage facilities can expose freezers to ambient temperatures reaching 35°C to 40°C. Under these conditions, the margin for error in the high-stage refrigeration circuit shrinks dramatically.

In a 35°C ambient environment, a moderately fouled finned-tube condenser can suffer a heat rejection capacity loss of up to 40%, leading to a rapid spike in high-stage discharge pressures and an inevitable compressor thermal trip. In stark contrast, a wire tube condenser under identical ambient conditions and operational duration typically exhibits a capacity degradation of merely 5% to 10%. This robust high-ambient performance ensures that the ULT freezer can maintain its -86°C setpoint during facility HVAC outages, safeguarding invaluable medical samples when they are most vulnerable.

Specifications and Quality Control

Because ULT freezers are classified as medical devices or critical laboratory equipment, their components must be manufactured under stringent Quality Management Systems (QMS), typically governed by ISO 13485 standards. The wire tube condenser cannot simply be an off-the-shelf commodity; it must be a highly specified, rigorously validated component that meets exact tolerances for internal cleanliness, structural integrity, and leak prevention.

Engineering specifications for medical freezers

Engineering specifications for medical-grade wire tube condensers begin with internal surface chemistry and pressure tolerances. Modern cascade systems utilize synthetic Polyolester (POE) oils to lubricate the compressors. POE oils are highly hygroscopic, meaning they readily absorb moisture, which can react to form harmful acids that degrade compressor motor windings. Therefore, the internal moisture content of the condenser must be strictly limited, typically specified at less than 5 mg/m².

Furthermore, internal solid impurities—such as drawing lubricants, welding slag, or metallic dust—must be restricted to less than 15 mg/m² to prevent capillary tube blockages. Structurally, the condenser must be capable of withstanding extreme operational pressures. Medical specifications generally require the condenser to pass a destructive burst pressure test exceeding 3.0 MPa (approximately 435 PSI), ensuring a massive safety factor over the typical operational high-side pressures of R290 or traditional HFC refrigerants.

Manufacturing and validation checks

To guarantee that every shipped unit meets these engineering specifications, top-tier manufacturers employ a battery of automated validation checks during the production process. The most critical of these is the leak detection protocol. Because ULT freezers utilize highly volatile and sometimes flammable refrigerants in small charges, even microscopic leaks can lead to system failure over a five-year lifecycle.

Condensers undergo automated helium mass spectrometry leak testing in a vacuum chamber. The acceptable leak rate for a medical-grade wire tube condenser is exceptionally stringent, generally mandated to be less than 2.0 x 10^-6 Pa·m³/s. Additionally, batches are routinely subjected to accelerated environmental testing, including salt spray tests exceeding 500 hours, to validate the integrity of the cathodic e-coating and ensure the component will not rust in high-humidity coastal laboratory environments.

Compliance and documentation requirements

Beyond physical testing, the procurement of wire tube condensers for medical freezers requires exhaustive documentation to satisfy global regulatory bodies. Components must comply with the Restriction of Hazardous Substances (RoHS) directive and the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) framework, ensuring no lead, cadmium, or hexavalent chromium is utilized in the welding or coating processes.

For OEMs marketing products in the United States, supplier traceability must align with FDA 21 CFR Part 820 requirements. This means the condenser manufacturer must provide detailed lot traceability, material test reports (MTRs) for the steel tubing and wire, and certification of the e-coating process. This documentation ensures that in the event of a field failure, the root cause can be rapidly traced back to a specific production shift or raw material batch, minimizing the scope of potential product recalls.

Selection Criteria for Manufacturers and Buyers

For engineering and procurement teams at medical equipment manufacturers, selecting the optimal wire tube condenser involves balancing thermodynamic requirements with supply chain realities. The decision-matrix must account for technical sizing, supplier reliability, tooling investments, and the Total Cost of Ownership (TCO) over the projected lifespan of the freezer.

Matching condenser capacity to system needs

The selection process begins with the precise matching of condenser capacity to the thermodynamic needs of the high-stage compressor. A standard engineering rule of thumb in ULT cascade design is to size the condenser with a heat rejection capacity multiplier of 1.2 to 1.5 times the compressor's maximum shaft power, plus the low-stage thermal load. This generous safety margin accounts for high ambient conditions and minor airflow restrictions.

Buyers must work closely with condenser manufacturers to customize the physical dimensions (height, width, and number of tube rows) to fit the specific mechanical bay of the freezer. A multi-row folded condenser design (e.g., a "W" or "U" shape) is frequently utilized to maximize wire surface area within a constrained footprint, ensuring the 1.5x capacity multiplier is achieved without requiring a larger external cabinet.

Cost, logistics, and supplier factors

Once the technical specifications are locked, procurement teams must navigate the logistical and financial aspects of the supply chain. Wire tube condensers are heavily dependent on global steel prices, making cost stability a vital consideration. While unit costs are relatively low—typically ranging from $30 to $60 per unit depending on size and complexity—the customized nature of the dimensions means that OEMs must generally absorb initial tooling and jig costs.

Supplier selection should prioritize manufacturers with agile production capabilities and reasonable Minimum Order Quantities (MOQs). For specialized medical freezers, an MOQ of 500 to 1,000 units is standard. Furthermore, buyers must account for lead times, which typically run 6 to 8 weeks for custom configurations. Establishing a robust supply agreement with a manufacturer capable of holding safety stock is critical to preventing assembly line halts during unexpected spikes in freezer demand.

Final performance and reliability checklist

Ultimately, the selection of a wire tube condenser must be viewed through the lens of Total Cost of Ownership and brand reputation. While purchasing teams might be tempted to shave a few dollars off the unit cost by accepting thinner e-coating or looser leak testing standards, the downstream financial risks are asymmetrical.

A catastrophic failure of a condenser in the field—leading to a burned-out high-stage compressor—can easily cost the OEM over $2,000 in emergency warranty service, labor, and replacement parts, to say nothing of the potential liability if valuable medical samples are lost. By utilizing a comprehensive performance and reliability checklist that mandates rigorous internal cleanliness, 500-hour salt spray endurance, and helium leak rates below 2.0 x 10^-6 Pa·m³/s, manufacturers ensure that the $50 condenser serves as a steadfast foundation for a $15,000 piece of life-saving medical infrastructure.

Key Takeaways

• Specify wire tube condensers for ULT freezers operating at -80°C to -86°C because consistent heat rejection directly supports temperature stability and compressor life.
• Use wider 4mm to 6mm wire spacing to reduce dust clogging risk compared with tightly spaced finned condensers in 24/7 laboratory operation.
• A properly sized wire tube condenser can reduce compressor thermal overload events by up to 30%, improving uptime in maintenance-sensitive environments.
• Select condenser designs that support MTBF targets above 50,000 hours for the high-stage compressor circuit in critical medical and pharmaceutical storage.
• Evaluate condenser suppliers on R&D capability, quality management, cost control, and responsive project support when sourcing for medical ULT freezer production.

Frequently Asked Questions

Why are wire tube condensers used in medical ULT freezers?

They provide reliable heat rejection under continuous -80°C to -86°C operating conditions, helping stabilize condensing temperature and reduce compressor stress in demanding laboratory environments.

How does wire spacing affect condenser reliability?

A wider 4mm to 6mm wire spacing helps prevent dust and lint from blocking airflow, making wire tube condensers less prone to clogging than tightly spaced finned designs.

Can a wire tube condenser reduce freezer downtime?

Yes. A properly sized wire tube condenser can reduce compressor thermal overload events by up to 30%, lowering the risk of high-pressure cutouts and unplanned downtime.

Why is condenser performance critical for medical sample storage?

ULT freezers may protect vaccines, biologics, tissue samples, and genomic materials worth millions of dollars, so stable heat rejection is essential to avoid temperature excursions.

What maintenance advantage do wire tube condensers offer?

Their open geometry is less vulnerable to dust buildup, reducing dependence on frequent cleaning and helping laboratories maintain performance even in busy or neglected maintenance settings.
