The Future of Cooling: Innovations in Copper Fin Heat Exchanger Technology

I find copper fin Heat Exchangers are fundamentally transforming modern cooling systems. The global fin and tube heat exchanger market, which includes this technology, reachedUSD 7.9 billion in 2024, demonstrating its significant impact. Innovations in design and materials are enhancing cooling efficiency and sustainability across various industries. This advanced Copper Fin Heat Exchanger technology holds immense potential for more energy-efficient and environmentally friendly thermal management solutions.

Key Takeaways

• New designs like micro-fins and corrugated structures make copper fin heat exchangersmuch better at cooling. These designs increase the surface area for Heat Transfer.
• Advanced materials and manufacturing methods, such as 3D printing, help create stronger and more complex copper fins. This makes them last longer and work better.
• Copper fin heat exchangers save energy and reduce pollution. They are used in homes, data centers, electric cars, and factories to cool things efficiently.

Advancements in Copper Fin Heat Exchanger Design

Micro-Fin and Nano-Fin Geometries in Copper Fin Heat Exchangers

I find micro-fin and nano-fin geometries represent a significant leap in heat exchanger design. These tiny structures dramatically increase the surface area available for heat transfer within a compact space. Researchers have explored various shapes to optimize performance. For instance, studies show:

• Parabolic copper micro-fins achieve impressive fin efficiency, reaching 99.02% and an effectiveness of 2.60 after one hour of heating.
• Rectangular copper-coated micro-fins generally outperform triangular micro-fins in terms of heat transfer.
• Triangular copper-coated micro-fins are also studied, but they show less effectiveness than rectangular and parabolic designs.

Beyond these, I see investigations into microchannel heat sinks (MCHS) using different fin shapes to enhance heat transfer:

• Circular, square, and rectangular fins are common geometries.
• Solid, half-drilled (HD), and full-drilled (FD) variants of these fins further improve convective heat transfer.
• Hollow fins, both half-hollow and fully hollow, minimize thermal resistance, with half-hollow fins often showing superior thermal conductance.
• Perforated fins, with square, circular, and rectangular patterns, reduce resistance in hybrid microchannels.

These intricate designs allow us to push the boundaries of cooling efficiency.

Corrugated and Louvered Copper Fin Structures

Corrugated and louvered fin structures also play a crucial role in enhancing heat transfer. I have observed that corrugations and grooves in tube walls effectively promote turbulence in heat flow. This turbulence is highly beneficial for heat transfer enhancement. For example:

• Spirally corrugated tubes generate vortices due to fluid mixing, which leads to enhanced heat transfer.
• Specific structural parameters, such as ripple depth and pitch ratio, significantly influence flow and heat transfer in these tubes.
• Numerical simulations indicate that the heat transfer coefficient can be highest at a specific pitch ratio (e.g., 3.75), and comprehensive heat transfer performance can be optimal at another (e.g., 4.5).
• Spirally corrugated tubes demonstrate better heat transfer performance compared to smooth tubes, even though they also exhibit increased friction coefficients.
• The heat transfer efficiency of spirally corrugated tubes can increase by 2.4 to 3.7 times compared to straight tubes.
• Sinusoidal and spiral grooved tubes generally show better heat transfer performance.
• Corrugated tubes can increase the heat transfer coefficient by 50–80% compared to smooth spiral tubes, primarily due to additional rotational motion.

I also find that copper-coated gasket plate heat exchangers show remarkable improvements:

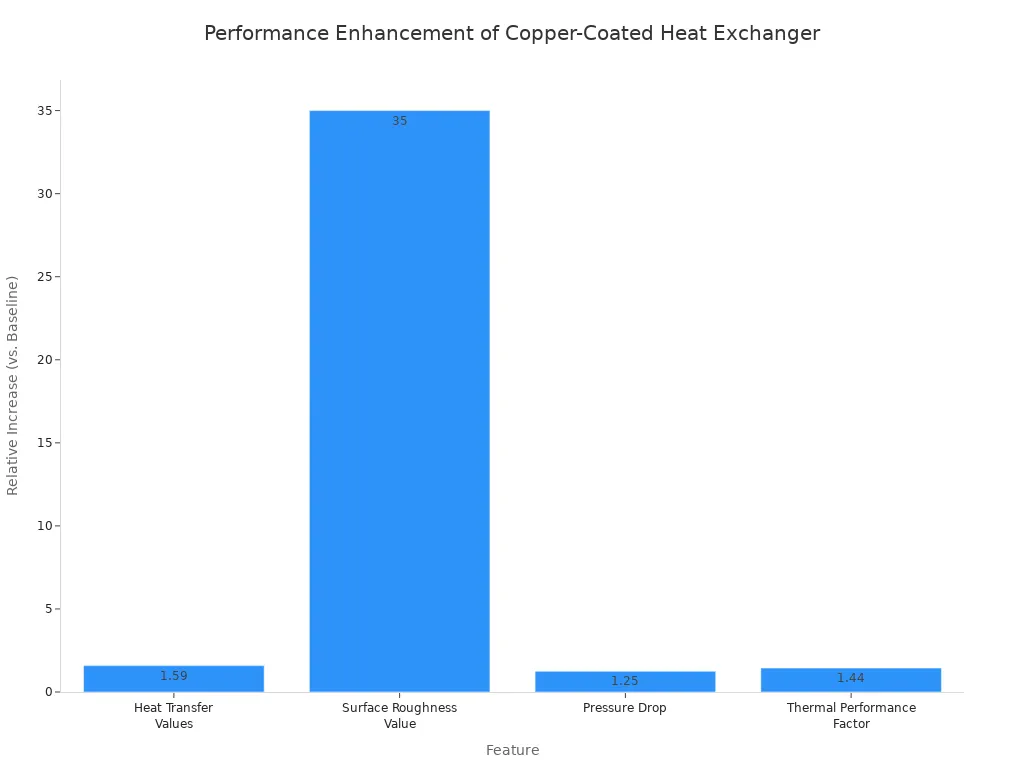

Feature	Plain Gasket Plate Heat Exchanger	Copper-Coated Gasket Plate Heat Exchanger
Heat Transfer Values	Baseline	1.59 times higher
Surface Roughness Value	Baseline	35 times higher
Pressure Drop	Baseline	1.25 times higher
Thermal Performance Factor	Baseline	1.44 times higher (Reynolds 300-1500)

Louvered fins, on the other hand, redirect airflow, which breaks up the boundary layer and enhances mixing. This design strategy is particularly effective. My research shows optimal louver angles for maximizing heat exchange:

• The optimal variable louver angle (Δθ) typically ranges from +0° to +4°.
• The optimal initial louver angle (θi) often falls between 18° and 30°.
• Another study found optimal louver angles (θ) between 15° and 40° for specific louver pitches and fluid input velocities.

Optimized Surface Area for Copper Fin Heat Exchangers

Ultimately, all these design innovations aim to optimize the surface area for heat exchange. I understand that a larger effective surface area allows for more contact between the heat transfer fluid and the fin material, which facilitates faster and more efficient heat dissipation. Micro-fins, nano-fins, corrugated structures, and louvered designs all contribute to this goal by creating intricate pathways and extended surfaces within a compact volume. My focus is always on maximizing this surface area without significantly increasing pressure drop, which would consume more energy. This balance is critical for achieving high performance in any Copper Fin Heat Exchanger.

Material Science and Manufacturing for Copper Fin Heat Exchangers

Advanced Copper Alloys for Enhanced Conductivity

I find material science plays a critical role in advancing cooling technology. We constantly seek new copper alloys. These alloys offer enhanced thermal conductivity. They also provide improved mechanical strength or corrosion resistance. Pure copper has excellent conductivity. However, alloying it with small amounts of other elements can create materials with superior overall performance. This allows us to design more robust and efficient heat exchangers.

Novel Coating Technologies for Copper Fin Heat Exchanger Durability

I also focus on novel coating technologies. These coatings significantly enhance the durability of copper fins. They protect against corrosion, fouling, and wear. This extends the lifespan of the heat exchangers. It also maintains their high performance over time. For example, specialized anti-corrosion coatings prevent degradation in harsh environments. Anti-fouling coatings keep surfaces clean. This ensures optimal heat transfer efficiency.

Additive Manufacturing for Complex Copper Fin Geometries

I believe additive manufacturing is revolutionizing how we create complex copper fin geometries. Traditional manufacturing methods often limit design possibilities. Additive manufacturing, however, allows for intricate internal structures. This was previously impossible.

• Material Extrusion (MEX) is a technique I use. It prints small copper components. These include fine-fin heat exchangers with complex geometries. It also creates internal structures. MEX is also useful for lightweight lattice structures in copper heat exchangers. We use it for high-performance electrical contacts and cooling devices for electronic components.

The Printing-Debinding-Solar Sintering (PDSS) technique is another method I employ. It successfully creates complex geometry copper parts. This includes heat sinks. This method offers significant advantages. It has shorter processing times, often just one hour. It also uses lower sintering temperatures, around 950 °C. This enhances sustainability and expands technical applications for the Copper Fin Heat Exchanger.

Enhanced Efficiency and Performance of Copper Fin Heat Exchangers

Energy Consumption Reduction with Copper Fin Heat Exchangers

I find advanced copper fin heat exchangers significantly reduce energy consumption, especially in HVAC systems. Small-diameter copper tubes are a key innovation. They enhance heat exchanger performance during defrost cycles. This facilitates rapid and efficient heat transfer. It also minimizes energy consumption and downtime. Using these smaller tubes allows for higher energy efficiency. It also reduces system costs. This is because it decreases the need for tube materials, fin materials, and refrigerants. This leads to a smaller overall system size. These tubes can also operate at higher pressures, further contributing to energy efficiency.

Heat pipe heat exchangers (HPHEs) also play a crucial role. I observe they reduce energy consumption by pre-cooling fresh air. They achieve a maximum temperature difference of 9.4 °C. The highest energy recovery reached 767 W at 0.080 m³/s air volume. This is capable of handling 46% of the total HVAC system load. It also improves combined efficiency. The coefficient of performance (COP) of the HVAC system increased from 3.0 to a range of 3.4–6.6 with HPHE integration. This depends on the number of rows and fresh air inlet temperature. HPHEs can handle up to 57% of the total HVAC system load under optimal conditions. They show a relative energy recovery (RER) of 79.4. Literature reviews indicate HPHEs, when used for energy recovery in HVAC systems, can achieve a thermal effectiveness of approximately 45–55%. These advancements make cooling systems much more sustainable.

Increased Heat Transfer Coefficients in Copper Fin Heat Exchangers

I focus on specific design features that contribute to increased heat transfer coefficients in modern copper fin heat exchangers. Copper's superior thermal conductivity, around 400 W/m·K, is a fundamental property. It maximizes heat transfer efficiency.

We utilize smaller diameter copper tubes. This significantly increases the local heat transfer coefficient between the refrigerant and the tube walls. Inner grooves, with various patterns within the tubes, further enhance this local heat transfer coefficient for refrigerant-to-tube wall heat transfer.

Optimized fin patterns are also crucial. I re-examine and optimize fin patterns like louver and slit fins. This is specifically for smaller diameter tubes. It maximizes heat transfer. This involves adjusting variables such as louver angle, louver number, and slit number. We also select and optimize the tube pitch ratio (transverse to longitudinal spacing) for smaller diameter tubes. We often use CFD calculations for this. This improves airflow around the tubes and the overall heat exchanger design.

I also incorporate internal turbulators made of copper strip into the tubes. This further boosts heat exchange efficiency. Internally threaded copper tubes complement fin arrangements to enhance heat transfer. Various fin configurations are employed to improve heat transfer.

• Corrugated fins feature a zigzag pattern. They offer moderate heat transfer.
• Sine wave fins use a wave-like surface. They enhance air turbulence, providing good heat transfer.
• Raised lance fins consist of short, cut, and raised fin strips. They significantly increase air turbulence, leading to excellent heat transfer.
• Louvered fins have notches. They unidirectionally increase air turbidity. This offers excellent heat transfer. Performance increases with louver angle up to a certain point.

Miniaturization and Weight Reduction in Copper Fin Heat Exchangers

These advancements in design and materials naturally lead to miniaturization and weight reduction. When we achieve higher heat transfer coefficients in smaller volumes, we can design more compact heat exchangers. The use of micro-fin and nano-fin geometries, combined with complex structures enabled by additive manufacturing, allows us to pack more heat exchange surface area into a smaller footprint. This means cooling systems become lighter and take up less space. This is particularly beneficial for applications where size and weight are critical, such as in electric vehicles or portable electronics. I see this trend continuing as we push the boundaries of thermal management.

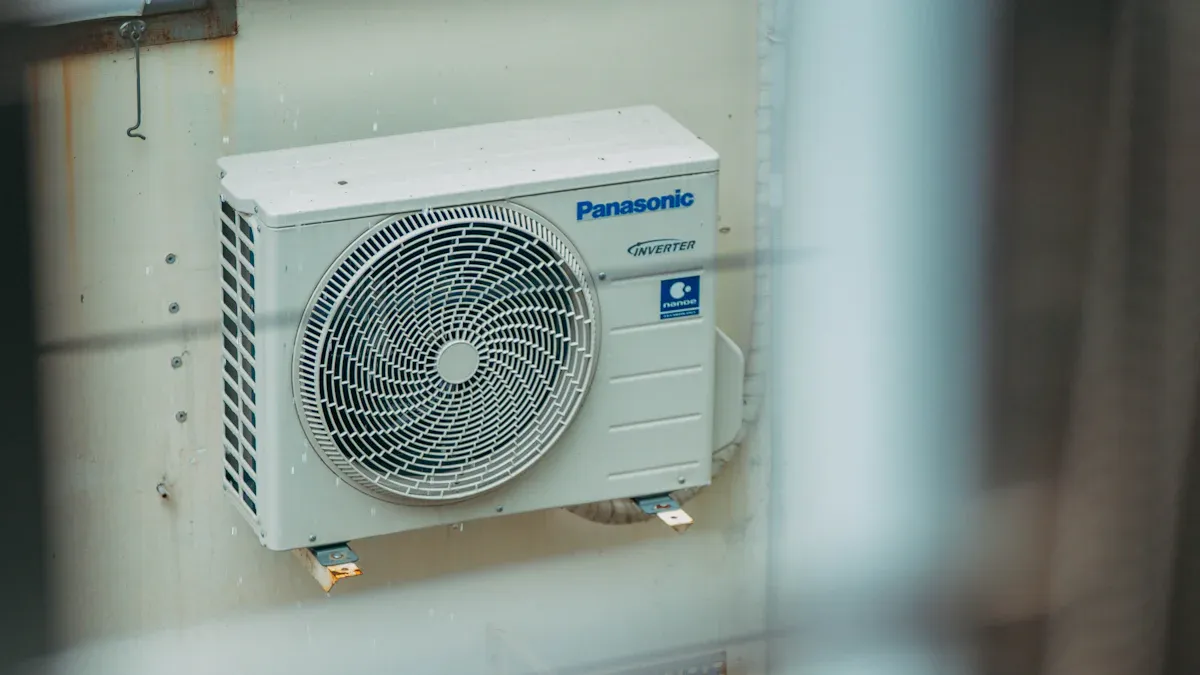

Diverse Applications of Copper Fin Heat Exchanger Technology

Copper Fin Heat Exchangers in HVAC and Refrigeration

I see Copper Fin Heat Exchangers playing a vital role in HVAC and refrigeration. They are essential for residential systems. I use them in forced air heating and cooling systems, including those with indoor and outdoor wood furnaces, boilers, and stoves. I also apply them in direct exchange geothermal heating/cooling systems, utilizing buried copper tubing for heat transfer. These exchangers help achieve consistent and precise temperature control. They improve energy efficiency through rapid heat exchange and uniform heat distribution. They also contribute to the longevity and durability of air conditioning units due to copper's corrosion resistance and antimicrobial properties.

Data Centers and Electronics Cooling with Copper Fin Heat Exchangers

I find copper fin heat exchangers crucial for data centers and electronics cooling. They offer efficient heat transfer performance. Copper tubes rapidly conduct heat from servers to aluminum fins. These fins then dissipate heat to the surroundings through their large surface area. This combination leverages copper's high thermal conductivity and aluminum's efficient heat dissipation. These heat exchangers also show excellent corrosion resistance. They withstand corrosive environments often found in data centers. Their compact structural design allows for efficient heat dissipation within limited space. This is crucial for accommodating numerous servers. I can customize them in terms of size, fin density, and arrangement. This matches specific server power densities and cooling needs.

Copper Fin Heat Exchangers in Electric Vehicles and Battery Thermal Management

I recognize the growing importance of copper fin heat exchangers in electric vehicles (EVs) and battery thermal management. EVs require precise temperature control for their battery packs and power electronics. Copper's high thermal conductivity makes it ideal for quickly dissipating heat generated during charging and discharging cycles. This ensures optimal battery performance and extends battery life. I design these compact and efficient units to fit within the limited space of an EV chassis. They manage thermal loads effectively.

Industrial Process Cooling with Copper Fin Heat Exchangers

I apply copper fin heat exchangers extensively in industrial process cooling. They are used in various cooling applications within industrial facilities. I see them in power plants, both fossil and nuclear, for steam generating electric power. They act as heat sinks and heat pipes for cooling semiconductor and optoelectronic devices. Geothermal systems rely on buried copper tubing for efficient heat exchange. I also use them extensively in heat exchanger tubing for chemical processing and marine services. In power generation facilities, these exchangers are integral to Combined Heat and Power (CHP) systems. They efficiently recover waste heat from exhaust gases. This waste heat can then be used for district heating or other industrial processes. This improves overall energy efficiency.

Market Drivers and Sustainability for Copper Fin Heat Exchangers

Global Energy Efficiency Regulations for Copper Fin Heat Exchangers

I observe that global energy efficiency regulations significantly shape the development of cooling technology. The Environmental Protection Agency (EPA) consistently sets new targets. This pushes industries to adopt alternative refrigerants, directly influencing my heat exchanger designs. I find small-diameter copper tubes are a leading choice for high-performance, regulation-compliant heat exchanger solutions. They demonstrate copper's adaptability to tightening regulatory demands. Governments worldwide are enacting policies to lower greenhouse gas emissions, directly impacting heat exchanger design and operation. Manufacturers must now develop systems meeting stringent energy efficiency standards. The increasing adoption of eco-friendly refrigerants also necessitates adaptations in my heat exchanger designs. Regulations push me to minimize the environmental impact of my products, driving demand for sustainable solutions.

Eco-Friendly Cooling Solutions with Copper Fin Heat Exchangers

I consider copper a premier material for eco-friendly cooling solutions. Its thermal conductivity is unmatched by common alternatives.

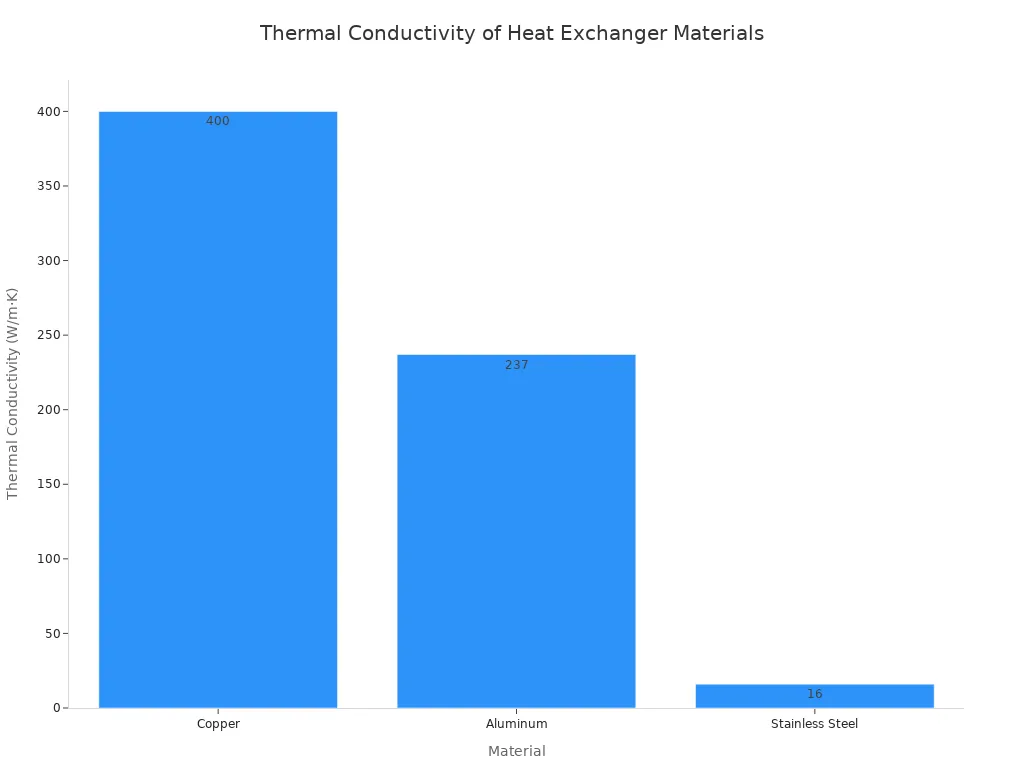

Material	Thermal Conductivity (W/m·K)
Copper	400
Aluminum	237
Stainless Steel	16

I see copper's thermal conductivity at 400 W/m·K. This significantly surpasses aluminum's 237 W/m·K and stainless steel's 16 W/m·K. This leads to 60% more efficient heat transfer than aluminum-based alternatives. It also provides 4%-12% better heat transfer in copper tube designs. This results in faster cooling and improved energy efficiency. Copper also offers natural resistance to corrosion. This ensures sustained performance and extends equipment lifespan. Its recyclability is a major environmental benefit. It reduces the need for new mining and lowers carbon emissions. Furthermore, copper's antimicrobial properties help maintain cleaner surfaces. This reduces the spread of harmful bacteria and viruses.

Reducing Carbon Footprint with Copper Fin Heat Exchanger Technology

I believe these inherent advantages of copper directly contribute to reducing our carbon footprint. By designing highly efficient heat exchangers, I help systems consume less energy. This lowers greenhouse gas emissions. The long lifespan of copper components also reduces waste. Its high recyclability minimizes the environmental impact of material production. This commitment to sustainable materials and efficient design aligns with global efforts to combat climate change.

Challenges and Future Outlook for Copper Fin Heat Exchangers

Cost-Effectiveness of Advanced Copper Fin Manufacturing

I recognize that the cost-effectiveness of advanced copper fin manufacturing presents a significant challenge. While innovations like additive manufacturing allow for complex geometries, the initial investment in specialized equipment and materials can be substantial. I constantly work to balance the superior performance of these advanced designs with the need for economically viable production methods. My goal is to make these cutting-edge technologies accessible for broader adoption, ensuring that the benefits of enhanced efficiency outweigh the manufacturing costs.

Integration of Copper Fin Heat Exchangers with Smart Cooling Systems

I see immense potential in integrating copper fin heat exchangers with smart cooling systems. This integration allows for unprecedented control and efficiency. For example, the SMART SYSTEM™ control in Copper-Fin II boilers includes a cascade sequencer. This sequencer modulates the lead boiler with demand and brings additional boilers online as needed. It also rotates the lead boiler role daily to equalize runtimes. Proportional firing allows the system to reduce the firing rate down to approximately 25% Btu/hr input. It achieves this by dividing a single manifold into up to four independent stages. This matches the boiler’s capacity to changing system demand more efficiently than full fire or on/off combustion systems. I find this level of precision crucial for optimizing energy use and system performance.

Long-Term Durability and Maintenance of Copper Fin Heat Exchangers

Ensuring the long-term durability and manageable maintenance of copper fin heat exchangers is paramount. I have observed that specific environmental conditions can pose challenges. For instance, pitting corrosion occurred in T2 copper tubes within a heat exchanger in an oilfield nitrogen production system. This corrosion happened in the dynamic waterline zone under dynamic conditions, with a pitting corrosion rate of up to 1.666 mm/year. Conversely, the immersion zone in the same system showed almost no pitting corrosion. This highlights the importance of understanding specific operating environments. To address this, I advocate for continuous monitoring using sensors to track performance and detect irregularities. I also implement routine inspections, including visual checks and non-destructive testing, to identify fouling, corrosion, or mechanical wear. Establishing a routine cleaning schedule for removing deposits and contaminants is also essential for maintaining optimal performance and extending the lifespan of these critical components.

---

I see advanced copper fin heat exchangers, driven by innovations like micro-fin geometries and additive manufacturing, are reshaping cooling. This technology, central to senjun's commitment to R&D and production, plays a pivotal role in achieving efficiency and sustainability goals. I believe its continued evolution will profoundly transform thermal management across diverse applications.

FAQ

❓ How do copper fin heat exchangers enhance cooling efficiency?

I find copper's superior thermal conductivity, approximately 400 W/m·K, significantly boosts efficiency. This property allows for rapid heat transfer, leading to faster cooling and improved energy savings in various systems.

💡 What role does additive manufacturing play in copper fin technology?

I use additive manufacturing to create complex copper fin geometries. This allows for intricate internal structures, previously impossible, which maximizes heat exchange surface area within a compact design.

♻️ Why are copper fin heat exchangers considered a sustainable cooling solution?

I believe their high efficiency reduces energy consumption and carbon emissions. Copper's durability extends product lifespan, and its excellent recyclability minimizes environmental impact, making it a truly sustainable choice.
