Optimizing Fin Density and Pitch: Key Design Parameters in Copper Fin Heat Exchanger Engineering

I find fin density and pitch directly influence Copper Fin Heat Exchanger thermal performance. These parameters significantly affect overall efficiency and energy consumption, with optimization greatly enhancing thermal characteristics.

This choice also impacts manufacturing costs, material usage, and manufacturability. Achieving the optimal balance is crucial for application-specific requirements.

Key Takeaways

• Fin density and fin pitch are important for heat exchanger performance. They affect how well heat moves and how easily air flows.
• Copper is a top choicefor Heat Exchangers. It moves heat very well, making the system work better.
• Designers must balance many factors. They consider Heat Transfer, air pressure, and cost to make the best heat exchanger for each use.

Understanding Fin Geometry in Copper Fin Heat Exchangers

When I design a Copper Fin Heat Exchanger, I always start by looking closely at its geometry. Fin geometry is fundamental to how effectively The Heat Exchanger performs. It dictates how much heat I can transfer and how easily air flows through the unit.

Defining Fin Density and Its Role

Fin density refers to the number of fins packed into a given length or area. I measure it in fins per inch (FPI) or fins per centimeter. A higher fin density means more surface area is available for heat exchange within the same volume. This sounds great for heat transfer, but I also know it can create challenges for airflow. My goal is to find the sweet spot where I maximize heat transfer without unduly restricting air movement.

Defining Fin Pitch and Its Relationship to Density

Fin pitch is the distance between the centers of two adjacent fins. It directly relates to fin density; a smaller fin pitch means a higher fin density. I have seen studies confirm that decreasing the fin pitch significantly increases the surface area available for heat transfer. For example, research shows that reducing fin pitch from 4.0 mm down to 1.0 mm leads to a noticeable drop in average surface temperature. This indicates better heat dissipation. I understand that a smaller fin pitch creates more sections within the heat exchanger, thus providing more surface area for the fluid to interact with the fins. This increased surface area is crucial for superior heat sink performance.

Fundamental Impact on Heat Transfer and Fluid Dynamics

The interplay between fin density and fin pitch fundamentally impacts both heat transfer and fluid dynamics. More fins mean more surface area, which generally improves heat transfer efficiency. However, a very high fin density also creates a more restrictive path for the fluid, like air, to flow through. This restriction increases pressure drop, requiring more fan power to maintain adequate airflow. I must balance these competing factors. My design choices here directly influence how much heat moves from one medium to another and how much energy the system consumes to move the fluid.

Thermal Performance: The Core of Copper Fin Heat Exchanger Design

I always consider thermal performance the absolute core of any heat exchanger design. My primary goal is to maximize heat transfer efficiency. This directly translates into how well the unit cools or heats, and how much energy it consumes. Fin density and pitch are critical parameters I manipulate to achieve optimal thermal performance.

Benefits and Drawbacks of High Fin Density

When I design for high fin density, I aim for maximum heat transfer in a compact space. More fins mean a larger surface area for heat exchange. This allows me to transfer more heat per unit volume. This is particularly beneficial in applications where space is at a premium. I can achieve a very efficient heat transfer rate with a high fin count.

However, I also recognize the trade-offs. A high fin density creates a more restrictive path for airflow. This increased resistance leads to a higher pressure drop across the heat exchanger. A higher pressure drop means the fan or blower must work harder. This consumes more energy. It also increases noise levels. I must carefully balance the thermal gains against the increased fan power requirements. High fin density can also make the heat exchanger more susceptible to fouling. Dirt and debris can accumulate more easily in the tighter spaces between fins. This reduces performance over time.

Benefits and Drawbacks of Low Fin Density

Designing with a lower fin density offers different advantages. I find that a more open fin structure significantly reduces pressure drop. Air flows through the heat exchanger with less resistance. This means I can use smaller, less powerful fans. This saves energy and reduces operational noise.

Low fin density also offers significant advantages in terms of reduced pressure drop and ease of cleaning. A more open fin structure, characteristic of lower fin density, helps prevent fouling. It minimizes pressure drop. This makes it a better choice for applications involving dirty or viscous fluids. Furthermore, lower fin density makes heat exchangers generally easier to clean. They are less prone to fouling. This allows for easier removal of dirt, debris, and contaminants. It reduces the frequency and complexity of maintenance tasks. I prioritize this aspect in environments where cleanliness is crucial or where fluids carry particulates. The main drawback, of course, is a reduced heat transfer surface area per unit volume. This means a larger heat exchanger might be necessary to achieve the same thermal performance as a high-density unit.

Copper's Superior Thermal Conductivity in Fin Performance

I consistently choose copper for my fin designs because of its exceptional thermal conductivity. This property is paramount for efficient heat transfer. Copper's superior thermal conductivity, approximately 400 W/m.K, ensures low thermal resistance within the tube wall. This property facilitates rapid heat movement between the inner and outer surfaces. It maintains fluid temperature. It ensures efficient heat exchanger operation. This directly contributes to a higher overall heat transfer coefficient.

Copper and copper/nickel alloys are recognized as the most conductive materials for heat exchanger tubes. This high conductivity is fundamental to achieving efficient heat transfer, particularly in a Copper Fin Heat Exchanger. Utilizing highly conductive materials like copper significantly enhances a heat exchanger's performance. Copper is a top material for heat exchangers due to its excellent heat transfer capabilities. This significantly improves their performance. The use of special fin designs further enhances heat transfer by increasing the surface area. Copper heat exchangers are also noted for their energy savings, longevity, and environmental benefits.

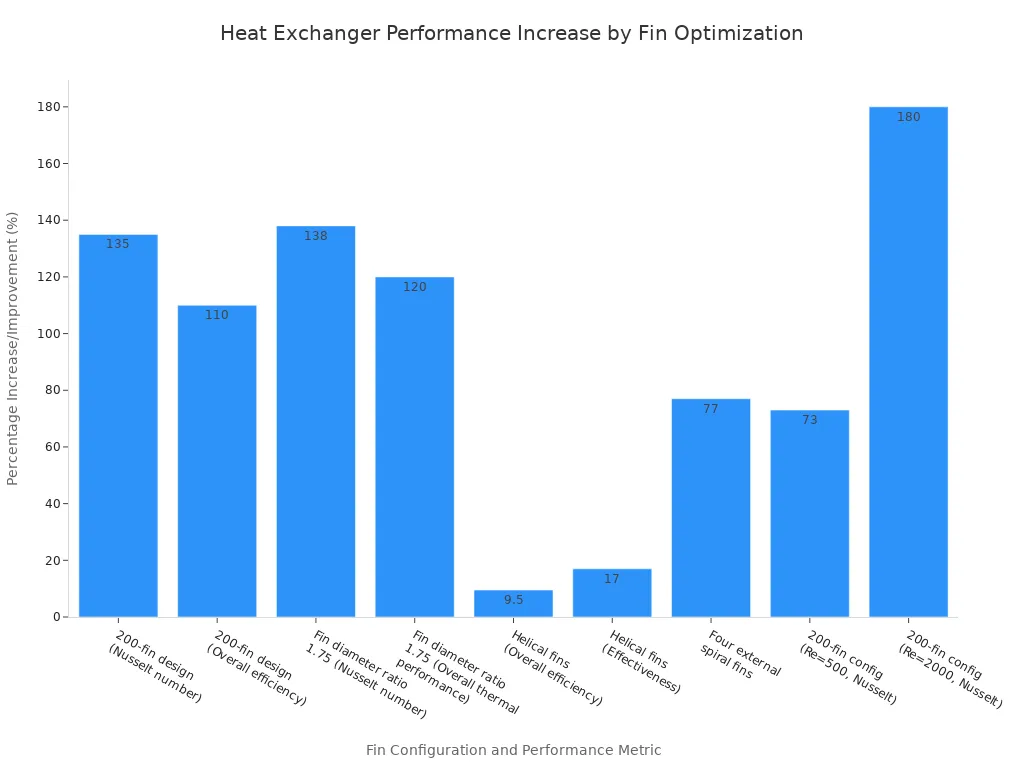

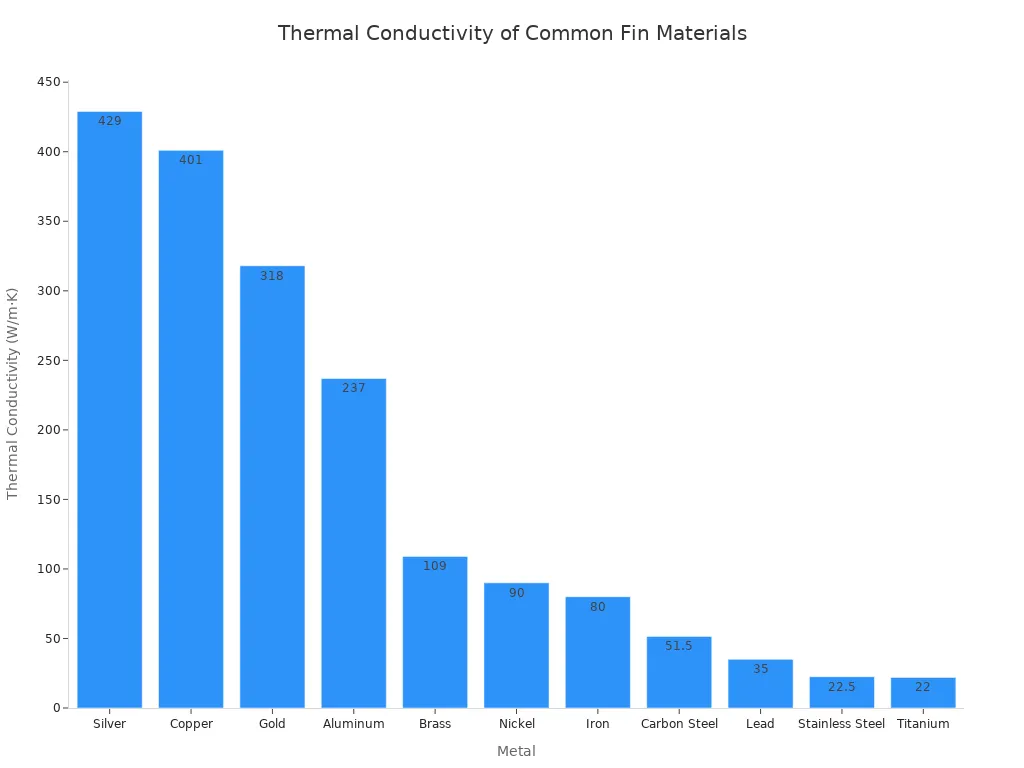

I often compare copper to other common materials. Its thermal conductivity stands out.

Metal	Thermal Conductivity (W/m·K)
Silver	429
Copper	401
Gold	318
Aluminum	237
Brass	109
Nickel	90
Iron	80
Carbon Steel	45-58
Lead	35
Stainless Steel	15-30
Titanium	22

Copper's thermal conductivity is 231 Btu/hr × ft × F°. This is considerably higher than aluminum's 136 Btu/hr × ft × F°. It is far superior to stainless steel's 9.24 Btu/(hr × ft × F°). This inherent material advantage allows me to design highly effective heat exchangers. Senjun, for example, leverages this property in its production of high-quality copper fin heat exchangers. This ensures superior thermal performance across various applications.

Pressure Drop and Airflow Management in Copper Fin Heat Exchangers

I know managing pressure drop and airflow is crucial for any efficient Copper Fin Heat Exchanger. It directly impacts operational costs and overall system performance.

How Fin Density Influences Airflow Resistance

I observe that fin density significantly influences airflow resistance. As I increase the number of fins per inch, the air path becomes more constricted. This restriction leads to a higher pressure drop across the heat exchanger. Experimental data confirms that the Fanning friction factor, which relates directly to pressure drop, increases as fin density increases.

Parameter	Relationship to Friction Factor ($f_{a,total}$)
Fin Pitch ($p_f$)	Inversely proportional to $p_f$ raised to a power (e.g., $p_f^{-0.317}$), meaning as fin pitch decreases (fin density increases), friction factor increases.
Ratio of Total Air-Side Surface Area to Tube Area ($\frac{A_{a,total}}{A_{tube}}$)	Directly proportional to this ratio raised to a power (e.g., $(\frac{A_{a,total}}{A_{tube}})^{0.263}$), meaning as fin density increases, friction factor increases.

Strategies for Minimizing Pressure Drop While Maximizing Heat Transfer

I employ several strategies to minimize pressure drop while still maximizing heat transfer.

• AI-driven Optimization: I use Artificial Neural Networks (ANNs) with Genetic Algorithms (GAs). This approach helps me explore design variables efficiently. It accurately predicts thermal performance. This method can reduce pressure drops by up to 20% while maintaining or enhancing heat transfer.
• Helical/Spiral Fins: These fin designs significantly enhance heat transfer relative to pressure drop. They increase contact area and induce swirling flow. Helical fins can increase efficiency by 9.5% compared to segmented fins. They provide a 24% larger heat transfer area than longitudinal fins.
• Wavy Fins: I find wavy fin shapes effective for enhancing heat transfer. They maintain manageable pressure drop levels. They can increase the Nusselt number by up to 28% above circular tubes.

Consequences of Excessive Pressure Drop on System Efficiency

Excessive pressure drop has significant consequences for system efficiency. Doubling the pressure drop in a heat exchanger roughly doubles the energy consumption. This happens due to increased pumping power costs. This direct relationship highlights a significant quantifiable impact on operational expenses. For example:

• A milk pasteurization plant saved over 45,000 USD annually. They reduced pumping power by decreasing pressure drop from 180 kPa to 65 kPa.
• A chemical plant retrofit reduced shell-side pressure drop by 42%. It recouped project costs in less than 14 months. This came from savings on cooling water pumping expenses.

Manufacturing and Cost Implications for Copper Fin Heat Exchangers

Balancing Material Costs with Performance Gains

I always consider the balance between material costs and performance gains. Choosing the right fin density and pitch directly impacts both. While copper offers superior thermal conductivity, its cost is higher than aluminum. I must weigh the enhanced heat transfer efficiency against the initial material investment. This ensures I deliver a cost-effective yet high-performing solution.

Impact of Fin Geometry on Manufacturing Complexity and Production Costs

Fin geometry significantly affects manufacturing complexity and production costs. I know that fins with complex shapes, like louvered or spiral designs, improve performance. However, these intricate patterns inherently increase manufacturing costs. For example, spiral finned tubes, despite their heat transfer benefits, have a more complex manufacturing process. This leads to higher costs compared to simpler designs. Custom designs, with their unique dimensions and intricate fin patterns, also come at a premium. They require specialized tooling and precise control systems. This contrasts with standard finned tubes, which are more affordable due to mass production efficiencies.

Durability, Reliability, and Fin Design Choices

Durability and reliability are paramount in my designs. Fin design choices directly influence these factors. Thicker fins enhance mechanical strength and longevity. This makes them suitable for harsh operating conditions. However, I also recognize that increased thickness leads to higher thermal resistance. This reduces heat transfer efficiency. I must achieve a balance between structural integrity and thermal performance. I also consider the fin attachment method. It must tolerate thermal cycling to prevent fin loosening. For a Copper Fin Heat Exchanger, I often choose copper for its thermal properties. I also consider coatings or alloy upgrades to mitigate corrosion in aggressive environments.

Optimizing Fin Density and Pitch for Specific Applications

I understand that a one-size-fits-all approach does not work for heat exchanger design. I always tailor fin density and pitch to meet the unique demands of each application. This ensures optimal performance and efficiency.

Tailoring Design to HVAC, Automotive, and Electronics Cooling Needs

I find that different industries require distinct approaches to fin design. In HVAC systems, for example, I often prioritize lower pressure drop to minimize fan energy consumption. This means I might opt for a slightly lower fin density. For automotive applications, compactness and vibration resistance are key. I might choose a fin design that offers robust mechanical integrity while still providing efficient heat rejection.

For electronics cooling, managing localized hot spots is a critical challenge. I employ specific strategies to address this.

• Sizing Optimization: I tune parameters like fin pitch and channel depth. This achieves a target pressure drop under a given flow rate. I balance thermal performance and hydraulic resistance. I use methods like gradient-based optimization for continuous variables, such as channel width. I also use global search techniques, like genetic algorithms, for discrete variables, such as the number of channels.
• Shape Optimization: I refine internal and external surfaces. This enhances flow distribution and minimizes hotspots. I use continuous functions of space, like Bezier curves. I also use adjoint-based sensitivity analysis to optimize shapes. For example, I optimize inlet and outlet manifolds to reduce recirculation zones and improve flow uniformity.

I have seen research confirm the effectiveness of these methods.

• Lorenzini et al. experimentally demonstrated that increasing fin density near a hotspot significantly decreases its temperature. This happens by increasing the surface area for heat transfer.
• Ding et al. numerically showed that baffles can effectively guide flow through densely-populated pin-fins near hotspots. This lowers hotspot temperatures.
• Optimization using the Kriging method for natural convection heat sinks resulted in an optimal fin density distribution. This distribution is monotonically increasing along the flow direction. It features denser fins in the lower part and coarser fins in the upper part. This led to 11% lower thermal resistance and 30% less weight compared to uniformly populated fins.

Leveraging CFD and Simulation for Virtual Optimization

I rely heavily on Computational Fluid Dynamics (CFD) and other simulation tools for virtual optimization. These tools allow me to predict performance before I build a physical prototype. This saves significant time and resources.

CFD simulations predict the thermal performance of a heat exchanger. They model fluid flow, temperature distributions, and heat transfer. This allows me to assess heat transfer efficiency. I can optimize designs for maximum heat transfer and minimal pressure drop. CFD enables me to explore various design configurations. This includes fin geometry and tube layout. I identify the most efficient heat exchanger geometry by iteratively adjusting design parameters. CFD also simulates pressure drop across the heat exchanger. This is crucial for maintaining acceptable pressure levels in applications like HVAC and industrial systems. It allows me to minimize pressure drop while achieving desired heat transfer rates.

I use a method developed using CFD. This method predicts pressure drop and heat transfer rates in longitudinally finned tubes. It determines a characteristic length for the flow. This method, based on a characteristic length derived from tube geometry, predicts pressure drop within ±10% across a wide range of fin heights and numbers. Heat transfer rates also correlate using a thermal length scale. This provides a simple and accurate way for me to understand the impact of geometry on overall tube performance.

The Importance of Experimental Validation and Prototyping

While simulations are powerful, I never skip experimental validation and prototyping. I consider these steps essential. They confirm the accuracy of my simulations. They also reveal any unforeseen issues that might arise in real-world conditions. I build physical prototypes and test them under various operating conditions. This allows me to measure actual heat transfer rates, pressure drops, and overall system efficiency. This hands-on approach helps me fine-tune the design. It ensures the final product meets all performance specifications and reliability standards.

Conducting Comprehensive Trade-off Analysis for Optimal Design

I always conduct a comprehensive trade-off analysis. This is a critical step in achieving an optimal design. I evaluate competing factors like thermal performance, pressure drop, manufacturing cost, material usage, and durability. For instance, a higher fin density might offer superior heat transfer. However, it could also lead to increased pressure drop and higher manufacturing complexity. I must weigh these factors against each other. My goal is to find the best balance that satisfies all application-specific requirements. This analytical approach ensures I deliver a solution that is not only thermally efficient but also cost-effective and reliable.

Senjun's Expertise in Copper Fin Heat Exchanger Solutions

I find Senjun stands out in the field of copper fin heat exchanger technology. My experience shows their dedication to innovation and quality. They consistently deliver high-performance solutions.

Senjun's Commitment to Research and Development

I see Senjun's commitment to research and development as a cornerstone of their success. They constantly push boundaries. For example, I know they explore hybrid materials, like copper-aluminum, to improve thermal conductivity and reduce weight. They also develop ultra-thin copper fins. This maximizes heat exchange surface area without increasing unit size. I observe their focus on modular designs for customizable solutions. Senjun integrates smart technologies, including IoT-enabled monitoring, for real-time data. They also prioritize compatibility with renewable energy sources and low-GWP refrigerants. I recognize their enhancement of manufacturing techniques through precision engineering and automation. They also develop innovative coating solutions to boost performance and lifespan.

Senjun's Production of High-Quality Copper Fin Heat Exchangers

I know Senjun prioritizes high-quality production. They implement rigorous quality control measures throughout their process. This ensures every product meets the highest industry standards. I see thorough quality checks performed. Documentation is reviewed for inconsistencies. Products are inspected for surface defects. Senjun emphasizes the value of high-quality products and strong service support. This approach reduces long-term costs for customers. Their quality control adheres to ISO 9001 Testing Standards.

Applications of Senjun's Heat Exchanger Technology

I observe Senjun's heat exchanger technology serves diverse applications. They provide solutions for HVAC and refrigeration in specialized environments. Industrial processes also benefit from their precise thermal control. This includes chemical manufacturing and cooling high-viscosity products. I see their technology in electronics cooling for high-performance devices, especially in data centers. Medical and scientific equipment also relies on their stringent reliability. Senjun's copper fin heat exchanger technology is deployed in corrosive environments, like marine applications. Copper's natural resistance ensures a longer service life there.

---

I find optimal fin density and pitch are critical for Copper Fin Heat Exchanger success. A holistic approach balances thermal efficiency, pressure drop, and cost. Understanding parameter interplay is key to superior design. Advanced tools and validation enhance performance and cost-effectiveness. Strategic design leads to efficient and reliable heat exchangers.
