Meeting and Exceeding Industry Standards: How Copper Fin Design Contributes to Higher Energy Efficiency Ratios

I see copper fin design as vital for achieving high energy efficiency ratios. It significantly optimizes Heat Transfer, which then reduces energy consumption in HVAC and refrigeration systems. This design directly improves efficiency by enhancing thermal conductivity and increasing the surface area for heat exchange in aCopper Fin Heat Exchanger.

Key Takeaways

• Copper fin design makes HVAC and refrigeration systems work better. It moves heat faster and uses less energy.
• Copper is very good at moving heat. This helps systems reach desired temperatures quickly and saves energy.
• New copper fin designs help systems meet and go beyond energy saving rules. This makes them more reliable and better for the environment.

Understanding Industry Standards for Copper Fin Heat Exchanger Performance

Key Industry Standards (ASHRAE, AHRI, Regional Regulations)

I know industry standards are critical for evaluating performance. Organizations like ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers) and AHRI (Air-Conditioning, Heating, and Refrigeration Institute) set important benchmarks. These groups establish the metrics for energy efficiency ratios (EERs) and seasonal energy efficiency ratios (SEERs). Regional regulations also play a significant role. They often mandate minimum efficiency levels for HVAC and refrigeration systems. I see these standards as the baseline for acceptable performance.

Challenges in Meeting High Efficiency Ratios

Achieving high efficiency ratios presents real challenges. I observe common technical hurdles in current Heat Exchanger designs. For instance, fouling can significantly reduce heat transfer over time. This makes it harder to maintain peak performance. Pressure drops within the system also limit overall efficiency. Furthermore, many designs still have limited heat transfer efficiency. These factors combine to make the pursuit of higher EERs a complex task. They demand innovative solutions.

The Imperative of Exceeding Standards

I believe simply meeting industry standards is no longer enough. The market demands more. Exceeding these benchmarks shows a commitment to innovation. It also prepares us for future, even stricter, regulations. When a Copper Fin Heat Exchanger surpasses current standards, it offers superior energy savings. This provides a clear competitive advantage. It also contributes to a more sustainable future. I see this as an imperative for any serious manufacturer.

The Superiority of Copper in Heat Transfer for Copper Fin Heat Exchanger

Copper's Unmatched Thermal Conductivity

I find copper's thermal conductivity truly exceptional. It stands out among common metals. Copper has a thermal conductivity of approximately 389 W/m·K. Aluminum, while a good conductor, performs at about 205 W/m·K. Specific aluminum alloys, like 6061, show around 167 W/m·K. Aluminum's conductivity is higher than many other metals, but copper remains superior. I see this difference clearly in the data:

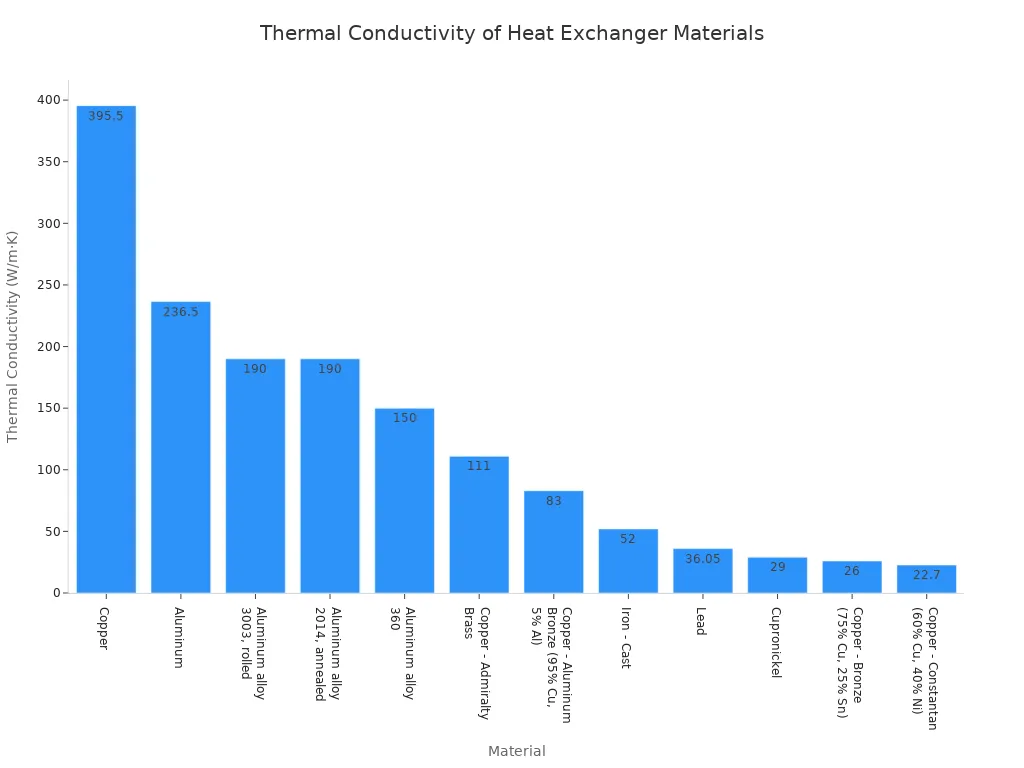

Material	Thermal Conductivity (W/m·K) at 0-25°C
Copper	390-401
Aluminum	236-237
Aluminum alloy 3003, rolled	190
Aluminum alloy 2014, annealed	190
Aluminum alloy 360	150
Copper - Admiralty Brass	111
Copper - Aluminum Bronze (95% Cu, 5% Al)	83
Iron - Cast	52
Lead	35.5-36.6
Cupronickel	29
Copper - Bronze (75% Cu, 25% Sn)	26
Copper - Constantan (60% Cu, 40% Ni)	22.7

Rapid Heat Exchange and Efficiency Gains

Copper's high thermal conductivity directly translates into rapid heat exchange. I observe this as a key factor for efficiency gains. Heat moves quickly through copper fins. This allows systems to reach desired temperatures faster. It also maintains them with less energy input. This rapid transfer significantly boosts the overall energy efficiency ratios of a Copper Fin Heat Exchanger.

Durability and Corrosion Resistance Benefits

I consider copper tubes the preferred choice for heat exchanger coils. They offer outstanding performance, durability, and corrosion resistance. Corrosion in copper tube heat exchangers is rare. Formicary corrosion is even rarer than pitting. Copper and aluminum both form protective layers. However, copper's passivation layer provides better protection against corrosion. Copper coils only need coatings in chemically aggressive environments. Aluminum rapidly deteriorates in humid environments, especially with salt. This often leads to pitting and aluminum oxide formation. Copper tubing resists degradation and deterioration over time. This ensures reliable performance throughout its lifespan. With proper installation, copper tubes can last for decades. This provides extended service life and reduces replacement costs. While copper generally resists corrosion well, specific types can affect it. Pitting corrosion is localized. It is caused by negatively charged chloride/fluoride ions. These attack the protective oxide film. This can lead to pinholes and leaks. Formicary corrosion is rarer. It occurs in copper-based alloys. This involves oxygen, water, and an organic acid. It forms microscopic tunnels. These can also result in leaks.

Innovative Copper Fin Heat Exchanger Designs for Enhanced Performance

Fin Geometry and Surface Area Optimization

I focus on fin geometry and surface area optimization. These elements are critical for maximizing heat transfer in a Copper Fin Heat Exchanger. I know that the efficiency of a finned tube heat exchanger directly relates to the available surface area for heat transfer. A larger surface area leads to more efficient heat exchange and improved performance. Solid fins significantly increase this surface area. This allows for greater heat transfer between fluids. This is crucial for efficient heat removal or addition in various processes. Increased surface area can also result in energy savings and reduced operating costs. Fins on heat exchangers maximize the contact area between fluids. This facilitates heat transfer. Extended surfaces from fins provide a larger area for convective heat transfer. This enhances efficiency as fluid interacts with a greater heat-exchanging surface. Fin design, including shape, size, and arrangement, significantly influences the overall efficiency of heat exchangers. It balances surface area maximization with acceptable pressure drops. Copper finned tubes utilize fins to extend the surface area. This significantly enhances heat dissipation. The increased surface area provided by fins allows for more efficient cooling and heating. Copper's high thermal conductivity ensures rapid heat transfer. This makes these tubes very effective.

I have seen various fin types. Each type offers different heat transfer characteristics.

Fin Type	Comparison	Heat Transfer Enhancement	Pressure Drop	Optimal Parameters
Louvered	vs. Plain	24.6% (Habibian et al.), 25% (Dodiya et al.), Higher (Gorman et al.)	Increased by 67.7% (Habibian et al.), 110% (Dodiya et al.), Higher (Gorman et al.)	Louver angle 20°, 24°, 28°; Horizontal edges; Airfoil design at 23° louver angle
Louvered	vs. Wavy	Higher j and f-factors (Okbaz et al.); jf-factor higher by 9.6–4.1%, 22.1–16%, 16.8–7.4%	Higher	Optimal louver angle 20° to maximize Colburn factor
Straight-louver	vs. Same Direction Louvered	19.54%, 18.31%, 17.52% at various fanning powers	Not specified	Not specified

I observe that louvered fins consistently show higher heat transfer enhancement compared to plain fins. This comes with an increased pressure drop. I find that optimizing the louver angle, often around 20-28 degrees, helps maximize performance.

Fin Density and Spacing for Optimal Airflow

I understand that fin density and spacing are critical design parameters. They directly influence both heat transfer and airflow resistance. I aim to find the optimal balance. Fin density, often measured in FPI (fins per inch), commonly ranges from 5–13 FPI. A higher FPI increases the heat transfer area and the U-value. However, it also increases fouling and pressure drop.

Fin spacing typically ranges from 1 to 12.7 mm. Smaller fin spacing increases the heat exchange area and efficiency. It also raises air flow resistance and energy consumption. Larger fin spacing reduces air flow resistance. However, it may decrease heat exchange efficiency. I consider the application when determining optimal spacing.

• For refrigeration systems, evaporator fin spacing is generally 2–4 mm.
• For refrigeration systems, condenser fin spacing is generally 3–6 mm.

I carefully select these parameters. This ensures maximum heat transfer while minimizing the fan power needed to overcome pressure drop.

Micro-channel and Enhanced Surface Designs

I constantly explore advanced designs to push performance boundaries. Micro-channel and enhanced surface designs represent significant innovations. These designs create formed profiled patterns. They increase heating or cooling capabilities. I have seen how dimpled twisted tapes turbulators result in greater heat transfer compared to plain pipes. Turbulators increase radial and tangential turbulence fluctuation. This directly increases heat transfer.

• Forward-louvered strip inserts increased the Nusselt number by 2.84 times compared to a plain heat exchanger.
• Backward-louvered strip inserts increased the Nusselt number by 2.63 times compared to a plain heat exchanger.

Enhanced surface designs like turbulators and dimples improve heat transfer efficiency. They create formed profiled patterns. These patterns increase heating or cooling capabilities. These designs slow down the flow of the medium. This allows it to remain in the tube longer for additional heat exchange. They also convert less efficient laminar flow into more efficient turbulent flow. They can create a spiraling effect of fluids to further cool the element. Creating turbulence near the pipe wall has a greater effect on increasing thermal performance. It directs the side fluid flow towards the pipe wall. I find these innovations crucial for achieving higher EERs.

Integration with Small-Diameter Copper Tubes

I also focus on integrating small-diameter copper tubes into our designs. This approach offers several advantages. Smaller tubes increase the surface area-to-volume ratio. This allows for more compact heat exchangers. It also reduces the overall refrigerant charge required. A lower refrigerant charge is beneficial for environmental reasons. It also reduces operational costs. Small-diameter tubes promote higher fluid velocities. This enhances the convective heat transfer coefficient. This leads to more efficient heat exchange within the system. I believe this integration is key to developing highly efficient and compact HVAC and refrigeration units. Senjun, for example, commits to research and development in copper aluminum fin heat exchangers. This includes optimizing tube designs.

Quantifying the Impact: Elevating EERs with Copper Fin Heat Exchanger

Lower Temperature Differences for Improved Ratios

I know that a smaller temperature difference between the refrigerant and the air is ideal for efficiency. This is often called the "delta-T." Copper's exceptional thermal conductivity allows for this smaller delta-T. It means the system does not work as hard to move heat. This directly translates to better energy efficiency ratios (EERs). When the temperature difference is small, the system can transfer heat more effectively. It uses less energy to do the same job. I see this as a fundamental advantage of copper in heat exchanger design.

Reduced Compressor Workload and Energy Savings

This reduced temperature difference directly impacts the compressor. The compressor is often the most energy-intensive part of an HVAC or refrigeration system. When the system operates with a smaller delta-T, the compressor needs less energy. It does not have to work as hard to achieve the desired cooling or heating. This leads to significant energy savings. I have seen studies showing how optimizing HVAC systems, especially with new refrigerants, can boost SEER. For example, model-based design optimization achieved a SEER range of 18.3-18.9 for optimal systems. This is a big increase from initial goals of 16.0 SEER. It shows a potential improvement of 2.3 to 2.9 SEER points. This kind of improvement directly reduces operating costs and energy consumption.

Achieving and Surpassing Stringent Standards

I find that innovative copper fin designs help us not just meet, but exceed, tough industry standards. We constantly push the boundaries of what is possible. For example, increasing the number of annular fins to 200 greatly improves heat transfer. An optimal fin diameter ratio of 1.75 consistently gives the best thermal performance. I have seen a 200-fin setup improve performance by 50% over a plain tube at Re=500. It even showed a 110% improvement at Re=2000. Also, using smaller 5 mm tubes instead of 7 mm tubes can increase heat transfer efficiency by 10%.

Tube Diameter	Heat Transfer Efficiency
7 mm	Baseline
5 mm	10% higher

Advanced fin geometries also play a big role. I use designs like corrugated, spiral, microchannel, and alternating ribbed/serrated sections. These optimize heat exchange. Microchannel designs improve energy efficiency. They allow higher water temperatures for heating and lower temperatures for cooling. They also prevent condensation bridging. Continuous fin structures integrate fins directly into the pipe. This enhances heat transfer. Alternating ribbed and serrated sections maximize the thermal interface area. They also minimize fluid flow resistance. A spiral fin arrangement with precisely controlled contact surface geometry further enhances heat transfer. Wavy fins increase surface area in microchannel heat exchanger components. This contributes to high heat transfer efficiency. I use CFD simulations to optimize fin geometry. These simulations show significant performance increases. Introducing multiple fin arrays at 0.5 m, 1.0 m, and 2.0 m pitches significantly improves performance. Four fins can increase performance by 19.4% compared to a no-fin setup. Optimizing fin spacing leads to increased temperature drops: 5.6% for 1 m spacing and 7% for 2 m spacing. A four-fin block can reduce outlet temperature by 14.52% compared to a single-fin block. This is due to increased contact area. This shows the power of a well-designed Copper Fin Heat Exchanger.

Beyond Efficiency: Additional Benefits of Advanced Copper Fin Heat Exchanger

Improved System Reliability and Longevity

I find that advanced copper fin designs offer significant advantages in system reliability and longevity. Copper's natural resistance to corrosion is a major benefit. It forms a protective patina that shields it from degradation. This allows copper fin heat exchangers to maintain structural integrity and performance for many years. Copper fin heat exchangers typically last between 10 to 15 years. This demonstrates their robust durability in various operational settings. I have seen how copper helps control fungi emission from HVAC systems. It also limits contamination of system components. Copper's exceptional corrosion resistance allows it to withstand various environmental conditions. This includes moisture, humidity, and many chemicals. This resistance ensures the longevity and reliability of copper tube fin coils.

Smaller System Footprint and Design Flexibility

I also appreciate the smaller system footprint and increased design flexibility that advanced copper fin designs provide. Using 5mm small-diameter copper tubes can achieve a 50% reduction in internal volume compared to a baseline. I have seen GE Appliances achieve a 58% decrease in internal volume with redesigned copper coils. A second optimization phase further increased this to a 62% reduction. This allows for more compact units. The Lochinvar Copper-Fin II Boiler, for example, features a small footprint. It can easily pass through a 36-inch door. Stack Frames enable two boilers to be installed in the space typically occupied by one. This effectively doubles the Btu/hr input in the same footprint.

Environmental Benefits and Sustainability

I believe advanced copper fin designs offer substantial environmental benefits and promote sustainability. Smaller-diameter copper tubes enable higher energy efficiency. They also lower resource consumption in HVAC/R equipment. Incorporating copper tube-fin heat exchangers advances decarbonization and electrification. Copper's exceptional thermal conductivity optimizes heating process efficiency. This promotes energy efficiency and reduces reliance on carbon-intensive heating methods. Eco-Friendly Copper-Aluminum Fin Heat Exchangers reduce energy use and greenhouse gas emissions. New designs can reduce refrigerant usage by up to 45%. This decreases greenhouse gas emissions. These systems contribute to achieving carbon neutrality. They also align with global climate goals.

Senjun's Contribution to Copper Fin Heat Exchanger Innovation

I see Senjun as a leader in heat exchanger technology. They consistently push the boundaries of innovation. My observations show their commitment to research and development. This helps them create highly efficient and reliable products.

Senjun's Expertise in Wire Tube Condensers

I find Senjun's expertise in wire tube condensers impressive. They use advanced materials. This includes copper alloys and aluminum fins. These materials enhance thermal conductivity and durability. Senjun also applies corrosion-resistant coatings. These coatings protect against environmental damage. They also reduce maintenance needs. I see their design optimization as key. Senjun's designs feature an open structure. This allows for unrestricted airflow. They also use serpentine patterns for copper tubes and steel wires. This maximizes surface area for heat exchange. It also improves energy efficiency. Senjun creates compact and lightweight designs. These combine copper tubes for heat conduction with steel wires for durability. This results in reduced size. It is ideal for small applications. I have seen this in wine cabinets and medical refrigerators. Senjun also integrates smart technology. This allows for real-time monitoring. It provides remote temperature checks and instant alerts. It also offers proactive maintenance reminders. This enhances operational efficiency. It helps achieve energy savings.

Research and Development in Copper Aluminum Fin Heat Exchangers

My observations show Senjun's R&D focuses on significant advancements. They have made breakthroughs in copper aluminum fin heat exchangers.

Aspect	Details
Thermal Conductivity	Copper offers superior thermal conductivity, enhancing heat transfer.
Design Advancements	Innovations in design and manufacturing improve thermal performance and corrosion resistance.
Application Range	Suitable for harsh environments, including petrochemical and high-temperature operations.
Efficiency Improvements	New fin configurations and optimized tube geometries boost energy efficiency and heat transfer.
Material Innovations	Development of new copper alloys increases strength and thermal conductivity, expanding application scope.
Foldable Heat Exchangers	Integration of copper fin technology into foldable systems for portable cooling solutions.
Flexible Ultra-Thin Heat Pipe Technology	Enables efficient heat transfer in complex shapes, with high thermal conductivity (up to 6750 W/m·K) and flexibility.

Senjun has also made significant innovations in nano-coating technology. Their nano-coating solutions create a dense, resilient layer. This layer resists wear, corrosion, and fouling. It works even at temperatures up to 300°C. This technology extends the lifespan of products. It reduces maintenance needs. It ensures consistent thermal efficiency over time. This leads to lower operational costs. The coatings are non-toxic and eco-friendly. This supports sustainability goals. Senjun integrates these advanced coatings into their products. This includes copper aluminum fin heat exchangers and wire tube condensers. This helps customers achieve superior performance and reliability. These advancements boost heat transfer rates and corrosion resistance. This makes them ideal for demanding environments.

Applications in Refrigeration and HVAC Systems

I have seen Senjun's products applied in many areas. They are crucial for refrigeration and HVAC systems.

Product Name	Application
Refrigerators	Domestic cooling
Freezers	Domestic freezing
Drinking Fountains	Water cooling
Display Cabinets	Product display cooling
Wine Cabinets	Wine storage cooling
Medical Ultra-Low Temperature Refrigerators	Medical storage
Ice Makers	Ice production
Dehumidifiers	Humidity control

Senjun's copper fin heat exchanger products are used in:

• Display cabinets
• Wine cabinets
• Freezers
• Medical ultra-low temperature refrigerators
• Ice makers
• Industrial refrigeration (cold storage systems, large-scale freezers)

I also see their products in:

• Restaurant walk-in coolers
• Beverage display coolers
• Bottle coolers
• Split-type heat pump systems

---

I believe copper fin design is a cornerstone for achieving and surpassing energy efficiency standards. It optimizes heat transfer through superior conductivity and increased surface area. This directly contributes to higher EERs. Continuous innovation in fin design remains crucial. The HVAC energy efficiency market will grow by over $21 billion by 2028. This highlights the ongoing importance of advanced solutions. I encourage investing in systems with advanced copper fin technology for a more efficient future.

FAQ

Why do I choose copper for superior heat exchanger performance?

I find copper's thermal conductivity exceptional. It transfers heat much faster than other materials. This directly leads to higher energy efficiency ratios and quicker system response times.

How do innovative fin designs enhance energy efficiency ratios?

I optimize fin geometry and surface area. This maximizes heat transfer. Designs like micro-channels and precise fin spacing reduce compressor workload. This directly improves EERs.

What are the key benefits of Senjun's advanced copper fin technology?

I see Senjun's commitment to R&D. They use advanced materials and nano-coatings. This ensures high thermal performance, durability, and corrosion resistance. It also supports sustainability goals.
