Maintenance Tips: How to Clean and Protect Your Copper Fin Heat Exchanger

Maintaining a copper fin heat exchanger is crucial for optimal performance. Neglecting maintenance can lead to serious issues. For instance, fouling can significantly increase fuel consumption in systems, leading to higher energy costs. In fact, about 15% of factory maintenance costsstem from Heat Exchangers, primarily due to fouling.

"The investigation showed that the failure was a consequence of ant-nest corrosion, which can lead to a tube leak early in the service life during a period of weeks or months."

Regular care helps prevent these problems, ensuring efficiency and longevity.

Key Takeaways

• Regular maintenanceis vital for copper Fin Heat Exchangers. Establish a cleaning schedule to prevent fouling and corrosion.
• Use appropriate cleaning methods like chemical and mechanical cleaning to enhance efficiency. Always follow safety precautions during the process.
• Conduct regular inspections to identify issues early. Look for signs like increased pressure drop or unusual noises to maintain optimal performance.

Common Issues with Copper Fin Heat Exchangers

Fouling

Fouling is a significant issue that affects the performance of copper fin heat exchangers. It occurs when dust, debris, and other contaminants accumulate on the fins and coils. This buildup can trap moisture, leading to frost formation. I have seen firsthand how frost can block airflow, causing the system to overwork and consume more energy. In fact, increased energy consumption due to heavy frost is a common complaint among users.

The types of contaminants that typically cause fouling include:

• Sulfate Scales: These hard scales require mechanical cleaning to remove.
• Metal Hydroxides: They accumulate in low-velocity areas and can be insoluble at low concentrations.
• Silica: This contaminant exists in various forms and can complicate fouling.
• Suspended Solids: They can accelerate other fouling types.
• Organics: These result from precipitation due to solubility changes.
• Biological Fouling: While less common in high temperatures, microorganisms can still contribute to fouling.
• Corrosion Fouling: This occurs from material reactions, forming corrosion products.

Regular maintenance, including cleaning, is crucial for preventing these issues. I recommend establishing a routine cleaning schedule to keep your copper fin heat exchanger operating efficiently.

Corrosion

Corrosion is another prevalent issue that can severely impact the lifespan of copper fin heat exchangers. The corrosive nature of the fluid, the presence of dissolved gases, and improper water treatment can all contribute to corrosion. I have observed that temperature extremes can exacerbate these problems.

Pitting corrosion often begins when negative ions attack the protective oxide film on the metal. This process can create a corrosion-driven battery that consumes the copper. Additionally, formicary corrosion occurs in copper-based alloys due to a chemical reaction involving oxygen, water, and organic acids. Galvanic corrosion can also happen when dissimilar metals come into contact in the presence of an electrolyte.

To illustrate the differences in corrosion resistance, consider the following table:

Material	Corrosion Resistance	Environmental Impact
Copper	Better	More durable in corrosive conditions
Aluminum	Worse	Deteriorates faster in humid/salty environments

Reduced Efficiency

Reduced efficiency is often a direct result of fouling and corrosion. I have seen how these issues can lead to a decrease in cooling capacity and an increase in thermal resistance. In fact, the cooling capacity of copper fins can be 1.3–7.3% higherthan Aluminum Fins before corrosion tests. However, once fouling and corrosion set in, this advantage diminishes rapidly.

The consequences of reduced efficiency are far-reaching. Increased energy consumption, uneven cooling, and potential system failure can all stem from blocked airflow. Regular inspections and maintenance can help mitigate these risks, ensuring that your copper fin heat exchanger operates at peak performance.

Cleaning Methods for Copper Fin Heat Exchangers

Cleaning your copper fin heat exchanger is essential for maintaining its efficiency and longevity. I have found that there are three primary methods for cleaning: chemical cleaning, mechanical cleaning, and high-pressure cleaning. Each method has its advantages and considerations.

Chemical Cleaning

Chemical cleaning is an effective way to remove fouling from copper fin heat exchangers. I often recommend using specific chemical agents tailored for this purpose. Here’s a table of some effective cleaning agents:

Chemical Agent	Type	Purpose
AlfaPhos	Acidic	Descaling metallic oxides, rust, and calcium carbonate
AlfaNeutra	Neutralizing	Neutralizing acidic cleaning fluid
AlfaCuas	Alkaline	Removing organic deposits and biological matter
Alkaline Detergents	Alkaline	Effective at removing organic deposits, fats, and oils
Acidic Detergents	Acidic	Designed to tackle metallic oxides, rust, and calcium carbonate
Synthetic or Mineral Oils	Lubrication	Providing lubrication and protection against corrosion after cleaning

Before starting the chemical cleaning process, I always emphasize the importance of safety precautions. Here’s a checklist I follow:

1. Review the Manufacturer’s Guidelines. Examine the heat exchanger user manual for specific instructions and recommendations.
2. Wear Protection. Use personal protective equipment (PPE) such as safety goggles, gloves, and a respirator mask.
3. Shut off and Isolate. Securely fasten and tag all inlet valves, and close the supply and return water valves.
4. Perform a Visual Inspection. Check for visible signs of damage and fouling to determine the optimal cleaning method.
5. Release Pressure and Drain Fluids. Ensure the heat exchanger’s pressure is reduced and wait for it to cool.
6. Attach Hoses. Use a descaling system to ensure the cleaning agent contacts all surfaces.
7. Fill Up and Test. Fill the heat exchanger with water and perform a hydrostatic test.
8. Check It Out. Periodically check isolation valves during the cleaning process.
9. Give It Time. Allow sufficient time for the cleaning agent to work.
10. Rinse Thoroughly. Flush the heat exchanger with clean water after the cleaning solution has done its job.
11. Inspect and Reassemble. Carefully install new gaskets to avoid leaks.
12. Test and Restart. Perform system checks and tests before restarting the system.
13. Follow the Law. Adhere to local regulations for discharge.

Mechanical Cleaning

Mechanical cleaning is another effective method I often use. This technique involves using specialized tools to physically remove deposits from the heat exchanger surfaces. I have found that using rotary tube cleaning systems, like those offered by Goodway, can significantly enhance maintenance efforts. These systems are designed to prevent damage to the delicate fins of copper heat exchangers while effectively restoring heat exchange efficiency.

Regular mechanical cleaning not only removes deposits but also helps maintain the integrity of copper fins. By preventing corrosion and buildup, this method can significantly extend the lifespan of the heat exchanger.

High-Pressure Cleaning

High-pressure cleaning can be a quick way to remove stubborn fouling. However, I have learned that it comes with risks. High-pressure water jets can damage the heat exchanger surfaces if not controlled properly. Additionally, there is a risk of incomplete cleaning, which can leave deposits that affect efficiency.

Here are some risks associated with high-pressure cleaning:

• High-pressure water jets can cause damage to the heat exchanger surfaces if not controlled properly.
• There is a risk of incomplete cleaning, leaving deposits that affect efficiency.
• The process generates hazardous streams that can contaminate wastewater, raising environmental concerns.
• Safety hazards for operators include potential injuries or accidents due to the handling of high-pressure equipment.

Frequency of Cleaning

Establishing a cleaning schedule for your copper fin heat exchanger is essential for maintaining its efficiency. I often recommend following a routine based on manufacturer guidelines and specific operational conditions.

Recommended Cleaning Schedule

Manufacturers typically suggest cleaning condenser coils every three months. However, in commercial settings, I have found that monthly cleaning is often necessary. Here are some factors that influence the recommended cleaning schedule:

1. Operating Environment: Harsh conditions may necessitate more frequent cleaning.
2. Type of Heat Exchanger: Different designs accumulate fouling at different rates.
3. Type of Fouling: The nature of deposits affects cleaning needs.
4. Efficiency Loss: A drop in efficiency indicates the need for maintenance.
5. Manufacturer Recommendations: Always consult guidelines for cleaning frequency.

Factor	Description
Fouling Allowance	Maximum acceptable level of fouling before efficiency is compromised.
Cost of Operation	Increased fouling raises operating costs due to higher energy requirements and decreased production.
Production Cycle	Cleaning should align with production schedules to minimize downtime.

Signs That Cleaning is Needed

Recognizing when your copper fin heat exchanger requires cleaning is crucial. I have identified several common signs that indicate the need for maintenance:

• Increased Pressure Drop: Significant increases in pressure readings suggest fouling.
• Frequent Maintenance: An uptick in unscheduled repairs often points to performance issues.
• Decreased Flow Rates: Lower than expected flow rates may indicate internal build-up.
• Unusual Noises: Sounds like gurgling or bubbling can signal trapped air or steam.
• Temperature Fluctuations: Inability to maintain stable temperatures indicates compromised heat transfer.
• Corrosion or Leaks: Visible signs of corrosion or leaks necessitate immediate attention.
• Reduced System Efficiency: Increased operational costs may be linked to fouling.

By staying vigilant and adhering to a cleaning schedule, I can ensure that my copper fin heat exchanger operates efficiently and lasts longer.

Protecting Your Copper Fin Heat Exchanger

Regular Inspections

I believe that regular inspections play a vital role in maintaining the integrity of copper fin heat exchangers. Proactive maintenance helps me identify and address issues before they escalate into significant problems. During my inspections, I look for cracks, leaks, and signs of corrosion. Catching these issues early ensures that all components operate within their designated parameters. By addressing minor concerns promptly, I can significantly extend the lifespan of the heat exchanger.

Here are some key benefits of regular inspections:

• Identify potential issues early.
• Ensure optimal performance through minor repairs.
• Prevent unexpected breakdowns.

Protective Coatings

Applying protective coatings is another effective strategy I use to safeguard copper fin heat exchangers. Hydrophilic treatments enhance wettability and improve corrosion resistance. I often opt for proprietary hydrophilic coatings, which provide excellent protection in humid and salty environments. Additionally, a mixture of sodium hydroxide and potassium persulfate can enhance hydrophilicity. These coatings not only protect the fins but also improve overall performance.

Environmental Considerations

Environmental factors significantly impact the performance of copper fin heat exchangers. I have observed that increasing humidity enhances heat transfer and condensation rates. The following table summarizes my findings on how humidity and air quality affect performance:

Findings	Description
Humidity Impact	Higher humidity improves heat transfer and reduces pressure drop.
Energy Savings	Enhanced humidity leads to energy savings in operation.
Material Comparison	Copper fin heat exchangers outperform aluminum in efficiency.

By considering these environmental factors, I can optimize the performance of my copper fin heat exchanger and ensure its longevity.

About Senjun

Company Overview

I take pride in introducing Senjun, a leader in the copper fin heat exchanger industry. Ningbo Senjun New Materials Co., Ltd. specializes in the research, development, and production of innovative heat exchangers. With a remarkable 35% market share in China, Senjun stands out for its commitment to quality and efficiency.

Key Feature	Description

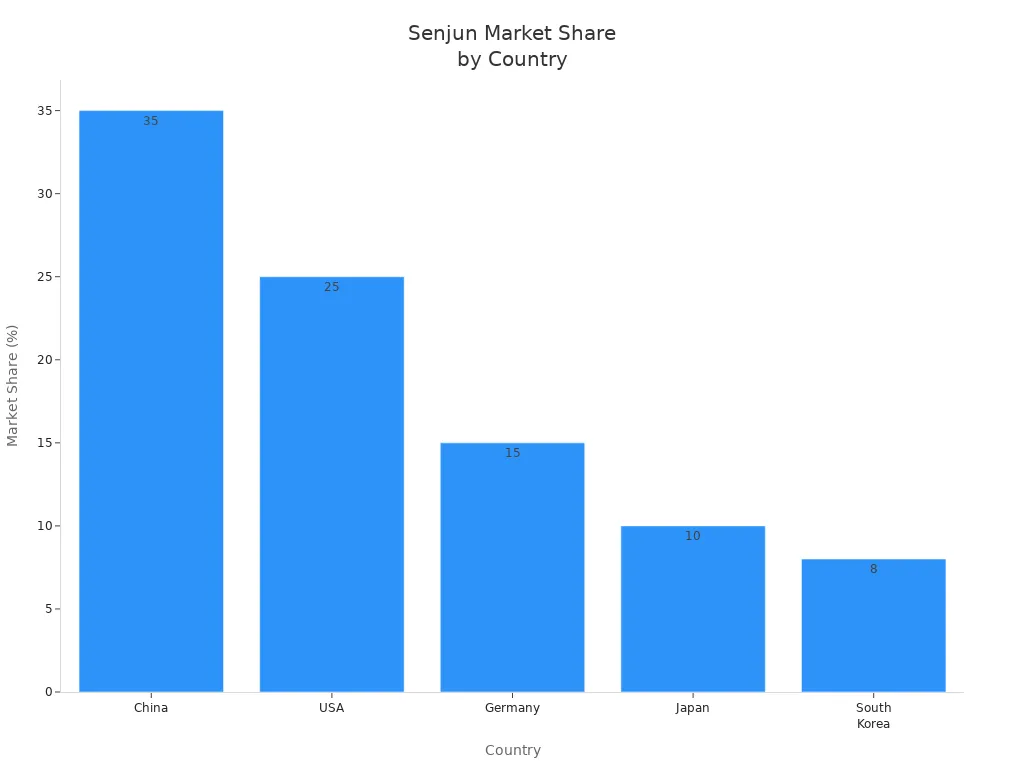

Market Share	Senjun holds a 35% market share in the copper fin heat exchanger industry in China.
Product Specialization	Focuses on wire tube condensers and copper aluminum fin heat exchangers for various applications.
Innovation in Technology	Utilizes advanced corrosion-resistant alloys and integrates digital tools for product testing.
Commitment to Quality	Ensures efficient, reliable, and cost-effective operation of commercial refrigeration systems.

Products and Applications

Senjun offers a diverse range of products tailored for various applications. I often recommend their fin tube heat exchangers for HVAC and refrigeration systems due to their high thermal conductivity and corrosion resistance. Here are some key applications:

Industry/Application	Examples
Commercial Refrigeration	Refrigerators, freezers, display cabinets, medical ultra-low temperature refrigerators, ice makers, dehumidifiers
Restaurant Equipment	Walk-in coolers, beverage display coolers
Other Applications	Bottle coolers, split-type heat pump systems

Senjun's dedication to innovation ensures that their products meet the evolving needs of industries worldwide. I appreciate their focus on developing smart heat exchangers with IIoT integration for predictive maintenance and energy optimization.

---

Regular maintenance is essential for ensuring the efficiency and longevity of copper fin heat exchangers. I encourage you to implement effective cleaning and protection strategies. By following a routine maintenance schedule, you can prevent fouling and corrosion, ultimately extending the lifespan of your heat exchanger.

Maintenance Task	Importance
Routine inspection for leaks	Helps in early detection of potential failures, preventing further damage.
Cleaning fouled surfaces	Essential for maintaining heat transfer efficiency and preventing increased operational costs.
Checking temperature and pressure	Ensures the system operates within safe limits, reducing the risk of failure.

By prioritizing these practices, you can enhance performance and save on long-term costs.

FAQ

What is the best way to clean a copper fin heat exchanger?

I recommend using a combination of chemical and mechanical cleaning methods for optimal results.

How often should I inspect my heat exchanger?

I suggest inspecting your heat exchanger at least every three months to catch potential issues early.

Can I use regular household cleaners on my heat exchanger?

No, I advise against using household cleaners. They may contain harsh chemicals that can damage the copper fins.
