How to Evaluate the Performance of a Copper Fin Heat Exchanger

I help you understand how to evaluate your Copper Fin Heat Exchanger. We assess heat transfer efficiency through practical steps. I show you methods to determine operational stability. We measure overall effectiveness under specific conditions. This process ensures your system performs optimally, as some Heat Exchangers achieve anaverage efficiency of 99.53%.

Key Takeaways

• Measure heat transfer rate, overall heat transfer, and effectiveness to check how well your heat exchanger works.
• Collect data on temperatures and flow rates. Use methods like LMTD or Effectiveness-NTU to understand performance.
• Inspect your heat exchanger for damage. Clean it regularly to keep it working well and prevent problems.

Key Metrics for Copper Fin Heat Exchanger Performance

Calculating Heat Transfer Rate (Q)

When I evaluate a heat exchanger, calculating the heat transfer rate (Q) is fundamental. This tells me how much heat moves from one fluid to another. For a finned surface, the core equation I use is: Q = η × h × Af × (Tb – T∞). Here, Q is the rate of heat transfer in Watts. η represents fin efficiency, h is the heat transfer coefficient, Af is the finned surface area, Tb is the base temperature, and T∞ is the ambient or fluid temperature. I find these formulas are highly applicable to a Copper Fin Heat Exchanger because copper's high thermal conductivity directly impacts performance.

Understanding Overall Heat Transfer Coefficient (U)

The overall heat transfer coefficient (U) is another critical metric. It quantifies the total thermal resistance to heat flow between the fluids. A higher U value indicates better heat transfer performance. I always aim for a high U value to ensure efficient operation.

Measuring Effectiveness (ε)

I also measure the effectiveness (ε) of the heat exchanger. This metric tells me how close the actual heat transfer comes to the maximum possible heat transfer. I define effectiveness as ε = Q_actual / Q_max_possible. Q_actual is the actual heat transferred, while Q_max_possible is the theoretical maximum. Alternatively, I can express effectiveness as a function of the Number of Transfer Units (NTU) and the heat capacity ratio (C_r), so ε = f(NTU, C_r). NTU involves the overall heat transfer coefficient (U) and heat transfer area (A).

Analyzing Pressure Drop (ΔP)

Analyzing pressure drop (ΔP) across the heat exchanger is crucial. A significant pressure drop means more pumping power is needed, which increases operational costs. I look for a balance between efficient heat transfer and acceptable pressure drop.

Assessing Fin Efficiency

Fin efficiency is vital for finned heat exchangers. It indicates how effectively the fin transfers heat from its base to the surrounding fluid. I calculate it using η = tanh(mL) / (mL), where 'm' depends on the heat transfer coefficient, thermal conductivity, and fin thickness. High fin efficiency ensures maximum heat dissipation.

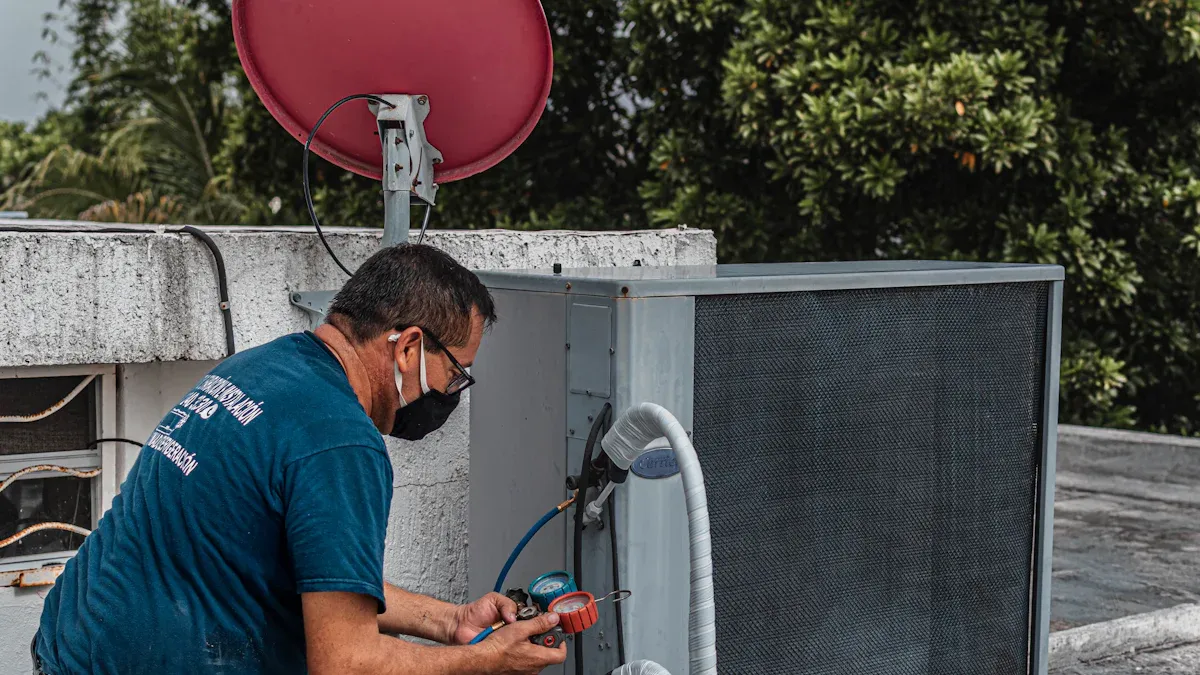

Practical Evaluation of Your Copper Fin Heat Exchanger

Essential Data Collection for Analysis

I begin any practical evaluation by collecting essential data. Accurate measurements are crucial for understanding how a heat exchanger performs. I focus on specific temperature and flow rate measurements. These include the inlet temperature of the cold fluid (TCin) and its outlet temperature (TC). I also measure the inlet temperature of the hot fluid (shell side: Tin; tube side: tin) and its outlet temperature (shell side: Tout; tube side: tout). I record the flow rate of each pipe (q1, q2, qn). I also consider temperature uncertainty (Ut) and total uncertainty of flow rate (Uq). These measurements help me determine the mean temperature of the fluid at various points. I calculate the heat transferred using the fluid's mass flow rate, which comes from its density, mean velocity, and specific heat. This data is vital for understanding temperature distribution and total heat transfer.

Applying Energy Balance and LMTD Methods

After collecting the data, I apply energy balance principles. This means I ensure the heat lost by the hot fluid equals the heat gained by the cold fluid, assuming no heat loss to the surroundings. I then use the Log Mean Temperature Difference (LMTD) method. This method helps me calculate the average temperature difference between the two fluids in the heat exchanger. The LMTD is particularly useful when I know all inlet and outlet temperatures. It allows me to determine the heat transfer rate accurately under steady-state conditions.

Utilizing the Effectiveness-NTU Method

Sometimes, I do not know the outlet temperatures of the fluids. In these situations, I prefer the Effectiveness-NTU method. This method is excellent when outlet temperatures are unknown because it relies on inlet temperatures and the heat exchanger's characteristics for calculation. It offers a straightforward approach for analyzing complex flow arrangements, such as cross-flow or multi-pass heat exchangers. I use specific effectiveness-NTU relationships for these designs. This method allows me to directly calculate the heat transfer rate and outlet temperatures without needing iterative procedures. The LMTD method, in contrast, requires all inlet and outlet temperatures to be known or estimated. It also struggles with complex flow arrangements, often needing cumbersome correction factors that can introduce uncertainties.

Visual Inspection for Performance Issues

A thorough visual inspection is a simple yet powerful tool for identifying performance issues. I look for several key indicators. Discoloration or black soot often signals incomplete carbon combustion, which could mean a cracked heat exchanger or improperly adjusted burners. White soot around burners also suggests incomplete combustion. I carefully check for cracks or pinhole leaks. These are direct pathways for dangerous gases and often result from thermal fatigue due to constant heating and cooling cycles, significant temperature differences, or vibrations. I also note any visible physical damage to the unit, rust, or corrosion on the Copper Fin Heat Exchanger. Escaping flue gases cause discoloration and serve as a clear visual clue of a problem.

The Role of Condensate in Performance

Condensate plays a significant role in the performance of heat exchangers, especially in cooling applications. When warm, moist air comes into contact with cold fins, water vapor condenses. While this is a normal part of the process, excessive condensate can lead to problems. It can reduce the effective heat transfer surface area by forming a film or even blocking airflow. This reduces efficiency. I ensure proper drainage systems are in place to manage condensate effectively and prevent performance degradation.

Maintaining Optimal Performance with Regular Cleaning

Regular cleaning is essential for maintaining optimal performance. Fouling, which is the accumulation of unwanted material on heat transfer surfaces, significantly reduces efficiency. I recommend several cleaning methods. Chemical cleaning uses specific chemical agents to remove fouling. Safety precautions are crucial here. I always review manufacturer guidelines, wear personal protective equipment (PPE), and ensure the system is shut off and isolated. After releasing pressure, I attach hoses, fill and test the system, and allow sufficient time for the agent to work. Thorough rinsing, inspection, reassembly, testing, and restarting follow. I also adhere to local discharge regulations. Mechanical cleaning involves specialized tools to physically remove deposits. High-pressure cleaning can remove stubborn fouling, but I am aware of the risks of damaging surfaces, incomplete cleaning, hazardous waste streams, and safety hazards for operators.

Senjun's Expertise in Copper Fin Heat Exchangers

At Senjun, we are deeply committed to the research, development, and production of advanced copper fin heat exchangers. We focus on innovations like micro-fin geometries and additive manufacturing to achieve efficiency and sustainability goals in thermal management. Our product range is extensive. We offer small cold chain box evaporators, household air conditioner single-row condensers, and industrial large-scale table cooler air-cooled coolers with copper tubes and copper fins. We also produce industrial chiller table cooler copper tube aluminum fin condensers, U-Type 9.52mm Air Conditioner Condensers, and U-type finned condenser finned heat exchanger table coolers. Senjun provides versatile refrigeration components and heat exchangers for kitchen and home air conditioners. Our expertise ensures reliable and high-performing solutions for various applications.

Interpreting Results and Troubleshooting Common Issues

Comparing Actual vs. Design Performance

I always compare the actual performance data of a Copper Fin Heat Exchanger against its original design specifications. This comparison helps me understand if the unit operates as intended. Significant deviations indicate potential problems. For instance, if the actual heat transfer rate is lower than the design rate, I know an issue exists. This step is crucial for identifying underperforming systems.

Identifying Common Performance Problems

I frequently encounter several issues that reduce heat transfer efficiency. Fouling is a major culprit. It involves the accumulation of deposits like mineral scaling, biological growth, or corrosion on heat transfer surfaces. These deposits act as thermal insulators. I also observe problems related to fluid flow configuration. The arrangement of fluid movement, such as counterflow versus parallel flow, significantly impacts efficiency. A common issue is blockage. The heat exchanger's flow path can become obstructed by solid particles or biological slime. This leads to a sharp decrease in media flow and a significant increase in pressure drop. It severely reduces heat transfer efficiency. Other problems I identify include vibration issues, exchanger leakage, and increasing energy consumption.

Implementing Corrective Actions

When I find performance issues, I implement corrective actions. For fouling, chemical cleaning is highly effective. I isolate the heat exchanger by closing valves. I estimate the volume of the heat exchanger and relevant pipe sections to determine the cleaning solution tank size. I position the chemical feed pump so the return line goes to the top of the cleaning solution tank. I add water to the cleaning solution tank and circulate it. Then, I add an anti-foaming agent. I add the recommended cleaning product to the tank. I test the pH of the solution; I add more cleaning product until the pH is between 2 and 3. I allow the solution to circulate. The heat exchanger is clean when the pH remains stable. I then neutralize the cleaning solution. For mineral deposits, I use products like Scalzo, which contains hydrochloric acid. For stainless steel components, I recommend CA-100, which uses citric acid. I also establish regular treatment plans with water treatment companies. This ensures professional chemical treatment and prevents future fouling. I also use Reliability-Centered Maintenance and Condition-Based Maintenance to proactively address potential issues.

I systematically analyze key performance metrics to understand your system's health. Collecting accurate operational data is crucial for my assessment. I apply appropriate calculation and inspection methods to evaluate performance thoroughly. This comprehensive approach ensures optimal operation and efficiency for your Copper Fin Heat Exchanger.

FAQ

How do I know if my heat exchanger is performing poorly?

I compare actual heat transfer rates and pressure drops to design specifications. Significant deviations indicate poor performance. I also look for visual signs like discoloration or leaks.

What is the most important factor for maintaining efficiency?

Regular cleaning is crucial. I prevent fouling by removing deposits. This ensures optimal heat transfer and airflow.

Can I use the LMTD method if I don't know outlet temperatures?

No, I cannot. The LMTD method requires all inlet and outlet temperatures. I use the Effectiveness-NTU method when outlet temperatures are unknown.
