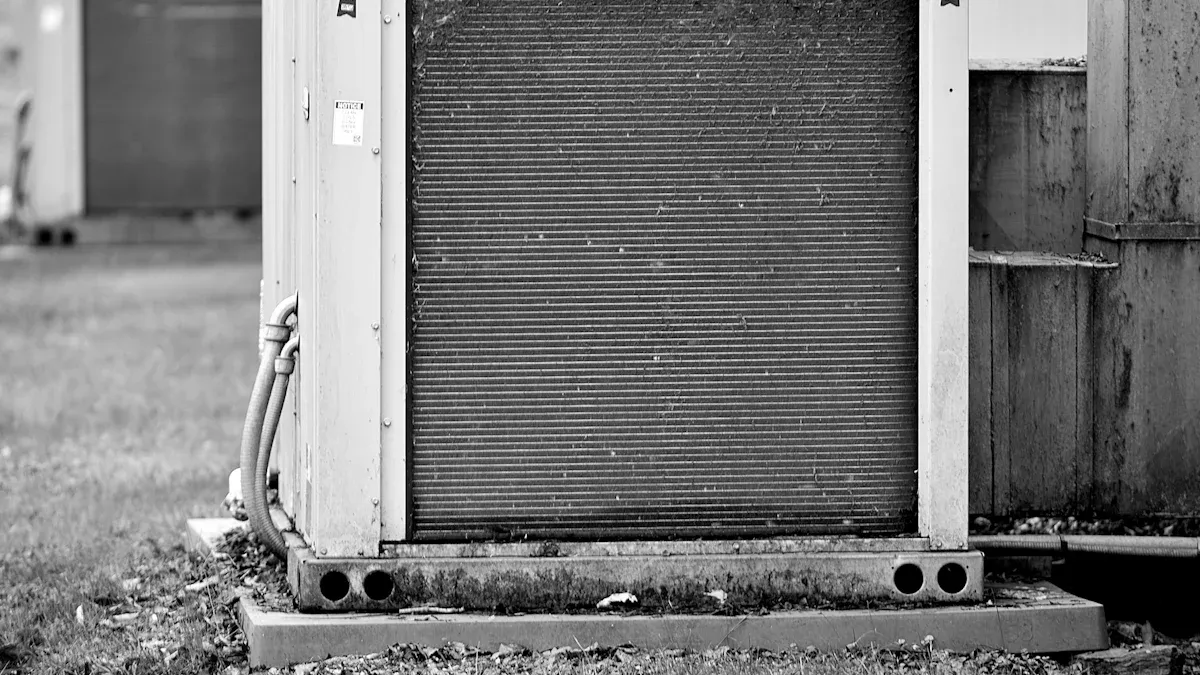

How to Choose the Right Wire Tube Condenser for Your Refrigeration System?
Choosing the right Industrial Chiller Condenser is critical for system performance. A suitableWire Tube Condenser significantly improves efficiency and longevity. For instance, optimal selection can yield a 4.7% higher coefficient of performance and 4.68% less compressor power. This systematic approach to selecting refrigeration condenser ensures robust Industrial refrigeration solutions. "What is the best condenser for a commercial freezer?" often involves considering Copper Fin Heat Exchange options.
Key Takeaways
- Understand your refrigeration system's needs. This includes cooling capacity, operating conditions, and how well the condenser fits with other parts.
- Choose the right materials and design for the condenser. Materials like copper transfer heat well, and good design helps the condenser work better.
- Think about efficiency, cost, and how easy it is to install and maintain. A good condenser saves money over time and needs less repair.

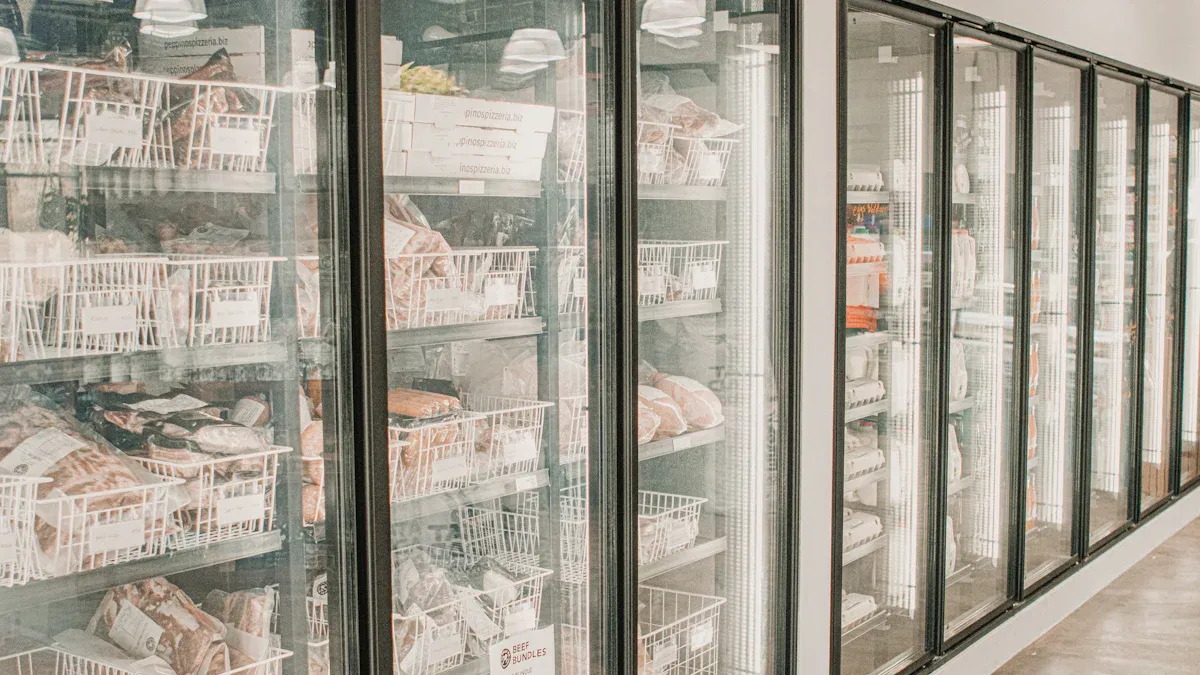

Understanding Your Refrigeration System's Needs
Choosing the right wire tube condenser begins with a clear understanding of the refrigeration system's specific demands. This foundational step ensures the condenser performs optimally and integrates seamlessly.
Assessing Cooling Capacity Requirements
First, engineers determine the exact cooling capacity a system needs. This calculation is crucial for selecting a condenser that can effectively dissipate heat. Several standard methods help calculate the required cooling capacity for commercial refrigeration systems. For smaller commercial spaces, professionals often adapt the Manual J Load Calculation, which provides a detailed analysis of heat gain and loss. Larger commercial projects typically use the Manual N Load Calculation. This method considers complex occupancy patterns, internal heat gains, and ventilation requirements specific to commercial buildings.
The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) also provides widely recognized guidelines and standards, such as ASHRAE 90.1, for calculating cooling loads. For a detailed analysis, advanced tools like Trane Trace, Carrier HAP, or EnergyPlus model building and HVAC System performance. These tools account for local weather data, building materials, and occupancy patterns.
Calculating the total cooling load involves summing various components:
- Transmission load: Heat entering through walls, ceiling, and floor.
- Product load: Heat removed from stored items.
- Internal load: Heat generated by lights, motors, and people inside the refrigerated space.
- Equipment load: Heat from evaporator fans and other internal machinery.
- Infiltration load: Heat from outside air entering the space.
One can calculate the infiltration load using a specific formula: Q = changes x volume x energy x (Temp out – Temp in ) / 3600. Here, 'Q' represents kWh/day, 'changes' is the number of volume changes per day, 'volume' is the cold store's volume, and 'energy' is the energy per cubic meter per degree Celsius. 'Temp out' is the outside air temperature, and 'Temp in' is the inside air temperature. For example, a cold room with 5 volume changes per day, 120m³ volume, 2kJ/°C energy, 30°C outside, and 1°C inside results in an infiltration load of 9.67 kWh/day.
After summing all loads, applying a safety factor, typically 10% to 30%, is a good practice. For instance, if the total load is 72.27 kWh/day, applying a 20% safety factor brings it to 86.7 kWh/day. Finally, to size the refrigeration cooling capacity, divide the total daily cooling load by the estimated daily run time of the refrigeration unit. If the unit runs 14 hours a day, the required capacity would be 6.2 kW.
Key factors influence these calculations:
- Room Volume (m³)
- Desired Storage Temperature
- Outdoor Temperature
- Product Load
- Heat Generation from Lighting Systems
- Human Activity
- Other Equipment
- Heat Losses from Walls, Ceiling, and Floor
- Evaporator Fan Heat
Simplified methods, like Eurovent Standards, also provide approximate cooling capacity based on room volume, desired storage temperature, and average outdoor temperature.
Analyzing Operating Conditions and Environment
The environment where a refrigeration system operates significantly impacts condenser performance and longevity. Air-cooled wire tube condensers, for example, show susceptibility to variations in ambient temperature. These temperature changes directly affect their cooling efficiency. While these condensers often offer lower initial costs and reduce water consumption, their performance can fluctuate with the surrounding air temperature.
Temperature fluctuations can also lead to material fatigue in wire tube condensers. This fatigue negatively impacts their overall performance and shortens their lifespan. Regular maintenance and protective measures become crucial to mitigate these effects and ensure the condenser lasts.
Beyond temperature, other environmental factors demand careful consideration. High humidity levels are a critical factor in refrigeration system design. They can lead to moisture accumulation, potentially causing corrosion or freezing in evaporators. Conversely, dry conditions can cause seals to dry out and crack, leading to leaks in the system.
Air quality also plays a role. Uncontrolled ventilation with outdoor air can introduce contaminants, bypassing filters and potentially disrupting mechanical ventilation balance. This can also lead to the introduction of excess moisture, necessitating careful consideration in HVAC system design to prevent these issues. Experimental research indicates that relative humidity significantly influences the Coefficient of Performance (COP) of air conditioning systems, particularly when exceeding 65%. This factor, often overlooked in design, shows a notable impact on system performance under high humidity conditions compared to low humidity.
Ensuring System Compatibility and Integration
A wire tube condenser does not operate in isolation; it forms an integral part of a larger refrigeration system. Therefore, ensuring system compatibility and seamless integration is paramount. Engineers must consider the physical dimensions of the condenser. It needs to fit within the available space without obstructing airflow or access for maintenance.
Electrical requirements are another critical aspect. The condenser's power consumption and voltage must match the system's electrical supply. Control systems also need to integrate smoothly. The condenser's controls should communicate effectively with the compressor and other system components to maintain desired temperatures and optimize energy use.
Matching the condenser's heat rejection capacity with the compressor's heat generation is essential for efficient operation. An undersized condenser forces the compressor to work harder, reducing efficiency and lifespan. An oversized condenser might lead to short cycling and unnecessary energy consumption. The overall design of the Industrial chiller condenser must align with the system's specific demands, ensuring all components work in harmony. This holistic approach guarantees optimal performance and reliability for the entire refrigeration setup.

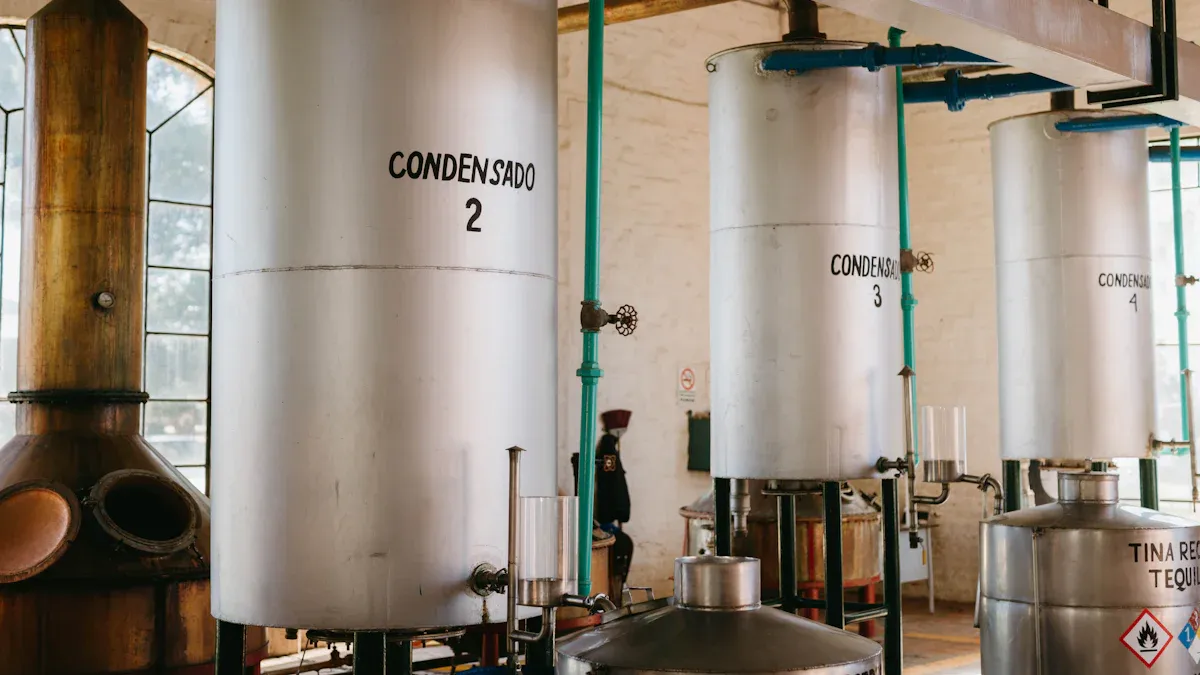

Material, Design, and Industrial Chiller Condenser Specifications
Choosing the right materials and design for a wire tube condenser significantly impacts its performance and lifespan. Engineers carefully consider these specifications to ensure the condenser meets the system's demands.
Selecting Durable and Corrosion-Resistant Materials
The choice of material for a wire tube condenser directly affects its heat transfer capabilities and how long it lasts. Different materials offer unique advantages. For example, copper excels at heat transfer, making it a top choice for many applications. Aluminum also provides excellent heat transfer, though it has a lower melting point. Stainless steel, while not as good at heat transfer as copper or aluminum, offers superior corrosion resistance and mechanical strength.
| Material | Heat Transfer (Thermal Conductivity) | Durability (Corrosion Resistance, Strength, Longevity, Temperature Range) |
|---|---|---|
| Copper | Excellent (one of the best) | Good corrosion resistance (especially in water), long lifespan, susceptible to galvanic corrosion |
| Aluminum | Excellent (efficient) | Good corrosion resistance (protective oxide layer), lower strength, limited temperature range (lower melting point) |
| Stainless Steel | Lower (compared to copper and aluminum) | Highly resistant to corrosion, excellent mechanical strength and durability, wide temperature range, heavier |
In harsh environments, like marine settings, selecting highly corrosion-resistant materials becomes even more critical for an Industrial chiller condenser. These specialized materials withstand the corrosive effects of saltwater and other aggressive elements.
- Titanium
- Cupro-nickel alloys
- Stainless steel (316L)
- Aluminum-bronze
- Duplex stainless steel (2205)
| Material | Key Properties | Applications |
|---|---|---|
| Titanium | Excellent corrosion resistance, high strength-to-weight ratio, good heat transfer. | Marine refrigeration condensers, heat exchangers, offshore platforms. |
| Cupro-nickel alloys | Excellent resistance to seawater corrosion, biofouling, and erosion. Good thermal conductivity. | Marine heat exchangers, piping systems, condensers. |
| Stainless steel (316L) | Good corrosion resistance in marine environments, especially against pitting and crevice corrosion. | Marine refrigeration condensers, structural components, tanks. |
| Aluminum-bronze | High strength, good corrosion and erosion resistance, especially in high-velocity seawater. | Marine heat exchangers, pumps, valves, propellers. |
| Duplex stainless steel (2205) | Superior corrosion resistance and higher strength than 316L stainless steel, excellent resistance to stress corrosion cracking. | Marine refrigeration condensers, chemical tankers, offshore applications. |
These materials ensure the condenser performs reliably even under challenging conditions, extending its operational life.
Optimizing Dimensions and Structural Design
The physical design of a wire tube condenser plays a crucial role in its efficiency. Engineers carefully consider tube diameter and fin structure to maximize heat transfer. A smaller tube diameter can increase the local heat transfer coefficient, which helps transfer heat between the refrigerant and the inner tube wall more effectively. However, tubes spaced too closely can create an unacceptably high air pressure drop on the outside. The goal is to achieve maximum performance without excessive cost.
An overly large fin size would increase manufacturing costs due to more material and result in a larger heat exchanger than necessary. Fin size selection also considers condensate film formation in evaporator coils. Tube spacing dictates the 'fin size' used in fin-design simulations. The final fin pattern design aims to maximize heat transfer capacity while maintaining a low air pressure drop, leading to higher energy efficiency.
- Tube Diameter: Smaller tube diameters can increase the heat transfer area, enhancing the heat transfer effect, especially when high heat transfer requirements are present. Larger diameters are suitable for high flow and low pressure drop needs.
- Fin Structure (Shape, Size, Spacing):
- Corrugated and Serrated Fins: These shapes enhance fluid perturbation, improving heat transfer efficiency, though they may increase resistance.
- Flat Fins: Offer less resistance, suitable for applications with strict resistance requirements.
- Fin Spacing: Optimal spacing is crucial. Too small a spacing can lead to dust accumulation and clogging, reducing heat transfer. Conversely, excessively large spacing is inefficient and wastes material.
Considering Tube Layout and Heat Dissipation Area
The way tubes are arranged within the condenser, known as the tube layout, also impacts its performance. Two common layouts are serpentine and multiple parallel flow. Each offers distinct advantages depending on the application.
| Feature / Type | Serpentine Copper Tube Heat Exchangers | Multiple Parallel Flow Condensers |
|---|---|---|
| Advantages | Simple design, minimal shade for plants, easy to maintain, low cost | Dissipate heat quickly (increased pipes/surface area), accelerate condensation, suitable for various gas condensation processes (AC, refrigeration, chemical, petroleum, paper industries), modular design simplifies maintenance/disassembly |
| Disadvantages | N/A | High initial cost (complex production, more materials/processes), high space requirements, difficult to clean (thin pipelines) |
The overall heat dissipation area is another critical factor. The wire-tube structure significantly enhances heat transfer by increasing the surface area for heat release. This design improves the efficiency of refrigeration systems by promoting more effective heat exchange between the refrigerant and ambient air. Efficient heat transfer directly translates to lower power usage, which is crucial for reducing energy consumption.
| Performance Aspect | High-Efficiency Wire Tube Condensers | Standard Condensers |
|---|---|---|
| Heat Transfer Coefficient | Approximately 50% higher than plate condensers | Standard, lower heat transfer rates |
| Energy Consumption | Reduced due to improved heat transfer efficiency | Higher due to less efficient heat transfer |
Wire tube condensers can save up to 50% more energy compared to traditional plate condensers. This leads to lower electricity bills over time, even with potentially higher initial installation costs. This makes them an excellent choice for an Industrial chiller condenser where energy efficiency is a priority.
Evaluating Efficiency, Cost, and Practical Implementation
Choosing a wire tube condenser involves more than just understanding technical specifications. It also requires a careful evaluation of its efficiency, the overall cost, and how easily you can install and maintain it. These factors directly impact the long-term success and profitability of any refrigeration system.
Key Heat Transfer Metrics and Performance Standards
Engineers rely on specific metrics and standards to assess a wire tube condenser's efficiency. These benchmarks ensure the condenser performs as expected and meets industry requirements. For instance, certifications from organizations like AHRI provide assurance. AHRI certification guarantees consistent and valid thermal performance ratings. This builds buyer confidence and promotes fair competition among manufacturers. It also helps systems comply with efficiency regulations and qualify for tax credits.
Safety is another critical aspect. UL (Underwriters Laboratories) primarily focuses on safety and safe operation under pressure for refrigeration coils, including evaporators and condensers. UL determines required pressure ratings and test pressures. It adheres to standards like UL Standard 207/SA7213 and SA7228. The ASME (American Society of Mechanical Engineers) also plays a vital role. ASME certifies the mechanical design of pressure-containing parts such as tubes, return bends, headers, and connections. This ensures they meet specified design pressures and temperatures. This process involves calculations, third-party review, and final pressure testing, indicated by a 'U' stamp. The ASME Boiler and Pressure Vessel Code, Section VIII, specifically states that evaporator and condenser shell and tube sections must be constructed to this code and carry the ASME stamp. This ensures structural integrity and safety for the entire system.
Conducting a Comprehensive Cost-Benefit Analysis
A thorough cost-benefit analysis helps decision-makers choose the most economical and efficient wire tube condenser. While a higher upfront cost might seem daunting, it often leads to significant long-term savings. For example, upgrading to high-efficiency heat pumps in a commercial office building (71,000 sq ft) can result in annual savings of approximately $62,000, with a payback period of about 3 years.
| Building Type | System Type | Annual Savings | Payback Period |
|---|---|---|---|
| Commercial Office (71,000 sq ft) | High-efficiency heat pumps | ~$62,000 | ~3 years |
Selecting more durable materials for an Industrial chiller condenser, even if they cost more initially, offers substantial long-term operational cost savings.
- Minimizing Warranty Claims and Service Costs: Robust construction leads to fewer product failures. This reduces warranty claims, service calls, and associated costs for parts, labor, and logistics.
- Reduced Maintenance Expenses: Durability means fewer breakdowns. This lowers spending on repairs and replacement parts. It also avoids costly service calls.
- Extended System Operational Life: Reliable performance prevents premature wear and tear on other components. This delays the need for full system replacement. It saves significant capital expenses.
- Energy Efficiency: Effective heat transfer means the refrigeration system's compressor works less. It consumes less power. This leads to smaller electricity bills over the system's lifespan.
Consider the savings over a 20-year period when comparing different materials:
| Cost Category | 22 BWG Titanium (vs. 18 BWG Cu-Ni) | N08367 (vs. 18 BWG Cu-Ni) | 22 BWG S44660 (vs. 18 BWG Cu-Ni) | 24 BWG S44660 (vs. 18 BWG Cu-Ni) |
|---|---|---|---|---|
| Fuel Savings (20 years) | $2.0 million | $665,000 | $1.75 million | $2.67 million |
| Lost Income from Tube Leaks | No cost | No cost | No cost | No cost |
| Chemical Treatment (annual) | Not required / Minimal | Not required / Minimal | Not required / Minimal | Not required / Minimal |
| Copper Plating Cleaning (4 years) | Not required | Not required | Not required | Not required |
| Total Savings (20 years) | Significant | Significant | Over $16,000,000 (for S44660) | Over $16,000,000 (for S44660) |
More durable materials like titanium and S44660 offer significant fuel savings over 20 years. This is due to better heat transfer. These savings can range from $665,000 to $2.67 million compared to copper-nickel. Additionally, traditional chemical treatments, which cost approximately $100,000 per year to protect copper tubing, are not required or are minimal with alternative materials. Copper-nickel's susceptibility to erosion-corrosion and H2S-related pitting can lead to annual tube leaks. This causes plant derates and an income loss of $225,000 per event. More durable alternatives eliminate these costs. Dissolved copper from copper-nickel tubes can also plate on boiler tubes and turbine blades. This leads to turbine derates and requires costly cleaning. These issues are avoided with copper-free alternatives, preventing enormous financial impacts.
Essential Installation and Maintenance Guidelines
Proper installation and regular maintenance are crucial for a wire tube condenser to perform optimally and last a long time. Following best practices during installation prevents common errors and ensures efficient operation.
- Choose the Right Location for the Outdoor Unit:
- Clearance: Ensure at least 12 inches of space around the condenser for air circulation. Always check the unit's manual for specific clearance requirements.
- Level Ground: Install the unit on a level surface, such as a concrete slab or solid base. This prevents strain on the compressor.
- Protection from Debris: Select a location protected from direct sunlight and falling debris (e.g., leaves, twigs). This prevents airflow obstruction and reduces system workload.
- Review Manufacturer’s Guidelines: Adhere strictly to the specific installation instructions provided by the manufacturer. This ensures compliance and maintains warranty validity.
- Verify Your Power Supply:
- Voltage: Confirm that the electrical supply matches the condenser unit's voltage requirements (e.g., 240V dedicated circuit for most R-32 condensers).
- Breaker Size: Ensure the breaker size is appropriate for the unit's amperage. The installation manual specifies this. This prevents electrical issues or damage.
Regularly cleaning condenser coils is crucial for maintaining AC unit efficiency and extending its lifespan. Over time, dirt, debris, and grime can clog these coils. This reduces the system's ability to expel heat effectively. This strains the unit and increases energy consumption.
For most residential units, a thorough condenser coil cleaning once a year is recommended. This is part of annual pre-season AC maintenance. More frequent coil cleanings (every 6 months or so) may be necessary in certain situations:
- Homes in areas with high levels of airborne dust, pollen, pollution, or industrial contaminants.
- Households with multiple pets that generate more dander, hair, and indoor allergens.
- Outdoor condensers located next to a dusty dirt road or under trees/vegetation that spreads debris.
Visually inspect condenser coils monthly, even under ideal conditions. If you notice thick visible buildup, cleaning is needed to prevent efficiency issues.
Choosing the right wire tube condenser is crucial for your refrigeration system. It ensures optimal performance and longevity. Always consider efficiency, cost, and design specifications. For complex applications, like an Industrial chiller condenser, expert consultation is highly recommended. This guarantees the best solution.
FAQ
What is a wire tube condenser?
A wire tube condenser is a heat exchanger. It removes heat from refrigerant gas. This turns the gas into a liquid. It helps refrigeration systems work efficiently.
Why does material choice matter for a condenser?
Material choice affects heat transfer and durability. Copper transfers heat well. Stainless steel resists corrosion. The right material ensures long-lasting, efficient performance.
How often should one clean a condenser?
Clean residential condensers yearly. For dusty areas or homes with pets, clean every six months. Regular cleaning maintains efficiency and extends lifespan.
