How to Choose the Right Copper Fin Heat Exchanger for Your Industrial Cooling System,
Selecting the right copper fin heat exchanger is crucial for achieving optimal cooling efficiency and enhancing system performance in industrial applications. A well-chosen high-efficiency heat exchanger can significantly impact operational costs and energy consumption. Factors such as fin spacing, thickness, and thermal conductivity play vital roles in the effectiveness of the industrial cooling heat exchanger. For instance, copper fins, with their superior thermal conductivity, outperform aluminum options, making them a preferred choice in many settings. Informed copper fin heat exchanger selection leads to improved efficiency and longevity of the cooling system heat exchanger.
Key Takeaways
- Understand your specific application needsbefore selecting a copper Fin Heat Exchanger. Different industries have unique cooling requirements that affect performance.
- Evaluate fluid compatibility carefully. Choosing the right fluids minimizes corrosion risks and enhances Heat Transfer efficiency.
- Focus on thermal efficiency. Copper's high thermal conductivity makes it an excellent choice for effective heat management in industrial applications.
- Prioritize regular maintenance to extend the lifespan of your heat exchanger. Routine inspections and cleaning can prevent costly downtime and repairs.
- Follow a structured buying process. Assess material availability, evaluate costs, and request necessary certifications to ensure optimal performance.

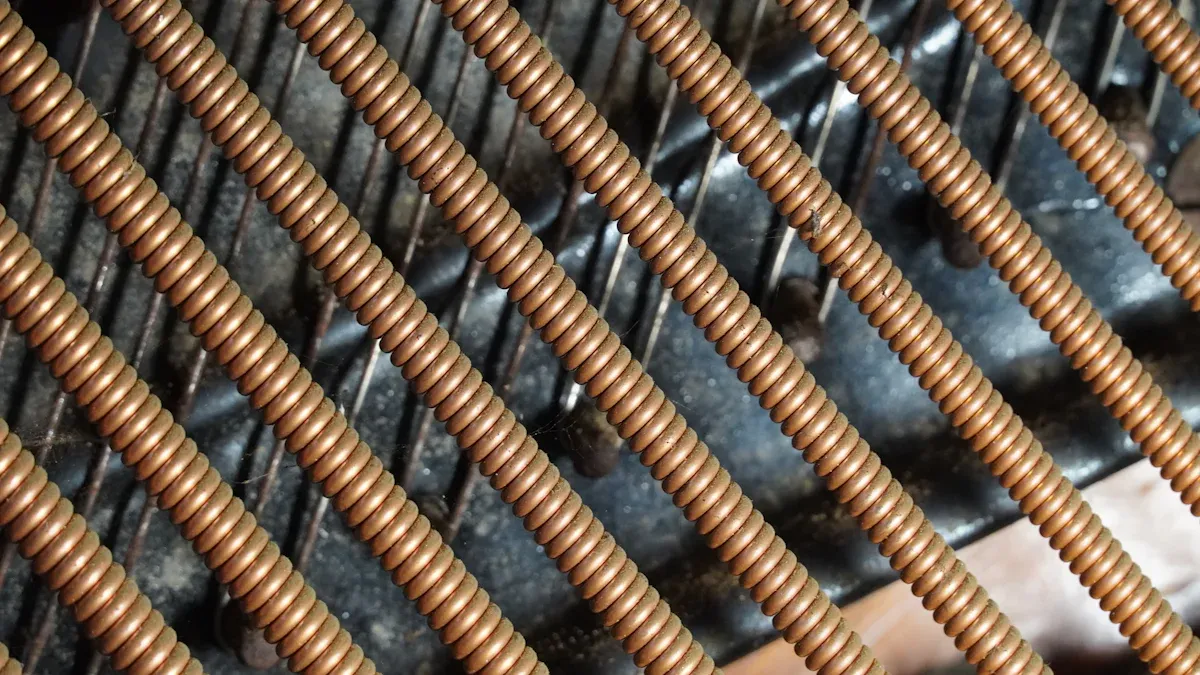

Understand Your Application Requirements
Choosing the right copper fin heat exchanger begins with a clear understanding of the specific application requirements. Each industrial setting has unique needs that dictate the design and functionality of the heat exchanger. Here are some key factors to consider:
-
Industry Type: Different industries have varying cooling demands. For example:
- The food and beverage industry relies on precise temperature control to maintain hygiene standards.
- Steam power plants require efficient heat transfer to operate within specific temperature ranges.
- Automotive manufacturing benefits from enhanced cooling processes, especially during painting engineering.
- Chemical production facilities focus on improving process efficiency and reducing charging times.
- Electronic cooling systems are crucial for data centers and telecommunications equipment.
-
Operational Parameters: Evaluate the following parameters to determine the suitability of a copper fin heat exchanger for your application:
| Parameter | Description |
|---|---|
| Heat Transfer Capacity | Determines the amount of heat that can be transferred by the exchanger. |
| Flow Rate | Affects the efficiency of heat transfer and overall performance. |
| Pressure Drop | Impacts energy consumption and system design. |
| Temperature Approach | Indicates the temperature difference between the fluids, affecting efficiency. |
| Heat Transfer Area | Larger areas typically enhance heat transfer capabilities. |
| Material Compatibility | Ensures the materials can withstand the operating conditions without degradation. |
| Fouling Resistance | Essential for maintaining performance over time by minimizing buildup. |
- Temperature and Pressure Ranges: Understanding the typical temperature and pressure ranges that copper fin heat exchangers can handle is vital. The following table outlines these ranges:
| Parameter | Typical Range for ACHE Suitability |
|---|---|
| Process Inlet Temp | 80°C to 300°C |
| Process Outlet Temp | ≥ 10°C above ambient |
| Ambient Air Temp | < 45°C optimal, < 50°C possible |
| Process Fluid Type | Pressure Range | ACHE Compatibility |
|---|---|---|
| Hydrocarbon Vapors | Up to 100 bar | Excellent |
| Steam (non-condensing) | Up to 30 bar | Good |
| Ammonia or Refrigerants | Up to 60 bar | With design mods |
| Viscous Liquids | < 20 bar | Limited |
- Monitoring and Maintenance: Regular monitoring of operating conditions is vital for efficiency and longevity. Ideal operational temperatures for copper heat exchangers should remain below 150°C to prevent material fatigue. Consistent temperatures within the recommended range can improve the lifespan of the fins by up to 40%.
By thoroughly understanding these application requirements, industrial operators can make informed decisions when selecting a copper fin heat exchanger. This knowledge ensures optimal performance and efficiency in their cooling systems.

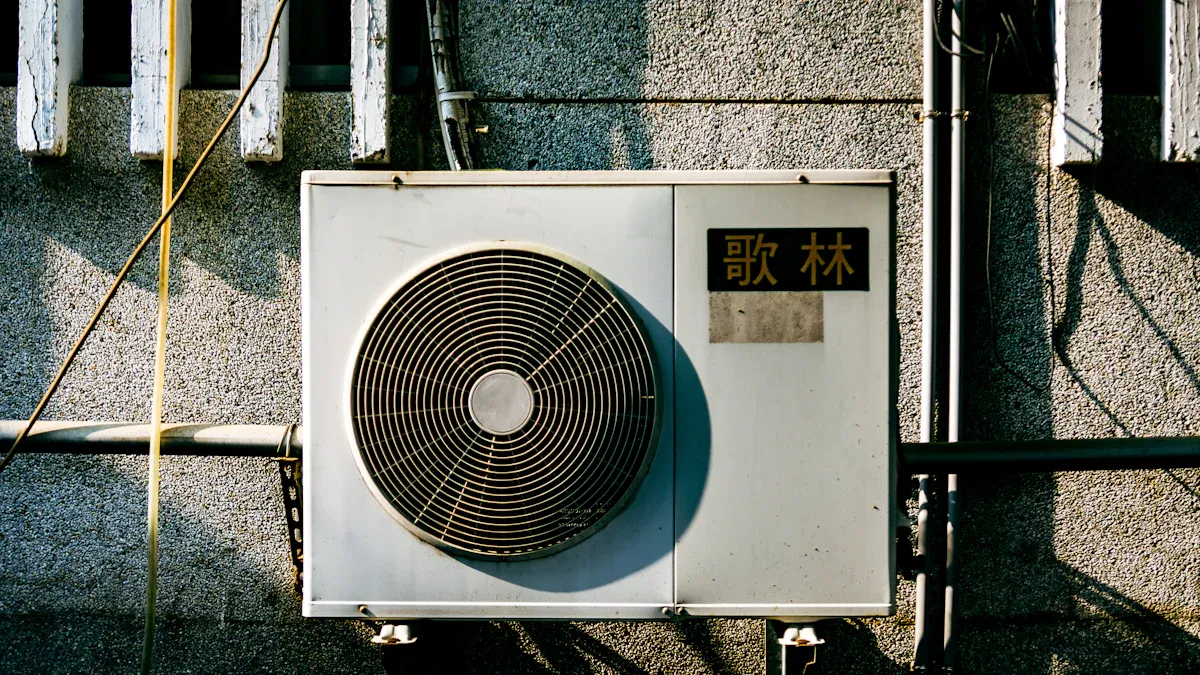

Evaluate Fluid Compatibility
Fluid compatibility plays a critical role in the performance and longevity of copper fin heat exchangers. Selecting the right fluids ensures efficient heat transfer and minimizes the risk of corrosion and fouling. Here are key considerations when evaluating fluid compatibility:
- Commonly Used Fluids: The following fluids are frequently utilized in conjunction with copper fin heat exchangers:
| Fluid Type |
|---|
| Water |
| Ethylene Glycol/Water (EGW) |
| Other Common Coolants |
-
Corrosion Risks: Copper can react with various industrial fluids, leading to potential corrosion issues. Key points to consider include:
- Copper reacts with water, dissolved oxygen, and other substances, leading to corrosion.
- Corrosion products like cuprous oxide and copper sulfides can impair heat transfer and increase maintenance costs.
- Key causes of corrosion include water quality issues, pH imbalances, and flow dynamics.
-
Fouling Concerns: Fouling can significantly impact the efficiency of heat exchangers. Types of fouling include:
- Biofouling
- Particulate fouling
- Scaling
- Corrosion fouling
Fouling can occur due to corrosion products, leading to decreased heat transfer efficiency.
-
Galvanic Corrosion: When copper interacts with other metals, it can lead to galvanic corrosion. This occurs when soluble copper plates onto steel surfaces, causing pitting corrosion. Pitting corrosion poses a significant risk for equipment failure.
-
Compatibility Guidelines: For aggressive or specialized fluids, consider the following compatibility guidelines:
| Alloy Type | Application | Notes |
|---|---|---|
| CuNi 90/10 | Marine and desalination | Ideal for resistance to biofouling and brackish water |
| CuNi 70/30 | Marine and desalination | Recommended for aggressive conditions or higher seawater velocities |
| UNS N04400 | Oil & gas and chemical processing | Enhanced corrosion and oxidation resistance in H₂S and chlorides |
| UNS N08800 | Oil & gas and chemical processing | Suitable for high-temperature applications requiring strong mechanical integrity |
- Consequences of Incompatibility: Documented industrial case studies reveal the following observations regarding fluid incompatibility:
| Metal Type | Observations | Corrosion Issues |
|---|---|---|
| Copper | Minimal surface changes, no significant deterioration | None observed |
| Aluminum | Formation of microdefects and pitting microcorrosion | Corrosion issues noted |
| Combination | Difficult to measure mass variation, sediment formation observed | Uncertain effects due to PCM interaction |
By carefully evaluating fluid compatibility, operators can enhance the performance and lifespan of their copper fin heat exchangers. This proactive approach minimizes risks associated with corrosion and fouling, ensuring optimal cooling efficiency.
Assess Thermal Efficiency
Thermal efficiency is a critical factor when selecting a copper fin heat exchanger. This efficiency directly influences the heat transfer capabilities of the system. Copper is renowned for its high thermal conductivity, which significantly enhances heat transfer performance. The atomic structure of copper allows for efficient energy conduction, making it an ideal choice for applications requiring effective heat management.
To illustrate the thermal conductivity of various materials, consider the following table:
| Rank | Metal | Thermal Conductivity [BTU/(hr·ft⋅°F)] |
|---|---|---|
| 1 | Copper | 223 |
| 2 | Aluminum | 118 |
| 3 | Brass | 64 |
| 4 | Steel | 17 |
| 5 | Bronze | 15 |
This table highlights copper's superiority over other materials, including aluminum and stainless steel, which have significantly lower thermal conductivity ratings. In fact, copper's thermal conductivity is approximately 60% greater than aluminum's and 3,000% greater than stainless steel's. This makes copper fin heat exchangers particularly effective in industrial cooling applications.
Design factors such as fin density and surface area also play a vital role in thermal efficiency. Enhanced fin designs improve heat transfer by increasing surface area and creating turbulence. However, excessive fin density can obstruct airflow and impede heat dissipation. Therefore, achieving a balance between surface area and airflow is crucial for optimizing thermal performance.
Incorporating features like longer fin lengths can lead to heat transfer rate improvements of up to 30%. Additionally, fins with louvered or serrated configurations can significantly enhance heat transfer rates. Proper spacing of fins further optimizes the heat exchange process, ensuring maximum efficiency.
By focusing on these aspects of thermal efficiency, operators can ensure that their copper fin heat exchangers perform at their best, leading to improved cooling system effectiveness and reduced operational costs.
Consider Maintenance Needs
Maintenance is a crucial aspect of ensuring the longevity and efficiency of copper fin heat exchangers. Regular upkeep helps prevent common issues that can lead to costly downtime and repairs. Here are some key maintenance challenges associated with these systems:
| Maintenance Challenge | Description |
|---|---|
| Fouling | Accumulation of debris or scale can hinder heat transfer efficiency. |
| Leaks | Corrosion or gasket failure may lead to leaks, impacting system performance. |
| Pressure drops | Indications of blockages or tube damage can signal the need for immediate attention. |
To minimize operational disruptions, facilities should adopt proactive maintenance strategies. Regular maintenance can significantly reduce unplanned downtime, which often incurs high costs for manufacturers. Consider the following benefits of routine maintenance:
- It helps prevent unexpected repairs, saving time and resources.
- Proactive strategies, such as routine inspections and cleaning, extend the lifespan of the equipment.
- Copper’s inherent corrosion resistance reduces maintenance needs, leading to fewer repairs.
- The long lifespan of copper fins decreases the frequency of replacements, resulting in significant long-term savings.
Facilities often spend billions annually on unexpected repairs due to unplanned downtime. Even a single hour of downtime can cost over $100,000 for many manufacturers. Therefore, regular maintenance contributes to consistent energy efficiency and helps avoid costly repairs.
Implementing preventive maintenance practices can further enhance the lifespan of copper fin heat exchangers. Recommended practices include:
| Maintenance Practice | Description |
|---|---|
| Regular Inspections | Vital for identifying issues like cracks, leaks, and corrosion early to prevent significant problems. |
| Protective Coatings | Hydrophilic treatments enhance wettability and improve corrosion resistance in harsh environments. |
| Cleaning Schedule | Establishing a routine based on manufacturer guidelines helps prevent fouling and corrosion. |
| Mechanical Cleaning | Involves using specialized tools to remove deposits, maintaining the integrity of copper fins. |
By prioritizing maintenance needs, operators can ensure their copper fin heat exchangers operate efficiently and effectively, ultimately leading to improved system performance.
Follow a Step-by-Step Buying Process
Selecting a copper fin heat exchanger requires a systematic approach to ensure the best fit for industrial needs. Following a structured buying process can help streamline decision-making and enhance procurement efficiency. Here are key steps to consider:
-
Assess Material Availability: Determine if the necessary materials for the copper fin heat exchanger are readily available. Delays in material supply can impact manufacturing timelines.
-
Evaluate Costs: Analyze the costs associated with different materials. While copper typically incurs higher costs than aluminum, its superior heat transfer properties justify the investment.
-
Plan for Consistency: Implement strategies to maintain a steady demand for materials. Consistent procurement leads to a more predictable and efficient process.
-
Prioritize Long-Term Efficiency: Industrial buyers should focus on long-term energy efficiency rather than just initial acquisition costs. A significant 78% of procurement managers emphasize this preference. Evaluating factors such as energy consumption, maintenance needs, and reliability is essential.
-
Request Documentation and Certifications: Ensure that suppliers provide necessary documentation. The following table outlines important certifications to request:
| Certification Type | Source |
|---|---|
| ASME U, UM & R | Finned Tube Heat Exchangers Suppliers |
| UL Listing | Finned Tube Heat Exchangers Suppliers |
| CE Certification | Copper Tube Aluminum Fin condenser |
| RoHS Compliance | Copper Tube Aluminum Fin condenser |
| AHRI Performance Certification | Ensures thermal performance meets published ratings |
- Avoid Common Mistakes: Be aware of frequent pitfalls during the selection process. Common mistakes include failing to ensure the heat exchanger can handle specific fluids, overlooking energy efficiency ratings, and ignoring fouling factors that can reduce efficiency.
By following these steps, industrial operators can make informed decisions when purchasing a copper fin heat exchanger. This structured approach minimizes risks and enhances overall system performance.
Selecting the right copper fin heat exchanger is essential for optimizing industrial cooling systems. Key factors include understanding application requirements, evaluating fluid compatibility, and assessing thermal efficiency. Copper's excellent thermal conductivity facilitates effective heat transfer, which is vital for maintaining energy efficiency. Additionally, copper's natural resistance to corrosion enhances durability, leading to reduced maintenance costs and a longer lifespan. By making informed decisions, operators can significantly improve system efficiency and longevity, ensuring reliable performance over time.
FAQ
What is a copper fin heat exchanger?
A copper fin heat exchanger is a device that transfers heat between two fluids using copper fins to enhance thermal conductivity. It is commonly used in industrial cooling systems due to its efficiency and durability.
How do I determine the right size for my heat exchanger?
To determine the right size, assess the required heat transfer capacity, flow rates, and temperature differences. Consult manufacturer specifications and consider operational parameters to ensure optimal performance.
What maintenance is required for copper fin heat exchangers?
Regular maintenance includes inspections for leaks, cleaning to prevent fouling, and monitoring pressure drops. Implementing a routine maintenance schedule can enhance efficiency and prolong the lifespan of the heat exchanger.
Can copper fin heat exchangers handle corrosive fluids?
Copper fin heat exchangers can handle certain corrosive fluids, but compatibility depends on the specific fluid and operating conditions. Always consult compatibility guidelines to prevent corrosion and ensure optimal performance.
What factors affect the thermal efficiency of a heat exchanger?
Key factors include fin design, surface area, fluid flow rates, and temperature differences between the fluids. Optimizing these elements can significantly enhance the thermal efficiency of the heat exchanger.
