Introduction
Choosing the right capillary tube size for a small refrigerator means matching refrigerant flow to the compressor, condenser, and evaporator so the system can reach target temperatures efficiently and reliably. Even small changes in internal diameter or length can shift pressure drop, mass flow, pull-down time, and compressor loading, making this a design decision with direct performance consequences. This article explains the key sizing variables, how tube dimensions interact with refrigerant type and operating conditions, and what practical checks help confirm a suitable selection before final testing.
Why Correct Capillary Tube Size Matters for Small Refrigerators
In vapor-compression refrigeration cycles, the expansion device serves as the critical boundary between the high-pressure condenser and the low-pressure evaporator. For small refrigerators typically operating withincooling capacities of 50W to 200W, the capillary tube is the standard expansion mechanism. Unlike thermostatic expansion valves, a capillary tube is a fixed-orifice device that relies entirely on its internal geometry and fluid dynamics to regulate the mass flow rate of the refrigerant.
Selecting the correct capillary tube size is a foundational engineering requirement. Because the tube cannot mechanically adjust to varying load conditions, its dimensions must be precisely calculated to balance the compressor's pumping capacity with the evaporator's heat absorption rate at nominal operating conditions. Any deviation from the optimal specification forces the compressor to operate outside its designed thermodynamic envelope.
Impact on pull-down time and efficiency
The internal diameter (ID) and length of the capillary tube dictate the frictional pressure drop and, consequently, the mass flow rate of the refrigerant. Achieving the correct capillary tube size ensures optimal volumetric efficiency for the compressor. A highly sensitive non-linear relationship exists between the tube's dimensions and flow restriction; a deviation of just 0.002 inches in the internal bore diameter can alter the mass flow rate by up to 20%.
When the flow rate is accurately matched to the system load, the refrigerator achieves its target pull-down time efficiently. Conversely, severe mismatches extend the continuous run time of the compressor. This not only delays the stabilization of internal cabinet temperatures but can also increase overall energy consumption by 15% to 25%, causing the appliance to fail stringent energy efficiency standards such as those mandated by the EPA or the IEC.
Symptoms of incorrect capillary tube sizing
Recognizing the thermodynamic symptoms of an improperly sized capillary tube is essential for system diagnostics. When a capillary tube is oversized (either too short or having an excessively large internal diameter), the flow restriction is inadequate. This results in an overfed evaporator, characterized by high suction pressures, exceptionally low compressor superheat, and a severe risk of liquid slugging, which can mechanically destroy the compressor valves.
Conversely, an undersized capillary tube (too long or too narrow) severely restricts refrigerant flow, leading to evaporator starvation. The system will exhibit abnormally low suction pressures, reduced cooling capacity, and excessive discharge temperatures that frequently exceed 110°C. Prolonged operation under these starved conditions degrades the compressor oil, accelerates wear on mechanical linkages, and ultimately leads to premature thermal failure of the hermetic compressor.

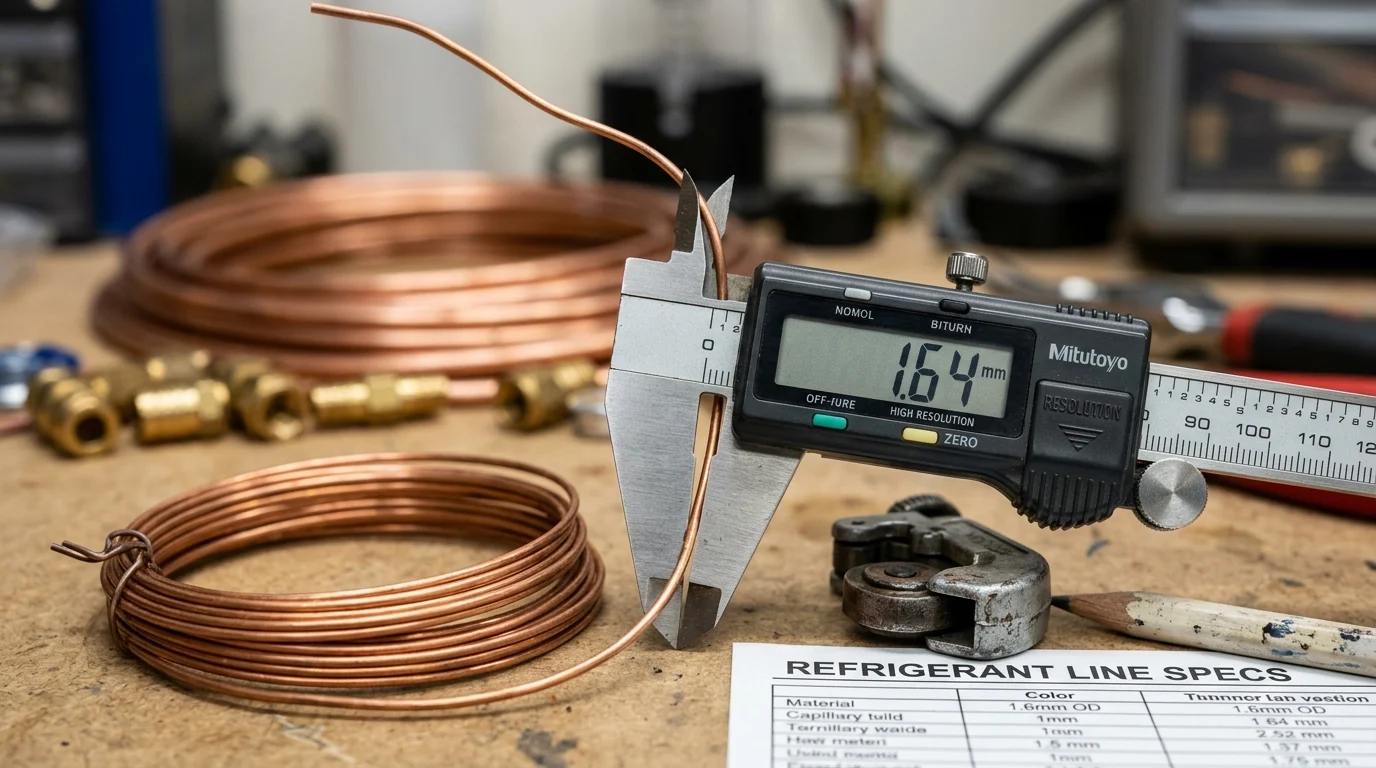

Parameters That Define Correct Capillary Tube Size
Determining the correct capillary tube size requires a comprehensive analysis of the system's thermodynamic states and the physical properties of the working fluid. Engineers must synthesize multiple variables to calculate the required pressure drop. The primary objective is to maintain an equilibrium where the mass flow of refrigerant entering the evaporator exactly matches the vapor mass drawn by the compressor under steady-state conditions.
Refrigerant type and operating temperatures
The thermodynamic properties of the chosen refrigerant fundamentally alter the required capillary tube dimensions. Modern small refrigerators predominantly utilize isobutane (R600a), which operates at significantly lower pressures and possesses a higher volumetric cooling capacity compared to legacy refrigerants like R134a. Consequently, R600a systems generally require capillary tubes with slightly smaller internal diameters or longer lengths to achieve the necessary pressure drop.
Operating temperatures also dictate the sizing parameters. The design must account for the specific application: a dedicated freezer requires an evaporating temperature between -25°C and -18°C, while a standard fresh food compartment operates with an evaporating temperature near -10°C to -5°C. Concurrently, the condensing temperature, typically ranging from 40°C to 55°C depending on ambient conditions and condenser efficiency, establishes the high-side pressure baseline. The capillary tube must bridge this specific pressure differential.
Tube diameter, length, and refrigerant charge
The physical geometry of the tube—specifically its internal diameter and length—works in tandem with the system's critical refrigerant charge. For small domestic refrigerators, capillary tube internal diameters typically range from 0.026 inches to 0.042 inches (0.66 mm to 1.06 mm), with lengths spanning from 1.5 meters to 4.0 meters.
Because capillary tube systems lack receivers, they are highly sensitive to the total refrigerant charge. The correct capillary tube size must be calibrated against a precise charge volume. In modern R600a systems, this critical charge is exceedingly small, often between 30g and 60g. An optimal tube size ensures that during the off-cycle, the pressures equalize rapidly enough to allow the compressor to restart against a low starting torque, a hallmark of permanent split capacitor (PSC) or brushless DC (BLDC) compressors used in these appliances.
Using comparison tables for selection
While computational fluid dynamics and specialized sizing software provide precise theoretical dimensions, engineers frequently rely on empirical comparison tables as a reliable starting point. These tables aggregate historical performance data across specific compressor capacities and refrigerant types, mapping them to proven tube dimensions.
| Cooling Capacity (W) | Refrigerant | Target Evaporating Temp (°C) | Recommended ID (inches) | Recommended Length (m) |
|---|---|---|---|---|
| 50 - 75 | R600a | -23.3 | 0.026 | 2.5 - 3.0 |
| 75 - 100 | R600a | -23.3 | 0.028 | 2.5 - 3.2 |
| 100 - 130 | R600a | -23.3 | 0.031 | 2.8 - 3.5 |
| 130 - 160 | R134a | -23.3 | 0.031 | 2.0 - 2.8 |
| 160 - 200 | R134a | -23.3 | 0.036 | 2.5 - 3.5 |
Note: Dimensions are baseline reference values for systems utilizing a standard suction line Heat Exchanger. Empirical validation is mandatory.
How to Compare Capillary Tube Size Options
Evaluating different capillary tube configurations requires understanding the non-linear trade-offs between internal diameter and length. Because multiple geometric combinations can technically yield the same flow restriction, engineers must compare these options against manufacturing constraints, system reliability, and specific cabinet architectures.
Trade-offs between shorter and longer tubes
A fundamental principle in capillary tube selection is that a shorter tube with a smaller internal diameter can produce the exact same pressure drop as a longer tube with a larger internal diameter. However, heavily restricting the diameter introduces significant reliability risks. Tubes with an ID smaller than 0.026 inches are highly susceptible to clogging from microscopic particulates, braze flux residue, or degraded compressor oil.
Conversely, excessively long tubes (exceeding 4.0 meters) increase the raw material cost and complicate the physical routing within the appliance chassis. Standard industry practice favors selecting an internal diameter that allows for a practical tube length between 2.0 and 3.0 meters. This range provides a stable flow characteristic, minimizes the risk of blockages, and offers sufficient surface area to construct an effective suction line heat exchanger.
Differences across small refrigerator designs
The architectural design of the small refrigerator heavily influences the correct capillary tube size. Static cooling systems, which rely on natural convection over a roll-bond or wire-on-tube evaporator, require a lower mass flow rate to prevent rapid, localized frost accumulation. The capillary tube in a static system must introduce the refrigerant at a velocity that allows for even distribution across the entire evaporator surface.
In contrast, dynamic or forced-air cooling systems utilize a fan to rapidly transfer heat across a compact fin-and-tube evaporator. These systems can absorb heat much faster, requiring a capillary tube sized for a higher mass flow rate to keep the evaporator fully active. Failing to account for the heat transfer coefficient of the specific evaporator design will result in a mismatch, regardless of compressor capacity.
Common sizing errors and system effects
Design engineers must carefully evaluate the cascading effects of sizing deviations. The matrix below outlines the typical system responses when comparing an optimal design against common sizing errors.
| Sizing Condition | Suction Pressure | Compressor Superheat | Discharge Temp | Power Consumption (W) |
|---|---|---|---|---|
| Optimal Size | Baseline (Normal) | 3K to 7K | 85°C - 95°C | Baseline (100%) |
| Undersized (Restrictive) | Decreased (-15%) | High (>10K) | Elevated (>105°C) | Decreased (but long run times) |
| Oversized (Loose) | Increased (+20%) | Low (<2K) | Reduced (<80°C) | Increased (+15% to +25%) |
Selecting a tube that leans slightly toward restriction is often preferred over one that is too loose, as protecting the compressor from liquid slugging is paramount for appliance longevity.
Practical Process for Determining Capillary Tube Size
Transitioning from theoretical sizing to a finalized production specification requires a rigorous, multi-stage engineering workflow. Determining the correct capillary tube size is an iterative process that blends mathematical modeling with physical calorimeter testing under controlled environmental conditions.
Step-by-step sizing method
The sizing methodology begins with defining the target cooling capacity and the nominal operating conditions (e.g., ASHRAE or CECOMAF standards). For a compressor rated at 100W under ASHRAE conditions (-23.3°C evaporating, 54.4°C condensing), the engineer uses mass flow equations or proprietary manufacturer software to calculate the theoretical restriction required.
Once the theoretical internal diameter and length are established, the engineering team constructs a prototype system. It is critical during this step to use capillary tubing from the actual production supplier, as internal surface roughness—which varies by manufacturing extrusion processes—can alter the friction factor and deviate from theoretical flow calculations.
How to validate the selected tube
Validating the selected tube involves operating the prototype refrigerator in a psychrometric test chamber. The primary metric for validation is the compressor suction superheat, which should stabilize between 3K and 7K under steady-state conditions. Thermocouples are placed at the evaporator inlet, evaporator midpoint, and compressor suction line to map the refrigerant phase change.
The system is subjected to a heavy load pull-down test, often at a maximum ambient temperature of 43°C (for tropical climate class appliances). If the evaporator starves before the cabinet reaches the target temperature, the tube is too restrictive. The engineer will incrementally shorten the tube by 50mm to 100mm and re-test until the temperature profile and superheat values align perfectly with the compressor's performance envelope.
When to consider parallel tubes or heat exchangers
While a single capillary tube is standard, certain high-efficiency or dual-evaporator small refrigerators may require parallel capillary tubes or sophisticated heat exchange mechanisms. In almost all modern domestic designs, the capillary tube is physically soldered to, or routed inside, the suction line to create a counter-flow heat exchanger.
This heat exchange subcools the high-pressure liquid refrigerant by 5K to 15K before it enters the evaporator, significantly reducing flash gas and increasing the net refrigeration effect. When determining the length of the capillary tube, the exact length of this heat exchange segment must be factored into the flow calculations, as the heat transfer dynamically alters the refrigerant's viscosity and pressure drop along the tube.
Finalizing Capillary Tube Size Selection
The final phase of capillary tube selection bridges the gap between laboratory validation and mass manufacturing. The specification must not only achieve peak thermodynamic efficiency but also accommodate the inevitable variances inherent in automated production environments.
Decision criteria for efficiency and temperature control
The ultimate decision criteria rest on maximizing the system's Coefficient of Performance (COP) while maintaining strict temperature control within the refrigerated compartments. A properly sized capillary tube will allow the system to operate within 5% of its peak theoretical COP across a wide band of ambient temperatures (typically 16°C to 38°C).
Manufacturing tolerances must be explicitly defined in the final engineering drawings. The industry standard tolerance for capillary tube internal diameter is ±0.001 inches (±0.025 mm), and the length tolerance is generally ±5%. If the prototype testing reveals that the system's performance degrades sharply within these tolerance bands, the engineer must select a slightly more forgiving nominal dimension or tighten the supplier quality requirements.
Final checks before confirming the size
Before mass production approval, final checks must confirm the physical integration of the capillary tube.
Key Takeaways
- The most important conclusions and rationale for Correct Capillary Tube Size
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What capillary tube size is typical for small refrigerators?
For 50W–200W systems, common capillary IDs are 0.66–1.06 mm with lengths around 1.5–4.0 m. Final sizing depends on refrigerant, evaporating temperature, condensing temperature, and charge.
How do I know if a capillary tube is oversized?
Look for high suction pressure, very low superheat, overfed evaporator, and risk of liquid floodback. Cooling may seem unstable, and compressor damage can follow if liquid reaches the suction side.
How do I know if a capillary tube is undersized?
Typical signs are low suction pressure, starved evaporator, weak cooling, long pull-down time, and high discharge temperature. Persistent operation can overheat the compressor and shorten service life.
Does refrigerant type change the correct capillary tube size?
Yes. R600a usually needs a smaller ID or longer tube than R134a to create the required pressure drop. Always size the tube to the specific refrigerant and target operating temperatures.
