How to Choose a High-Efficiency Wire Tube Condenser for Your Application

Maximizing energy efficiency in Cooling Systems ensures precise thermal performance and achieves long-term operational cost savings. HVAC systems see up to 15% energy savings, while food preservation gains up to 12%. A high-efficiencyWire Tube Condenser from an OEM Wire Tube Condenser Supplier improves Heat Exchange Efficiency. Understanding the Wire Tube Condenser Working Principleis key for an Industrial Chiller Condenser orCopper Fin Heat Exchange unit.

Key Takeaways

• A high-efficiency wire tube condenser helps cooling systems save energy and money.
• Choosing the right condenser means knowing your system's needs, like how much heat it removes and what kind of refrigerant it uses.
• The materials and design of the condenser, along with proper installation and regular cleaning, make it work best.

Defining Application Requirements for Your Industrial Chiller Condenser

Choosing the right wire tube condenser starts with a clear understanding of your application's specific needs. Think of it like building a custom machine; every part must fit perfectly. You need to define what your condenser must achieve before you even look at models. This careful planning ensures you select a high-efficiency unit that performs optimally and saves you money in the long run.

Calculating Required Heat Rejection Capacity

First, you must determine how much heat your condenser needs to remove. This is a critical step for any cooling system, especially for an industrial chiller condenser. For air-cooled condensers, you calculate the electrical heat generated. You use a simple formula: Electrical heat (We) equals Voltage (V) multiplied by the square root of the phase (Φ), then multiplied by the total amp draw (A). For voltage, always use the upper limit for a worst-case estimate, like 230V if the range is 200–230V. The phase (Φ) is √1 for single-phase systems and √3 for three-phase systems, often shown as 'PH' in specifications. The total amp draw (A) sums up the amps from the compressor, pump, and fan. Remember, for air-cooled chillers, you also add the process heat to this electrical heat. The system releases all of this heat into the surrounding environment.

Specifying Operating Temperature and Pressure Ranges

Next, consider the temperatures and pressures your condenser will operate under. While specific common operating ranges for wire-and-tube condensers across diverse industrial settings are not widely published, experimental data offers some insights. For instance, some experiments show water inlet temperatures around 39°C to 48°C, with outlet temperatures ranging from 34°C to 40°C. These figures come from tests focused on improving performance with Phase Change Materials (PCMs), so they do not represent typical industrial conditions.

Note: Extreme ambient temperatures significantly impact a wire tube condenser's performance. Higher outside temperatures reduce the condenser's ability to dissipate heat effectively. Insufficient airflow also drastically cuts down cooling effectiveness. Proper ventilation is crucial for optimal performance, as good airflow enhances heat transfer. A well-placed condenser, therefore, maintains its thermal efficiency. Wire tube condensers generally require less maintenance due to their robust design, which leads to greater durability, fewer repairs, and a longer service life.

Identifying Refrigerant Type and Flow Rate

Finally, you need to know the type of refrigerant your system uses and its required flow rate. Different refrigerants have unique properties, and your condenser must match them. The refrigerant mass flow rate is a very important operating parameter for wire-and-tube condensers. It directly affects both pressure loss and the work your compressor needs to do. Increasing the refrigerant mass flux in a wire-and-tube condenser boosts its cooling capacity. For example, one study showed a maximum cooling capacity of 163 W at a mass flux of 110 kg s−1 m2. This clearly shows that a higher refrigerant flow rate directly improves heat transfer efficiency, meaning the system removes heat more effectively.

Evaluating Design and Material for Optimal Wire Tube Condenser Performance

After you understand your application's needs, the next step involves looking closely at the condenser's design and the materials it uses. These choices directly affect how well your wire tube condenser works and how long it lasts. A well-designed condenser with the right materials can make a big difference in efficiency and reliability.

Selecting Optimal Tube Material and Coating

The material of the condenser tubes is very important. It affects heat transfer, durability, and cost. Different metals offer various benefits and drawbacks.

For microchannel tubes, protective coatings are often necessary, especially in places with salt spray and chemicals. Finned tubes can also benefit from special coatings, like hydrophilic or epoxy types, even though they usually tolerate conditions well without them.

Hydrophilic coatings, such as those made from porous silica inverse opals, improve heat transfer. They help water condense and move quickly along the tube, making the process more efficient. These coatings are also durable, meaning their performance benefits last a long time. For example, the heat transfer coefficient can stay almost constant over many experimental runs.

On the other hand, hydrophobic coatings initially improve heat transfer by causing water to condense in droplets. However, these coatings often have a short lifespan. They can wear off quickly due to friction or fluid movement, sometimes lasting only a few hours. When they wear off, their performance drops rapidly. Making them thicker to last longer can also increase resistance to heat, which cancels out the benefits if the coating is too thick.

Choosing Appropriate Fin Configuration and Spacing

The design of the fins on your condenser also plays a big role in its efficiency. Different fin shapes can improve how well heat transfers.

Louvered fins, for example, improve heat transfer by breaking up the airflow. This creates thinner boundary layers, which means less resistance to heat transfer compared to flat surfaces. The angle of the louvers and how far apart the fins are can change their performance. A larger louver angle usually increases both heat transfer and pressure drop. Increasing the fin pitch, or the distance between fins, tends to decrease both. Overall, louvered surfaces are more efficient than smooth ones.

Corrugated fins also significantly boost the thermal efficiency of heat exchangers. Studies show that these fins can increase heat transfer by up to 20% compared to standard designs, with only a small increase in pressure loss. For instance, fins with one or three corrugations, used with oval tubes, can improve performance by 5% to 15%.

Proper fin spacing is also crucial for effective air circulation. Wires in wire-on-tube condensers are typically spaced about 4-5 mm apart. This spacing helps air flow well and optimizes heat exchange.

• If fins are too close together, it can cause turbulent airflow and reduce heat exchange efficiency.
• If fins are too far apart, there are fewer heat dissipation pipes in a given area, which also lowers overall efficiency.

Finding the right spacing means balancing heat transfer and pressure drop. Closer fin spacing increases the surface area for heat exchange but also increases pressure drop because it restricts airflow more. Engineers must consider specific flow rates and fluid properties to find the best balance.

Assessing Structural Integrity and Mounting Options

A high-efficiency wire tube condenser must also be structurally sound and easy to mount. The condenser needs to withstand the stresses of operation, including vibrations, temperature changes, and pressure fluctuations. A robust design ensures long-term reliability and reduces the need for frequent repairs. For an Industrial chiller condenser, this means it can handle continuous operation in demanding environments.

Manufacturers often design wire tube condensers for durability, which contributes to their longer service life and lower maintenance needs. When you choose a condenser, look at how it is built. Check the quality of welds, the thickness of materials, and any reinforcement points.

Mounting options are also important. The condenser should fit easily into your existing system or space. Consider factors like weight, footprint, and how it connects to other components. Easy installation saves time and labor costs. A well-mounted condenser also operates more quietly and efficiently, as it avoids unnecessary vibrations or strain on its connections.

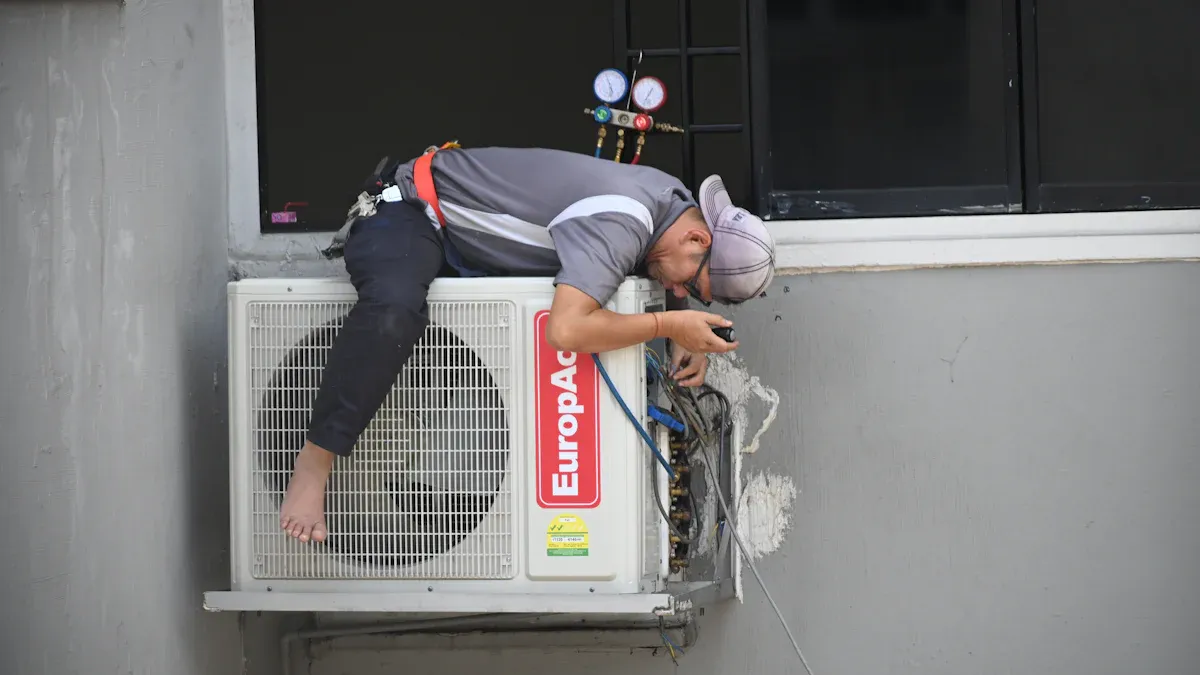

Considering Installation and Operational Factors for High-Efficiency Condensers

After you define your needs and evaluate condenser designs, think about how the unit fits into your space and daily operations. These practical considerations ensure your high-efficiency condenser performs well over time.

Analyzing Airflow and Space Constraints

Space often presents a challenge in industrial facilities. Wire tube condensers are a great choice because they are compact and highly efficient. Manufacturers can customize these units for specific space constraints, making them perfect for retrofitting existing setups. This adaptability helps you maximize cooling even in tight areas. For example, wire tube condensers offer superior heat transfer efficiency, being 50% more effective than plate condensers, which is crucial for optimal cooling in limited spaces.

Reviewing Maintenance and Cleaning Requirements

Regular maintenance keeps your condenser running efficiently and extends its life. Schedule professional maintenance services annually for comprehensive checks. You should clean condenser coils at least once a year to prevent dust and debris buildup. This improves efficiency and prevents costly breakdowns. When cleaning, use soft brushes and a gentle water spray. A simple mixture of water and mild detergent works well for general cleaning.

Comparing Manufacturer Specifications and Warranties

Always compare manufacturer specifications carefully. Look for quality assurance and certifications like ISO 9001 or CE. Check performance validation through third-party test reports covering heat exchange efficiency and durability. Key performance indicators include heat rejection capacity relative to compressor specifications and pressure drop across the coil. Also, consider customization capabilities and client references. This thorough review helps you choose the best Industrial chiller condenser for your needs.

A well-matched condenser is vital for system efficiency. It ensures precise thermal performance and saves money long-term. Informed selection brings lasting benefits. For complex applications, like an Industrial chiller condenser, expert consultation is very important. They help you choose the best unit.

FAQ

What makes a wire tube condenser "high-efficiency"?

A high-efficiency wire tube condenser maximizes heat transfer. It uses optimal materials and design. This leads to better cooling performance and lower energy use for the system.

How often do you need to clean a wire tube condenser?

You should clean condenser coils at least once a year. This prevents dust and debris buildup. Regular cleaning helps maintain efficiency and prevents costly breakdowns.

Can you customize wire tube condensers for specific spaces?

Yes, manufacturers can customize wire tube condensers. They design them for specific space constraints. This makes them ideal for fitting into existing or tight industrial setups.
