A clogged capillary tube is a common restriction fault in refrigeration systems, and it usually shows up as reduced cooling capacity and unstable operation. In practical terms, the system cannot deliver enough refrigerant to the evaporator, so heat removal drops quickly.
Outline
- What a capillary tube does in a Refrigeration Cycle
- How clogging changes pressure, flow, and temperature
- Common symptoms and diagnostic clues
- Repair, prevention, and component selection considerations
- Where related refrigeration components fit into system reliability
What a Capillary Tube Does in Refrigeration Performance
A capillary tube is a fixed metering device that controls refrigerant flow into the evaporator. It creates the pressure drop needed for expansion, so the evaporator can absorb heat efficiently and maintain stable cooling.In small and medium refrigeration equipment, this component is valued for simplicity and low cost. Its performance depends on clean internal passages, correct length and diameter, and proper matching with the compressor, condenser, and refrigerant charge.
Comparison Table: Normal Flow vs. Clogged Capillary Tube Behavior
| Condition | System Effect | Typical Result |
|---|---|---|
| Normal flow | Stable refrigerant feed to evaporator | Consistent cooling and balanced pressures |
| Partial clogging | Reduced refrigerant flow | Weak cooling, longer run time, temperature drift |
| Severe clogging | Very low or no refrigerant feed | Warm cabinet, frost near restriction, possible compressor stress |
A clogged tube changes the entire refrigeration balance, not just one local section. Because the evaporator is underfed, the system may appear to run normally while delivering poor cooling output.
How Clogging Affects Refrigeration Performance
Clogging reduces refrigeration performance by limiting mass flow through the expansion point. The evaporator receives less refrigerant, so suction pressure falls, heat absorption weakens, and the cabinet or chamber cools more slowly.
The compressor often compensates by running longer, which raises energy use and mechanical wear. In severe cases, the compressor may operate with abnormal superheat or low suction conditions, which can shorten service life.
According to the U.S. Department of Energy, refrigeration efficiency depends heavily on proper system operation and heat transfer balance, and restricted refrigerant flow disrupts both. For general refrigeration system guidance.
Industry standards also emphasize correct installation and maintenance practices for refrigeration equipment. For example, ASHRAE publishes system design and service guidance that helps reduce flow-related faults.
Key Performance Impacts Table: What a Clogged Capillary Tube Changes
| Performance Factor | Impact of Clogging | Operational Sign |
|---|---|---|
| Cooling capacity | Decreases | Cabinet cannot reach setpoint |
| Evaporator feeding | Becomes unstable or insufficient | Uneven frost pattern |
| Compressor runtime | Increases | Longer cycles and higher power use |
| Temperature uniformity | Worsens | Hot spots inside the storage space |
| Reliability | Declines | Higher risk of secondary faults |
The most important effect is loss of usable cooling, because the evaporator cannot receive enough refrigerant to complete the heat exchange process. That is why even a small restriction can create a noticeable drop in refrigeration performance.
Common Signs of a Clogged Capillary Tube
Typical symptoms include weak cooling, long compressor cycles, and a frost pattern that stops before the evaporator is fully active. In many cases, the system may show a cold area near the restriction and a warm evaporator downstream.
Technicians also look for abnormal pressure readings and temperature differences across the restriction point. If the condenser and compressor appear functional but the cabinet still undercools, the capillary tube should be part of the diagnosis.
- Slow pull-down after startup
- Compressor running continuously or too long
- Partial frost near the inlet side of the evaporator
- Higher-than-normal discharge temperature in some cases
- Reduced cooling uniformity inside the storage space
These signs are not unique to clogging, so a full system check is necessary. Moisture, contamination, filter-drier issues, and improper charge can produce similar symptoms.
Why Clogging Happens
Clogging usually comes from contamination, moisture, or internal debris in the refrigeration circuit. Small particles can accumulate in the narrow passage, while moisture may freeze and create intermittent blockage.
Manufacturing residue, poor brazing practice, and degraded filter-drier performance are also common causes. In systems with poor maintenance, oil breakdown products and corrosion byproducts can further restrict flow.
For component-level reliability, the broader refrigeration assembly matters as much as the tube itself. Related parts such as refrigeration system components, capillary tube assemblies, and cooling auxiliary parts should be selected and installed with consistent dimensional control.
In commercial and industrial equipment, matching the metering device to the condenser and evaporator is critical. A well-designed system depends on stable heat rejection, proper airflow, and accurate refrigerant control.
How to Diagnose the Problem Correctly

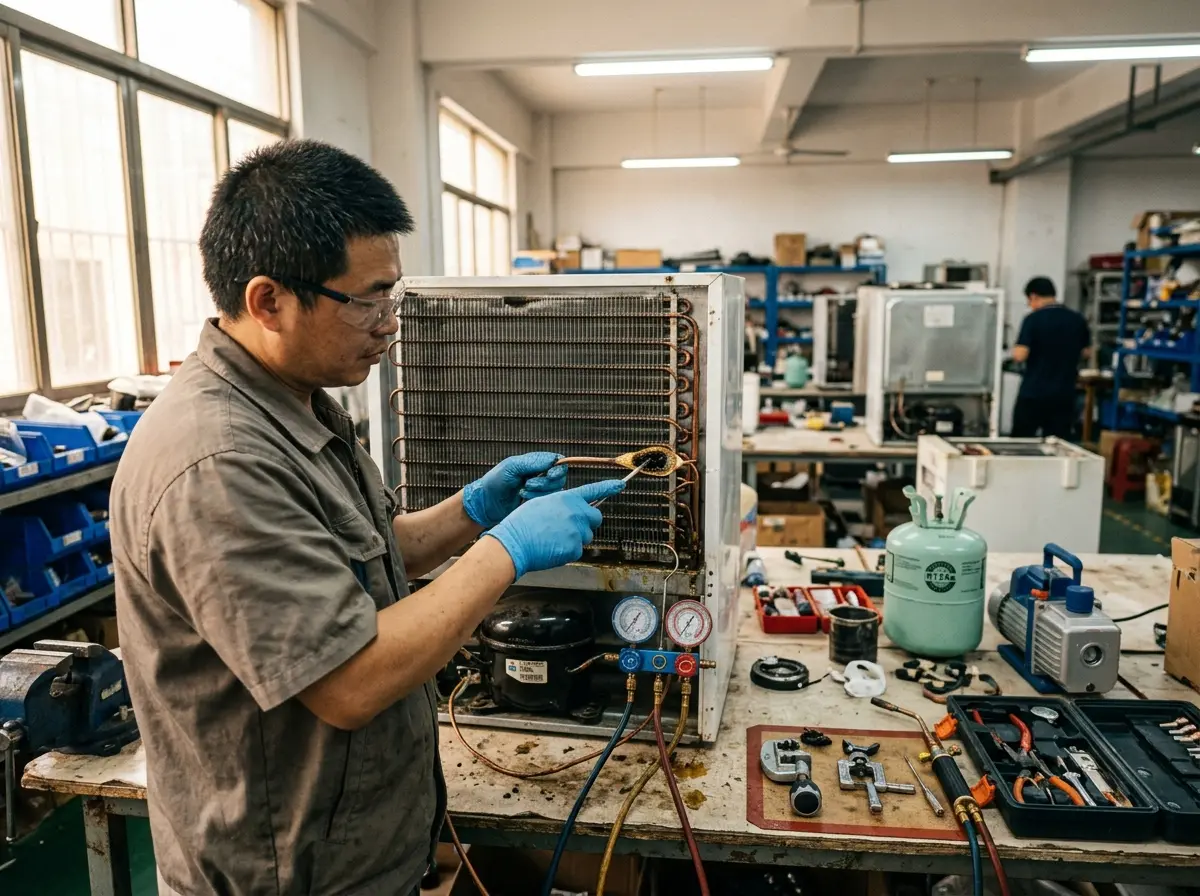

Accurate diagnosis starts with pressure checks, temperature measurements, and visual inspection of frost patterns. A clogged capillary tube often creates a clear temperature drop before the restriction and poor cooling after it.
Technicians should also verify refrigerant charge, compressor condition, and filter-drier status before replacing parts. This avoids unnecessary repairs and helps distinguish clogging from undercharge or compressor inefficiency.
Diagnostic Checklist Table: Practical Steps for Troubleshooting
| Step | What to Check | Why It Matters |
|---|---|---|
| 1 | Suction and discharge pressure | Identifies abnormal flow conditions |
| 2 | Evaporator frost pattern | Shows where refrigerant stops moving |
| 3 | Compressor runtime | Reveals cooling inefficiency |
| 4 | Filter-drier condition | Locates possible upstream blockage |
| 5 | Moisture or debris evidence | Confirms likely clogging source |
This process is important because the same symptom can have multiple causes. A careful diagnosis protects system reliability and reduces repeat service calls.
How Related Refrigeration Components Support Stable Performance
Stable refrigeration performance depends on the whole heat exchange chain, not only the capillary tube. Condensers, evaporators, fan motors, and auxiliary parts all influence pressure balance, airflow, and heat transfer efficiency.
For example, a clean and efficient condenser helps the system reject heat properly, while a well-matched evaporator supports even cooling distribution. In many applications, component consistency is as important as nominal capacity.
For product categories that support these functions, a supplier may offer wire tube condensers, copper aluminum fin heat exchangers, and unit coolers for different equipment types. These categories are relevant because they help maintain the thermal balance that a metering device depends on.According to the U.S. Environmental Protection Agency, proper refrigeration maintenance supports efficiency and reduces system losses.
Prevention and Maintenance Best Practices
Prevention is the most effective way to avoid clogging and preserve refrigeration performance. Clean assembly, moisture control, and correct brazing practice reduce the chance of restrictions forming inside the circuit.
Routine service should include filter-drier replacement when needed, leak checks, and verification of refrigerant quality. In systems exposed to humidity or corrosion, component selection should also consider durability and contamination resistance.
- Use clean installation practices during assembly
- Keep moisture out of the circuit
- Replace degraded filter-driers on schedule
- Verify refrigerant charge after repair
- Match the capillary tube to the system design
These measures are especially important in commercial refrigeration, medical storage, and industrial cooling, where downtime is costly. A small restriction can quickly become a larger operational problem if it is ignored.
Where to Buy Related Components
Reliable sourcing matters because component consistency affects both performance and service life. Buyers often evaluate suppliers by product range, customization ability, batch stability, and application support.
For a broader product view, the main categories on the target site include wire tube condensers, copper aluminum fin heat exchangers, unit coolers, refrigeration system components, and cooling auxiliary parts. These categories are useful starting points for OEM and B2B buyers who need matched refrigeration assemblies.
In practice, procurement teams should compare technical fit first, then delivery stability and documentation quality. That approach is more effective than choosing parts by price alone.
FAQ
1. What happens first when a capillary tube becomes clogged?
The first effect is reduced refrigerant flow into the evaporator. Cooling becomes weaker, suction pressure drops, and the compressor may run longer to compensate. In many systems, this appears as slow pull-down and uneven temperature control before a complete failure develops.
2. Can a clogged capillary tube be confused with low refrigerant charge?
Yes, the symptoms can look similar because both reduce evaporator feeding. The difference is that clogging often creates a sharper restriction pattern and localized temperature change. Proper diagnosis should include pressure readings, frost pattern inspection, and filter-drier checks.
3. Does clogging always mean the tube must be replaced?
Not always, but replacement is common when the restriction is internal and cannot be cleared safely. Technicians usually inspect the filter-drier, flush the circuit if appropriate, and confirm the cause before deciding whether the tube or another part must be changed.
4. Why does the compressor run longer when the tube is clogged?
The compressor runs longer because the evaporator is not receiving enough refrigerant to remove heat efficiently. The cabinet or chamber reaches the target temperature more slowly, so the control system keeps the compressor on for extended periods.
5. How can manufacturers reduce clogging risk in production?
Manufacturers reduce risk by controlling cleanliness, moisture, brazing quality, and part matching. Consistent assembly standards, proper filtration, and stable component sourcing all help. In B2B refrigeration production, these controls are often more important than a single component specification.
