Heat Exchanger Efficiency Project for Ice Makers

Introduction

Improving Heat Exchanger efficiency in ice makers has a direct effect on energy use, ice output, and equipment reliability. Because the evaporator and condenser drive most of the system’s thermal work, even small losses in heat transfer can lengthen freeze cycles, raise power consumption, and increase strain on the compressor. This article explains why exchanger performance matters, which technical factors most influence it, and how a focused efficiency project can help operators and manufacturers reduce operating costs while maintaining consistent production. The discussion that follows connects thermodynamic performance with practical outcomes such as throughput, maintenance frequency, and long-term system life.

Why Exchanger Efficiency Is a Strategic Priority in Ice Makers

In commercial and industrial ice production, thermal management dictates both operational viability and profitability. The heat exchanger serves as the thermodynamic core of these systems, directly regulating the phase change from liquid water to solid ice. Because cooling and condensation processes typically account for 70 to 80 percent of the total electrical energy consumed by an ice maker, optimizing exchanger efficiency represents a primary mechanism for reducing operational overhead.

A dedicated exchanger efficiency project evaluates the heat transfer coefficients, fluid dynamics, and material properties of the evaporator and condenser. By addressing these variables, manufacturers and facility operators can systematically lower energy consumption, increase daily ice yield, and extend the lifecycle of the compressor.

Energy, throughput, and maintenance impacts

The interdependency of energy consumption, throughput, and maintenance is highly sensitive to heat exchanger performance. A mere 10 percent degradation in the overall heat transfer coefficient (U-value) can extend individual harvest cycles by 15 to 20 percent. This prolonged cycle time directly diminishes the 24-hour ice yield, cutting into facility throughput and driving up the energy required per kilogram of ice produced.

Furthermore, maintenance requirements escalate when heat exchangers operate below optimal efficiency. As thermal resistance increases due to fouling or scaling, the compressor must work harder to maintain the necessary suction pressure, leading to elevated discharge temperatures. Real-world data indicates that unmitigated mineral scaling can reduce heat transfer efficiency by up to 30 percent over a six-month operating period, accelerating compressor wear and necessitating more frequent, costly chemical descaling interventions.

Operating conditions with the biggest efficiency gains

Efficiency gains are most pronounced when ice makers operate under extreme or variable environmental conditions. In environments with high ambient temperatures—often exceeding 32°C (90°F)—air-cooled condensers struggle to reject heat effectively. Upgrading to a high-efficiency microchannel or enhanced-fin heat exchanger under these conditions can yield substantial improvements, frequently elevating the Coefficient of Performance (COP) by 1.2 to 1.8 points.

Similarly, systems utilizing water-cooled condensers in regions with elevated incoming water temperatures benefit significantly from optimized plate geometries. By maximizing the surface area-to-volume ratio and enhancing turbulent flow, advanced heat exchangers can maintain the required approach temperatures even when the cooling medium is suboptimal, thereby safeguarding the ice maker's rated capacity.

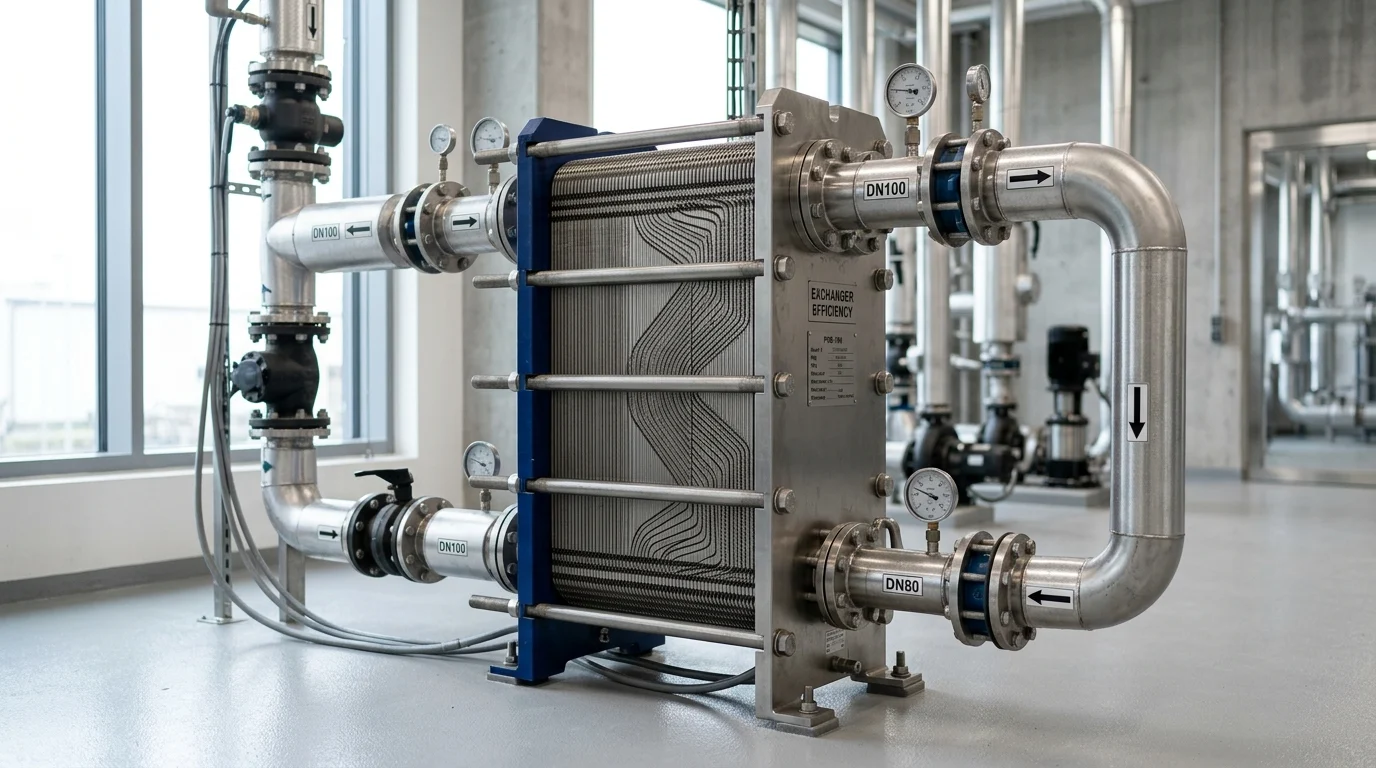

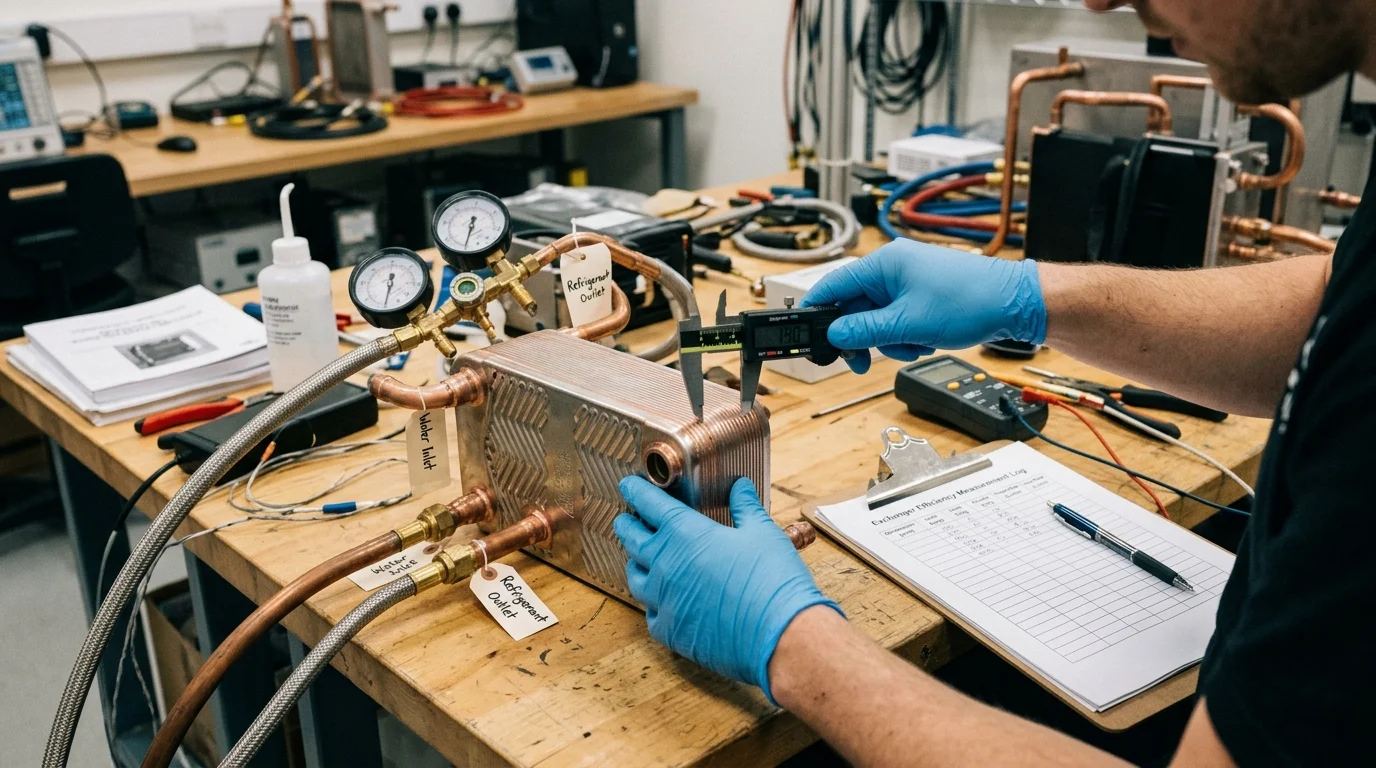

How to Define and Measure Exchanger Efficiency in Ice Maker

Establishing a rigorous framework for defining and measuring heat exchanger efficiency is a prerequisite for any optimization project. In the context of ice makers, efficiency is not a static metric but a dynamic interaction between refrigerant phase changes, water temperatures, and mass flow rates. Engineers must rely on standardized thermodynamic formulas to benchmark current performance and validate post-project improvements.

Accurate measurement requires high-fidelity sensors and data logging capabilities to capture steady-state operating parameters. By isolating the performance of the heat exchanger from the rest of the refrigeration circuit, teams can pinpoint specific thermal bottlenecks.

Key performance metrics and heat transfer indicators

The primary indicator of heat exchanger efficiency is the overall heat transfer coefficient (U-value), typically measured in W/m²K. For high-performance phase-change applications in ice makers, target U-values generally range between 1,500 and 3,500 W/m²K, depending on the fluid and exchanger geometry. To calculate this, engineers monitor the Log Mean Temperature Difference (LMTD), which provides a logarithmic average of the temperature differential between the hot and cold streams across the length of the exchanger.

Another critical metric is the approach temperature—the difference between the leaving temperature of the working fluid and the entering temperature of the cooling medium. A highly efficient ice maker heat exchanger will maintain an approach temperature of less than 3°C. Additionally, pressure drop must be continuously measured; exceeding a pressure drop of 15 to 25 kPa on the refrigerant side imposes an unacceptable penalty on compressor efficiency, negating the thermal benefits of the exchanger.

Common heat exchanger configurations in ice makers

Ice maker systems predominantly utilize three heat exchanger configurations: Brazed Plate Heat Exchangers (BPHE), Microchannel coils, and traditional Shell-and-Tube designs. Each configuration offers distinct advantages regarding thermal density, footprint, and resistance to fouling.

BPHEs are highly favored in modern, compact commercial ice makers due to their exceptional thermal density, though they require strict upstream filtration to prevent particulate fouling. Microchannel condensers are increasingly standard in air-cooled units due to their low internal volume, which is particularly beneficial for systems utilizing flammable refrigerants. Shell-and-tube configurations, while bulkier and characterized by lower U-values, remain the standard for heavy industrial ice plants where robust fouling resistance and minimal pressure drop are prioritized over spatial constraints.

How to Scope an Ice Maker Exchanger Efficiency Project

Scoping an exchanger efficiency project requires a methodical approach that bridges theoretical thermodynamics with practical operational constraints. Organizations must establish clear, quantifiable baseline metrics before committing capital to retrofits or redesigns. A well-scoped project identifies the specific variables limiting current heat transfer and sets achievable targets for the new configuration.

The scoping phase must also account for the external variables that interface with the heat exchanger. An isolated focus on internal component geometry, without consideration of the broader environmental and operational context, often results in underperforming efficiency upgrades.

Step-by-step project approach

A structured efficiency project begins with a comprehensive energy audit, establishing the baseline metric of energy consumed per unit of production. For commercial applications, a common target is to reduce energy consumption to below 4.5 kWh per 100 lbs of ice. The first step involves installing inline flow meters and precision thermistors to capture real-time mass flow and delta T data across the existing exchanger.

Following baseline data acquisition, engineering teams utilize Computational Fluid Dynamics (CFD) software to model potential geometries and flow patterns. This thermodynamic modeling phase identifies localized areas of poor flow distribution or excessive pressure drop. The final step is physical prototyping, where the redesigned exchanger is subjected to accelerated lifecycle testing to validate the CFD models against physical performance, ensuring the targeted U-value improvements materialize under actual load conditions.

Water quality, ambient conditions, defrost cycles, and refrigera

nt factors

Water quality acts as a severe limiting factor in exchanger efficiency. In regions where water hardness exceeds 120 ppm, calcium carbonate precipitation rapidly degrades the thermal conductivity of the evaporator plates. Scoping must therefore include the integration of scale-inhibiting coatings or specify materials that can withstand frequent chemical flushing. Ambient conditions also dictate design thresholds; condenser sizing must be calculated against peak summer dry-bulb temperatures, rather than annual averages, to prevent high-pressure lockouts.

Defrost cycles, commonly executed via hot gas bypass, subject the heat exchanger to extreme thermal cycling. The selected materials and brazing compounds must possess sufficient fatigue strength to endure thousands of rapid temperature reversals without suffering micro-fractures. Furthermore, the global transition toward low-Global Warming Potential (GWP) refrigerants heavily influences project scope. Transitioning to hydrocarbons like R-290 (GWP < 3) necessitates highly efficient exchangers with minimized internal volumes to comply with strict regulatory charge limits.

Trade-Offs, Compliance, and Cost Drivers for Exchanger Efficiency

Pursuing maximum thermodynamic efficiency introduces a complex matrix of commercial and operational trade-offs. As engineers tighten channel geometries to increase fluid turbulence and heat transfer, they inadvertently increase the system's susceptibility to fouling and elevate the required pumping power. Navigating these trade-offs is essential to ensure the project remains financially viable.

Furthermore, heat exchanger modifications are tightly governed by safety and environmental regulations. Any alteration to the pressure vessel or refrigeration circuit must comply with international standards, which can drive up project costs and extend implementation timelines.

Capital cost, lifecycle cost, cleaning intervals, and downtime

High-efficiency heat exchangers command a premium in upfront capital expenditure (CAPEX). Specifying advanced materials, such as titanium or 316L stainless steel to combat aggressive water chemistries, can increase component costs by 30 to 40 percent. However, lifecycle cost analysis often justifies this premium. A superior material specification can extend the interval between mandatory chemical cleanings from every 3 months to every 9 months, significantly reducing maintenance labor and minimizing revenue lost to operational downtime.

The table above illustrates typical financial and operational trade-offs. While microchannel retrofits offer the highest potential efficiency gains, they demand rigorous maintenance of refrigerant purity, as microscopic debris can easily cause irreversible blockages. Facility managers must balance the desired payback period against the technical capabilities of their onsite maintenance personnel.

Compliance and risk considerations

Compliance with safety standards forms a non-negotiable boundary for exchanger efficiency projects. In the United States, commercial ice makers must adhere to UL 563 standards and ASHRAE 15 safety guidelines. Upgrading a heat exchanger often alters the internal volume of the refrigeration circuit, which is particularly critical when utilizing flammable A3 refrigerants like R-290. Designers are strictly bound by charge limits—typically capped at 150g for standard commercial units, or up to 500g under specific, highly regulated commercial applications.

Additionally, enhanced heat exchangers operating at higher pressures or utilizing novel geometries must satisfy pressure vessel directives, such as ASME BPVC Section VIII or the European PED. Failure to properly certify a modified or upgraded heat exchanger exposes the manufacturer to severe legal liabilities and product recall risks, underscoring the need for rigorous third-party testing during the project's validation phase.

Decision Framework for Exchanger Efficiency Improvements

Translating thermal data and cost analysis into definitive action requires a structured decision framework. Organizations must establish clear thresholds that trigger either a targeted optimization, a component retrofit, or a complete system replacement. Without standardized criteria, capital may be wasted on marginal upgrades, or conversely, systems may be allowed to operate at highly inefficient levels.

Executing this framework effectively depends entirely on cross-departmental alignment. The technical specifications generated by engineering must be balanced against the commercial realities managed by procurement and the practical maintenance requirements demanded by the service division.

Criteria for retrofit, optimization, or replacement

A robust criteria matrix dictates the appropriate level of intervention. As a general industry rule, if an ice maker's performance degradation exceeds 15 percent and aggressive chemical descaling cannot restore the U-value to within 5 percent of the factory specification, a heat exchanger replacement is warranted. Minor optimizations, such as adjusting fan speeds or upgrading expansion valves, are appropriate when performance drops are isolated to 5 to 10 percent under peak loads.

Age and refrigerant type also heavily influence the decision. If an ice maker is older than 7 years and relies on phased-out, high-GWP refrigerants (such as R-404A), retrofitting a new heat exchanger is rarely cost-effective. In these instances, the decision framework should direct capital toward a full system replacement, leveraging the efficiency gains of modern, low-GWP architectures rather than attempting to salvage an obsolete platform.

How engineering, procurement, and service teams should align

Successful execution of an exchanger efficiency project requires tight alignment between engineering, procurement, and service teams. Engineering is responsible for defining the hard thermal specifications—for example, mandating a 50 kW heat rejection capacity at a strict 5°C approach temperature. However, engineering must avoid over-specifying custom geometries that cannot be sourced economically.

Procurement must then negotiate with specialized suppliers to achieve viable unit economics, while the service division ensures the selected components can

Key Takeaways

• The most important conclusions and rationale for Exchanger Efficiency
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What heat exchanger types work best for ice makers?

Common options are brazed plate, microchannel, and shell-and-tube. For compact, high-efficiency ice makers, brazed plate or optimized fin coils are often preferred, depending on refrigerant, water quality, and pressure-drop limits.

How can I tell if my ice maker heat exchanger is losing efficiency?

Watch for longer harvest cycles, lower daily ice output, higher power use, rising compressor discharge temperature, or visible scaling. These signs usually indicate fouling or poor heat transfer.

Which metrics should be checked in an exchanger efficiency project?

Focus on U-value, LMTD, approach temperature, and refrigerant-side pressure drop. In many ice maker applications, keeping approach temperature under 3°C helps maintain strong performance.

When should an ice maker condenser or evaporator be upgraded?

Upgrade when ambient temperatures are high, incoming cooling water is warm, output no longer meets rating, or scaling repeatedly reduces capacity. A higher-efficiency design can improve COP and stabilize production.
