Copper Fin Heat Exchanger vs. Aluminum Fin: Which Has Better Heat Transfer Performance?
Copper fins stand out in the realm of Heat Exchangers due to their exceptional thermal conductivity. This property enables acopper Fin Heat Exchanger to outperform its aluminum counterpart in various applications. For instance, while aluminum alloys like 6061 or 6063 exhibit thermal conductivity values ranging from 136 to 205 W/m·K, copper excels with its superior conductivity. This makes copper an ideal choice for high heat generation applications, significantly enhancing copper fin heat exchanger efficiency. When comparing copper vs aluminum fin heat exchanger, the advantages of copper become evident, particularly in terms of performance. Although Aluminum Fin heat exchangers are widely used, they do have somealuminum fin heat exchanger drawbacks that can affect overall performance. In contrast, the copper heat exchanger advantages include better heat transfer capabilities and durability. To ensure optimal performance, conducting a heat exchanger performance test can further validate the benefits of using a copper fin heat exchanger in various systems.
Key Takeaways
- Copper fins provide superior thermal conductivity, making them ideal for high heat generation applications.
- Aluminum fins are more cost-effective, appealing to budget-conscious projects, especially in less demanding environments.
- Copper fins offer better durability and corrosion resistance, ensuring longer lifespan and lower maintenance needs.
- Surface treatments can enhance the performance of both copper and aluminum fins, improving heat transfer efficiency.
- Weight differences between copper and aluminum fins can impact installation and transportation costs, requiring careful planning.
Heat Transfer Efficiency
Heat transfer efficiency plays a crucial role in the performance of heat exchangers. When comparing copper and aluminum fins, copper consistently demonstrates superior efficiency due to its higher thermal conductivity.
- Copper fins have a thermal conductivity of approximately 398 W/m·K.
- Aluminum fins, on the other hand, exhibit a thermal conductivity of about 235 W/m·K.
This significant difference indicates that copper is more effective in transferring heat, making it preferable for applications requiring efficient heat transfer.
The design and treatment of fins also impact their heat transfer performance. Various surface treatments can enhance the efficiency of both copper and aluminum fins. The following table summarizes the effects of different surface treatments:
| Surface Treatment Type | Effect on Heat Transfer Performance | Notes |
|---|---|---|
| Hydrophilic Coatings | Improve wettability, enhance drainage, and reduce water accumulation, leading to better heat transfer efficiency. | Particularly useful in HVACR systems where condensation is common. |
| Hydrophobic Coatings | Repel water, ideal for environments needing quick moisture shedding to prevent fouling. | Suitable for outdoor or humid conditions. |
| Corrosion-Resistant Coatings | Protect aluminum fins from corrosive environments, enhancing durability and longevity. | Important for applications in coastal or industrial settings. |
| Anodizing | Increases corrosion resistance and hardness, enhancing durability. | Commonly used in applications requiring enhanced durability. |
| Epoxy Coatings | Provide excellent adhesion and chemical resistance, used in harsh chemical environments. | Ideal for industrial applications. |
| Chemical Conversion Coatings | Improve adhesion and provide initial corrosion protection. | Prepares the surface for further treatments. |
Additionally, the thickness of the fins directly influences heat transfer performance. Thicker fins increase the heat transfer surface area, which can enhance performance but also raises mass and cost considerations.
- Thicker fins (e.g., 0.5mm) enhance durability in harsh environments, crucial for maintaining heat transfer performance.
- Thinner fins (e.g., 0.2mm) are cost-effective for lighter applications but may compromise heat transfer efficiency.
Durability and Corrosion Resistance
Durability and corrosion resistance are critical factors when selecting materials for heat exchangers. Copper and aluminum fins exhibit different behaviors under corrosive conditions, impacting their longevity and performance.
Copper fins generally offer better corrosion resistance compared to aluminum fins. They develop a natural protective film that helps shield them from environmental factors. This characteristic makes copper fins suitable for harsh environments, such as coastal areas. However, uncoated copper can still be vulnerable to contaminants, emphasizing the need for protective coatings in industrial applications.
In contrast, aluminum fins are more susceptible to various types of corrosion. Common corrosion types affecting aluminum include:
- Pitting Corrosion: This occurs when negative ions attack the protective oxide film on aluminum, leading to the formation of pits that can eventually cause leaks.
- Filiform Corrosion: This type affects aluminum surfaces, especially in humid conditions, resulting in thread-like corrosion patterns.
- Galvanic Corrosion: This occurs when aluminum comes into contact with dissimilar metals, such as copper, in the presence of an electrolyte, accelerating corrosion.
To enhance their durability, both copper and aluminum fins can benefit from protective coatings. For instance, coatings can significantly improve the corrosion resistance of aluminum fins, especially in humid and salty environments. A silane pre-treatment can enhance adhesion and prevent moisture penetration, providing additional protection.
The following table summarizes the performance of copper and aluminum fins in salt spray corrosion tests, which are industry standards for evaluating corrosion resistance:
| Fin Material | Cooling Capacity Before Salt Spray | Cooling Capacity After 96h Salt Spray |
|---|---|---|
| Copper | 1.3–7.3% more than aluminum | Performance deteriorated due to corrosion |
| Aluminum | Baseline performance | Performance deteriorated due to corrosion |
While both materials face challenges from corrosion, copper fins tend to maintain better performance over time. Their natural protective properties, combined with effective coatings, make them a reliable choice for demanding applications.
Cost Analysis
Cost considerations play a significant role in the decision-making process for selecting heat exchangers. The choice between copper and aluminum fins often hinges on material prices and long-term maintenance expenses.
Recent trends indicate that copper prices have surged to unprecedented levels. This increase, combined with the relative affordability of aluminum, has prompted many manufacturers to reevaluate their material choices. In cooling and electrical applications, the economic advantages of aluminum are becoming increasingly significant. As a result, manufacturers are adapting their strategies to align with current market dynamics. The price ratio of copper to aluminum has surpassed 4.2, leading to a notable shift towards aluminum in many applications.
The costs of essential materials fluctuate due to various factors, including market conditions and supply chain disruptions. This variability can lead to increased production costs for manufacturers, ultimately affecting the pricing of heat exchangers. For instance, the following table outlines the typical maintenance costs over a 10-year period for both types of heat exchangers:
| Heat Exchanger Type | Lifespan (Years) | Maintenance Costs | Repairability |
|---|---|---|---|
| Copper Fin | 10 to 15 | Lower | Easier |
| Aluminum Fin | Shorter | Higher | More complex |
Copper fin heat exchangers generally require less maintenance and offer easier repair options. This advantage can lead to lower overall costs over time, despite the higher initial investment in copper materials. In contrast, aluminum fins may incur higher maintenance costs due to their susceptibility to corrosion and other environmental factors.
Weight and Handling
Weight significantly influences the transportation and installation of heat exchangers. Copper fin heat exchangers are heavier than their aluminum counterparts. This increased weight leads to several implications:
- Higher shipping fees due to the need for stronger packaging and handling.
- Reinforced support structures may be necessary during installation, complicating the process and increasing overall project costs.
The handling and installation challenges differ between the two materials. The following table summarizes key aspects of corrosion resistance and maintenance needs for copper and aluminum fins:
| Material | Corrosion Resistance | Maintenance Needs |
|---|---|---|
| Copper | High | Low |
| Aluminum | Moderate | High |
Copper fins exhibit high corrosion resistance, which reduces maintenance needs over time. However, installers must be cautious. Copper tubes can suffer from stress corrosion cracking if subjected to excessive bending during installation. This risk emphasizes the importance of careful handling.
Temperature changes also affect both materials. Thermal expansion and contraction can lead to stress on components, impacting their longevity and performance. Installers should account for these factors to ensure proper installation and avoid future issues.
Maintenance and Repairability
Maintenance and repairability are essential factors when choosing between copper and aluminum fin heat exchangers. Both materials exhibit unique characteristics that influence their upkeep and longevity.
Copper fins generally require less maintenance than aluminum fins. Their natural corrosion resistance helps maintain performance over time. However, copper can still face issues, particularly if exposed to harsh environments. Regular inspections can help identify potential problems early.
Aluminum fins, while lighter and often more cost-effective, may require more frequent maintenance. They are more susceptible to corrosion and fouling, which can significantly reduce heat transfer efficiency. To mitigate these issues, operators should implement routine cleaning and inspection protocols.
Common failure modes for both types of heat exchangers include:
| Failure Mode | Description |
|---|---|
| Corrosion | Degradation of material leading to reduced heat transfer efficiency and structural integrity. |
| Mechanical Damage | Compromises structural integrity, leading to reduced efficiency and potential leaks. |
| Fouling and Blockage | Significantly reduces heat transfer efficiency and increases pressure drop across the heat exchanger. |
| Leaks and Cracks | Critical failure modes leading to refrigerant loss and reduced performance. |
Addressing these failure modes promptly can enhance the lifespan of heat exchangers. For copper fins, repairs often involve soldering or replacing damaged sections. This process is typically straightforward, allowing for quick restoration of functionality.
In contrast, repairing aluminum fins can be more complex. The presence of corrosion may necessitate complete replacement of affected components. Additionally, the repair process may require specialized skills to ensure proper handling and reassembly.
Application Suitability
The choice between copper and aluminum fin heat exchangers often depends on specific application requirements and industry standards. Each material has unique properties that make it suitable for different environments and uses.
Industry Preferences

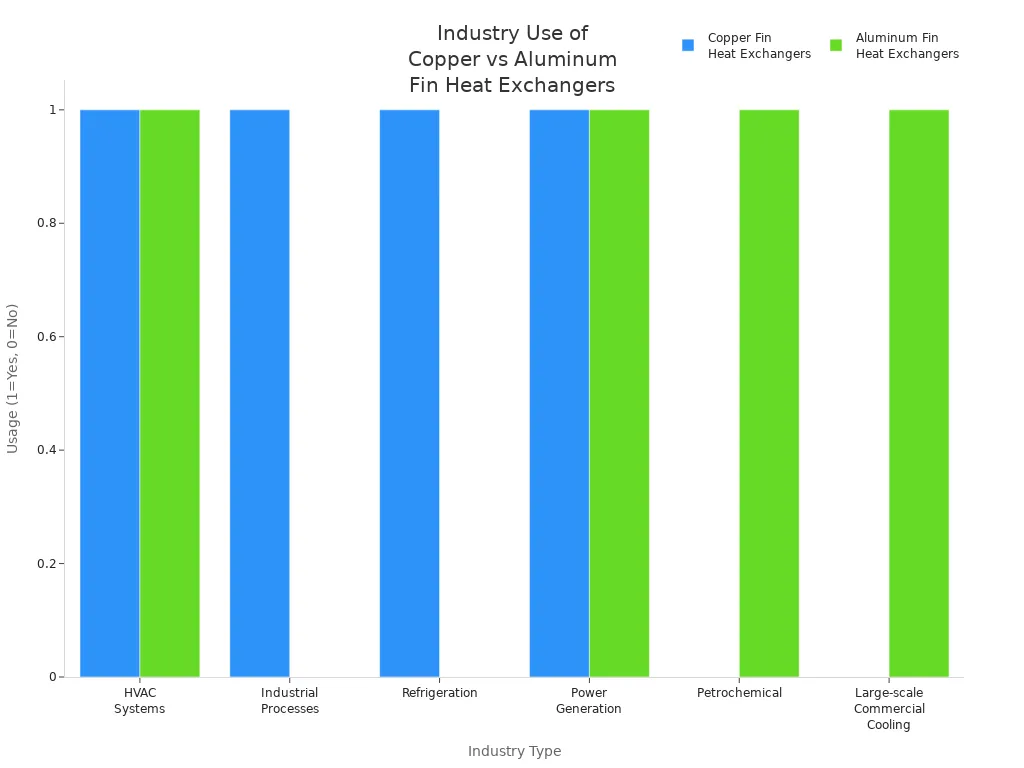

Certain industries favor copper fin heat exchangers due to their superior thermal conductivity and durability. Others prefer aluminum for its cost-effectiveness and lighter weight. The following table summarizes the predominant usage of each type across various industries:
| Industry Type | Copper Fin Heat Exchangers | Aluminum Fin Heat Exchangers |
|---|---|---|
| HVAC Systems | Yes | Yes |
| Industrial Processes | Yes | No |
| Refrigeration | Yes | No |
| Power Generation | Yes | Yes |
| Petrochemical | No | Yes |
| Large-scale Commercial Cooling | No | Yes |
Performance Requirements
Copper fins excel in applications requiring high thermal conductivity and antimicrobial properties. The following table highlights the performance characteristics of both materials:
| Material | Thermal Conductivity | Antimicrobial Properties | Cost | Structural Strength |
|---|---|---|---|---|
| Copper | Superior | Yes | High | Lower |
| Aluminum | Good | No | Lower | Higher |
Environmental Considerations
Environmental factors significantly influence the choice of heat exchangers. High humidity can lead to condensation, increasing the risk of corrosion and frost formation. Therefore, selecting the right material is crucial for maintaining durability and efficiency.
In humid environments, copper's natural resistance to corrosion makes it a preferred choice. Conversely, aluminum may require additional protective coatings to withstand similar conditions.
Regulatory Standards
Different regions impose various regulatory requirements that affect material selection. For instance, standards such as TEMA and ASME ensure safety and performance in industrial applications. The following table outlines some key certifications:
| Certification/Standard | Description |
|---|---|
| TEMA | Standards for chemical, commercial, and petroleum processing. |
| ASME | Safety and performance standards for pressurized components. |
| PED | European safety standard for pressure equipment. |
| 3-A Sanitary Standards | Ensures cleanability for food and pharmaceutical equipment. |
In summary, copper fins deliver superior heat transfer performance compared to aluminum fins. However, engineers must consider several factors when making their choice. Cost, weight, and application suitability significantly influence the decision.
- Cost: Aluminum is generally more affordable, making it attractive for budget-conscious projects.
- Weight: Copper fins are heavier, which can complicate installation and transportation.
- Application Suitability: Copper excels in high-performance environments, while aluminum may suffice for less demanding applications.
Ultimately, engineers should balance these factors to select the most appropriate heat exchanger for their specific needs.
FAQ
What are the main advantages of copper fin heat exchangers?
Copper fin heat exchangers offer superior thermal conductivity, durability, and corrosion resistance. They excel in high-performance applications, making them ideal for industries like refrigeration and HVAC.
Are aluminum fin heat exchangers more cost-effective?
Yes, aluminum fin heat exchangers are generally more affordable than copper. Their lower material costs make them attractive for budget-conscious projects, especially in less demanding applications.
How do temperature changes affect copper and aluminum fins?
Both materials experience thermal expansion and contraction. However, copper fins may be more prone to stress corrosion cracking if improperly handled during installation, while aluminum fins can suffer from structural integrity issues.
What maintenance do copper and aluminum fins require?
Copper fins typically require less maintenance due to their natural corrosion resistance. In contrast, aluminum fins may need more frequent inspections and cleaning to prevent fouling and corrosion.
Which industries prefer copper fin heat exchangers?
Industries such as HVAC, refrigeration, and power generation often prefer copper fin heat exchangers. Their superior thermal performance and durability make them suitable for demanding environments.
