Introduction
Reliable heat rejection is a defining factor in medical ultra-low temperature refrigeration, where cabinet temperatures near -80°C must remain stable despite continuous operation and changing room conditions. In these systems, condenser design affects compressor load, pull-down speed, energy use, and the ability to maintain tight temperature control after door openings or peak thermal demand. This article examines condenser solutions used in medical ULT refrigerators, including the performance tradeoffs between different configurations, the design factors that influence efficiency and reliability, and the practical considerations that matter for manufacturers, engineers, and facility buyers evaluating long-term system performance.

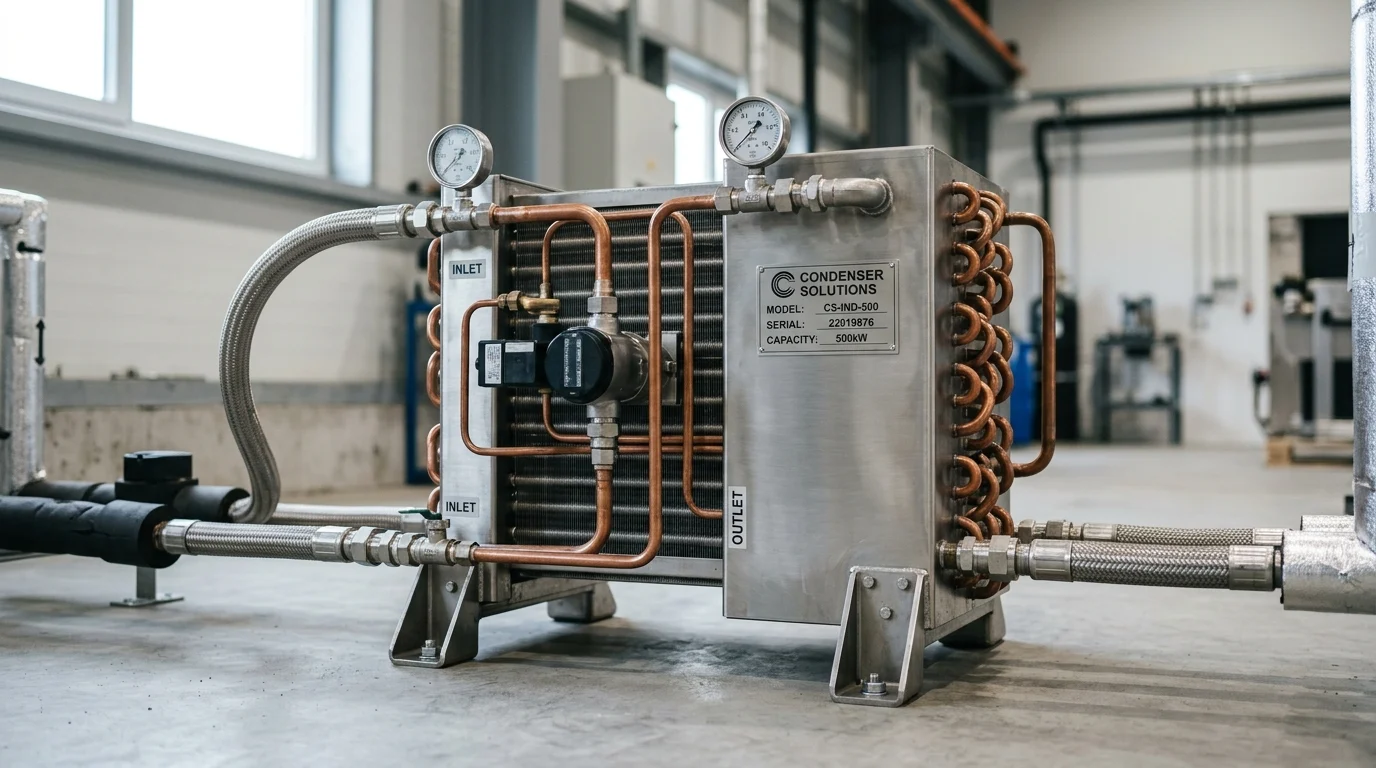

Why Condenser Solutions Matter for Medical Ultra-Low Temperature Refrige
Ultra-low temperature (ULT) refrigerators, designed to maintain internal environments between -80°C and -86°C, rely heavily on cascade refrigeration architectures. At the heart of these complex thermodynamic cycles lies the condenser, a critical component responsible for rejecting the heat extracted from the storage cabinet alongside the heat generated by the compressors.
In medical and laboratory environments, these systems frequently operate under continuous stress. The efficiency of the condenser dictates the stability of the entire Refrigeration Cycle, making its selection a fundamental engineering priority for manufacturers aiming to guarantee sample integrity under fluctuating ambient conditions.
Impact on pull-down speed and temperature stability
The thermal transfer capability of the condenser directly governs the discharge pressure and volumetric efficiency of the high-stage compressor. Efficient heat rejection ensures that the high-stage refrigerant condenses rapidly, which is essential for maintaining the intermediate heat exchanger temperatures required to cool the low-stage circuit.
When condenser solutions are optimized, systems can achieve ambient to -80°C pull-down times of under 4 hours, ensuring rapid thermal recovery after prolonged door openings. Conversely, an undersized or poorly designed condenser elevates condensing temperatures, drastically degrading pull-down velocity and jeopardizing the stability of the internal cabinet temperature during peak thermal loads.
Effects on energy use, heat rejection, and service intervals
Modern ULT freezers are historically energy-intensive, frequently consuming between 8 and 12 kWh per day. Upgrading to high-efficiency condenser solutions maximizes the surface area for heat exchange, which subsequently reduces the duty cycle of the compressors and lowers overall electrical draw.
Furthermore, efficient heat rejection limits the thermal burden placed on the laboratory’s HVAC system. By minimizing compressor run times through superior condenser performance, mechanical wear is reduced. This allows medical facilities to extend preventive service intervals and lower the total operational footprint of their biomedical storage infrastructure.
Technical Criteria for Choosing Condenser Solutions
Selecting the optimal condenser configuration necessitates a rigorous evaluation of thermodynamic properties, spatial constraints, and material science. Engineering the optimal heat rejection mechanism requires balancing heat transfer coefficients against the realities of clinical operating environments.
Condenser types, coil materials, and fin design
The physical architecture of the condenser coil dictates both its thermal capacity and its vulnerability to environmental fouling. Traditional tube-and-fin condensers utilizing copper tubes and aluminum fins remain the industry standard due to their robust mechanical properties and ease of repair. However, microchannel aluminum condensers are increasingly specified for their superior heat transfer coefficients and compact form factors.
Fin spacing is a critical variable; a spacing of 2.5 mm to 4.0 mm is typically required to balance optimal airflow with resistance to dust occlusion.
| Feature | Tube-and-Fin | Microchannel |
|---|---|---|
| Heat Transfer Efficiency | Baseline | Up to 30% higher |
| Internal Volume | High | Low (Ideal for HC refrigerants) |
| Fouling Resistance | Moderate to High (with wider fins) | Low (Requires strict filtration) |
| Weight | Heavier | Up to 50% lighter |
Refrigerant compatibility and system integration
The transition toward environmentally sustainable natural refrigerants has profoundly influenced condenser engineering. High-stage circuits predominantly utilize hydrocarbon refrigerants such as R290 (propane), which possess excellent thermodynamic properties but operate under specific pressure and volume constraints.
Condensers must be engineered to withstand elevated operating pressures, often requiring burst pressure ratings exceeding 150 bar. Furthermore, global safety standards restrict the maximum allowable charge of flammable hydrocarbons to 150 grams per closed circuit. Condenser solutions with minimized internal volumes, such as microchannel designs or reduced-diameter tube-and-fin coils utilizing 5mm tubing, are essential for maximizing heat transfer area without exceeding this strict volumetric threshold.
Reliability, Compliance, and Lifecycle Performance
In medical and clinical environments, the reliability of ultra-low temperature refrigeration is non-negotiable. The biological samples, vaccines, and reagents stored within these units frequently represent millions of dollars in research value or critical patient therapies, making system uptime the primary metric of success.
Failure modes, maintenance needs, and contamination risks
The primary failure mode for refrigeration condensers is the gradual accumulation of particulate matter on the heat exchange surfaces. Fouling restricts airflow, causing discharge pressures to spike and forcing the compressor to operate outside its designed thermal envelope. This persistent thermal stress is a leading cause of premature compressor failure.
Utilizing condensers engineered with wider fin spacing (greater than 3.0 mm) or integrating automated self-cleaning fan systems can safely extend maintenance and filter-cleaning intervals from a standard 3 months to 6 or even 12 months. Additionally, condensers deployed in clinical environments face risks from chemical cleaning agents; therefore, applying hydrophilic or epoxy-based anti-corrosion coatings is critical to preventing galvanic corrosion and subsequent refrigerant leaks.
Standards, validation, and documentation requirements
Condenser solutions destined for medical devices must comply with stringent regulatory and quality frameworks. Components must adhere to the Pressure Equipment Directive (PED 2014/68/EU) and RoHS standards, ensuring safe operation and the exclusion of hazardous substances.
Validation protocols require rigorous leak detection during manufacturing. Medical-grade condensers are typically subjected to helium mass spectrometry leak testing, with acceptance thresholds strictly set at or below 1.0 x 10^-5 mbar L/s to guarantee hermetic integrity over a 10-to-15-year lifecycle. Comprehensive documentation, including material test reports (MTRs) and burst test certifications, must be maintained to support the final OEM’s FDA Class II or CE medical device submissions.
Sourcing, Manufacturing Quality, and Total Cost
Strategic procurement of condenser coils requires supply chain professionals to look beyond the initial component price and evaluate the long-term financial implications of manufacturing quality and operational efficiency.
Supplier qualification and production controls
Qualifying a condenser supplier demands rigorous auditing of their production environment and quality control methodologies. For ultra-low temperature applications utilizing cascade systems, internal cleanliness is paramount.
Residual moisture or manufacturing debris within the condenser can freeze or accumulate in the capillary tubes, leading to catastrophic system blockages. Suppliers must utilize controlled atmosphere brazing and demonstrate internal moisture content restrictions of less than 20 mg/m^2. Furthermore, automated brazing processes and in-line statistical process control (SPC) are essential to ensure consistent joint integrity and eliminate the variability associated with manual welding.
Cost comparison points for procurement teams
Procurement teams must analyze condenser investments through the lens of Total Cost of Ownership (TCO). While advanced geometries may present a higher upfront cost, they yield significant downstream savings.
| Cost Driver | Standard Tube-and-Fin | Advanced Microchannel / 5mm Tube |
|---|---|---|
| Upfront Component Cost | Baseline | 15% to 20% Premium |
| Refrigerant Charge Cost | Higher (requires more gas) | Lower (supports strict 150g limits) |
| Energy Consumption | Baseline | Up to 10% reduction in compressor energy |
| Shipping & Logistics | Baseline (heavier/bulkier) | Reduced (lighter/compact footprint) |
Selecting a premium condenser solution can offset its initial price premium within the first two years of operation through energy savings and reduced warranty claims related to compressor thermal overloads.
Decision Framework for Selecting the Right Solution
Selecting the definitive condenser architecture for a medical ultra-low temperature refrigerator demands a systematic evaluation of thermodynamic requirements, regulatory constraints, and lifecycle economics.
Step-by-step selection process
The engineering team must initiate the selection process by defining the exact thermal load; a standard 700-liter ULT freezer typically requires a condenser capable of rejecting between 800W and 1200W of heat. Next, spatial constraints within the compressor compartment dictate the maximum physical dimensions of the heat exchanger.
Engineers must then select the optimal fin density based on the anticipated operating environment, prioritizing wider spacing for dust-prone laboratories. Finally, the selected prototypes must undergo rigorous validation in environmental test chambers, ensuring the system can maintain a -86°C setpoint even when subjected to ambient temperatures of 32°C or 43°C during stress testing.
Balancing performance, compliance, and cost
The ultimate decision rests on harmonizing performance metrics with compliance and budgetary realities. While high-efficiency microchannel designs offer exceptional heat transfer and low internal volumes ideal for the 150g hydrocarbon charge limit, they mandate stringent air filtration to prevent rapid fouling.
Conversely, heavy-duty tube-and-fin models offer rugged reliability and longer intervals between cleanings, albeit with a larger spatial footprint. By aligning the condenser’s technical specifications with the specific reliability demands of medical storage, manufacturers can deliver ultra-low temperature refrigerators that ensure uncompromised sample security, regulatory compliance, and optimal total cost of ownership.
Key Takeaways
- The most important conclusions and rationale for Condenser Solutions
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
