Introduction
Commercial refrigeration designers are reassessing condenser choices as energy targets tighten and equipment costs face closer scrutiny. Wire tube condensers, once associated mainly with household appliances, are now emerging as a practical option for light commercial systems because they combine simpler construction, lower material cost, and dependable heat rejection with minimal maintenance. This article examines where these condensers fit best in commercial refrigeration equipment, what performance and manufacturing advantages are driving adoption, and which application conditions most strongly influence their value. With that context, the discussion can move into segment-specific use cases, design tradeoffs, and the technical factors that determine successful implementation.
Strategic Relevance of Wire Tube Condensers in Commercial Refrigeration
As commercial refrigeration original equipment manufacturers (OEMs) navigate tightening energy regulations and aggressive cost-reduction pressures, the architectural design of thermal management systems has become a central focus. Traditionally relegated to domestic appliances, wire tube condensers are rapidly gaining traction in light commercial refrigeration. This shift is driven by advancements in automated manufacturing and an urgent need for components that offer high reliability in challenging environments without the maintenance overhead of traditional finned designs.
Cost and energy advantages
The primary driver for adopting wire tube designs over traditional fin-and-tube heat exchangers lies in raw material and operational cost differentials. Utilizing carbon steel Bundy tubes and steel wires instead of copper tubes and Aluminum Fins yields a baseline manufacturing cost reduction of 15% to 25% per unit. Furthermore, the open geometry of wire tube condensers significantly reduces airflow resistance.
This aerodynamic efficiency allows for the use of lower-wattage condenser fans or, in some low-capacity applications, entirely natural convection. By eliminating or downsizing the fan motor, OEMs can reduce total system energy consumption by 10 to 15 watts per unit. This is a critical advantage when designing equipment to meet stringent international energy efficiency standards.
High-growth commercial refrigeration segments
The deployment of these condensers aligns directly with high-growth segments in the commercial space, particularly self-contained display cases, beverage coolers, and commercial ice cream freezers. The global light commercial refrigeration market is expanding steadily, driven by the proliferation of convenience stores and quick-service restaurants.
In these retail environments, equipment must operate continuously with minimal downtime. The inherent resistance of wire tube condensers to dust accumulation makes them exceptionally well-suited for high-traffic segments, where regular coil cleaning is rarely performed by end-users.
Application Fit and Technical Performance
Transitioning to a wire tube architecture requires a rigorous assessment of thermal dynamics and spatial constraints within the equipment chassis. Engineers must balance the required heat rejection capacity against the physical footprint and airflow patterns inherent to the cabinet design.
Heat-transfer and airflow evaluation

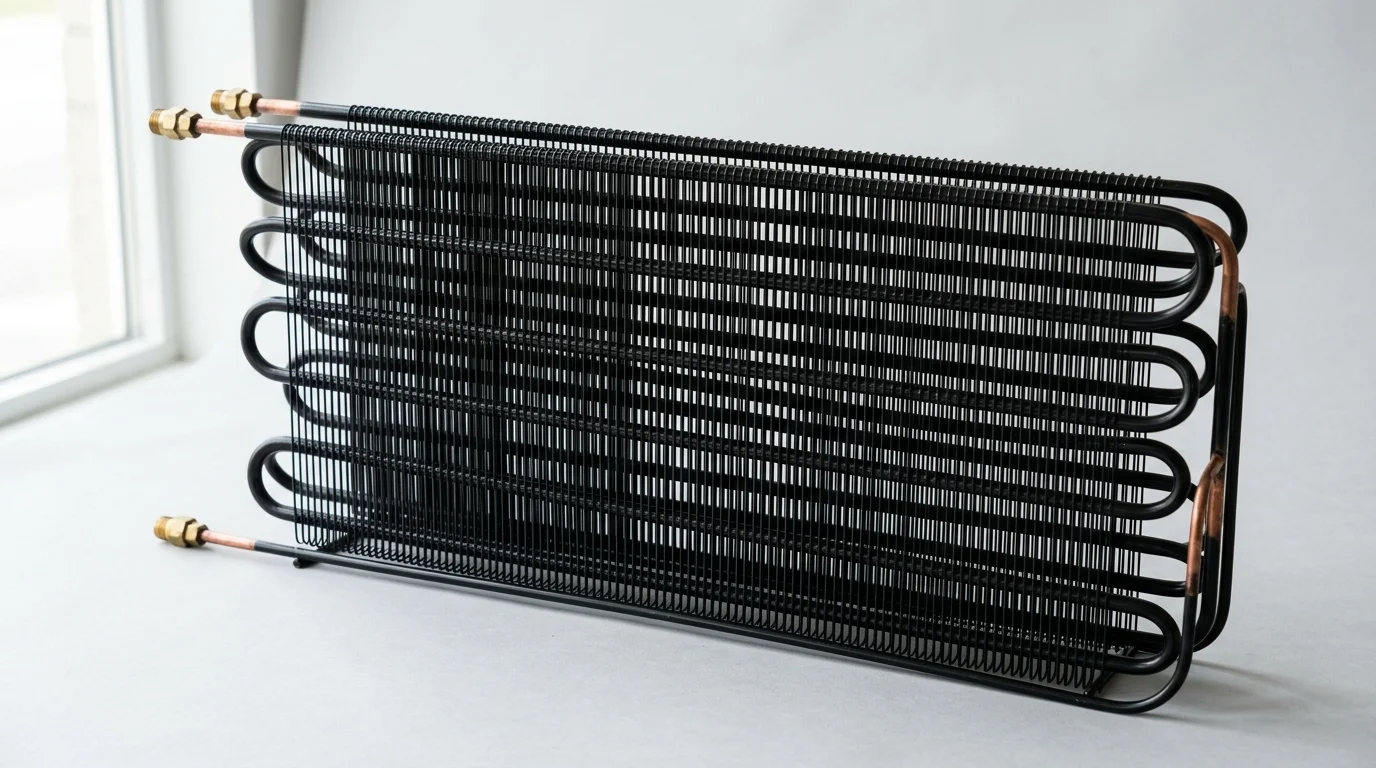

Unlike fin-and-tube designs that rely heavily on forced convection to push air through tightly spaced fins, wire tube condensers feature an open geometry that drastically reduces air-side pressure drop. The convective heat transfer coefficient for these units typically ranges from 8 to 15 W/m²K in natural convection environments, scaling up to 35 W/m²K under forced airflow.
To optimize heat transfer, manufacturers manipulate the wire pitch, usually maintaining a spacing of 4.0mm to 6.0mm. This precise spacing maximizes the external surface area while preventing the boundary layers of adjacent wires from overlapping, which would otherwise impede airflow and degrade thermal performance.
Refrigerants, operating conditions, and cabinet design
The industry-wide shift toward natural refrigerants, particularly R290 (propane) and R600a (isobutane), heavily favors wire tube condenser integration. Given the strict flammability regulations that historically limited R290 charges to 150g (and up to 500g under newer IEC standards for commercial cabinets), minimizing the internal volume of the heat exchanger is critical.
Wire tube condensers utilize smaller internal diameter Bundy tubes (often 4.76mm), which significantly reduces the internal volume compared to standard 3/8-inch (9.52mm) copper tubing. This low internal volume allows OEMs to achieve the required subcooling and heat rejection without exceeding strict hydrocarbon charge limits, ensuring both safety compliance and optimal thermodynamic performance.
Key comparison criteria
When evaluating thermal exchange architectures, OEMs must weigh several competing variables. The table below outlines the primary technical distinctions between wire tube and fin-and-tube condensers in sub-1000W applications.
| Feature | Wire Tube Condenser | Fin-and-Tube Condenser |
|---|---|---|
| Primary Materials | Steel (Bundy tube, steel wire) | Copper tubes, Aluminum fins |
| Airflow Resistance | Very Low (< 10 Pa pressure drop) | High (Requires high-RPM fans) |
| Dust Accumulation | Minimal (Self-cleaning tendency) | High (Prone to rapid fouling) |
| Typical Cost Range | $8 – $22 per unit | $15 – $40 per unit |
| Optimal Cooling Range | 100W – 750W | 500W – 5000W+ |
Manufacturing, Cost, and Supply Chain
Scaling the application of wire tube condensers into commercial channels necessitates a comprehensive understanding of the associated supply chain, from raw material sourcing to final assembly validation. The reliance on steel rather than volatile non-ferrous metals provides a distinct advantage in supply chain stability.
Total landed cost drivers
Total landed costs for wire tube condensers are insulated from the severe price volatility of the global copper market, as they are heavily influenced instead by more stable global steel indices. Standard specifications utilize steel wire diameters ranging from 1.2mm to 1.6mm, resistance-welded to double-wall copper-brazed steel tubes (Bundy tubes) with outer diameters typically set at 4.76mm, 6.0mm, or 8.0mm.
Because the manufacturing process is highly automated—involving continuous wire feeding, multi-spot welding, and CNC bending—labor costs are minimized. However, production economies of scale dictate that Minimum Order Quantities (MOQs) typically range from 1,000 to 5,000 units to effectively absorb machine setup times.
Supplier capability and quality control
Supplier qualification in the commercial refrigeration sector demands stringent quality control protocols, particularly concerning weld integrity and internal system cleanliness. The internal moisture content must be strictly controlled to prevent capillary tube blockages and compressor failure, usually mandated to remain below 20 mg/m².
Reputable suppliers target defect rates of less than 500 Parts Per Million (PPM). To guarantee pressure integrity, 100% of production units must undergo rigorous leak testing. This is typically performed underwater using dry air or nitrogen at pressures between 1.5 and 2.0 MPa, ensuring zero micro-leaks before the electrophoretic coating is applied.
Procurement and validation steps
The procurement cycle for custom wire tube condensers involves a relatively low barrier to entry regarding tooling. Custom bending and welding fixtures generally incur tooling costs between $2,000 and $5,000, which is significantly lower than the progressive dies required for custom aluminum fins.
Validation steps include initial 3D modeling, thermal simulation, and the production of physical prototypes. Standard lead times from prototype approval to mass production average 4 to 8 weeks, allowing OEMs to remain agile when launching new commercial cabinet designs or reacting to seasonal market demands.
Compliance, Durability, and Lifecycle Requirements
Commercial refrigeration equipment operates in unforgiving environments, ranging from high-humidity commercial kitchens to semi-outdoor retail kiosks. Consequently, lifecycle durability and strict adherence to global regulatory compliance form the backbone of component validation.
Corrosion resistance and pressure integrity
Because wire tube condensers are manufactured entirely from carbon steel, robust surface treatment is non-negotiable to prevent galvanic and environmental corrosion. The industry standard is cathodic electrophoretic deposition (e-coating), typically applied at a precise thickness of 15 to 25 micrometers.
This coating must provide uniform coverage over complex weld joints. Quality assurance protocols require these coated condensers to withstand continuous neutral salt spray testing for a minimum of 500 hours—and up to 1,000 hours for premium commercial applications—without exhibiting signs of red rust. Additionally, the burst pressure margin is robust, with the Bundy tubing typically rated to withstand internal pressures exceeding 15.0 MPa.
Regulatory and regional requirements
Compliance with global environmental directives dictates both the manufacturing inputs and the operational outputs of the condenser. Components must strictly adhere to the Restriction of Hazardous Substances (RoHS) and the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) directives, ensuring no heavy metals like hexavalent chromium are utilized in surface treatments.
Furthermore, as the Department of Energy (DOE) in the United States and EcoDesign directives in Europe push for lower Daily Energy Consumption (DEC) in commercial refrigeration, the high heat-transfer efficiency and low auxiliary power requirements of wire tube condensers directly assist OEMs in achieving these mandated efficiency thresholds.
Service, maintenance, and warranty
The total cost of ownership (TCO) for commercial refrigeration heavily factors in field service and maintenance. Dust and grease blockages are a primary failure mode for fin-and-tube condensers, often requiring professional cleaning every 3 to 6 months to prevent compressor overheating and premature failure.
The wide pitch and smooth cylindrical profile of the wires in a wire tube condenser inherently resist debris accumulation. This self-cleaning tendency drastically extends routine maintenance intervals to 24 months or more, significantly lowering lifecycle maintenance costs and reducing the incidence of warranty claims related to compressor thermal overload.
OEM and Buyer Decision Framework
For procurement and engineering teams, the decision to pivot to wire tube condensers must be grounded in a structured evaluation of technical requirements, lifecycle costs, and supplier capabilities. A strategic framework ensures that the selected thermal architecture aligns with both immediate product specifications and long-term commercial goals.
Best-fit use cases
The optimal deployment of wire tube condensers is concentrated in fractional horsepower systems, typically those with a cooling capacity below 1 HP (approximately 750W). They are the undisputed best fit for under-counter refrigerators, glass-door merchandisers, and bottle coolers where space allows for a broad, flat, or uniquely folded condenser geometry.
In scenarios requiring higher cooling capacities (exceeding 1000W), the physical footprint required for a wire tube condenser to match the heat rejection of a multi-row fin-and-tube coil becomes prohibitive. Therefore, OEMs must strictly map the condenser type to the volumetric constraints of the specific cabinet.
Cross-functional selection criteria
A successful transition to wire tube architecture requires alignment across multiple organizational departments. Engineering prioritizes thermodynamics, procurement focuses on cost and supply stability, and quality assurance demands lifecycle durability. The following matrix outlines the cross-functional criteria necessary for optimal vendor and component selection.
| Department | Primary Objective | Key Performance Indicator (KPI) | Target Threshold |
|---|---|---|---|
| Engineering | Thermal optimization & reliability | Heat transfer coeff. / Leak rate | > 12 W/m²K / Zero leaks at 2.0 MPa |
| Procurement | Cost reduction & supply stability | Unit cost / Minimum Order Quantity | < $15 per unit / MOQ 1,000 - 2,000 |
| Quality Assurance | Lifecycle durability | Salt spray resistance | > 500 hours without red rust |
| Service/Aftermarket | Maintenance reduction | Field failure / Fouling rate | Warranty claims < 0.5% annually |
By utilizing this framework, OEMs can systematically validate wire tube condensers, ensuring that the transition from traditional copper-aluminum coils yields measurable improvements in manufacturing margins, energy compliance, and long-term equipment reliability.
Key Takeaways
- The most important conclusions and rationale for Wire Tube Condensers
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What commercial equipment is best suited for wire tube condensers?
They fit self-contained display cases, beverage coolers, ice cream freezers, wine cabinets, and small freezers, especially in sub-1000W applications.
Why are wire tube condensers attractive for OEM cost control?
They typically use steel Bundy tubes and steel wire, cutting unit cost by about 15% to 25% versus copper-aluminum finned designs.
How do wire tube condensers help with energy efficiency?
Their open structure lowers airflow resistance, allowing smaller fans or natural convection, which can save roughly 10 to 15 watts per unit.
Are wire tube condensers suitable for R290 or R600a systems?
Yes. Their smaller internal tube volume helps OEMs manage hydrocarbon charge limits while maintaining needed heat rejection and subcooling.
What support can Senjun Cooler provide for wire tube condenser projects?
Senjun offers wire tube condenser manufacturing, quality-controlled production, cost-effective customization, and responsive project support for refrigeration OEMs and buyers.
